1. Introduzione
Thank you for choosing the Donner DED-100 Electronic Drum Set. This manual provides essential information for the proper assembly, operation, and maintenance of your new instrument. Please read this manual thoroughly before using the product to ensure safe and optimal performance.

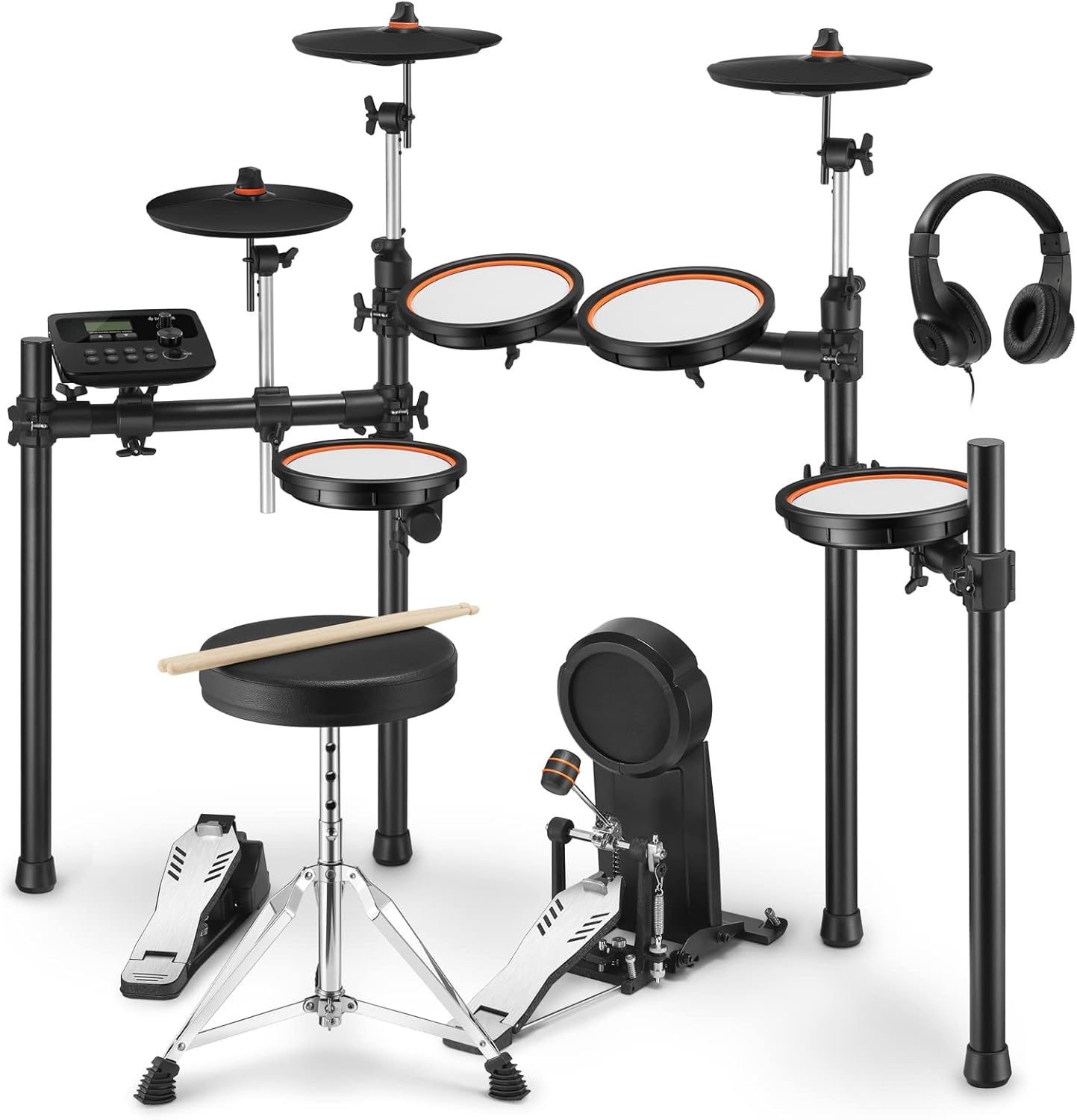

Image 1.1: The complete Donner DED-100 Electronic Drum Set.
The Donner DED-100 is designed to offer a realistic drumming experience with its mesh heads and comprehensive sound module. It is suitable for various environments, from home practice to small studio sessions, thanks to its quiet operation and versatile connectivity options.
2. Informazioni sulla sicurezza
- Alimentazione elettrica: Utilizzare solo l'adattatore di alimentazione specificato. Assicurarsi che il volumetage corrisponde ai requisiti del prodotto.
- Posizionamento: Place the drum set on a stable, level surface to prevent tipping. Avoid extreme temperatures, humidity, or direct sunlight.
- Acqua e umidità: Do not expose the unit to water or excessive moisture. If liquid enters the unit, disconnect power immediately and contact support.
- Pulizia: Scollegare l'alimentazione prima della pulizia. Utilizzare un panno morbido e asciutto. Non utilizzare detergenti liquidi o spray.
- Bambini: Keep small parts out of reach of children to prevent choking hazards. Adult supervision is recommended during use by children.
- Smontaggio: Non tentare di smontare o modificare l'unità. Ciò potrebbe causare danni e invalidare la garanzia.
3. Contenuto della confezione
Si prega di verificare che tutti i seguenti articoli siano inclusi nel pacchetto:
- Modulo tamburo
- Sistema di rack per batteria
- Snare Pad (Mesh)
- Tom Pads (Mesh) x3
- Crash Cymbals x2
- Ride Cymbal x1
- Hi-Hat Cymbal x1
- Pedale di controllo del charleston
- Pedale per grancassa
- Trono del tamburo
- Bacchette
- Cuffie
- Adattatore di alimentazione
- Cavi di collegamento
- Manuale d'uso
Image 3.1: The included drum throne, featuring a stable tripod base.
4. Assemblaggio e configurazione
Follow these general steps to assemble your Donner DED-100 Electronic Drum Set. Refer to the included quick setup guide for detailed diagrams.
- Disimballare i componenti: Estrarre con cautela tutti i componenti dall'imballaggio e disporli.
- Assemble Drum Rack: Connect the frame pieces to form the main drum rack. Ensure all clamps sono serrati saldamente.
- Fissare i pad e i piatti: Mount the snare, tom pads, and cymbals to the rack using the provided clampe braccia. Regola la loro posizione per suonare comodamente.
- Installa i pedali: Place the bass drum pedal and hi-hat control pedal on the floor in their desired positions.
- Collegare i cavi: Connect each pad, cymbal, and pedal to the drum module using the supplied cables. Ensure each cable is connected to the correct input on the module.
- Modulo tamburo di montaggio: Attach the drum module to the rack in an easily accessible location.
- Connetti alimentazione: Plug the power adapter into the drum module and then into a power outlet.
- Adjust Mesh Head Tension: The mesh heads can be adjusted for tension to suit your playing preference. Use the rotary adjustment mechanism on each pad.
Image 4.1: Adjusting the mesh head tension for a customized playing feel.
Image 4.2: The newly designed 6-inch bass drum pedal for realistic feel and sound insulation.
5. Istruzioni per l'uso
This section covers the basic operation of your DED-100 drum set.
5.1 Accensione/spegnimento
- Per accendere, premere il ENERGIA button on the drum module.
- Per spegnere, tenere premuto il pulsante ENERGIA pulsante finché il display non si spegne.
5.2 Navigating the Drum Module
The drum module is the central control unit for your DED-100. It features a display, navigation buttons, and a master volume knob.
Image 5.1: The DED-100 drum module, featuring training and metronome functions.
- Utilizzare il KIT buttons to select different drum kits.
- Utilizzare il VOCE buttons to change individual drum sounds within a kit.
- IL CANZONE button allows you to select and play demo songs.
- Regolare il volume generale utilizzando il VOLUME PRINCIPALE manopola.
5.3 Uso delle cuffie
For quiet practice, connect the included headphones to the TELEFONI output on the drum module. This mutes the main output, allowing you to practice without disturbing others.
Image 5.2: Practicing with headphones for a quiet drumming experience.
6. Funzionalità finiteview
6.1 Realistic Feel and Quietness
The DED-100 features high-density 8-inch mesh heads for snare and tom pads, and 10-inch cymbals. These provide a realistic playing feel with appropriate rebound while maintaining quiet operation. The mesh head tension is easily adjustable, allowing you to customize the feel to your preference. The newly designed 6-inch bass drum pedal also contributes to an authentic bass drum feel with excellent sound insulation, minimizing physical knocking sounds.
Image 6.1: Full mesh drum pads offer a realistic rebound and quiet practice.
6.2 Rich Training Functions
The drum module is equipped with 425 types of tones, 30 preset drum kits, and 55 demo songs. You can also finely edit each kit and tone to create your custom sounds. Integrated training functions, such as a drum coach and metronome, are designed to enhance your learning experience and help you develop precise skills and rhythm.
Image 6.2: The DED-100 offers a wide range of sounds and training features.
6.3 Diverse Connectivity
The DED-100 offers various connection terminals for enhanced versatility:
- USB-MIDI: Connect to a computer to link with Digital Audio Workstation (DAW) software for music production or recording.
- INGRESSO AUX: Connect MP3 players or other audio devices to play along with your favorite tracks.
- TELEFONI: Per esercitazioni private con cuffie.
- Uscita L/MONO: Per connettersi a un amplifier o sistema PA.
Image 6.3: The drum module's diverse connection terminals.
Image 6.4: USB-MIDI connectivity allows integration with music production software.
6.4 Espandibilità
The DED-100 supports expansion with additional Crash 2 and Tom 4 pads, allowing for a maximum configuration of 4 Toms and 2 Crashes. This flexibility enables you to customize your drum setup to suit various musical styles and playing preferences.
7. Manutenzione
- Pulizia: Regularly wipe down the pads, cymbals, and module with a soft, dry cloth. For stubborn dirt, a slightly damp Si può usare un panno, seguito da uno asciutto. Evitare detergenti abrasivi.
- Gestione dei cavi: Ensure all cables are neatly routed and not tangled or pinched to prevent damage.
- Magazzinaggio: Quando non viene utilizzata per lunghi periodi, conservare la batteria in un ambiente pulito e asciutto, lontano dalla luce solare diretta e da temperature estreme.
- Cura della testa in rete: While durable, avoid striking mesh heads with excessive force or sharp objects to prevent damage.
8. Risoluzione Dei Problemi
If you encounter any issues with your DED-100, please refer to the following common problems and solutions:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Nessun suono dalle cuffie/altoparlanti | Volume too low; incorrect cable connection; power issue | Check master volume and headphone volume. Ensure all cables are securely connected. Verify power adapter is plugged in. |
| Pad/Cymbal not responding | Loose cable connection; pad sensitivity setting | Check the cable connecting the pad/cymbal to the module. Adjust pad sensitivity in the module settings if available. |
| Unwanted double triggers | Pad sensitivity too high | Reduce the sensitivity setting for the affected pad in the drum module. |
| Module display is blank | No power; module frozen | Check power connection. Try turning the unit off and on again. |
If the issue persists after trying these solutions, please contact Donner customer support.
9. Specifiche
| Marca | Donner |
| Modello | DED-100 |
| Materiale | Ferro |
| Colore | Nero |
| Dimensioni (L x P x A) | Dimensioni: 85 x 59 x 100 cm |
| Sound Module Tones | 425 |
| Drum Kit | 30 (editable) |
| Canzoni demo | 55 |
| Connettività | USB-MIDI, AUX IN, PHONES, L/MONO Output |
| Componenti inclusi | Drum Module, Drum Rack, Snare Pad, 3 Tom Pads, 2 Crash Cymbals, Ride Cymbal, Hi-Hat Cymbal, Hi-Hat Control Pedal, Bass Drum Pedal, Drum Throne, Drum Sticks, Headphones, Power Adapter, Connection Cables |
Image 9.1: Product dimensions of the DED-100 drum set.
10. Garanzia e supporto
Donner products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official Donner website. For technical support, troubleshooting assistance, or spare parts, please contact Donner customer service through their official channels.
Puoi trovare maggiori informazioni e dettagli di contatto sul sito ufficiale Donner websito: www.donnerdeal.com
