PawHut 3L Pet Water Fountain User Manual

1. Introduzione

Thank you for choosing the PawHut 3L Pet Water Fountain. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new pet water fountain. Please read it thoroughly before use and keep it for future reference.

This elevated pet water fountain is designed to provide fresh, filtered water, promoting hydration and reducing strain on your pet's neck, back, and joints. It features an infrared sensor for automatic water dispensing and multiple operating modes to suit your pet's needs.

Image 1.1: A small dog drinking from the PawHut 3L Pet Water Fountain.

2. Istruzioni di sicurezza

• Leggere attentamente tutte le istruzioni prima di utilizzare l'apparecchio.
• Questo apparecchio è solo per uso domestico interno.
• Non immergere l'adattatore elettrico o il cavo di alimentazione in acqua o altri liquidi.
• Scollegare sempre la fontana prima di pulirla o di effettuare la manutenzione.
• Ensure the power cord is placed where it cannot be tripped over or damaged by pets.
• Non permettere agli animali domestici di masticare il cavo di alimentazione.
• Use only original PawHut replacement parts and accessories.
• Tenere fuori dalla portata dei bambini.
• If the appliance malfunctions or is damaged, discontinue use immediately and contact customer support.

3. Contenuto della confezione

Si prega di controllare il contenuto della confezione per assicurarsi che tutti gli articoli siano presenti e in buone condizioni:

• 1 x Pet Water Fountain Unit
• 1 x pompa dell'acqua
• 1 filtro a carbone attivo
• 1 x adattatore di alimentazione
• 1 x Manuale utente

4. Diagramma del prodotto

Familiarize yourself with the components of your pet water fountain:

Image 4.1: Visual representation of the fountain's top panel with LED indicators for different modes.

• Acqua Basin: Serbatoio principale per l'acqua.
• Drinking Tray: Top surface where pets drink.
• Slot filtro: Location for the activated carbon filter.
• Pompa dell'acqua: Circulates and filters water.
• Sensore a infrarossi: Detects pet presence for automatic dispensing.
• Indicatori LED: Display current mode and alerts (water level, filter change).
• Porta di alimentazione: Si collega all'alimentatore.

5. Impostazione

Follow these steps to set up your PawHut Pet Water Fountain:

1. Disimballare: Rimuovere con attenzione tutti i componenti dalla confezione.
2. Risciacquo: Risciacquare l'acqua basin, drinking tray, and pump thoroughly with water. Do not use soap on the pump.
3. Installa filtro: Place the activated carbon filter into its designated slot in the drinking tray. Ensure it is seated correctly.
4. Assemblare la pompa: Attach the water pump to the bottom of the drinking tray, ensuring the power cord is routed through the designated channel.
5. Fill Water Basin: Riempi l'acqua basin with clean tap water up to the MAX fill line. Do not overfill.
6. Posizionare il vassoio per bere: Carefully place the drinking tray onto the water basin, assicurandosi che sia saldamente fissato.
7. Connetti alimentazione: Connect the power adapter to the fountain's power port and then plug it into a wall outlet.

The fountain will automatically start in its default operating mode (usually Induction Mode) or indicate its status via the LED lights.

6. Modalità operative

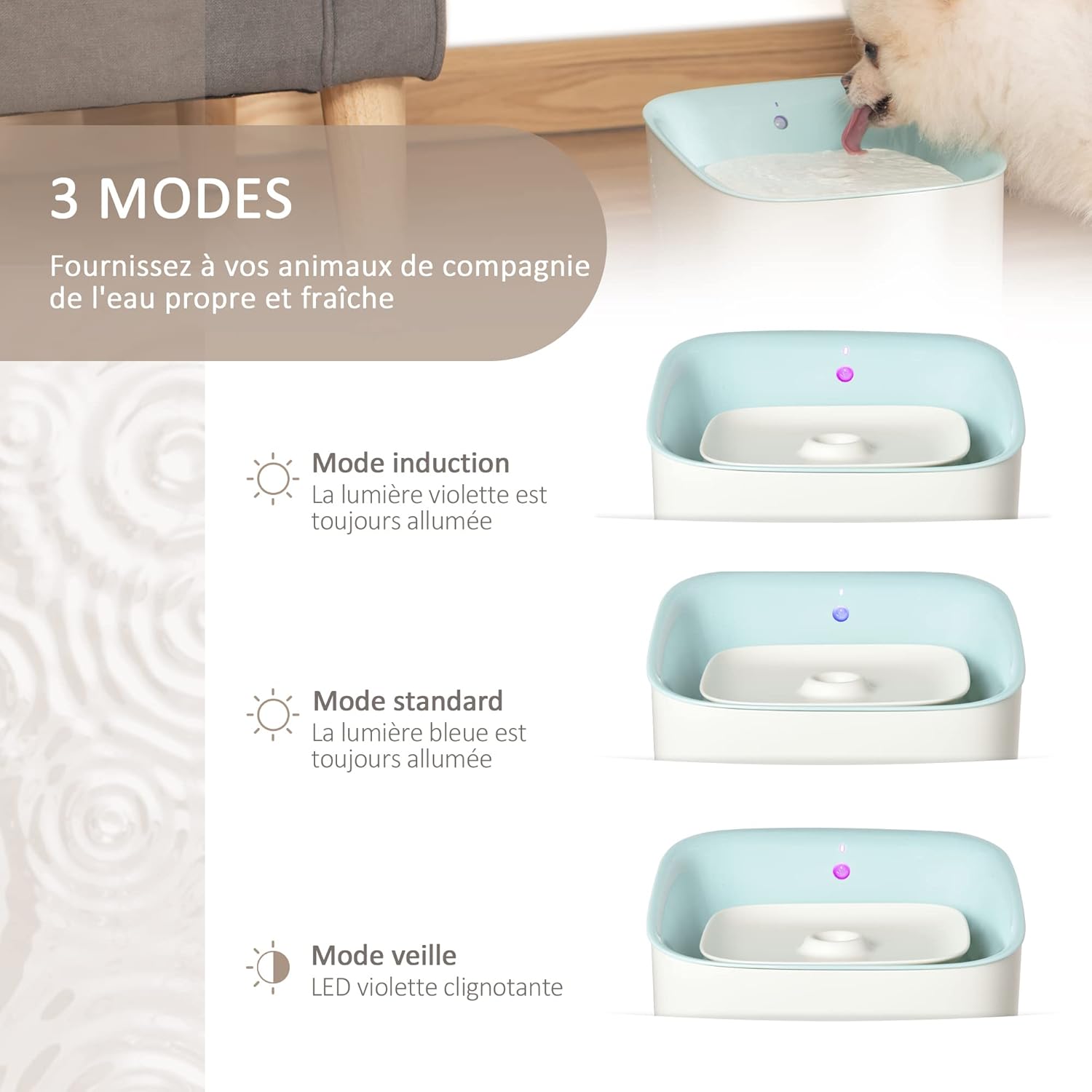

The PawHut Pet Water Fountain offers three operating modes, indicated by LED lights:

• Induction Mode (Purple LED always on): The infrared sensor detects your pet's presence within 1 meter and a 90° angle, automatically dispensing water. Water flow stops after a short delay when the pet leaves the detection area. This mode conserves energy and keeps water fresh.
• Standard Mode (Blue LED always on): Water flows continuously, providing a constant supply for your pets. This mode is suitable for pets who prefer a constant water source or for multiple pets.
• Sleep Mode (Flashing Purple LED): This mode is typically a low-power state or an alert state. Refer to the LED indicator section for specific meanings of flashing patterns.

To switch between modes, press the mode button located on the fountain's top panel.

Image 6.1: The infrared sensor detects pets within 1 meter and a 90-degree angle.

Immagine 6.2: Un primo piano view of the water flow from the fountain.

7. Manutenzione

La pulizia regolare e la sostituzione del filtro sono essenziali per la salute del tuo animale domestico e per la longevità della fontana.

7.1. Pulizia della fontana

1. Scollegare: Scollegare l'adattatore di alimentazione dalla presa a muro.
2. Smontare: Remove the drinking tray and water pump. Empty any remaining water from the basin.
3. Componenti puliti: Wash the water basin and drinking tray with mild soap and water. Rinse thoroughly to remove all soap residue.
4. Pompa pulita: Disassemble the pump (if possible, refer to pump instructions) and clean any debris or hair from the impeller. Rinse the pump thoroughly with water. Do not use soap on the pump.
5. Rimontare: Reassemble the pump and fountain components.
6. Ricarica: Riempi il basin with fresh water and plug the fountain back in.

Clean the fountain at least once a week, or more frequently if you have multiple pets or if the water appears dirty.

7.2. Sostituzione del filtro

The activated carbon filter helps purify the water and should be replaced regularly. The fountain's LED indicator may signal when a filter change is needed (flashing blue LED).

Image 7.1: A close-up of the activated carbon filter in its slot.

1. Scollegare: Scollegare l'adattatore di alimentazione.
2. Rimuovi il vecchio filtro: Lift the drinking tray and remove the old filter from its slot. Dispose of the old filter.
3. Rinse New Filter: Rinse the new activated carbon filter under running water to remove any loose carbon dust.
4. Installa nuovo filtro: Place the new filter into the filter slot, ensuring it fits snugly.
5. Rimontare e riempire: Reassemble the fountain, refill with fresh water, and plug it back in.

Replace the filter every 2-4 weeks, or as indicated by the fountain's LED alert, to ensure optimal water quality.

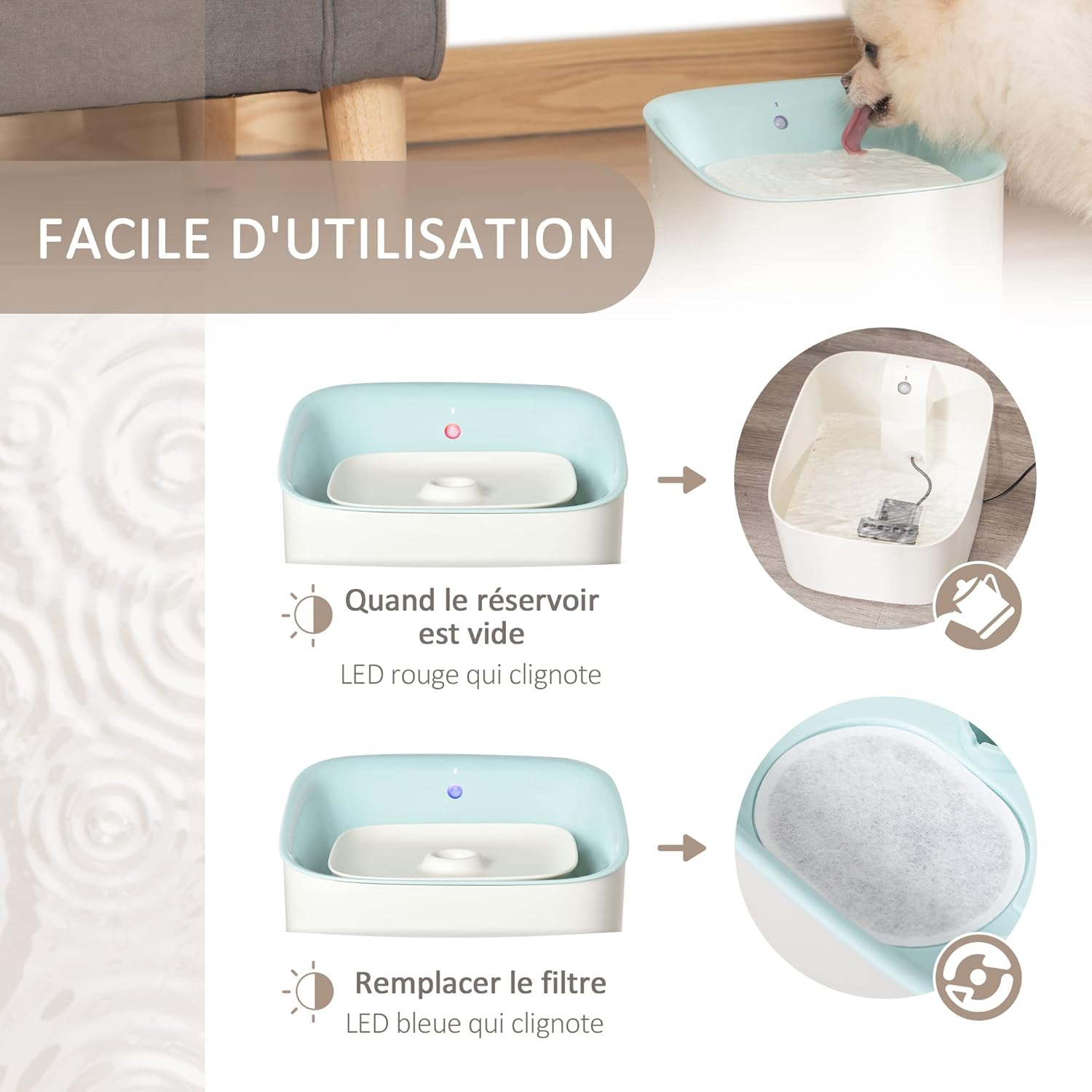

Image 7.2: LED indicators for low water (flashing red) and filter replacement (flashing blue).

8. Risoluzione Dei Problemi

If you encounter any issues with your PawHut Pet Water Fountain, please refer to the following common problems and solutions:

• Nessun flusso d'acqua:
  • Controllare che l'adattatore di alimentazione sia collegato correttamente.
  • Ensure there is enough water in the basin (flashing red LED indicates low water).
  • Clean the water pump and impeller for any blockages (hair, debris).
  • Verify the pump is correctly assembled and seated.
• La fontana è rumorosa:
  • Assicurarsi che il livello dell'acqua sia sufficiente; un livello basso dell'acqua può causare rumore nella pompa.
  • Clean the water pump and impeller.
  • Assicurarsi che la fontana sia posizionata su una superficie piana e stabile.
• L'acqua ha un cattivo sapore o odore:
  • Replace the activated carbon filter (flashing blue LED indicates filter change).
  • Clean the entire fountain thoroughly, including the pump.
  • Riempire con acqua fresca.
• Infrared Sensor Not Working:
  • Assicurarsi che il sensore sia pulito e libero da ostruzioni.
  • Verify the fountain is in Induction Mode (purple LED).
  • Check if the pet is within the detection range (1 meter, 90° angle).

If the problem persists after trying these solutions, please contact PawHut customer support.

9. Specifiche

Image 9.1: Detailed dimensions of the PawHut 3L Pet Water Fountain.

10. Garanzia e supporto

This product comes with a standard manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or visit the official PawHut website. If you require technical assistance, replacement parts, or have any questions not covered in this manual, please contact PawHut customer support through their official channels.

Websito: www.pawhut.com (Exampil link, per favore verifica ufficiale websito)
