SOWO CONF360 Bluetooth Speakerphone User Manual

Introduzione

The SOWO CONF360 is a versatile Bluetooth speakerphone designed for clear and efficient conference calls. It features 4 AI microphones for 360-degree voice pickup and 4 speakers for 360-degree sound output, ensuring an optimal audio experience for up to 10 people. This manual provides instructions for setting up, operating, and maintaining your device.

Figura 1: The SOWO CONF360 Bluetooth Speakerphone, a compact and portable device for conference calls.

Contenuto della confezione

Si prega di selezionare la casella per i seguenti elementi:

• Bluetooth conference speaker (1)
• Manuale di istruzioni (1)
• Cavo USB (1)
• 3.5mm audio cable (1)
• Bluetooth adapter (1)

Prodotto finitoview

The SOWO CONF360 features an intuitive control layout for easy operation.

Figura 2: Superiore view of the SOWO CONF360 speakerphone, illustrating its omnidirectional voice pickup and sound output with four integrated microphones and speakers.

Comandi e indicatori

• Pulsante di accensione: Located in the center, used to turn the device on/off.
• Volume basso (-): Diminuisce il volume dell'audio.
• Volume su (+): Aumenta il volume dell'audio.
• Tasto muto: Disattiva o riattiva il microfono.
• Phone Symbol Button: Manages call functions (answer, end call).
• Indicatori LED: Provide status feedback for power, Bluetooth connection, and call status.

Impostare

1. Carica del dispositivo

Before first use, fully charge the speakerphone. Connect the provided USB cable to the charging port on the device and to a DC 5V/1A power source (e.g., computer USB port or wall adapter). A full charge typically takes 2 to 3 hours.

2. Accensione/spegnimento

• Per accendere: Premere e tenere premuto il pulsante di accensione finché gli indicatori LED non si accendono.
• Per spegnere: Premere e tenere premuto il pulsante di accensione finché gli indicatori LED non si spengono.

3. Connessione ai dispositivi

The SOWO CONF360 supports multiple connection methods:

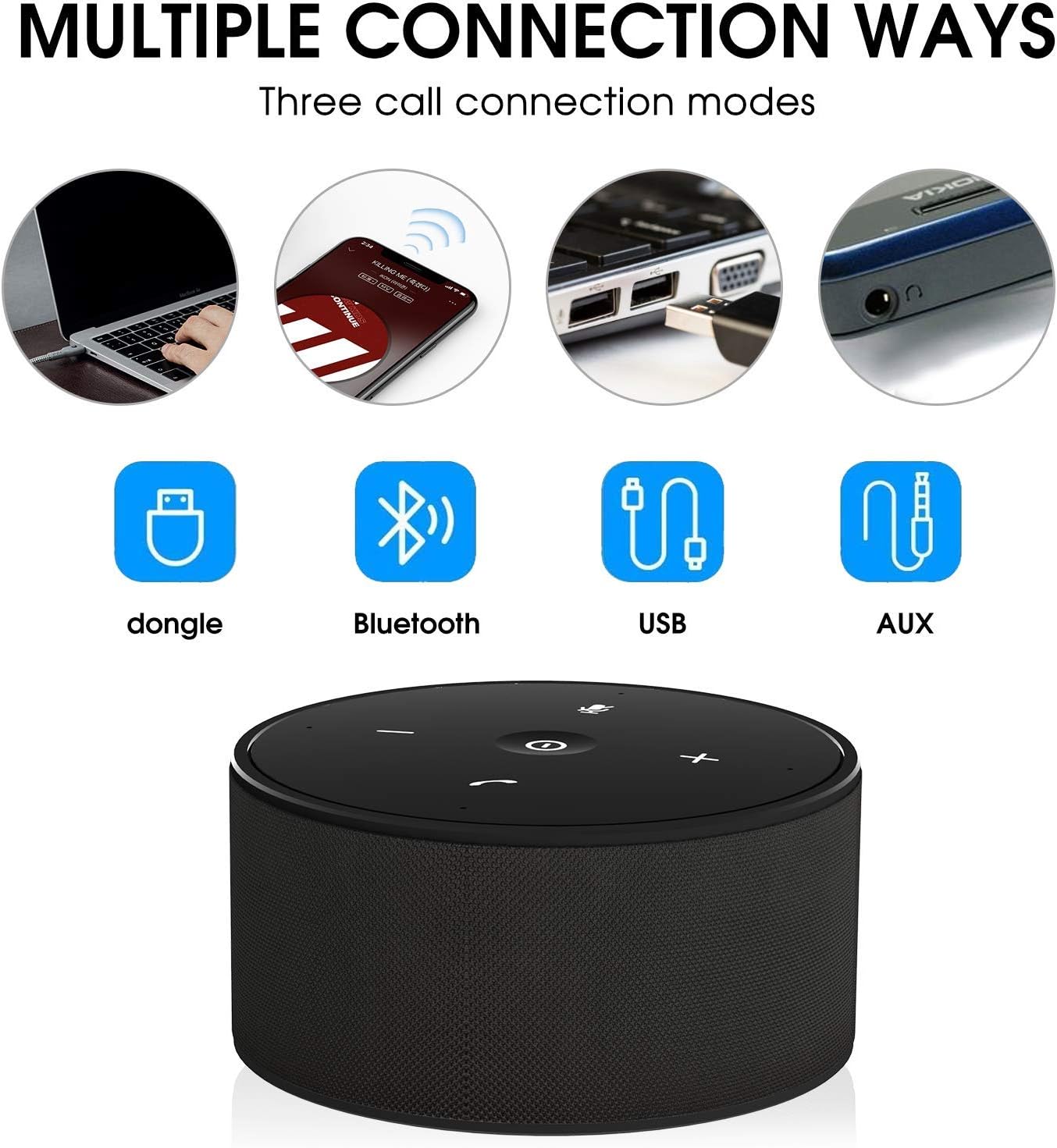

Figura 3: Various connection options for the SOWO CONF360, including USB dongle, Bluetooth, USB cable, and AUX cable.

Connessione Bluetooth

1. Ensure the speakerphone is powered on.
2. Attiva il Bluetooth sul tuo dispositivo (smartphone, tablet, laptop).
3. Cercare "SOWO CONF360" in your device's Bluetooth settings.
4. Select "SOWO CONF360" to pair. The LED indicator will confirm a successful connection.

USB Dongle Connection (for devices without Bluetooth)

1. Plug the provided USB Bluetooth adapter into an available USB port on your computer.
2. The speakerphone will automatically connect to the dongle. No driver installation is typically required.

Collegamento del cavo USB

1. Connect the speakerphone to your computer using the provided USB cable.
2. The device will be recognized as an audio input/output device. Select it in your computer's sound settings.

3.5mm AUX Audio Cable Connection

1. Connect one end of the 3.5mm audio cable to the AUX port on the speakerphone.
2. Collegare l'altra estremità al jack di uscita audio del dispositivo.
3. Note: Microphone functionality may be limited or unavailable when using AUX connection, depending on the connected device.

Istruzioni per l'uso

Effettuare e ricevere chiamate

• Per rispondere a una chiamata: Press the Phone Symbol Button.
• Per terminare una chiamata: Press the Phone Symbol Button again.
• Per effettuare una chiamata: Initiate the call from your connected device. The audio will automatically route through the speakerphone.

Controllo del volume

• Aumenta volume: Premere il pulsante Volume su (+).
• Diminuisci volume: Premere il pulsante Volume giù (-).

Funzione di disattivazione del microfono

• Per disattivare l'audio: Press the Mute Button. The LED indicator for mute will illuminate.
• Per riattivare: Press the Mute Button again. The mute LED indicator will turn off.

Funzionalità audio avanzate

Figura 4: The SOWO CONF360 employs advanced technology for background noise reduction, ensuring ultra-clear voice transmission during calls.

The SOWO CONF360 incorporates smart voice enhancement and noise filtration technology. A custom DSP algorithm optimizes your voice in real-time and reduces background noise, ensuring clear communication. The device is designed to prevent echo and delay, even at maximum volume.

Figura 5: The SOWO CONF360 features advanced echo cancellation, providing clear audio even at high volumes, unlike other devices that may produce echo.

Figura 6: Intelligent pickup enhancement using AI DSP technology balances voice within a 5-meter radius, ensuring consistent audio quality for all participants.

Manutenzione

• Pulizia: Utilizzare un panno morbido e asciutto per pulire il dispositivo. Non utilizzare detergenti abrasivi o solventi.
• Magazzinaggio: When not in use, store the speakerphone in a cool, dry place, preferably in its protective carrying case.
• Cura della batteria: Per prolungare la durata della batteria, evitare di scaricarla completamente frequentemente. Caricare il dispositivo regolarmente, anche se non in uso.

Risoluzione dei problemi

Specifiche

Garanzia e supporto

The SOWO CONF360 Bluetooth Speakerphone comes with an 18-month quality assurance period. For any issues or support inquiries, please contact the SOWO after-sales team. Contact information can typically be found on the product packaging or the official SOWO websito.
