Candy Mattress Vacuum Cleaner Instruction Manual

1. Prodotto finitoview e Caratteristiche

The Candy Mattress Vacuum Cleaner is a powerful handheld device designed for deep cleaning mattresses, sofas, couches, and cribs. It combines strong suction with advanced sanitization features to ensure a cleaner and healthier environment.

• Aspirazione potente: Features 16Kpa suction and high-frequency tapping at 72000Rpm/Min to deeply remove fine dust.
• Funzione UV: Equipped with a built-in UV light and heating element (up to 140°F) for effective dust and allergen elimination, achieving up to 99% dust removal.
• Modalità Smart: Automatically identifies dust size and adjusts suction power for efficient cleaning.
• Dual Dust Cup Filtration System: Designed to prevent filter clogging and extend product lifespan.
• Accessori aggiuntivi: Includes 1 cleaning brush and 2 extra HEPA filters for optimal cleaning results.

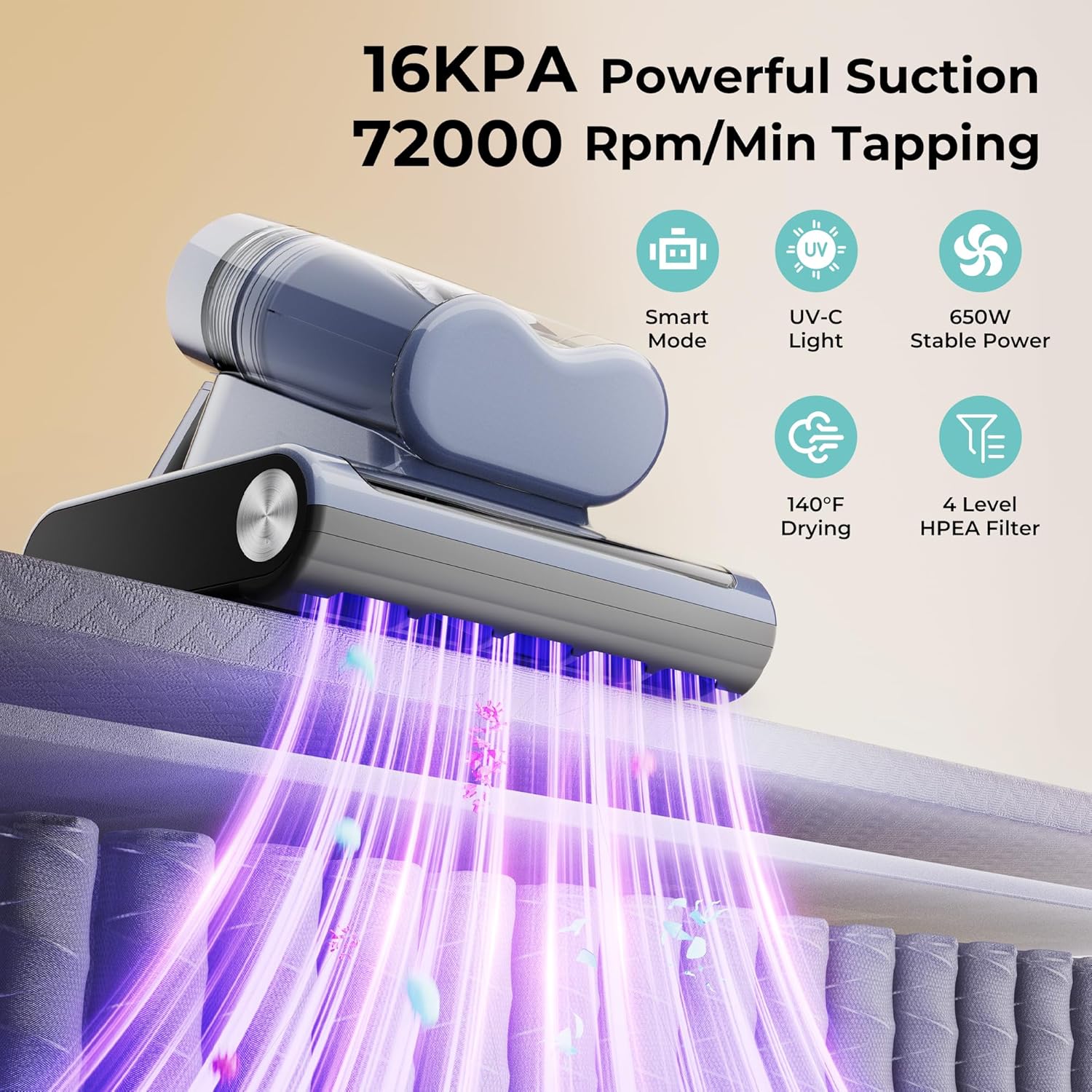

Figura 1: generale view of the Candy Mattress Vacuum Cleaner highlighting key features.

2. Componenti del prodotto

Familiarize yourself with the main components of your mattress vacuum cleaner:

• Handheld Mattress Vacuum Cleaner Unit
• Dust Cup with Dual Filtration System
• HEPA Filters (2 additional included)
• Spazzola per la pulizia
• Cavo di alimentazione

Figure 2: Included accessories: main unit, extra HEPA filters, cleaning brush.

3. Impostazione

1. Disimballare: Rimuovere con attenzione tutti i componenti dalla confezione.
2. Ispezionare: Check the device and accessories for any damage.
3. Installazione del filtro: Ensure the HEPA filter and stainless steel filter are correctly installed within the dual dust cup.
4. Collegamento elettrico: Plug the power cord into a suitable electrical outlet. The device is corded for consistent power.

4. Istruzioni per l'uso

The Candy Mattress Vacuum Cleaner is designed for ease of use with intelligent features.

1. Accensione: Press the power button to turn on the device. The status monitoring panel will illuminate.
2. Seleziona modalità: The device typically starts in Smart Mode, which automatically adjusts suction based on detected dust levels. You may also select other modes if available (e.g., Turbo mode for maximum suction).
3. Pulizia della superficie: Place the vacuum cleaner flat on the surface to be cleaned (e.g., mattress, sofa). The UV-C light will activate automatically when in contact with the surface and deactivate when lifted to ensure safety.
4. Movimento di pulizia: Move the vacuum cleaner slowly and steadily across the surface. Overlap passes to ensure thorough cleaning.
5. Stato del monitoraggio: Observe the status monitoring panel for real-time feedback on dust mite detection, cleaning rate, and heating function.
6. Spegni: Once cleaning is complete, press the power button to turn off the device and unplug it from the outlet.

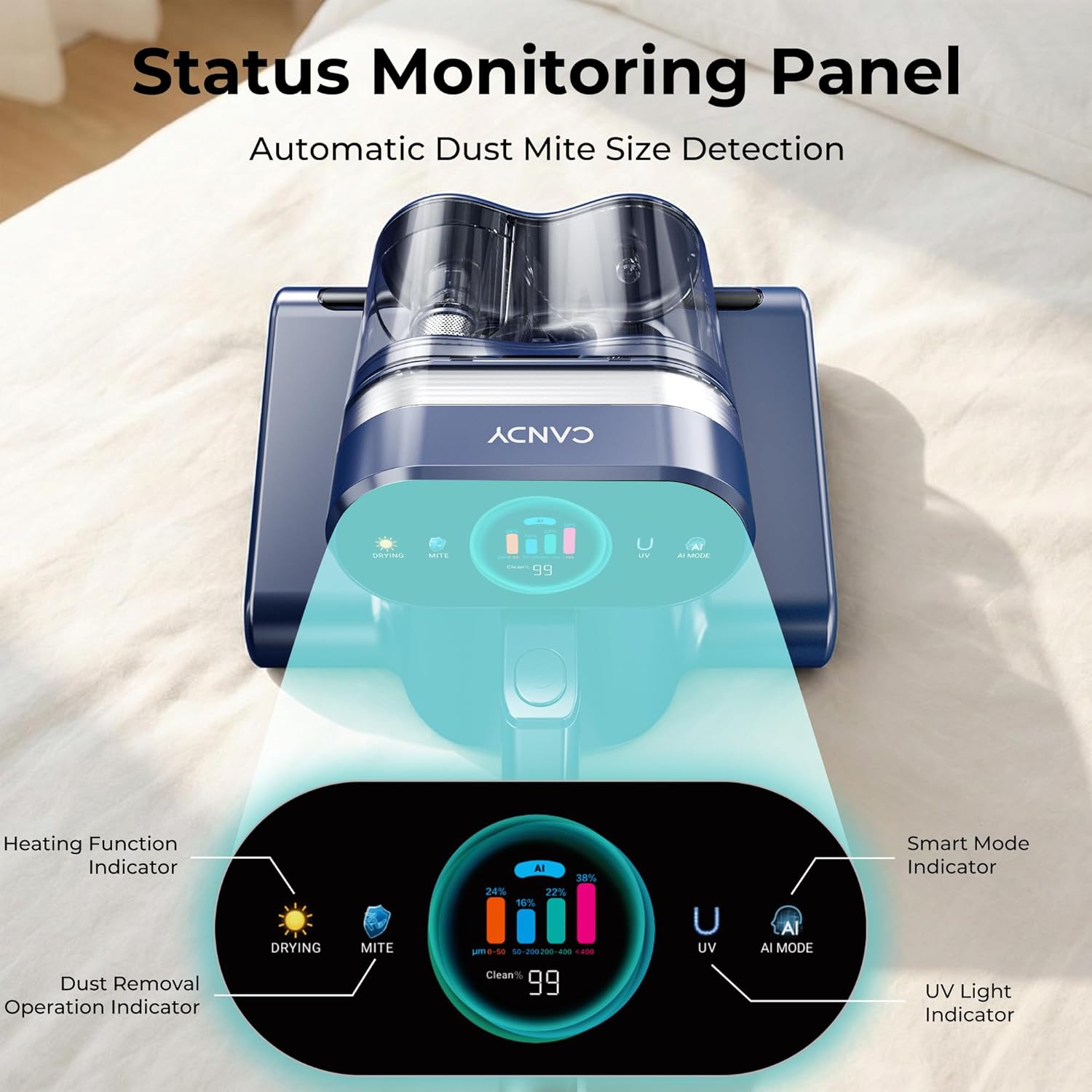

Figure 3: Status Monitoring Panel provides real-time cleaning information.

5. Manutenzione

Una manutenzione regolare garantisce prestazioni ottimali e prolunga la durata del tuo aspirapolvere.

1. Svuotamento del contenitore della polvere: After each use, or when the dust cup is full, remove it from the main unit. Open the lid and empty the collected dust and debris into a waste bin.
2. Pulizia dei filtri: The dual dust cup and filters (HEPA and stainless steel) can be washed with water. Ensure they are thoroughly dried before reinstallation. Replace HEPA filters as needed (2 extra included).
3. Spazzola a rullo per la pulizia: Periodically remove the roller brush and clean any tangled hair or debris using the provided cleaning brush.
4. Magazzinaggio: Store the vacuum cleaner in a cool, dry place away from direct sunlight.

Figure 4: Step-by-step guide for cleaning the dust cup and roller brush.

6. Risoluzione Dei Problemi

If you encounter any issues with your Candy Mattress Vacuum Cleaner, please refer to the following common solutions:

• Nessun potere: Ensure the power cord is securely plugged into a working electrical outlet. Check the power button.
• Aspirazione ridotta: Check if the dust cup is full and needs emptying. Inspect filters for clogging and clean or replace if necessary. Ensure the roller brush is free of obstructions.
• Luce UV non attiva: The UV light is designed to activate only when the device is placed flat on a surface. Ensure proper contact.
• Rumore insolito: Turn off the device and check for any foreign objects caught in the roller brush or suction inlet.

Se il problema persiste, contattare l'assistenza clienti.

7. Specifiche

8. Garanzia e supporto

Questo prodotto viene fornito con un Garanzia del produttore di 1 anni.

For technical support, warranty claims, or any questions regarding your Candy Mattress Vacuum Cleaner, please refer to the contact information provided in your product packaging or visit the official Candy websito.
