Manuale utente del ricevitore satellitare DIRECTV H24 HD

Introduzione

This manual provides comprehensive instructions for the setup, operation, and maintenance of your DIRECTV H24 HD Satellite Receiver. The H24 receiver is designed to deliver high-definition (MPEG-2, MPEG-4) and standard-definition (MPEG-2) programming, offering a wide range of features for an enhanced viewing experience. Please read this manual thoroughly before operating your device.

Cosa c'è nella scatola

Upon unpacking your DIRECTV H24 HD Satellite Receiver, please ensure all the following components are present:

DIRECTV H24 HD Satellite Receiver
Cavo di alimentazione
Scheda di accesso
6-Foot HDMI Cable
RC66RX IR / RF Compatible Remote Control

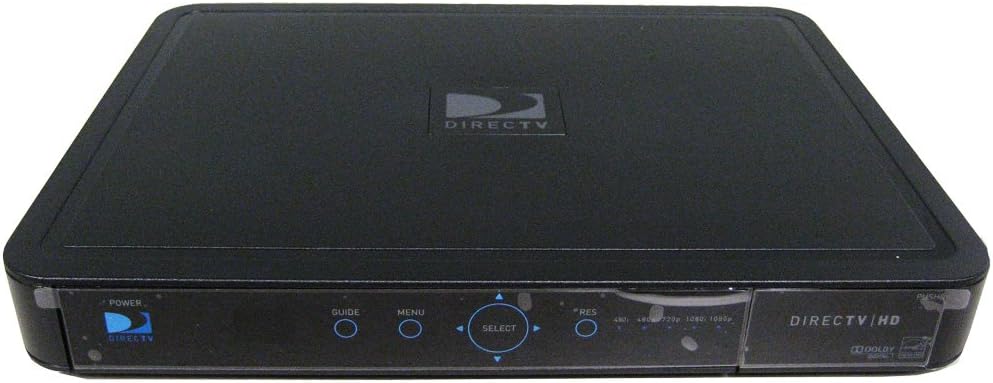

Davanti view of the DIRECTV H24 HD Satellite Receiver, showing the power button, guide, menu, and select buttons, along with resolution indicators.

Immagine: Frontale view of the DIRECTV H24 HD Satellite Receiver. The receiver is black with a glossy front panel. Visible controls include Power, Guide, Menu, and a circular Select button with directional arrows. Resolution indicators (480i, 480p, 720p, 1080i, 1080p) are also present on the right side of the front panel. The DIRECTV logo is prominently displayed on the top surface.

Impostare

1. Connecting to Your Television

The DIRECTV H24 receiver offers multiple connection options for your television. Choose the best available option for your TV.

HDMI Connection (Recommended for HD): Connect one end of the provided HDMI cable to the HDMI output port on the back of the H24 receiver and the other end to an HDMI input port on your television.
Component Video (YPbPr) Connection: Connect the red, green, and blue component video cables from the H24 receiver's Component output to the corresponding input ports on your television. Also, connect the red and white RCA audio cables for sound.
Composite Video (RCA) Connection: Connect the yellow composite video cable from the H24 receiver's Composite output to the yellow video input on your television. Also, connect the red and white RCA audio cables for sound.
Collegamento S-Video: Connect an S-Video cable from the H24 receiver's S-Video output to the S-Video input on your television. Also, connect the red and white RCA audio cables for sound.

2. Connecting to Audio System (Optional)

For enhanced audio, you can connect your receiver to an external audio system.

Audio ottico: Connect an optical audio cable from the Digital Optical output on the H24 receiver to your audio receiver or soundbar.
Coaxial Audio: Connect a digital coaxial audio cable from the Digital (coaxial) output on the H24 receiver to your audio receiver or soundbar.
Stereo RCA Audio: Connect red and white RCA audio cables from the Stereo (L/R, RCA) outputs on the H24 receiver to your audio receiver or television.

3. Connecting to Satellite Dish

Connect the coaxial cable from your DIRECTV satellite dish to the Satellite In port on the back of the H24 receiver.

4. Collegamento elettrico

Once all other connections are made, connect the power cable to the H24 receiver and then plug it into a standard electrical outlet.

Istruzioni per l'uso

Funzionamento di base

Accensione/spegnimento: Premere il tasto ENERGIA button on the remote control or the front panel of the receiver.
Navigazione nel canale: Utilizzare il CANALE SU/GI buttons or enter the channel number directly using the remote's keypad.
Guida: Premere il tasto GUIDA button to access the seven-day Advanced Program Guide. You can search for shows up to 7 days in advance.
Menu: Premere il tasto MENU button to access system settings, preferences, and other features.
Selezionare: Use the directional arrows and the SELEZIONARE button to navigate and confirm selections within the guide and menus.

Funzionalità avanzate

Formato dello schermo: Adjust the screen format to full screen, stretched, letterbox, pillar box, or crop mode via the menu settings.
Sports Scores (Red Button): Press the red button on your remote to view scores of major games without changing the channel.
ID chiamante: View and log Caller ID information provided by your local phone company (requires phone line connection to receiver, if available).
Controllo genitori: Set up parental controls and locks to restrict objectionable programming. Access this feature through the main menu.

Manutenzione

Proper maintenance ensures the longevity and optimal performance of your DIRECTV H24 receiver.

Pulizia: Utilizzare un panno morbido e asciutto per pulire l'esterno del ricevitore. Non utilizzare detergenti liquidi o materiali abrasivi.
Ventilazione: Ensure the receiver has adequate ventilation. Do not block the ventilation openings on the top, sides, or back of the unit. Avoid placing the receiver in enclosed spaces or on soft surfaces that may impede airflow.
Ciclo di alimentazione: If the receiver becomes unresponsive, try unplugging it from the power outlet for 15 seconds and then plugging it back in.

Risoluzione dei problemi

This section addresses common issues you might encounter with your DIRECTV H24 receiver.

Problema	Possibile causa/soluzione
Nessuna immagine / Nessun segnale	Ensure all cables (HDMI, Component, Satellite In) are securely connected. Verify your TV input is set to the correct source (e.g., HDMI 1, Video 2). Check if the satellite dish is properly aligned and free from obstructions.
Nessun audio	Controllare i collegamenti dei cavi audio (HDMI, RCA, ottico, coassiale). Ensure TV or audio receiver volume is not muted or too low. Verify audio settings on the receiver and TV.
Il telecomando non funziona	Sostituire le batterie nel telecomando. Assicurarsi che non vi siano ostacoli tra il telecomando e il ricevitore. Reprogram the remote control if necessary (refer to remote control manual).
Receiver Unresponsive	Perform a power cycle: Unplug the receiver from the power outlet for 15 seconds, then plug it back in.
Problemi di attivazione	As of January 1, 2019, DIRECTV no longer allows customers to self-activate receivers purchased online. You will need a DIRECTV authorized dealer to create an activation order for you. Contact DIRECTV customer support or an authorized dealer for assistance with activation.

Specifiche

Caratteristica	Dettaglio
Numero di modello	Da H24 a H100
Dimensioni (L x P x A)	9.4 x 15 x 2.6 pollici
Peso dell'articolo	6 libbre
Uscita video	480i, 480p, 720p, 1080i picture output
Tecnologia di connettività	Ethernet, HDMI
Modalità di uscita audio	Circondare
Porte di connessione	1 Digital Optical, 1 Digital (coaxial), 2 Stereo (L/R, RCA), 1 HDMI, 1 Component (YPbPr), 1 S-Video, 2 Composite (RCA)
Efficienza energetica	2010 ENERGY STAR Excellence In Energy Efficient Product Design Award by the EPA

Garanzia e supporto

For warranty information and technical support, please refer to the documentation provided by DIRECTV at the time of service activation or visit the official DIRECTV support website. Please note that DIRECTV policy changes may affect receiver activation and service. For activation of receivers purchased online, an authorized DIRECTV dealer is required to create an activation order.

Disclaimer legale: Since January 1, 2019, DIRECTV does not allow customers to self-activate receivers purchased online. You will need a DIRECTV authorized dealer to create an activation order for you.
