Panasonic SC-BT330 5.1 Channel Home Theater System User Manual

1. Introduzione

This manual provides essential instructions for the safe and efficient operation of your Panasonic SC-BT330 5.1 Channel Cinema Surround Home Entertainment System. This system integrates a Blu-ray Disc player/amplifier with a 5.1-channel speaker set, delivering 1000 watts of total power. Please read this manual thoroughly before using the product and retain it for future reference.

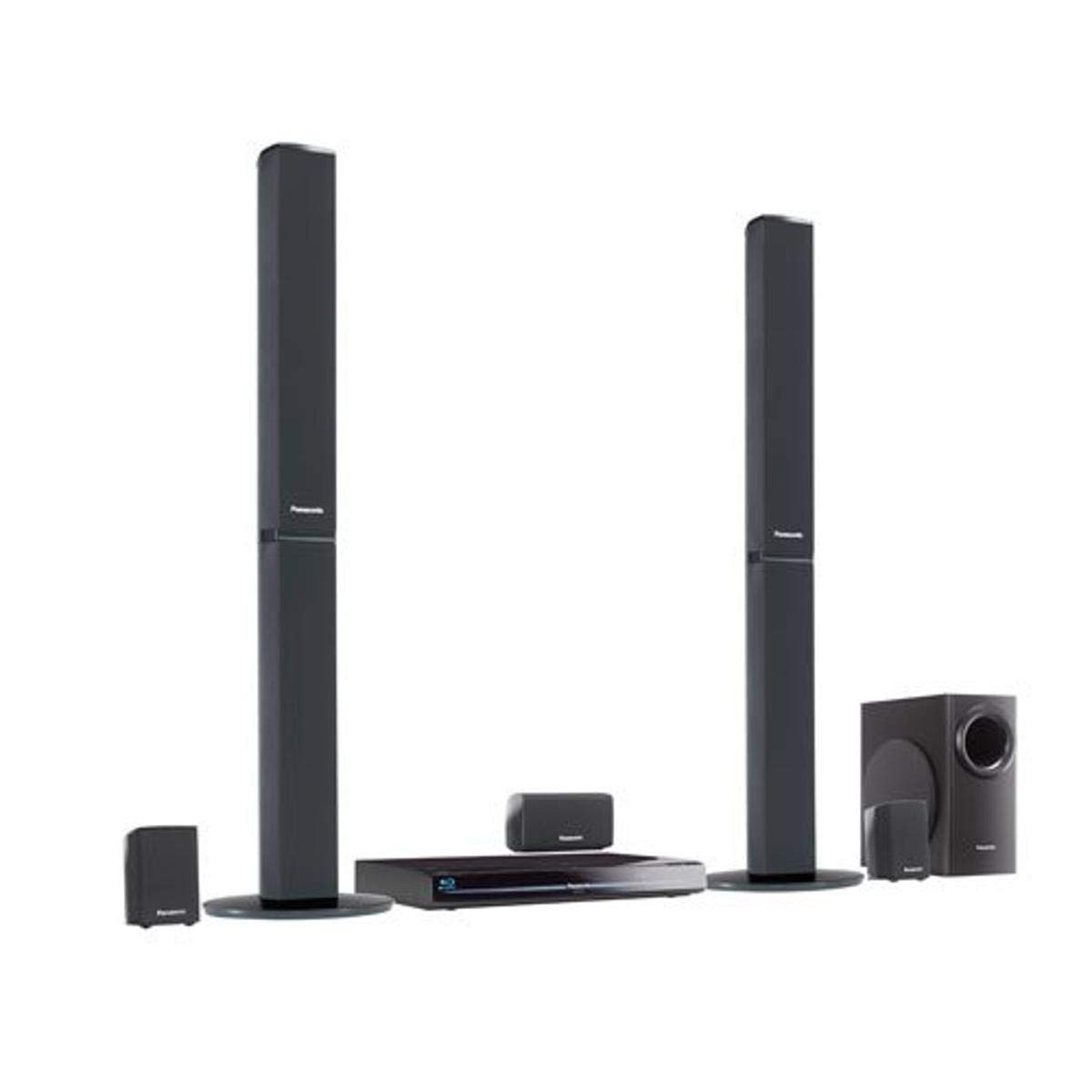

Figura 1: Panasonic SC-BT330 Home Theater System. This image displays the main unit (Blu-ray player/amplifier) and the accompanying speakers, including the tallboy front speakers and the subwoofer, providing a visual overview del sistema completo.

2. Informazioni sulla sicurezza

Per garantire un funzionamento sicuro ed evitare danni, osservare le seguenti precauzioni:

• Alimentazione elettrica: Connect the unit only to an AC 120 V, 60 Hz power supply. Do not overload electrical outlets.
• Ventilazione: Ensure adequate ventilation. Do not block ventilation openings with items such as newspapers, tablecloths, or curtains. Maintain a minimum distance of 10 cm (4 inches) around the unit for proper airflow.
• Umidità e liquidi: Non esporre l'unità a pioggia, umidità, gocciolamenti o schizzi. Non posizionare oggetti contenenti liquidi, come vasi, sull'unità.
• Oggetti estranei: Never insert any metallic objects or flammable materials into the unit's ventilation openings.
• Posizionamento dei relatori: Place speakers on a stable, level surface to prevent them from falling. Keep speakers away from heat sources and direct sunlight.
• Batterie: Replace batteries in the remote control with the correct type (2 AA batteries). Do not mix old and new batteries, or different types of batteries. Dispose of used batteries according to local regulations.
• Manutenzione: Non tentare di riparare l'unità da soli. Per qualsiasi intervento di assistenza, rivolgersi a personale qualificato.

3. Contenuto della confezione

Verificare che tutti gli elementi siano presenti nel pacchetto prima di procedere con la configurazione:

• Unità principale (lettore dischi Blu-ray/Amplificatore)
• Front Speakers (2 tallboy speakers)
• Altoparlante centrale (1)
• Altoparlanti surround (2)
• subwoofer (1)
• Remote Control with Batteries (2 AA)
• Cavi per altoparlanti
• Antenna interna FM
• Cavo di alimentazione CA
• Istruzioni per l'uso (questo manuale)

4. Impostazione

4.1 Posizionamento degli altoparlanti

Optimal speaker placement is crucial for achieving the best 5.1 channel surround sound experience. Position the speakers as follows:

• Altoparlanti anteriori: Place one on each side of your television, equidistant from the viewposizione di avanzamento.
• Altoparlante centrale: Position directly above or below the center of your television.
• Altoparlanti surround: Posizionare ai lati o leggermente dietro l'area di ascolto principale, rivolto verso l'interno.
• Subwoofer: Position in a corner of the room or near a wall for enhanced bass response. Experiment with placement to find the best sound.

4.2 Connessioni

Per connettere il tuo sistema, segui questi passaggi:

1. Collegamenti degli altoparlanti: Connect each speaker cable to the corresponding color-coded terminals on the rear of the main unit. Ensure correct polarity (+ to + and - to -).
2. Connessione HDMI: Connect an HDMI cable from the HDMI OUT terminal on the main unit to an HDMI IN terminal on your television. This single cable transmits both video and audio.
3. Connessione di rete (facoltativa):
   • Wired: Connect an Ethernet cable from the LAN terminal on the main unit to your home router.
   • Senza fili: If using an optional Wi-Fi dongle (sold separately), insert it into the USB port on the main unit. Configure wireless settings in the system menu after initial power-on.
4. Collegamento elettrico: Plug the AC power cord into the main unit and then into a wall outlet.

4.3 Configurazione iniziale

After connecting all components and powering on the unit, follow the on-screen instructions for initial setup, which typically includes:

• Selezione della lingua.
• Video output settings.
• Audio setup, including speaker level calibration.
• Network configuration (if not already connected via Ethernet).

5. Istruzioni per l'uso

5.1 Riproduzione di base

Insert a Blu-ray Disc, DVD, or CD into the disc slot. The system will typically begin playback automatically. Use the remote control for playback functions such as Play, Pause, Stop, Fast Forward, and Rewind.

5.2 Internet Features (VIERA Cast)

The SC-BT330 supports VIERA Cast, providing access to online services such as Netflix, YouTube, and Amazon Video. Ensure your system is connected to the internet. Navigate to the VIERA Cast menu using the remote control to access these services.

5.3 Dock per iPod/iPhone

Connect your iPod or iPhone to the integrated dock. The system will automatically detect the device. Use the system's remote control to navigate your device's music and video content, which will be displayed on your television screen. The dock also charges your device during connection.

5.4 Impostazioni audio

To adjust surround sound and equalizer (EQ) levels:

1. Press the AUDIO button on the remote control to access sound settings.
2. Use the LEFT/RIGHT arrow buttons to navigate through options like 'Surround Mode' or 'EQ Presets'.
3. Use the UP/DOWN arrow buttons to adjust the selected setting's level or choose a preset.
4. Press ENTER to confirm your selection or EXIT to close the menu.

5.5 Collegamento VIERA

If you have a compatible Panasonic VIERA television, VIERA Link allows for integrated control. When connected via HDMI, the system can automatically power on/off with your TV and switch inputs seamlessly.

6. Manutenzione

6.1 Pulizia

Per mantenere l'aspetto e le prestazioni del tuo sistema:

• Wipe the main unit and speakers with a soft, dry cloth.
• Per sporco ostinato, leggermente dampBagnare il panno con acqua e poi asciugarlo.
• Non utilizzare detergenti abrasivi, cere o solventi poiché potrebbero danneggiare la finitura.

6.2 Aggiornamenti firmware

Panasonic may release firmware updates to improve performance or add new features. To check for and install updates:

1. Ensure the unit is connected to the internet.
2. Navigate to the 'Setup' menu, then 'Others', and select 'Firmware Update'.
3. Seguire le istruzioni sullo schermo per verificare la presenza di aggiornamenti e installarli. Non spegnere l'unità durante un aggiornamento.

7. Risoluzione Dei Problemi

Fare riferimento a questa sezione per soluzioni a problemi comuni:

8. Specifiche

Key technical specifications for the Panasonic SC-BT330 Home Theater System:

9. Garanzia e supporto

This Panasonic product is covered by a limited warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including warranty period and coverage details. Keep your proof of purchase for warranty claims.

For technical assistance, troubleshooting beyond this manual, or to inquire about service, please contact Panasonic Customer Support. Contact information can typically be found on the Panasonic official websul sito o sulla documentazione di garanzia.
