Contax T2 35mm Camera Instruction Manual

1. Introduzione

This manual provides detailed instructions for the proper use and care of your Contax T2 35mm Camera. The Contax T2 is a premium compact film camera known for its robust titanium body and high-quality Carl Zeiss Sonnar 38mm f/2.8 lens, offering both autofocus and manual control capabilities.

Davanti view of the Contax T2 Silver 35mm Camera with lens retracted, showcasing il suo design compatto.

2. Impostazione

2.1 Disimballaggio

Upon opening your Contax T2 package, please verify that all components are present:

• Contax T2 Camera Body
• Camera Case
• Cinghia tracolla per fotocamera
• Original Box (if applicable)

2.2 Installazione della batteria

The Contax T2 camera operates on a single CR123 Lithium Metal battery. Proper battery installation is crucial for camera function.

1. Locate the battery compartment. This is typically found on the bottom or side of the camera body.
2. Aprire il coperchio del vano batterie.
3. Insert the CR123 battery, ensuring the positive (+) and negative (-) terminals align correctly with the indicators inside the compartment.
4. Chiudere saldamente il coperchio del vano batterie.

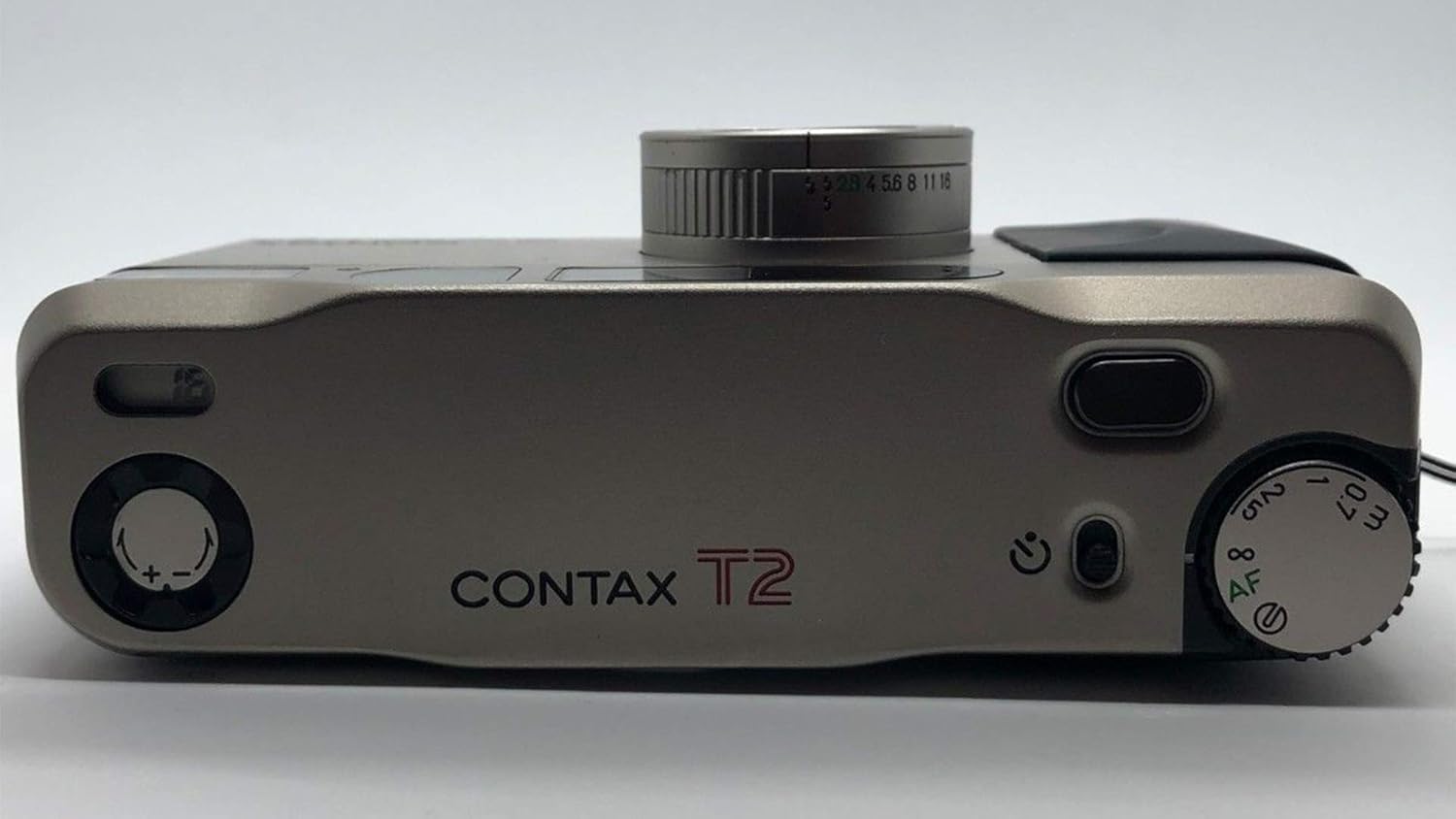

Superiore view of the Contax T2 camera, illustrating the control layout and the area where the battery compartment is typically located.

2.3 Caricamento della pellicola

The Contax T2 uses standard 35mm film rolls.

1. Open the camera's back cover by sliding the latch, usually located on the side.
2. Inserire una nuova cartuccia di pellicola da 35 mm nell'apposito vano sul lato sinistro.
3. Tirare la parte iniziale della pellicola verso la bobina di avvolgimento sul lato destro, assicurandosi che si agganci ai denti della bobina.
4. Close the back cover firmly until it latches. The camera will automatically advance the film to the first frame, indicated by the frame counter.

3. Utilizzo della fotocamera

3.1 Accensione/spegnimento

To power on your Contax T2, locate the power button or switch, typically on the top plate of the camera. Press or slide it to the 'ON' position. The lens will extend, indicating the camera is ready for use. To power off, press or slide it to the 'OFF' position; the lens will retract.

3.2 Messa a fuoco

The Contax T2 offers both precise autofocus and manual focus capabilities.

• Messa a fuoco automatica: Point the camera at your desired subject and gently half-press the shutter button. The camera will automatically focus. A focus confirmation indicator in the viewfinder will light up when focus is achieved.
• Messa a fuoco manuale: For specific creative control, rotate the focus ring on the lens barrel to adjust the focus manually. The distance scale on the lens will assist in setting the desired focus distance.

Davanti view of the Contax T2 Silver 35mm Camera with the Carl Zeiss Sonnar 38/2.8 lens extended, ready for capturing images.

3.3 Controllo dell'esposizione

The Contax T2 provides manual exposure control, allowing you to set the aperture and shutter speed. The camera features an evaluative metering system to assist in determining optimal exposure settings.

• Apertura: Adjust the aperture ring on the lens to control the depth of field and the amount of light entering the camera. Available aperture modes include F2.8.
• Velocità dell'otturatore: The camera offers a range of shutter speeds, from a maximum of 1/2000 second to a minimum of 1/500 second, allowing for control over motion blur and light capture.

3.4 Scattare una foto

1. Guarda attraverso l'ottica viewmirino per comporre lo scatto.
2. Half-press the shutter button to activate the autofocus and exposure metering systems.
3. Once focus and exposure are confirmed, fully press the shutter button to capture the image.

3.5 modalità flash

The Contax T2 includes a built-in flash with automatic flash modes. The flash will activate automatically in low-light conditions or when selected manually, providing additional illumination for your subjects.

3.6 Autoscatto

To use the self-timer function, activate it via the camera's controls. The self-timer provides a 10-second delay before the shutter fires, allowing the photographer to be included in the shot or to minimize camera shake.

4. Manutenzione

4.1 Pulizia della lente

To maintain optimal image quality, keep the lens clean. Use a soft, lint-free microfiber cloth specifically designed for optics. For stubborn smudges, apply a small amount of lens cleaning solution to the cloth, not directly to the lens, and gently wipe in a circular motion. Avoid using abrasive materials or harsh chemicals.

4.2 Cura della batteria

If the camera will not be used for an extended period, it is recommended to remove the CR123 battery to prevent potential leakage and damage to the camera's internal components.

4.3 Conservazione

Store your Contax T2 camera in a dry, cool environment, away from direct sunlight, high humidity, and extreme temperatures. The provided camera case offers protection against dust and minor impacts during storage and transport.

The Contax T2 camera safely stored within its black leather case, protecting it from dust and damage.

5. Risoluzione Dei Problemi

5.1 La fotocamera non si accende

• Assicurarsi che la batteria CR123 sia installata correttamente e con la polarità corretta.
• Replace the battery with a fresh one. A depleted battery is a common cause for power issues.

5.2 Film Not Advancing

• Verify that the film is correctly loaded and the leader is properly engaged with the take-up spool.
• Ensure the camera's back cover is securely closed and latched.
• Check if the film roll is empty or if there are any physical obstructions in the film path.

5.3 Immagini sfocate

• Confirm that the camera has achieved proper focus on your subject. Listen for the focus confirmation sound or check the viewfinder indicator.
• In low-light conditions, use a faster shutter speed or stabilize the camera with a tripod to prevent camera shake.
• Inspect the lens for smudges, dust, or fingerprints and clean it if necessary.

6. Specifiche

7. Garanzia e supporto

Information regarding warranty coverage for your Contax T2 camera is typically provided at the point of purchase or within the original product packaging. Please refer to your purchase documentation for specific warranty terms and conditions, including duration and coverage details.

For technical support, service inquiries, or to obtain replacement parts, please contact your authorized Contax dealer or a certified service center. They can provide expert assistance and ensure your camera receives proper care.
