1. Inngangur
This manual provides essential information for the proper installation, operation, and maintenance of your Alpine DM-65C-G 6.5" Component 2-Way Speaker Set. Please read this manual thoroughly before installation and retain it for future reference.
The Alpine DM-65C-G speakers are designed to deliver reliable sound performance with a peak power of 200W and a sensitivity of 92dB. They feature a Tedoron tweeter diaphragm, Neodymium magnets for clear highs, and an injection-molded bass diaphragm with a rubber surround for robust low-frequency response.
2. Helstu eiginleikar
- Meðhöndlun með miklum krafti: Peak power of 200W ensures robust audio output.
- Efficient Sound: 92dB sensitivity for clear and dynamic sound reproduction.
- Advanced Tweeter Design: Tedoron tweeter diaphragm and Neodymium magnets provide smooth highs and articulate vocals.
- Einföld uppsetning: Tweeters include in-line filters for straightforward setup.
- Durable Woofer Construction: Features a rubber surround and injection-molded bass diaphragm for enhanced durability and performance.
3. Hvað er í kassanum
Your Alpine DM-65C-G package includes the following components:
- Two 6.5-inch woofers
- Two tweeters with in-line filters
- Mounting hardware (screws, clips, etc.)
- Hátalaragluggar (ef við á)

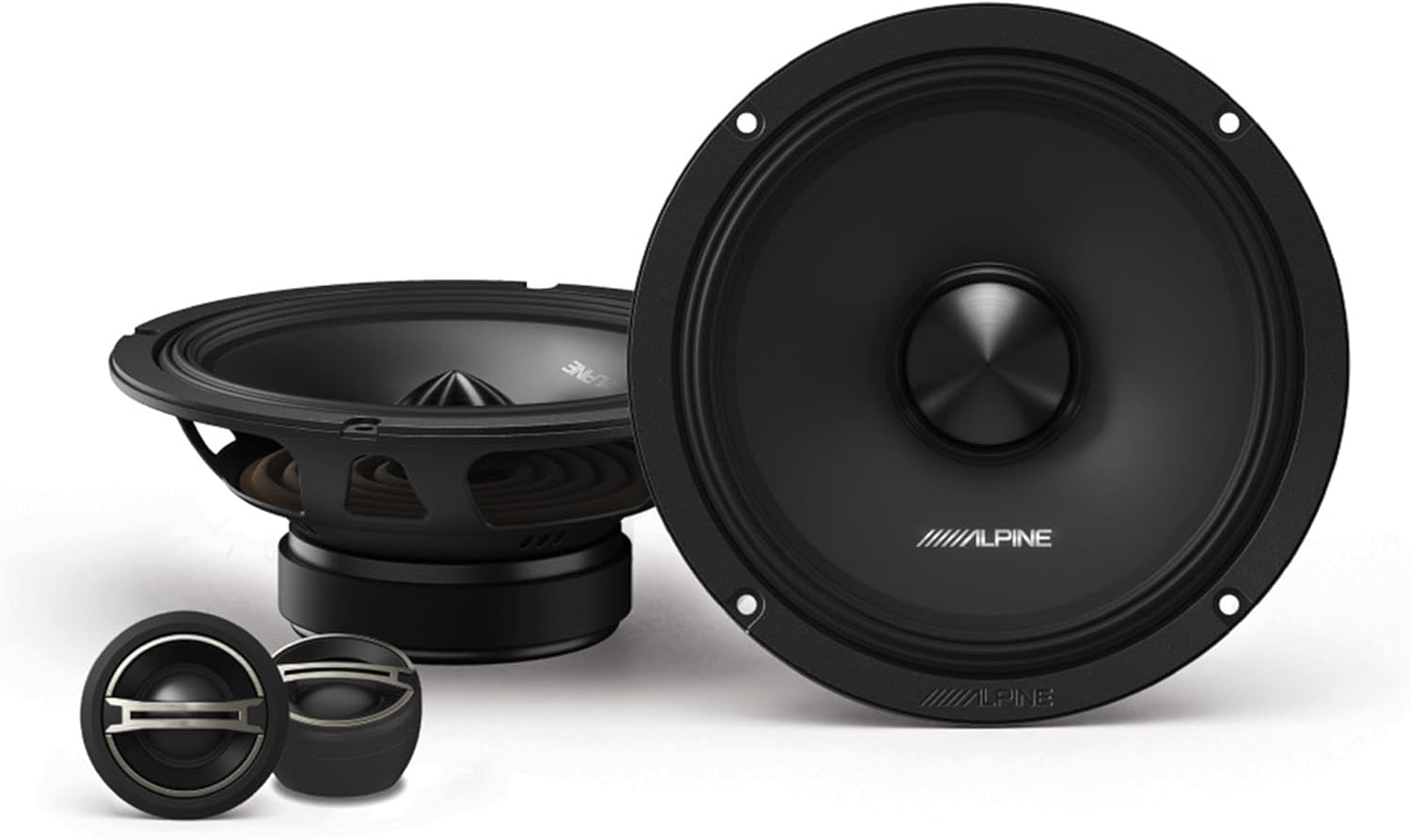

Mynd 1: Lokiðview of the Alpine DM-65C-G 6.5" Component 2-Way Speaker Set, showing woofers and tweeters.
4. Uppsetning og uppsetning
Proper installation is crucial for optimal performance and longevity of your speakers. It is recommended that installation be performed by a qualified professional.
4.1. Gátlisti fyrir uppsetningu
- Gakktu úr skugga um að allir íhlutir séu til staðar og óskemmdir.
- Verify compatibility with your car audio system.
- Gather necessary tools (screwdrivers, wire strippers, drill, etc.).
- Aftengdu rafgeymi ökutækisins til að koma í veg fyrir skammhlaup.
4.2. Uppsetningarhugsanir
The DM-65C-G speakers are designed for flush mount installation. Select appropriate locations in your vehicle that allow for proper speaker depth and clearance. Ensure the mounting surface is stable and free from obstructions.
Mynd 2: Framan view of a single Alpine DM-65C-G 6.5" woofer, highlighting its design.
4.3. Wiring the Speakers
- Identify the positive (+) and negative (-) terminals on both the speakers and your car audio system's wiring.
- Connect the speaker wires, ensuring correct polarity. Incorrect polarity can lead to poor sound quality.
- For the tweeters, utilize the included in-line filters. These filters are essential for proper frequency distribution and protection of the tweeter.
- Secure all connections to prevent accidental disconnections or shorts.
Mynd 3: Nærmynd view of the Alpine DM-65C-G tweeters, showing their compact design.
4.4. Athugun eftir uppsetningu
- Tengdu rafhlöðu ökutækisins aftur.
- Test the speakers with various audio sources and volume levels to ensure proper functionality and sound quality.
- Adjust audio settings on your head unit for optimal sound balance.
5. Rekstur
Once installed, your Alpine DM-65C-G speakers will operate as part of your car audio system. The sound output is controlled by your head unit or amplíflegri.
- Hljóðstyrkur: Adjust the volume through your car's head unit. Avoid excessively high volumes for prolonged periods to prevent speaker damage.
- Hljóðstillingar: Utilize your head unit's equalizer, balance, and fader controls to fine-tune the sound to your preference.
- Upprunaval: Play audio from various sources (radio, Bluetooth, USB) to experience the full range of your speakers' capabilities.
Video 1: An official product showcase of the Alpine DM Series 6.5" Speakers, demonstrating their design and features. This video is provided by Creative Audio.
6. Viðhald
Your Alpine DM-65C-G speakers require minimal maintenance to ensure long-lasting performance.
- Þrif: Þurrkið varlega af hátalargrindunum og umgjörðinni með mjúkum, þurrum klút. Forðist að nota sterk efni eða slípiefni.
- Skoðun: Athugið reglulega hvort hátalaratengingar séu þéttar og gætið þess að engar vírar séu slitnar eða berskjaldaðar.
- Umhverfisþættir: Verjið hátalarana gegn miklum hita, beinu sólarljósi og miklum raka.
7. Bilanagreining
If you encounter issues with your Alpine DM-65C-G speakers, refer to the following common troubleshooting steps:
| Vandamál | Möguleg orsök | Lausn |
|---|---|---|
| Ekkert hljóð frá hátalara | Loose wiring, incorrect polarity, head unit issue, amplifier mál | Check all wiring connections. Verify correct positive/negative polarity. Test head unit and ampvirkni lifer. |
| Bjagað hljóð | Volume too high, incorrect audio settings, damaged speaker, insufficient power | Reduce volume. Adjust equalizer settings. Inspect speakers for physical damage. Ensure adequate power supply. |
| Einn hátalari virkar ekki | Loose connection, damaged speaker wire, faulty speaker | Check wiring for the specific speaker. Test the speaker with a known good audio source. |
If the problem persists after attempting these solutions, contact Alpine customer support or a qualified car audio technician.
8. Tæknilýsing
Detailed technical specifications for the Alpine DM-65C-G 6.5" Component 2-Way Speaker Set:
| Eiginleiki | Forskrift |
|---|---|
| Nafn líkans | DM-65C-G |
| Tegund hátalara | Hluti |
| Stærð hátalara | 6.5 tommur |
| Þvermál woofer | 6.5 tommur |
| Hámarksúttaksstyrkur hátalara | 200 Watt |
| Næmi | 92dB (samkvæmt eiginleikalistanum) |
| Tíðni svörun | 18 KHz (upper limit) |
| Gerð uppsetningar | Flush Mount |
| Efni | Rubber (surround) |
| Gerð hljóðbílstjóra | Dynamic bílstjóri |
| Surround Sound Channel Stilling | 2.0 |
| Samhæf tæki | Bílahljóðkerfi |
| Vörumál | 8.27" D x 4.57" B x 15.75" H |
| Þyngd hlutar | 5.92 pund |
| UPC | 793276001832 |
9. Ábyrgð og stuðningur
9.1. Upplýsingar um ábyrgð
The Alpine DM-65C-G speaker set comes with a Takmörkuð ábyrgð. Please refer to the warranty card included with your product or visit the official Alpine webvefsíðu fyrir ítarlegar skilmála varðandi þjónustu, gildistíma og kröfur.
9.2. Þjónustudeild
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Alpine customer support. You can typically find contact information on the official Alpine websíðunni eða í gegnum viðurkenndan söluaðila.
Tilföng á netinu: Heimsæktu Alpine verslun á Amazon or the official Alpine websíðu fyrir frekari upplýsingar um vörur, algengar spurningar og aðstoð.
