Keyence LR-W500C Full-Spectrum Sensor Instruction Manual

1. Inngangur

This manual provides essential information for the safe and correct use of the Keyence LR-W500C Self-Contained Full-Spectrum Sensor. Please read this manual thoroughly before using the product to ensure optimal performance and prevent potential hazards. Keep this manual in a safe place for future reference.

2. Öryggisupplýsingar

Observe the following safety precautions to prevent accidents and ensure proper operation:

• Aflgjafi: Gakktu úr skugga um að aflgjafinn voltage is within the specified range (10-30V DC). Incorrect voltage can damage the sensor.
• Raflögn: Connect wiring correctly according to the provided diagram. Incorrect wiring may cause malfunction or damage.
• Umhverfi: Do not use the sensor in environments with flammable gases, corrosive substances, excessive dust, or extreme temperatures.
• Uppsetning: Mount the sensor securely to prevent it from falling or being dislodged during operation.
• Viðhald: Aftengdu rafmagnið áður en viðhald eða þrif eru framkvæmd.

3. Vöru lokiðview

The Keyence LR-W500C is a self-contained full-spectrum sensor designed for reliable detection across various industrial applications. It features an M12 connector and a 4-pin configuration, offering a detection distance of 30 to 500 mm.

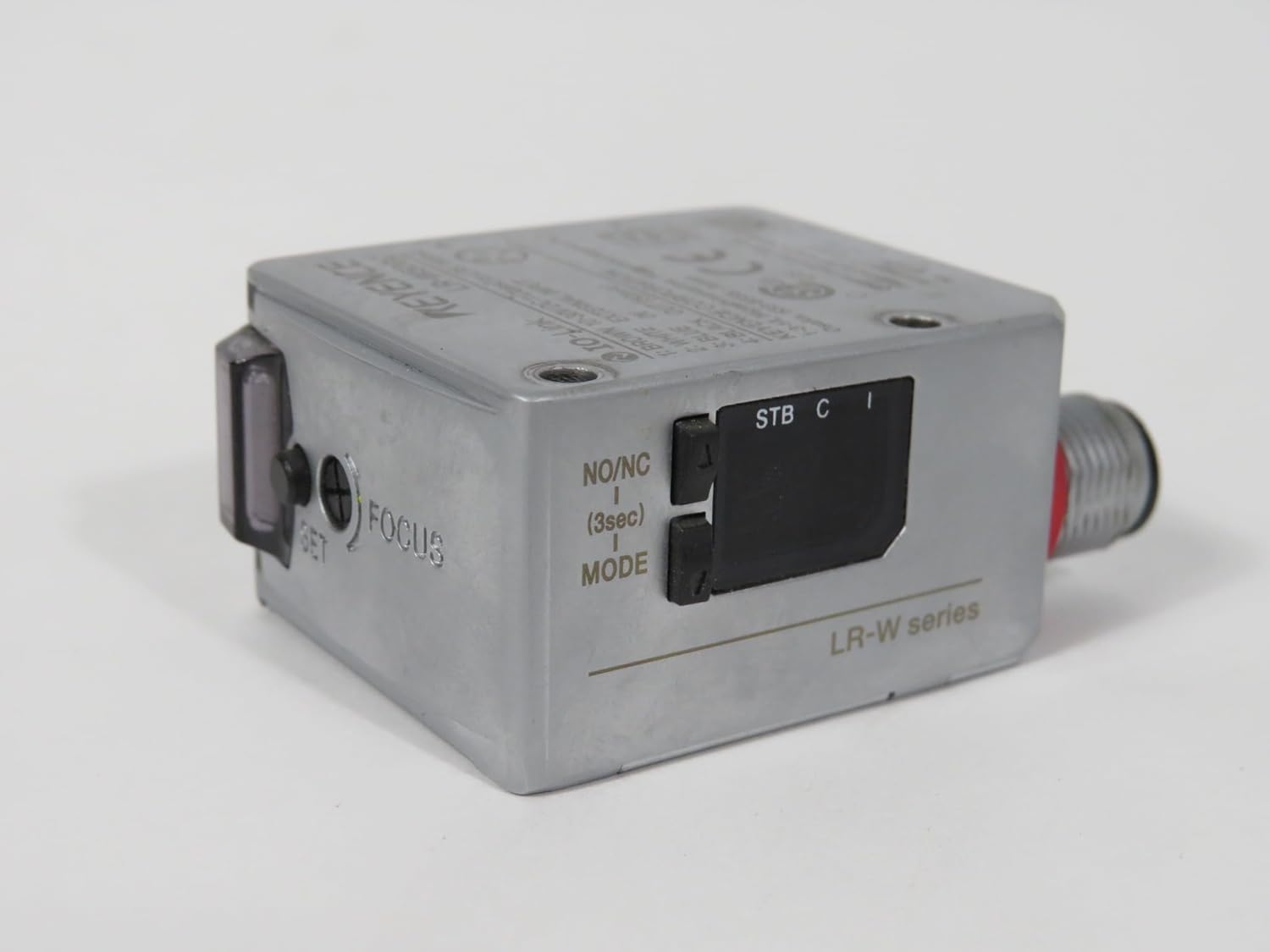

Mynd 3.1: Framan view of the Keyence LR-W500C sensor, showing the control buttons (SET, FOCUS, NO/NC, MODE) and indicator lights (STB, C, I).

Mynd 3.2: Hlið view of the Keyence LR-W500C sensor, highlighting the M12 connector for power and signal, and the optical lens for detection.

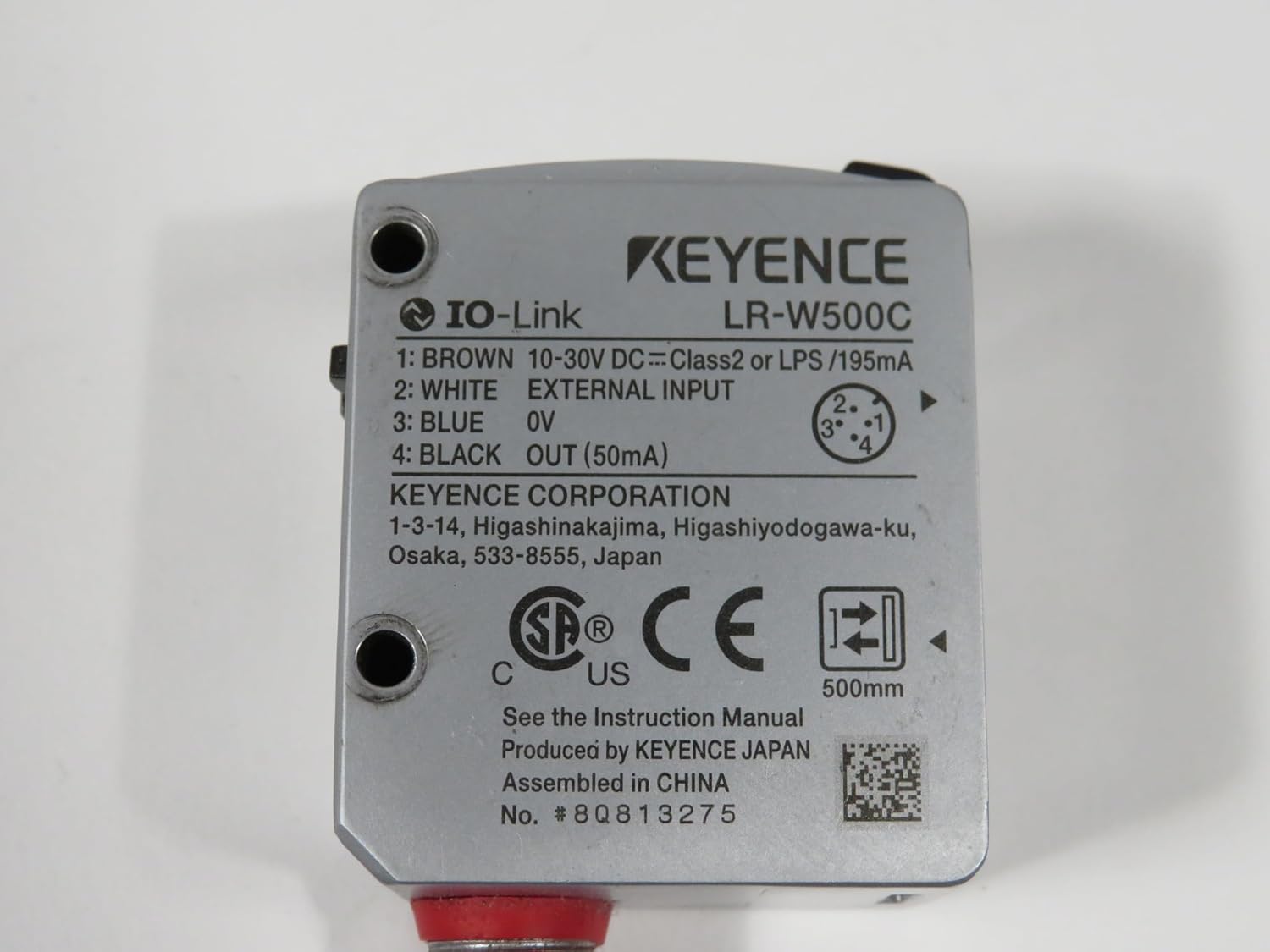

Mynd 3.3: Til baka view of the Keyence LR-W500C sensor, displaying the wiring diagram for the 4-pin M12 connector and key product specifications.

4. Uppsetning og uppsetning

4.1 Uppsetning

Securely mount the sensor using appropriate hardware in a location that provides a clear line of sight to the target object and is free from excessive vibration or impact.

4.2 Raflögn

The LR-W500C sensor uses a 4-pin M12 connector. Refer to the diagram below and the sensor's label for correct wiring. Ensure power is disconnected before making any connections.

Eftir raflögnina skal ganga úr skugga um að allar tengingar séu öruggar og einangraðar.

5. Notkunarleiðbeiningar

5.1 Kveikt

Once wired correctly, apply power (10-30V DC) to the sensor. The STB (Stability) indicator will illuminate.

5.2 Stillingarval

The sensor features a MODE button to cycle through different operating modes:

• NO/NC (Normally Open/Normally Closed): Press the MODE button briefly to toggle between Normally Open (NO) and Normally Closed (NC) output configurations.
• Fókus: Press and hold the MODE button for approximately 3 seconds to enter Focus mode, allowing for fine-tuning of the detection area.

5.3 Setting Detection

Use the SET button to teach the sensor the desired detection threshold. Follow the specific instructions for your application to set the sensor accurately.

5.4 Gaumljós

• STB (Stability): Indicates the stability of the detection. A steady light typically means stable operation.
• C (Control Output): Illuminates when the control output is active (e.g., an object is detected).
• I (Input): Indicates the status of the external input.

6. Viðhald

Regular maintenance ensures the longevity and reliable operation of your sensor.

• Þrif: Gently wipe the sensor lens and housing with a soft, dry cloth. For stubborn dirt, use a cloth lightly dampened with a mild, non-abrasive cleaner. Do not use organic solvents.
• Skoðun: Periodically check wiring for damage or loose connections. Ensure the sensor is securely mounted.
• Slökkva á: Always disconnect power to the sensor before performing any cleaning or inspection.

7. Bilanagreining

Ef skynjarinn virkar ekki eins og búist var við skaltu skoða eftirfarandi algeng vandamál og lausnir:

• Sensor not powering on:
  • Athugaðu aflgjafa voltage (10-30V DC).
  • Verify wiring connections (Brown to +V, Blue to 0V).
• No detection or unstable detection:
  • Ensure the sensor lens is clean and free from obstructions.
  • Check the detection distance; it should be within 30-500mm.
  • Re-perform the SET procedure to teach the sensor the target.
  • Adjust the sensor's position or angle relative to the target.
  • Check for excessive ambient light or reflective surfaces interfering with detection.
• Output not switching:
  • Verify the NO/NC setting is correct for your application.
  • Check the wiring of the output (Black wire).
  • Ensure the load connected to the output is within the sensor's current capacity (50mA).

If problems persist, contact Keyence technical support.

8. Tæknilýsing

9. Ábyrgð og stuðningur

For warranty information and technical support, please refer to the official Keyence website or contact your local Keyence representative. Keep your purchase receipt as proof of purchase.

Keyence Corporation: www.keyence.com
