Intesis INKNXHAI016C000 Commercial and VRF Systems to KNX Interface
Important Information
Item number: INKNXHAI016C000
The Haier-KNX gateway allows bidirectional communication between Haier Commercial and VRF systems and KNX installations. This communication brings total control of the AC unit from KNX, including monitoring of the AC unit’s internal variables, running hours counter (for filter maintenance control), and error codes.
Features And Benefits
ETS configuration
The interface is configured using the ETS standard configuration tool software.
Smooth KNX thermostat integration.
KNX thermostats are allowed to control the AC unit via the thermostat’s temperature sensor.
AC unit control by both remote controller and KNX
The AC unit can be simultaneously controlled by the manufacturer’s remote controller and KNX.
Compatible with all KNX thermostats in the market
All the required DPT objects to be compatible with all KNX thermostats in the market are available.
Total unit control and monitoring from KNX
Through internal variables, running hours counter (for maintenance purposes), and error indication.
Small footprint
The interface can be quickly installed inside the AC unit thanks to its reduced dimensions.
General
| Net Width (mm) | 88 |
| Net Height (mm) | 56 |
| Net Depth (mm) | 90 |
| Net Weight (g) | 160 |
| Packed Width (mm) | 12 |
| Packed Height (mm) | 6 |
| Packed Depth (mm) | 9 |
| Packed Weight (g) | 200 |
| Operating Temperature °C Min | 0 |
| Operating Temperature °C Max | 60 |
| Storage Temperature °C Min | -40 |
| Storage Temperature °C Max | 85 |
| Power Consumption (W) | 5.8 |
| Input Voltage (V) | 29 VDC |
| Power Connector | 2-pole |
| Configuration | ETS |
| Capacity | Up to 16 indoor units. |
| Installation Conditions | This gateway is designed to be mounted inside an enclosure. If the unit is mounted outside an enclosure, precautions should always be taken to prevent electrostatic discharge to the unit. When working inside an enclosure (e.g., making adjustments, setting switches, etc.), typical anti static precautions should always be followed before touching the unit. |
| AC Model Compatibility | Haier VRV systems |
| Content of Delivery | Intesis gateway and installation manual. |
| Not Included (in delivery) | Communication cables. |
| Mounting | Wall mount |
| Housing Materials | Plastic |
| Warranty (years) | 3 years |
| Packaging Material | Cardboard |
Identification And Status
| Product ID | INKNXHAI016C000 |
| Country of Origin | Spain |
| HS Code | 8517620000 |
| Export Control Classification Number (ECCN) | EAR99 |
Physical Features
| Connectors / Input / Output | KNX, HVAC port |
| LED Indicators | Gateway and communication status. |
| DIP & Rotary Switches | EIA-485 serial port configuration. Gateway settings. |
Certifications And Standards
| ETIM Classification | EC001604 |
| WEEE Category | IT and telecommunications equipment |
Use Case

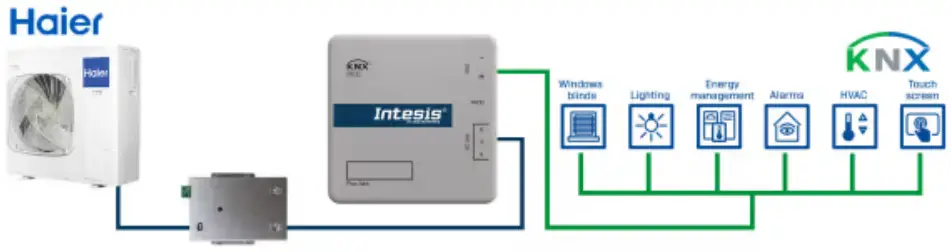

Integration example.
