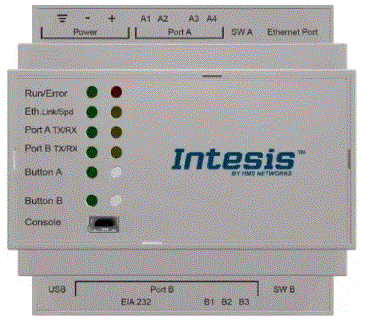

Intesis INBACLON3K00000 Lon Works TP-FT-10 to BACnet IP and MS-TP Server Gateway
Product Information
Item number: INBACLON3K00000
Integrate any LON device or installation with a BACnet BMS or any BACnet/IP or BACnet MS/TP controller. This integra on aims to make LON devices, their network variables (SNVT), and resources accessible from a BACnet-based control system or device as if they were a part of the BACnet system and vice versa.
Features and benefits
- Support for both BACnet/IP and BACnet MS/TP
The gateway supports both BACnet/IP and BACnet MS/TP protocols. - Commissioning-friendly approach with Intesis MAPS
Templates can be imported and reused as often as needed, significantly reducing commissioning me. - Configura on through IP (Console) port
Configura on can be carried out through the gateway’s IP (Console) port. - Can be configured to Modbus TCP instead of BACnet
The gateway is highly versa le, as it can be configured to work with Modbus TCP instead of BACnet. - Easy integra on with Intesis MAPS
The integra on process is quickly and easily managed using the Intesis MAPS configura on tool. - Configura on tool and gateway automa c updates
Both the Intesis MAPS configura on tool and the gateway’s firmware can receive automa c updates. - Support for LonWorks TP/FT-10 devices
The gateway supports LonWorks TP/FT-10 (twisted pair free topology at 78 kbps) devices. - Control up to 3000 SNVT / UNVT LonWorks variables
Up to 3000 SNVT/UNVT LonWorks variables can be controlled by the gateway.
Specifications
| General | |
| Net Width (mm) | 88 |
| Net Height (mm) | 90 |
| Net Depth (mm) | 58 |
| Net Weight (g) | 194 |
| Packed Width (mm) | 127 |
| Packed Height (mm) | 86 |
| Packed Depth (mm) | 140 |
| Packed Weight (g) | 356 |
| Operating Temperature °C Min | 0 |
| Operating Temperature °C Max | 60 |
| Storage Temperature °C Min | -30 |
| Storage Temperature °C Max | 60 |
| Power Consumption (W) | 1.7 |
| Input Voltage (V) | 9 to 36VDC +/-10%, Max.: 140mA. |
| Power Connector | 3-pole |
| Configuration | Intesis MAPS |
| Capacity | Up to 3000 points. |
| Installation Conditions | This gateway is designed to be mounted inside an enclosure. If the unit is mounted outside an enclosure, precautions should always be taken to prevent electrostatic discharge to the unit. When working inside an enclosure (e.g., making adjustments, setting switches, etc.), typical anti-static precautions should always be followed before touching the unit. |
| Content of Delivery | Intesis Gateway, Installation Manual, USB Configuration cable. |
General
- Not Included (in delivery) Power supply not included.
- Mounting DIN rail mount (bracket included)
- Housing Materials Plastic
- Warranty (years) 3 years
- Packaging Material Cardboard
Identification and Status
- Product ID INBACLON3K00000
- Country of Origin Spain
- HS Code 8517620000
- Export Control Classification Number (ECCN) EAR99
Physical Features
- Connectors / Input / Output Power supply, LON TP/FT-10, Ethernet, Console port USB, USB storage, EIA-485.
- LED Indicators Gateway and communication status.
- DIP & Rotary Switches EIA-485 serial port configuration.
- Battery Description Manganese Dioxide Lithium button battery.
Certifications and Standards
- ETIM Classification EC001604
- WEEE Category IT and telecommunications equipment
Product Diagram
Use Case
FAQ
- What LonWorks devices are supported by the gateway?
- The gateway supports LonWorks TP/FT-10 devices.
- How many LonWorks variables can be controlled by the gateway?
- The gateway can control up to 3000 SNVT/UNVT Lon Works variables.
- Is the configuration tool easy to use?
- Yes, the integration process is managed using the Intesis MAPS configuration tool, which is user-friendly.
