NX-8E Cellular Communicators and Programming the Panel
CAUTION:
- It is advised that an experienced alarm installer programs the panel as further programming may be required to ensure proper performance and use of the full functionality.
- Do not route any wiring over circuit board.
- Full panel testing, and signal confirmation, must be completed by the installer.
NEW FEATURE: For MN/MQ Series Communicators, the status of the panel can be retrieved not only from the status PGM but now also from the Open/Close reports from the dialer. Therefore, wiring the white wire and programming of the status PGM of the panel is optional.
Wiring the white wire is necessary only if the Open/Close reporting is disabled.
IMPORTANT NOTE: The Open/Close reporting needs to be enabled during the initial pairing procedure.

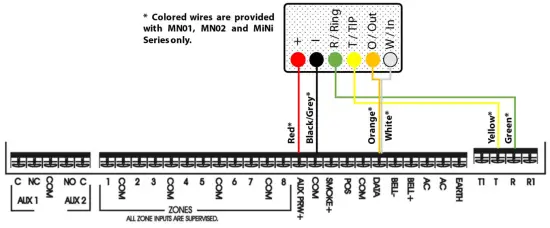

Wiring the MN01, MN02 and MiNi communicator series for events reporting and remote control via keybus*
*Remote control via the keybus allows you to arm/disarm or arm in stay multiple partitions, bypass zones and get the status of the zones.

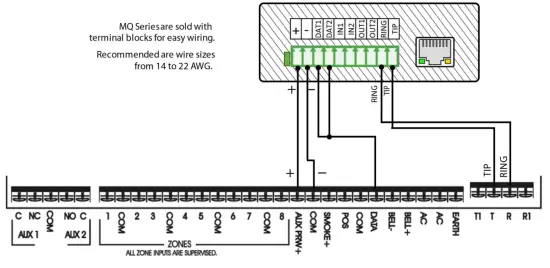

Wiring the MQ03 communicator series for events reporting and remote control via keybus*
*Remote control via the keybus allows you to arm/disarm or arm in stay multiple partitions, bypass zones and get the status of the zones.

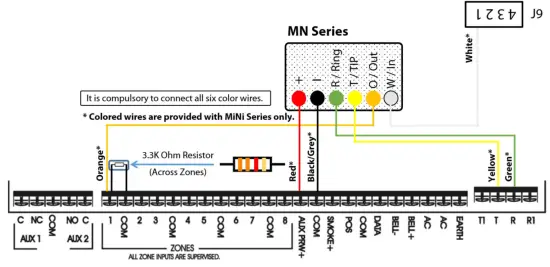

Wiring the MN01, MN02 and MiNi communicator series for events reporting and remote control via Keyswitch*
*The optional keyswitch configuration can be used for M2M communicators that do not support keybus functionality.
You do not need to configure this option if your device supports remote control via the keybus.

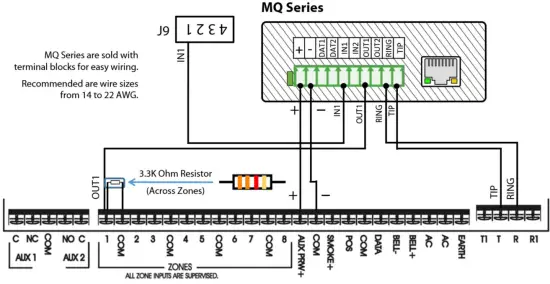

Wiring the MQ03 communicator series for events reporting and remote control via Keyswitch*
*The optional keyswitch configuration can be used for M2M communicators that do not support keybus functionality.
You do not need to configure this option if your device supports remote control via the keybus.

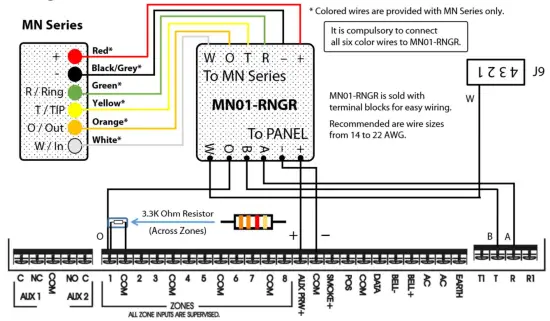

Wiring the MN01, MN02 and MiNi Series with Ringer MN01-RNGR to Interlogix NX-8 for UDL
Programming the Interlogix NX-8E Alarm Panel via the Keypad
Enable Contact ID reporting:
| Display | Keypad Entry | Action Description |
| System ready | *89713 | Enter programming mode. |
| Enter device address | 00# | To go to edit main menu. |
| Enter location | 0# | To configure Phone 1. |
| Loc# 0 Seg#1 | 15*, 1*, 2*, 3*, 4*, 5*, 6*, # | Set value 123456 and DTMF dialing for this number (Seg#1 = 15). Press # to go back (123456 is just an example). |
| Enter location | 1# | To configure Phone 1 account code. |
| Loc# 1 Seg#1 | 1*, 2*, 3*, 4*, # | Type the desired account code (1234 is just an example). # to go back. |
| Enter location | 2# | To configure Phone 1 communicator format. |
| Loc# 2 Seg# 1 | 13* | Set the value to 13 which corresponds to “Ademco Contact ID”. * to save and go back. |
| Enter location | 4# | To go to “Phone 1 events reported” toggle menu. |
| Loc# 4 Seg# 1 | 12345678* | All toggle options should be enabled. * to save and go to next menu. |
| Loc# 4 Seg# 2 | 12345678* | All toggle options should be enabled. * to save and go back. |
| Enter location | 5# | To go to “Phone 1 partitions reported” toggle menu. |
| Loc# 5 Seg# 1 | 1* | Enable option 1 to enable report events from partition 1 to phone number 1. * to save and go back. |
| Enter location | 23# | To go to “Partition features” menu. |
| Loc# 23 Seg# 1 | *, *, 1, *, # | Press * twice to go to section 3 toggle options menu. Enable option 1 (to enable “Open/Close reporting”), press * to save and then # to go back to the main menu. |
| Enter location | Exit, Exit | Press “Exit” twice to exit programming mode. |
Program Keyswitch zone and output:
| Display | Keypad Entry | Action Description |
| System ready | *89713 | Enter programming mode |
| Enter device address | 00# | To go to edit main menu |
| Enter location | 25# | To go to “Zone 1-8 zone type” menu |
| Loc# 25 Seg# 1 | 11, *, # | To configure Zone1 type as keyswitch, * to save and go to the next section, # to go back to the main menu. |
| Enter location | 45 # | To go to “Auxiliary output 1 to 4 partition selection” toggle menu. |
| Loc# 45 Seg# 1 | 1, *, # | Enable option 1 to assign events from partition 1 to impact output 1. Press * to save and go to next section, then # to go back to the main menu. |
| Enter location | 47# | To go to “Auxiliary output 1 event and times” menu. |
| Loc# 47 Seg# 1 | 21* | Enter 21 to assign “Armed status” event to PGM 1. Press * to save and go to the next section. |
| Loc# 47 Seg# 2 | 0* | Enter 0 to set the output to follow the event (without delay). Press * to save and go back to the main menu. |
| Enter location | Exit, Exit | Press “Exit” twice to exit programming mode. |
Programming the GE Interlogix NX-8E Alarm Panel via the Keypad for remote Upload/Download (UDL)
Program the Panel for Upload/Download (UDL):
| Display | Keypad Entry | Action Description |
| System ready | *89713 | Enter programming mode. |
| Enter device address | 00# | To go to main edit menu. |
| Enter location | 19# | Start configuring “Download Access Code”. By default, it is “84800000”. |
| Loc#19 Seg# | 8, 4, 8, 0, 0, 0, 0, 0, # | Set download access code to its default value. Press # to save and go back. IMORTANT – This code should match the one set in the “DL900” software. |
| Enter location | 20# | To go to “Number of rings to answer” menu. |
| Loc#20 Seg# | 1# | Set number of rings to answer to 1. Press # to save and go back. |
| Enter location | 21# | Go to “Download control” toggle menu. |
| Loc#21 Seg# | 1, 2, 3, 8, # | All of these (1,2,3,8) should be OFF in order to disable “AMD” and “Call back”. |
| Enter location | Exit, Exit | Press “Exit” twice to exit programming mode. |
