infobit DB22 2CH Bluetooth Input Adapter
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.
Caution
The product requires the use of UTP connectors. Please connect in direct interconnection method and do not cross connect.
Direct Interconnection Method
Introduction
This Dante® 2CH Bluetooth Input Adapter is an audio transmitter based on the Dante® Ultimo 2×2. It converts two-channel Bluetooth audio into Dante® 2CH digital audio, then transmits the audio to the receiving end through network (Dante®).
The adapter supports local USB-C port power supply and PoE function.
Features
- Two-channel Bluetooth audio to Dante® 2CH digital audio
- Supports Bluetooth V5.1, SBC/AAC/APTX/APTX-LL/APTX-HD, up to 192KHz@24bit
- Dante® audio sampling rate supports 48KHz@24bit
- Dante® audio delay supports 1/2/5ms (configurable)
- Supports local USB-C port power supply and PoE function (Class 0 802.3af PoE)
- Compact design for easy and flexible installation
Package Contents
- 1x Dante® 2CH Bluetooth Input Adapter
- 2x Hook & Loop
- 1x User Manual
Specifications
| Technical | ||
| Input | Two-channel Bluetooth audio | |
| Output | Dante® 2CH digital audio | |
| Control Method | Dante® Controller | |
| Video Network Bandwidth | 100M | |
| Audio Latency | Configurable Dante® device latency (Supports 1, 2 or 5ms configurable using Dante® Controller) | |
| Audio Formats | Bluetooth IN [Digital audio input, PCM 2CH 44.1K-192KHz 16/24bit] DANTE OUT [Digital audio output, PCM 2CH 48KHz 16/24bit] | |
| Audio Parameters | Input Impedance | N/A |
| Line Input Level (Maximum) | N/A | |
| Frequency Response | 20Hz to 20kHz (-/+0dB) | |
| Dynamic Range | >100dB@2Vrms, 1kHzA-weighted | |
| Audio S/N Ratio | >100dB@2Vrms, 1kHzA-weighted | |
| Audio THD+N | <0.01%@0dBV, 1KHz | |
| Transmission Distance | 328ft/100m (CAT6/6A/7) | |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
|
| Connection | ||
| Input | 1x POWER [USB-C port, 12-pin female] 1x Bluetooth Input [Wireless] | |
| Output | 1x DANTE [RJ45 connector, PoE] | |
| Others | 1x RESET button [System reboot button] 1x PAIR button 1x STATUS LED |
|
| Mechanical | |
| Housing | Plastic Enclosure |
| Color | Black |
| Dimensions | 115mm [W] x 40mm [D] x 28 mm [H] |
| Weight | 93g |
| Power Supply | USB input: 5V/500mA PoE input: PoE IEEE802.3af Class 0 |
| Power Consumption | 0.65W (Max) |
| Operating Temperature | 32 ~ 104°F / 0 ~ 40°C |
| Storage Temperature | -4 ~ 140°F / -20 ~ 60°C |
| Operating Humidity | 20% ~ 80% RH (relative humidity, non-condensing) |
| Storage Humidity | 10% ~ 90% RH (relative humidity, non-condensing) |

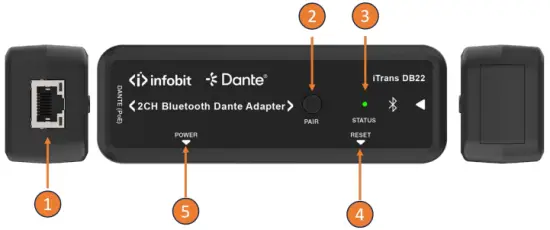

Operation Controls and Functions
| No. | Name | Function Description |
| 1 | DANTE (PoE) port | Dante® digital audio output port, connected to the Network Switch through RJ45 line, supporting PD power supply.
The green LINK LED is always on after normal connection. The yellow DATA LED is flashing when there is data transmission. |
| 2 | PAIR button | Bluetooth pairing button.
|
| 3 | STATUS LED (green) | Bluetooth pairing indicator light:
|
| 4 | RESET button | Press this button to reboot the unit. |
| 5 | POWER port | USB-C port with following two functions:
|
Note: The RESET button can only be used for device reboot, and device reset setting needs to be done through the Dante® Controller.
API Commands
The adapter supports API commands control. Connect the POWER port to a PC with a USB-C cable. Then, open a serial command tool on PC to send API commands to control the adapter.
The supported commands are as follow.
| Command | Function Description |
| ? | Get the list of all commands |
| help | Get the list of all commands |
| get fw version | Get firmware version |
| set reboot | Reboot the device |
| set reset | Reset to factory defaults |
| set bt update | Bt Update |
Application Example
Trademarks
Dante® is registered trademark of Audinate Pty Ltd. All other trademarks are the property of their respective owners.
Customer Support
www.infobitav.com
