infobit D401 4×1 3G SDI Multiviewer with Seamless Switching
Introduction
The iTrans D401 is a professional 4×1 SDI multiviewer that supports multiple 3G SDI signals. It supports 15x displaying mode including single image, dual images, quad images modes. With network control by the Windows-based software, the displaying modes can be switched. It supports seamless switching without any black screen intervals.
Key Features
- 4x 3G SDI inputs
- 2x 3G SDI mirror outputs
- 1x HDMI output
- Single image, Dual-image PIP, Dual-image POP, Quad-image split view
- Auto-cycle of single-images modes
- Adaptive input signal, optional output resolutions
- Seamless switching without any black screen intervals
- DIP switch to setup output resolutions
- With network control software
- Supports SD/ HD/ 3G SDI
- 3G SDI Level A
- With both DV and USB C power supply
Connections
|
No. |
Feature | Function |
| 1 | SDI IN |
4-CH SDI Inputs |
|
2 |
SDI OUT | 2-CH SDI Outputs, mirror |
| 3 | DC 12V |
12V DC power supply |
|
4 |
TYPE C | TYPE C for upgrade and power supply |
| 5 | SET |
DIP switch to adjust the output resolutions |
|
6 |
RJ45 |
Network port, connect to PC for control |
| 7 | HDMI OUT |
HDMI Output |
|
8 |
Audio Out/IN |
No function, reserved. |
Diagram
Spec
|
Input |
Ports | 4-CH 3G-SDI signal inputs |
| Signal standard |
SD/HD/3G-SDI: SMPTE 259/274/292/296/372/424/425 |
|
|
Output |
Ports | 2-CH 3G-SDI signal outputs 1-CH HDMI output |
|
Signal standard |
SD/HD/3G-SDI: SMPTE- 259/274/292/296/372/424/425
HDMI: HDTV standard HDMI signal |
|
| Size |
WDH |
109*126*25 mm |
|
Weight |
1.5Kg | |
| Power supply |
DC 12V |
|
|
Operating temperature |
0℃~50℃ non-condensation | |
| Storage temperature |
-20℃~75℃ |
|
Install Software
Download the control software on our website: www.infobitav.com/itrans-d401
Install the control software iTrans D401_v1.0.1.6 (version should be updated without prior notice) on your Windows PC.
Setup PC network
The control PC must be setup with the IP address (192.168.1.xxx) to make sure it is within the same subnet with the iTrans D401 (default IP 192.168.1.215) at the first time connection.
Then click the Scan button to search and select the detected device in the dropdown list.
After the iTrans D401 being connected, the user can change the device IP address as shown on below picture:

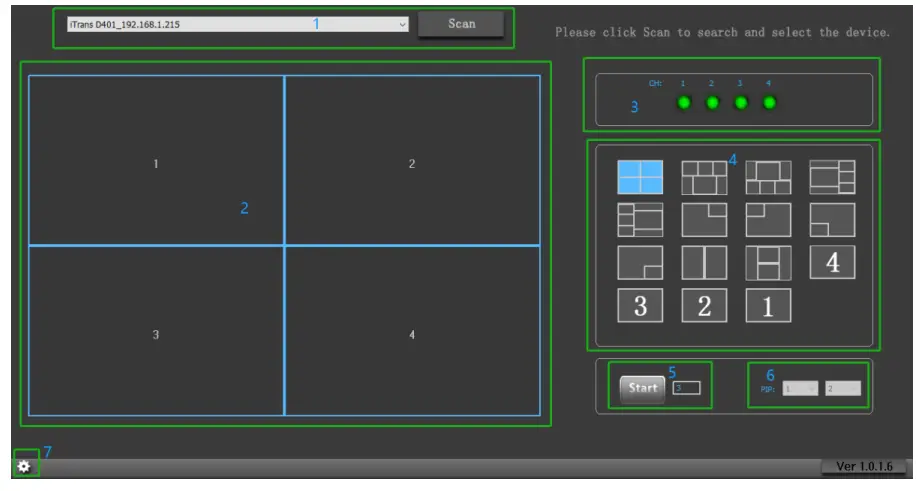

Control the iTrans D401
3- (1) Scan and connect the iTrans D401
3- (2) Showing the Multiview mode with input signal number on each image.
3- (3) Status: Green means signal is available; Red means signal lost or disconnected.

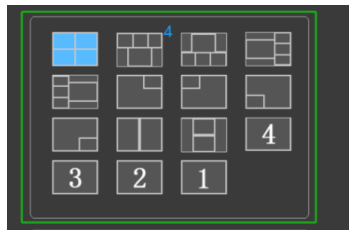

3- (4) Mode switch: Click the right displaying mode to switch among the 15x built-in layouts.

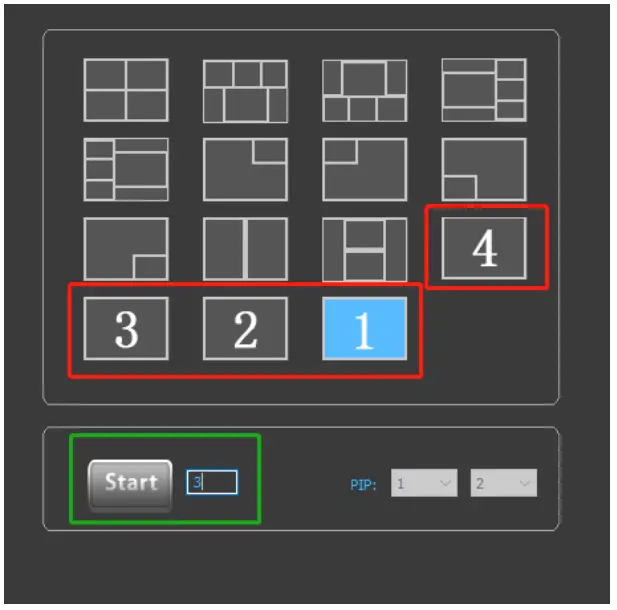

3- (5) Auto cycle: enter the auto-cycling intervals (in seconds) and click Start button. The display will auto cycle among the 4x single images modes (Single image 1, 2, 3 and 4).
3- (6) PIP: Select and switch the signal source for PIP or POP mode. Please note the first image only can be selected under POP mode and cannot be selected under PIP mode (the INPUT #1 is displaying on the background image by default under PIP mode).

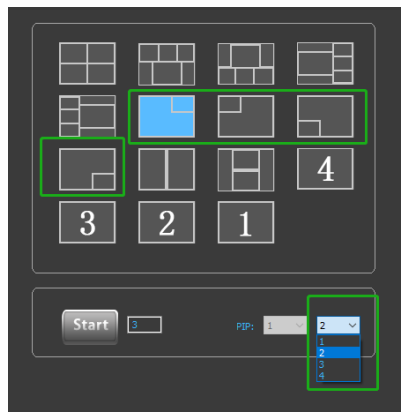

3-(6)-1: PIP mode

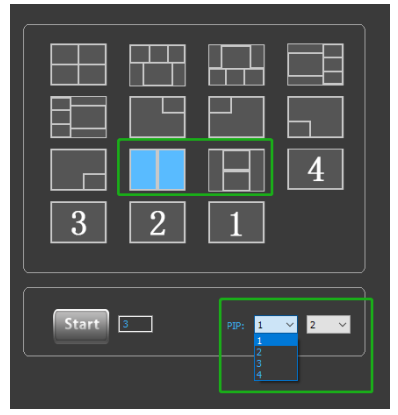

3-(6)-2: POP mode
Quad-image modes
Under all qualimage modes, the top-left or the bigger image is always displaying the INPUT #1 SDI signal.
Setup resolution
The supported resolutions can be switched by the DIP switch.
|
DIP Switch |
Resolution |
||
|
1 |
2 |
3 |
|
|
0 |
1 | 1 | 720P60 |
| 1 | 0 | 1 |
720P50 |
|
1 |
1 | 0 | 1080P25 |
| 0 | 0 | 1 |
1080P60 |
|
0 |
1 | 0 |
1080P50 |
|
1 |
0 |
0 | 1080I60 |
| 1 | 1 | 1 |
1080P30 |
|
0 |
0 | 0 | 1080I50 |
|
Up: 1 Down: 0 DIP 4: Reserved |
|||
Package list
- iTrans D401 1x
- DC power supply 1x
- User manual 1x
Technical support
For any technical support, please contact your local distributor, reseller or send email to INFOBIT directly via info@infobitav.com.
Customer Support
INFOBIT AV
www.infobitav.com
info@infobitav.com
