Impecca AS620BTM Hi-Fi Stereo Bluetooth Speaker
Specifications
- Product Dimensions
6.69 x 2.17 x 5.51 inches - Item Weight
4 ounces - Connectivity Technology
Bluetooth, Auxiliary, USB - Special Feature Ultra-portable, Built-in-microphone
- Recommended Uses For Product
Music,Games, Movies - Mounting Type
Plug Mount, Freestanding - Brand
Impecca
Introduction
Congratulations on your purchase of the IMPECCA AS620BT Portable Hi-Fi Stereo Bluetooth Speaker. Now you can enjoy superb quality music streamed wirelessly from your Bluetooth-compatible music player and make and receive hands-free calls using your mobile phone without having to switch devices. The music player can be the music player feature of your mobile phone or a separate compatible device that supports Bluetooth wireless technology.
Powered by a highly efficient lithium-ion battery capable of providing up to 35 hours of talk time, 5 hours of music playback time, and up to two months of standby time, the IMPECCA Bluetooth Wireless Stereo Headset is perfect for business and daily use in the bedroom, office, outdoors, and in the car.
The IMPECCA AS620BT Portable Hi-Fi Stereo Bluetooth Speaker is compliant with Bluetooth Specification 3.0 and works with Bluetooth 3.0 compatible devices including phones, MP3 players, and Tables. Check with the manufacturers of other devices to determine their compatibility with this device
Before using this device, it is recommended that you familiarize yourself with the features, functions, and operating procedures described in this manual. Due to slight modifications in production, the instructions, features, and/or descriptions found in this manual might be slightly different from your product.
MAIN FEATURES
- Compact Size and Powerful Sound
- Effective transmission range of 10 meters
- Bluetooth 3.0 compatible
- High-Density Li-Polymer Battery for long-lasting performance Supports Audio-line in technology

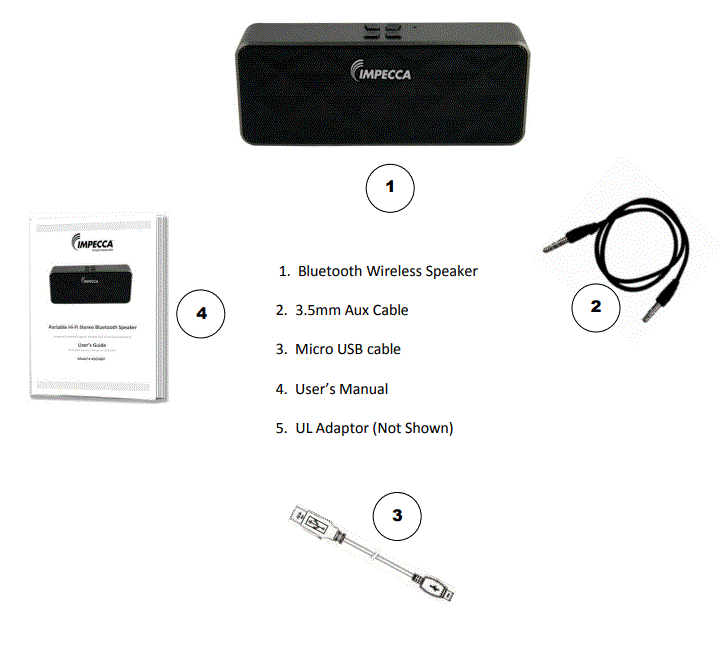

IN THE BOX
- Bluetooth Wireless Speaker
- 3.5mm Aux Cable
- Micro USB cable
- User’s Manual
- UL Adaptor (Not Shown)

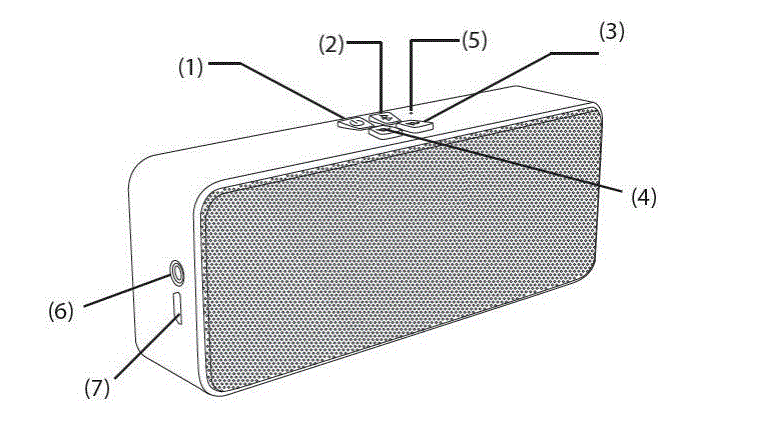

LAYOUT AND CONTROLS
- On/Off/ Multi-Functional button (Answer call/End call / Play/Pause)
- Bluetooth button
- Volume + / Next song
- Volume – / Previous song
- Microphone
- 3.55 mm Audio Jack
- Micro USB Jack
REFER TO THE MULTIFUNCTION AND BLUETOOTH BUTTON CHART BELOW
BASIC OPERATION
Follow these tips and safety instructions to preserve the operational lifespan of your Bluetooth Wireless Speaker
- Do not use this device in extreme temperatures. Keep away from extremely hot, cold, dry, or damp areas. Also, keep away from water, fire, and radiation.
- It is recommended that you allow the battery to fully charge before using the device for the first time (approximately 2 to 3 hours. Do not recharge unattended for longer than 5 hours.
- The effective range for this wireless device is 10 Meters. Performance may be affected by distance and interference from other devices or conditions within the operating environment.
- Barriers and other wireless devices may affect the performance of this device.
- Check the laws and regulations on the use of mobile phones and hands-free equipment in areas you intend to use this product.
Warning
- Do not modify, repair, or dismantle this Bluetooth® wireless speaker. Doing so may result in fires, electric shocks, and/or partial or complete malfunction of this device, etc., and will void all warranties.
- Do not use any diluents or volatile liquid to clean the Bluetooth® wireless speaker.
- Do not allow young children to use this device unsupervised.
- Observe all signs and instructions that require an electrical device or radio product to be switched off in designated areas, such as petrol/refueling stations, hospitals, blasting areas, potentially explosive atmospheres, or aircraft.
- Do not use or connect adaptors and/or chargers to this product that are not approved of or specified by IMPECCA™.
CHARGING THE BATTERY
The Red LED will continually flash when battery power is low. When the battery is completely drained, no indicator lights will function. Before using, allow the battery to charge fully. When using the micro USB charging cable from a computer allow 8-10 hours at least. If using the UL adaptor, allow 4-5 hours to fully charge.
- Connect the micro USB cable to the USB Jack on your stereo.
- Connect the larger end of the USB cable to a USB port on your PC, laptop, or authorized AC charger with a USB port.
- The Red LED will turn on and will steady during charging.
- When the battery is fully charged, the Red LED will turn off.
POWER ON/POWER OFF
To switch the device on, press and hold the MF (multifunction) button for about 3 seconds and then release it. The Bluetooth blue LED turns on and slowly flashes.
Note
If the Bluetooth Wireless Speaker has already been paired or connected to another Bluetooth device before, the Blue LED light will slowly flash as the speaker automatically attempts to reconnect to the paired device. If the Bluetooth Wireless Speaker is unable to locate a formerly paired device within 3 minutes, or if there is no activity, it will shut down automatically.
To turn the power off, press and hold the MF (multifunction) button for about 3 seconds and then release. The Bluetooth blue LED light will flash and then turn off.
PAIRING WITH BLUETOOTH-ENABLED DEVICES
Pair and connect the Bluetooth Wireless Speaker with a mobile phone or other Bluetooth device
- Ensure that your Bluetooth Wireless Speaker is turned on.
- Press and hold the Bluetooth button for about 3 seconds. The red LED on the MF button and the blue LED on the Bluetooth button quickly flash, indicating that the device is in ‘pairing’ mode.
- Activate the Bluetooth feature on your phone or other Bluetooth devices, and set it to search for Bluetooth devices. See the user guide of your phone for instructions.
- Select the speaker from the list of found devices. It should show up as “AS620”.
- If your phone or device prompts you to enter a passkey or PIN code, enter the following passcode: 0000 (four zeros) to pair and connect the headset to your phone.
Note
For some phones, you may need to make the connection separately after pairing. You should only need to pair the device with your phone once. Check the settings on your phone.
If pairing is successful, the Wireless Stereo will beep when connected to your phone or other Bluetooth devices. When the device is connected with your mobile phone and ready for use, the indicator light slowly flashes blue.
Disconnect the Wireless Speaker
To disconnect the Bluetooth Wireless Speaker from another phone or device, switch off the Wireless Speaker, or disconnect it in the Bluetooth menu of your device. You do not need to delete pairing
with the Wireless Speaker to disconnect it.
Reconnect the Wireless Speaker
To connect the Wireless Speaker to the phone or other Bluetooth device that you have last used with it, switch on the speaker, or make the connection in the Bluetooth menu of your device. In your phone or another device, you may be able to allow the Wireless Speaker to connect to it automatically whenever the headset is switched on. For further instructions, refer to the user’s guide that came with your phone or device.
USING THE WIRELESS SPEAKER
Once the speakerphone is successfully paired and connected with your mobile phone, you can use it to make and receive calls. The speakerphone can also be used with voice dialing if your mobile
phone supports this feature. Please check your mobile phone’s manual for more information.
Adjust the volume
To adjust the headset volume, press the “Vol+” button to increase or the “Vol-” button to decrease the volume during a call or while listening to music.
Call handling
Using voice dialing
Short press the MF button twice, wait for a voice prompt, and say the name of the person you want to call. (Some mobile phones may not support this feature.)
Using the phone keys to make calls
Enter and dial the number on the mobile phone as you normally would. Once the call has been set up, the sound will be transmitted to the speakerphone automatically.
Redial
To redial the last number, quickly press the Bluetooth button twice.
Answering/Ending/Rejecting calls
When the Wireless Speaker is turned on and there is an incoming call, you will hear a musical tone or beep (depending on the settings of your phone).
- To answer a call, press the MF (multifunction) button or use the keys on the phone.
- To reject the call, press and hold the multifunction button for about 2 to 3 seconds.
- To end a call, press the multifunction button or use the keys on the phone.
Transferring Calls
During both incoming call and outgoing call state, you can press and hold the Volume + and – buttons at the same time to transfer the call to the mobile phone. If you want to transfer the call back to the speakerphone, press and hold the Volume + and – buttons at the same time again. Some mobile phones may require additional configuration or may not support this function.

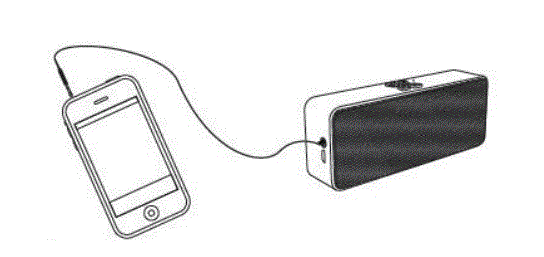

PLAYING MUSIC
To listen to music, connect the Wireless Speaker to a compatible music player such as a mobile phone with a music player feature or another music device, and then press the MF (multifunction) button. The music player must support the Bluetooth profile. The music functions available depend on your music player. You can also connect other devices by using the direct Audio line-in jack.
Note
If you receive or make a call while listening to music, the music is paused until you end the call. To pause or resume playing, press the multifunction button. To stop playing music, press and hold the multifunction button for about 2 seconds.
TROUBLESHOOTING
See below for solutions to common problems.
If you experience any issues that are not listed above, or if you are unable to resolve your issue after trying the methods and solutions described above, please contact our technical support team:
Email: service@impeccausa.com
Visit our website: http://www.impeccausa.com
IMPECCA® is a division of LT Inc., all rights reserved. All trademarks are the property of their respective owner and are used by LT Inc. solely for descriptive purposes.
To obtain a warranty, please register your product online at: www.impeccausa.com
