1. Okwu mmalite
The ATOMSTACK P9 M50 is a portable and professional laser engraver designed for various materials including wood, leather, metal, and more. This manual provides essential information for safe operation, setup, and maintenance of your device, ensuring optimal performance and longevity.
2. Ozi nchekwa
Ịdọ aka ná ntị: Laser radiation can cause eye damage and skin burns. Always follow safety guidelines to prevent injury.
- Nchedo anya: The laser module includes a protective cover. While this cover helps, it is highly recommended to wear additional laser safety goggles (not included) during operation to ensure maximum eye protection.
- Nkwụsị ihe mberede: Familiarize yourself with the emergency stop button. In case of any unexpected situation, press this button immediately to halt all machine operations. Rotate the button to disengage it before restarting.
- Igwe ikuku: Operate the laser engraver in a well-ventilated area to dissipate fumes and smoke produced during engraving and cutting. Consider using an exhaust system.
- Nchekwa ihe: Do not engrave or cut unknown materials. Some materials can produce toxic fumes or catch fire. Always verify material compatibility and safety data.
- Nlekọta: Never leave the machine unattended during operation. Stay within close proximity to monitor the process.
- Ụmụaka na anụ ụlọ: Keep children and pets away from the operating area and the machine at all times.

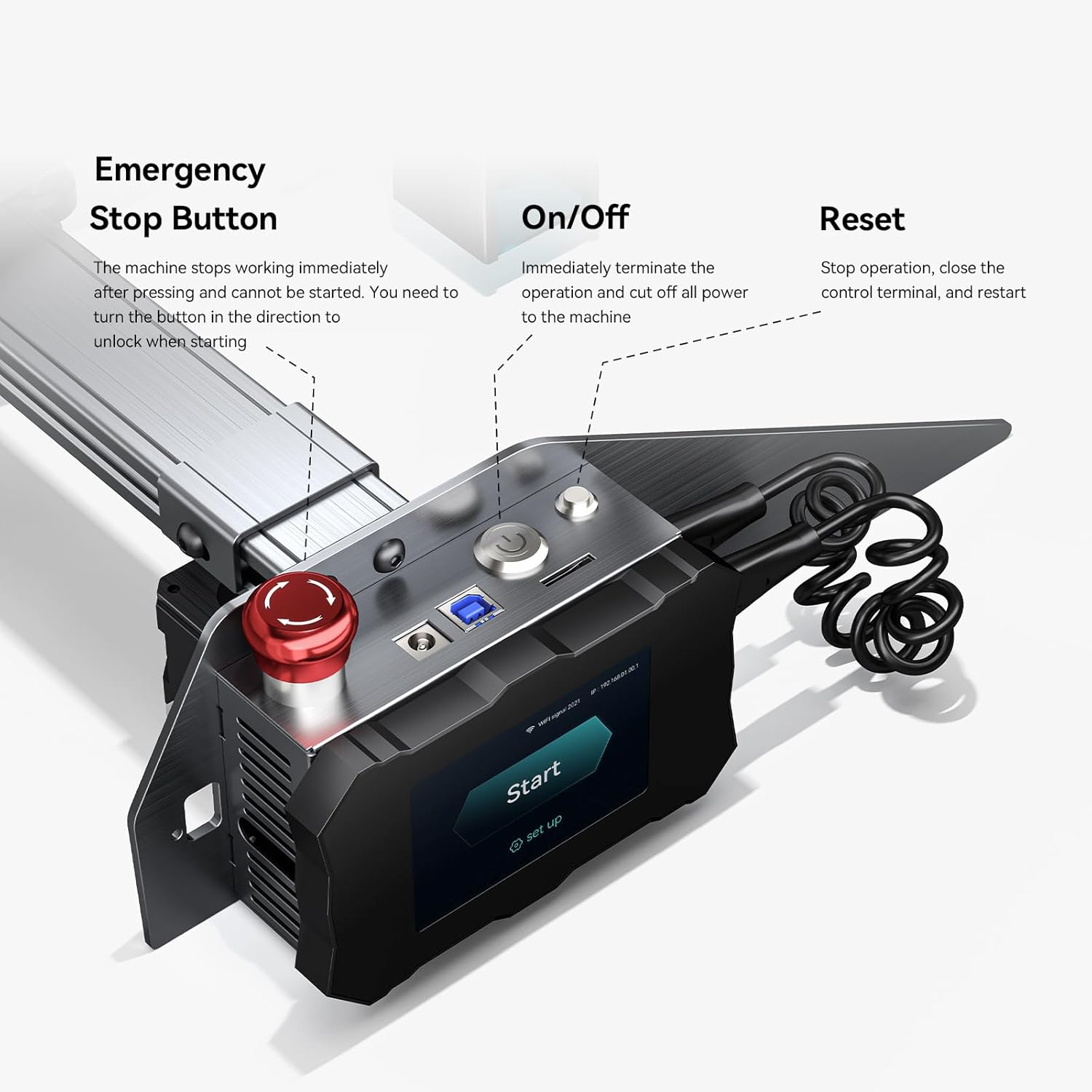

Figure 2.1: Emergency Stop Button and Control Panel. The red button is the emergency stop, the silver button is On/Off, and the small button is Reset.
3. Ihe ngwugwu
Chọpụta na akụrụngwa niile dị na ngwugwu:
- 1 x ATOMSTACK P9 M50 Laser Engraving Machine
- Parts for screw assembly (steps 2/3/4/5)
- 1 x Anti-dust cloth
- 1 x Tool set
- 1 x Fixed focus film
- 3 x Acrylic panels
- 3 x Wood chips
- 1 x Onye na-agụ kaadị
- 5 x eriri eriri
- 1 x Accessory package
- 1 x Display assembly
- 1 x Display cable
- 1 x nkwụnye ọkụ
- 1 x eriri ọkụ
- 1 x eriri data
- 1 x Metal cutting support plate
- 1 x Akwụkwọ ntuziaka
- 1 x Laser assembly
- 1 x X-axis assembly
- 1 x Y-axis assembly
- 2 x Ụkwụ nkwado
- 4 x Mounting spacers
4. Ntuziaka Nhazi
The ATOMSTACK P9 M50 comes 85% pre-assembled, simplifying the setup process. Follow these steps to prepare your engraver for use:
- Iwepu: Carefully remove all components from the packaging and place them on a clean, stable surface.
- Mgbakọ Frame: Connect the X-axis and Y-axis assemblies as per the included manual's diagrams. Secure them using the provided screws and tools. Ensure all connections are firm.
- Laser Module Installation: Mount the laser assembly onto the X-axis carriage. Ensure it is securely fastened and the cables are properly connected.
- Ụkwụ Nkwado: Attach the two support feet to the base of the machine for stability.
- Control Terminal: Connect the independent control terminal to the main unit using the display cable. The terminal features a magnetic adsorption design for easy attachment.
- Njikọ ike: Connect the power adapter to the machine and then plug it into a suitable power outlet (100-240V AC, 50/60Hz).
- Njikọ data: For computer control, connect the machine to your computer using the provided USB data cable. Alternatively, you can use a TF card for offline operation.
Figure 4.1: Assembled ATOMSTACK P9 M50 Laser Engraver.
Figure 4.2: Independent Control Terminal connection.
5. Ntuziaka ọrụ
5.1 Software Installation and Connection
The ATOMSTACK P9 M50 is compatible with popular laser engraving software:
- LaserGRBL: Supports Win XP/Win 7/Win 8/XP/Win 10.
- LightBurn: Supports Win XP/Win 7/Win 8/XP/Win 10 and Mac systems.
Download and install your preferred software from the official websites. Connect the engraver to your computer via USB. Follow the software's instructions to establish a connection and begin your projects.
Figure 5.1: Software Compatibility and Connection.
5.2 Offline Engraving
The P9 M50 supports offline engraving via its independent control terminal and TF card, allowing operation without a continuous computer connection.
- Prepare your engraving file (NC, BMP, JPG, PNG, DXF) using your chosen software.
- Chekwaa file to a TF card.
- Insert the TF card into the slot on the control terminal.
- Use the terminal's interface to select and start your engraving project.
Figure 5.2: Independent Control Terminal for Offline Engraving.
5.3 Fixed Focus Laser
The P9 M50 features a fixed-focus laser, eliminating the need for manual focus adjustment. This design ensures consistent precision and high energy density for both engraving and cutting tasks.
Figure 5.3: Fixed Focus Laser Technology.
5.4 Ihe akwadoro
The ATOMSTACK P9 M50 can engrave and cut a wide range of materials:
- Osisi
- Achara
- kaadiboodu
- Plastic
- Akpụkpọ anụ
- PCB
- Aluminom oxide
- Non-reflective electroplated and painted metal
- 304 mirror stainless steel
- Glass
- Ceramic
- Owu
- Slate
- kaadiboodu
- Akwa akwa na-abụghị akwa
- Wood board (up to 15mm)
- Acrylic (black, up to 15mm)
- Some thin plastic sheets
- Sponge
Figure 5.4: Dual Compression Spot Coupling Technology for Cutting.
6. Nlekọta
Regular maintenance ensures optimal performance and extends the lifespan of your ATOMSTACK P9 M50. Perform these tasks periodically:
- Clean the Laser Lens: Periodically clean the laser lens with a soft, lint-free cloth and a specialized lens cleaning solution to maintain engraving precision and laser power.
- Clean the Work Area: Remove debris, dust, and residue from the engraving area after each use to prevent interference with the laser path and machine movement.
- Akụkụ Ntugharị mmanụ: Apply a small amount of appropriate lubricant to the guide rails and lead screws as needed to ensure smooth and precise operation of the machine's axes.
- Nyochaa eriri: Regularly check all power and data cables for signs of wear, fraying, or damage. Replace any damaged cables immediately to prevent electrical hazards.
7. Nchọpụta nsogbu
This section addresses common issues you might encounter with your ATOMSTACK P9 M50.
| Nsogbu | Ihe nwere ike ime | Ngwọta |
|---|---|---|
| Igwe anaghị agba ọkụ | Power cable loose; power adapter faulty; emergency stop engaged | Check all power connections; ensure the emergency stop button is disengaged (rotate to unlock). Test power adapter if possible. |
| Laser anaghị agba ọkụ | Laser module not connected; software settings incorrect; material too reflective | Check laser module connection; verify software power settings (e.g., 100% power); ensure material is suitable for laser engraving/cutting. |
| Engraving is blurry or weak | Dirty laser lens; incorrect material settings; material not flat or properly positioned | Clean the laser lens; adjust power/speed settings in software for the specific material; ensure material is flat and secure on the work surface. |
| Igwe anaghị ejikọta na kọmputa | USB cable faulty; driver issues; incorrect port selection in software | Try a different USB cable or port; reinstall necessary drivers for the engraver; select the correct COM port in your engraving software. |
8. Nkọwapụta
Detailed technical specifications for the ATOMSTACK P9 M50 Laser Engraver:
| Ike igwe | 50 W |
| Ike Laser Optical | 10-11 W |
| Ogologo ogologo Laser | 455 ± 5 sq m |
| Ihe osise ziri ezi | 0.01 mm |
| Ụzọ mgbado anya | Edokwasiri anya |
| Mpaghara ihe osise | 220 x 250 mm |
| Nyefee data | USB connection / TF card |
| Ngwanrọ eji arụ ọrụ | LaserGRBL, LightBurn |
| OS akwadoro | Win XP/7/8/10, Mac (LightBurn) |
| Akwadoro File Ụdị | NC, BMP, JPG, PNG, DXF |
| Ntinye ike | 100-240 V AC, 50/60 Hz |
| Mpụta ike | 12 V 5 A |
| Nha ịbụ | 3.5 n'arọ |
| Asambodo | CE, FCC, RoHS, FDA, PSE |
Ọgụgụ 8.1: Akụkụ ngwaahịa na nkọwapụta isi.
9. Akwụkwọ ikike na nkwado
For warranty information and technical support, please refer to the official ATOMSTACK websaịtị ma ọ bụ kpọtụrụ onye na-ere ahịa gị. Debe nnata nzụta gị ka ihe akaebe nke ịzụrụ.
Akụrụngwa dị n'ịntanetị:
- Visit the official ATOMSTACK store on Amazon: Ụlọ Ahịa Atomstack
- For software support, visit the official websaịtị nke LaserGRBL na LightBurn.
