Okwu mmalite
This manual provides detailed instructions for the installation, operation, and maintenance of your Winplus LM56123-6 Control & Motion Activated LED Ceiling Light. This motion-activated light automatically turns on when movement is detected and remains on for a preset duration. The included remote control allows for convenient adjustment of lighting settings to suit various preferences and environments.
Ozi nchekwa
ỊDỌ AKA NA NTỊ: Ihe egwu nke Mkpọchi Eletriki. Kwụpụ ike na ihe mgbawa sekit tupu etinye ma ọ bụ rụzie ya.
- Gụọ ntuziaka niile nke ọma tupu echichi na iji.
- Hụ na ewepụla ọkụ eletrik tupu ị wụnye ya, rụzie ya, ma ọ bụ hichaa ya.
- Ọ bụrụ na ị maghị waya eletriki, onye ọrụ ọkụ eletrik kwesịrị ịrụ ọrụ nrụnye ahụ.
- Do not attempt to modify the product. Any modifications may void the warranty and pose safety risks.
- This product is designed for indoor use unless otherwise specified.
Ihe ngwugwu
Chọpụta na akụrụngwa niile dị tupu ịmalite nrụnye:
- 1 x Igwe ọkụ n'uko LED
- 1 x Crossbar
- 1 x Njikwa anya
- Batrị 2 x AAA (maka njikwa anya)
- 3 x eriri waya
Ntọala na nwụnye
The Winplus LM56123-6 LED Ceiling Light requires hardwire installation to an existing junction box. Follow these steps for proper setup:
- Ịkwụsị ike: Gbanyụọ ọkụ na mgbanaka sekit tupu ịmalite nrụnye.
- Mounting the Crossbar: Secure the provided crossbar to your existing junction box using appropriate screws (not included, typically come with the junction box).
- Njikọ waya: Connect the ceiling light's wires to your household wiring using the included wire nuts. Typically, this involves connecting live to live, neutral to neutral, and ground to ground. Ensure all connections are secure.
- Attaching the Light Fixture: Carefully align the ceiling light with the mounted crossbar and secure it in place.
- Batrị njikwa anya: Open the battery compartment on the back of the remote control and insert the 2 AAA batteries, observing correct polarity.
- Mweghachi ike: Ozugbo echichi zuru ezu na njikọ niile echekwara, weghachi ike na ihe nbibi sekit.
Foto: Ofeview of the Winplus LM56123-6 LED Ceiling Light and its components, illustrating the design and basic mounting hardware.

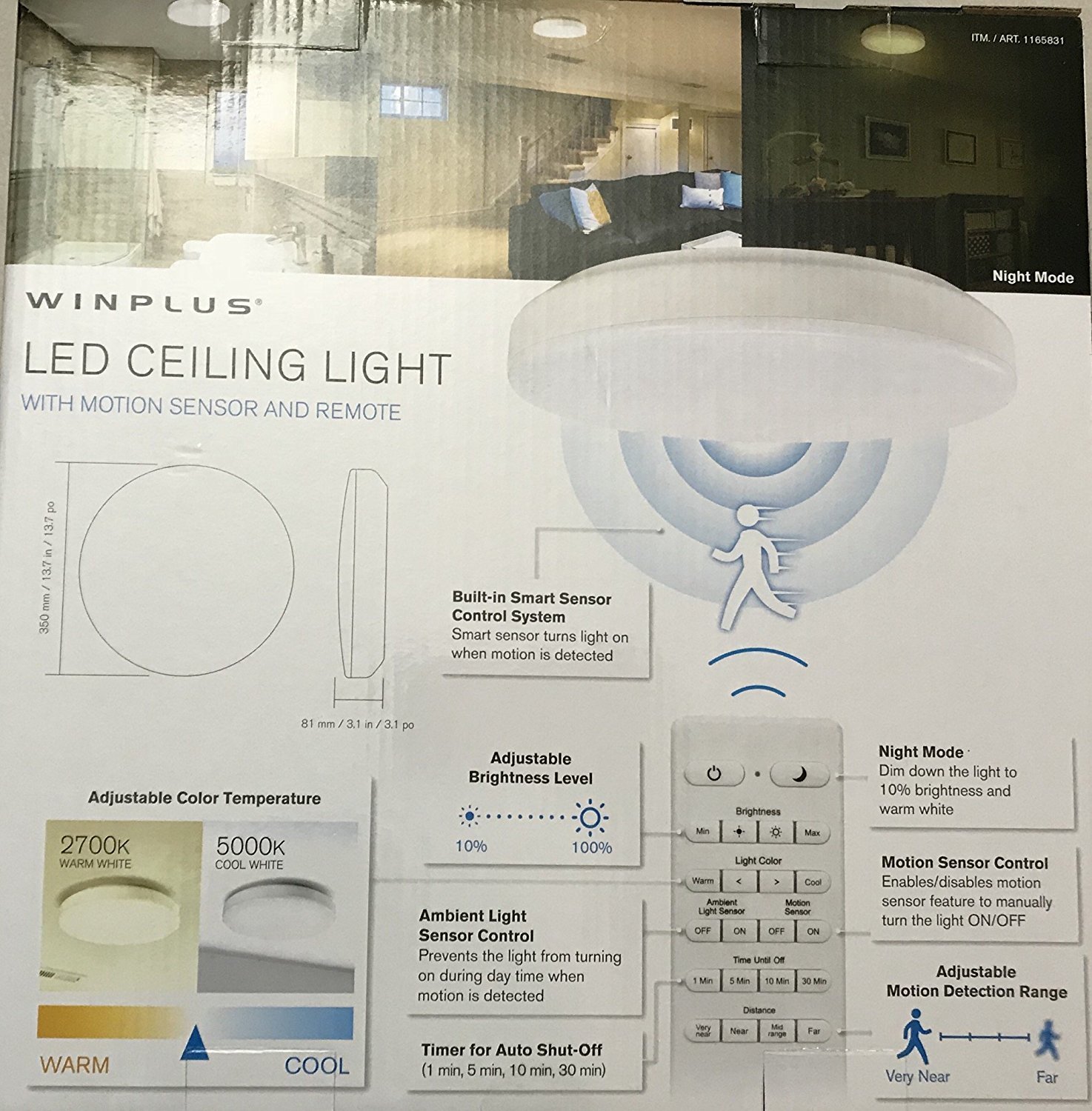

Image: Product packaging displaying key features such as adjustable color temperature, brightness, ambient light sensor, motion sensor, and auto shut-off timer.
Ntuziaka ọrụ
The Winplus LM56123-6 LED Ceiling Light is controlled via the included remote. Familiarize yourself with the remote's functions:
Foto: Zuru ezu view of the Winplus remote control, showing buttons for power, brightness, light color, ambient light sensor, motion sensor, time until off, and motion detection distance.
- bọtịnụ ike (⏻): Turns the light ON or OFF.
- Night Mode Button (☾): Dims the light to 10% brightness and warm white color temperature.
- Brightness Adjustment (Min / + / - / Max): Adjusts the light intensity from minimum to maximum.
- Light Color Adjustment (Warm / < / > / Cool): Changes the color temperature from warm white (2700K) to cool white (5000K).
- Ambient Light Sensor (OFF / ON): When ON, the light will only activate in low-light conditions. When OFF, the light will activate regardless of ambient light levels.
- Motion Sensor (OFF / ON): When ON, the light will activate upon detecting motion. When OFF, the light functions as a standard ceiling light without motion activation.
- Time Until Off (1 Min / 5 Min / 10 Min / 30 Min): Sets the duration the light remains on after motion is no longer detected.
- Distance (Very Near / Near / Mid Range / Far): Adjusts the sensitivity and range of the motion sensor.
Video: Demonstration of the Winplus LM56123-6 LED Ceiling Light's motion activation, adjustable warm and cool white light settings, and remote control functions.
Nlekọta
The Winplus LM56123-6 LED Ceiling Light requires minimal maintenance.
- Nhicha: Hụ na agbanyụrụ ọkụ tupu ị sachaa ya. Jiri ákwà dị nro ma kpọọ nkụ hichaa ihe e ji arụ ọrụ ahụ. Ejila ihe nhicha ma ọ bụ ihe mgbaze, n'ihi na ha nwere ike imebi ihe e ji arụ ọrụ ma ọ bụ ihe ndị e ji arụ ọrụ eletrik.
- Ọkụ: The integrated LED light source is designed for long life (up to 50,000 hours) and is not user-replaceable.
- Njikwa anya: Replace AAA batteries in the remote control when its functionality diminishes.
Nchọpụta nsogbu
If you encounter issues with your Winplus LED Ceiling Light, refer to the following common solutions:
| Nsogbu | Ihe nwere ike ime | Ngwọta |
|---|---|---|
| Ìhè anaghị agbanwuo. | No power, loose wiring, remote control batteries dead. | Lelee ihe na-agbaji sekit. Lelee njikọ waya. Dochie batrị njikwa anya. |
| Motion sensor not activating light. | Motion sensor OFF, Ambient light sensor ON (in bright conditions), incorrect distance setting. | Ensure Motion Sensor is ON. Turn Ambient Light Sensor OFF if activation is desired in bright conditions. Adjust Distance setting to 'Far'. |
| Light stays on too long or not long enough. | Incorrect 'Time Until Off' setting. | Adjust 'Time Until Off' setting on the remote control to your desired duration (1, 5, 10, or 30 minutes). |
| Ìhè dị oke inyoghi ma ọ bụ na-egbuke egbuke. | Brightness setting incorrect. | Use the Brightness buttons (Min, +, -, Max) on the remote to adjust to the desired level. |
| Light color is not desired. | Light Color setting incorrect. | Use the Light Color buttons (Warm, <, >, Cool) on the remote to adjust the color temperature. |
Nkọwapụta
Key technical details for the Winplus LM56123-6 LED Ceiling Light:
- Nọmba nlereanya: LM56123-6
- Akara: Winplus
- Isi mmalite ike: AC
- Voltage: 120 volts
- Wattage: 22 Watt
- Mmepụta ọkụ: 1600 Lumens (kachasị)
- Okpomọkụ agba: 2700K (Ọcha Na-ekpo Ọkụ) - 5000K (Ọcha Dị Ọcha)
- Ndekọ ngosi agba (CRI): 90
- Ụdị isi iyi ọkụ: Ikanam
- Usoro njikwa: Remote Control (Infrared)
- Atụmatụ pụrụ iche: Motion Sensing Technology, Adjustable Color, Adjustable Brightness, Ambient Light Sensor, Timer for Auto Shut-Off
- Ihe: Aluminom
- Imecha Type: Agba
- Akụkụ ngwaahịa: 6.1"L x 5.5"W x 12.5"H
- Ibu ihe: 3.35 pound
- Ụdị nwụnye: Ugwu elu ụlọ
- Batteries Required (Remote): 2 batrị AAA
- Ike ike: Energy Star akwụkwọ
- Oge ndụ: elekere 50,000*
*Approximate lifespan under normal operating conditions.

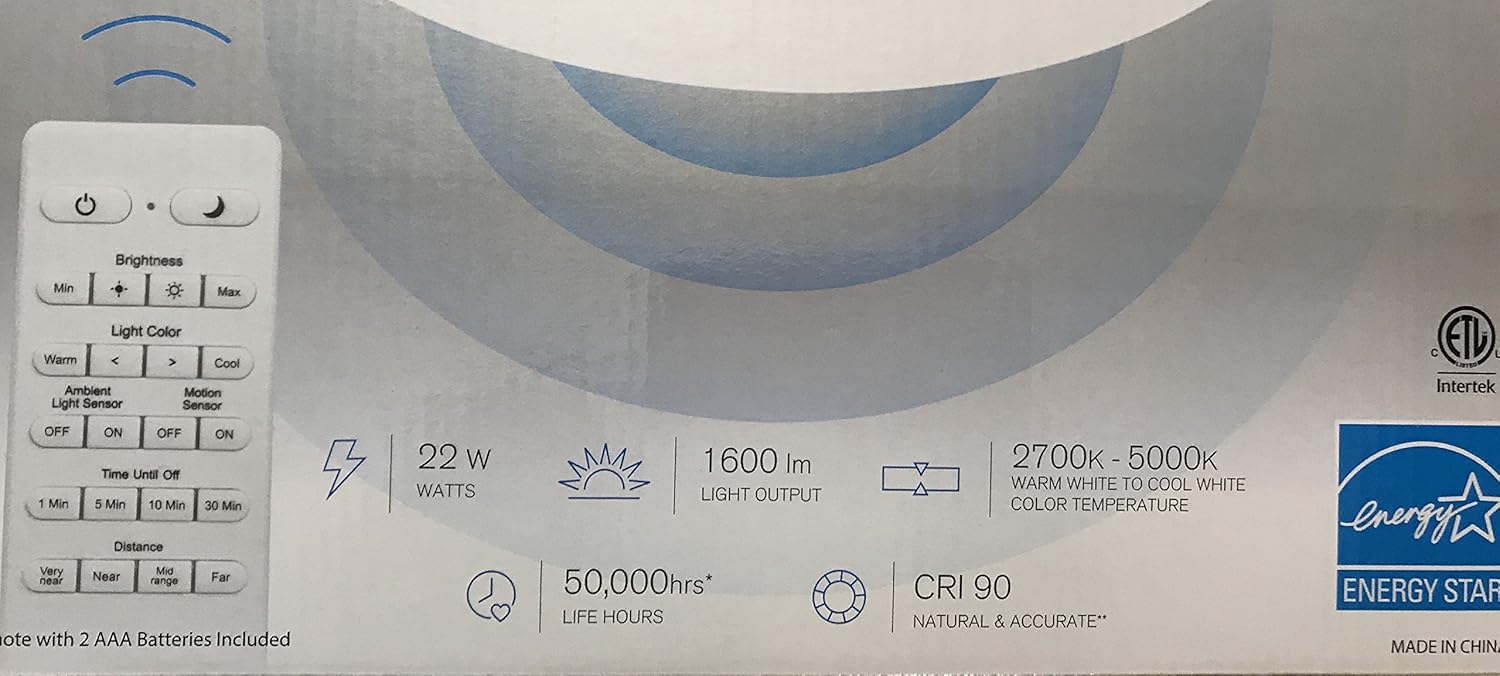

Image: Product packaging highlighting technical specifications such as wattage, light output, color temperature range, CRI, and Energy Star certification.
Image: Explanation of Color Rendering Index (CRI), demonstrating how CRI 90 shows object colors more naturally and clearly compared to lower CRI values.
Akwụkwọ ikike & Nkwado
Akwụkwọ ikike: This Winplus product is covered by a 1-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, accidents, unauthorized modifications, or improper installation.
Nkwado: For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Winplus customer support. Refer to the product packaging or the official Winplus websaịtị maka ozi kọntaktị kacha ugbu a.
