Bosch Siemens Lamp Cover 00613751 Instruction Manual

1. Okwu mmalite

This manual provides instructions for the Bosch Siemens Lamp Cover, part number 00613751. This component is a replacement part designed for use in various Bosch and Siemens washing machines and condenser dryers. Please read these instructions carefully before installation to ensure correct fitting and safe operation.

2. Ngwaahịa gafereview

nke 00613751 lamp cover is a high-quality, perfectly compatible replacement accessory. It is designed to protect the internal lamp within your appliance, ensuring proper illumination during operation or maintenance.

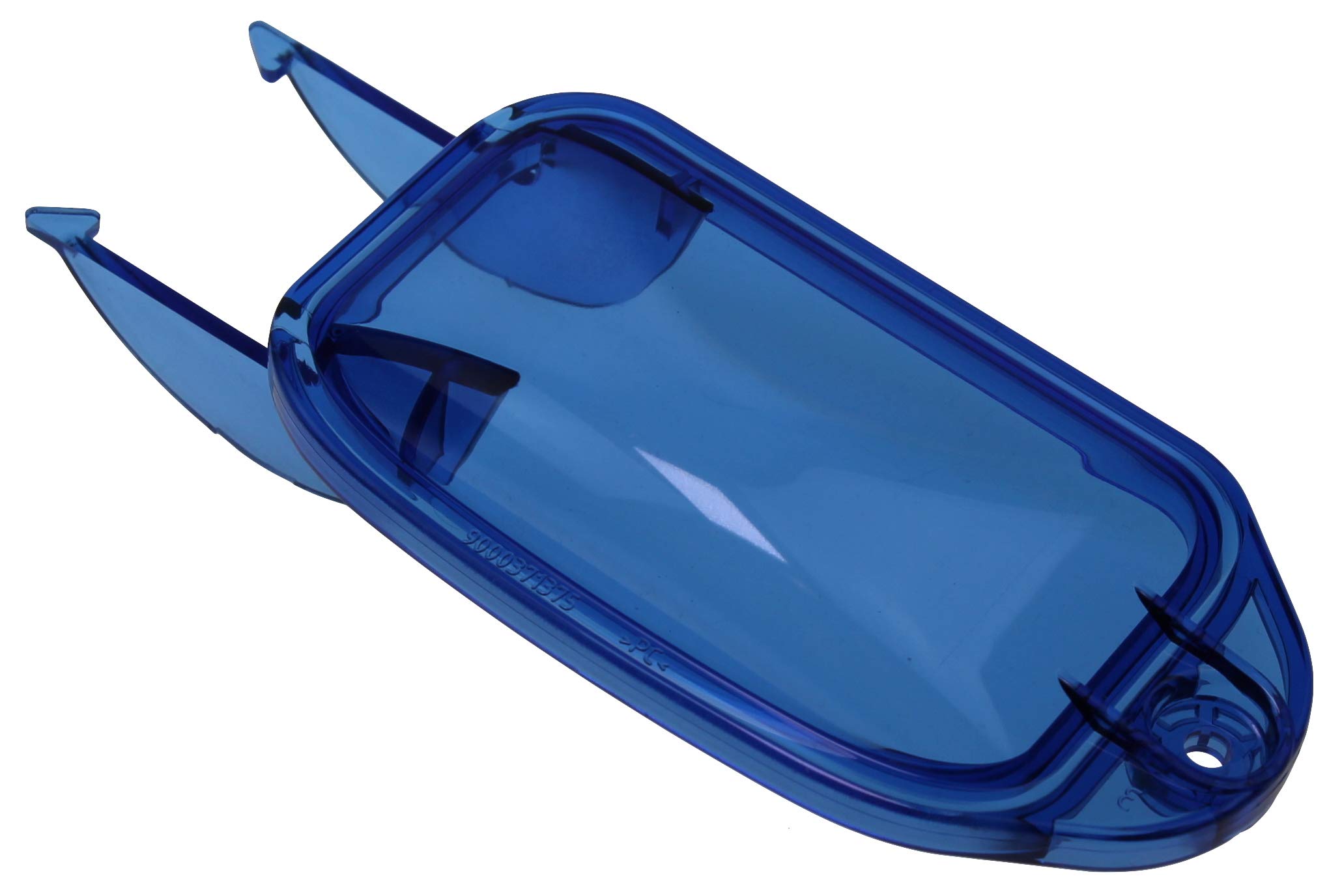

Image 1: The Bosch Siemens Lamp Cover, part number 00613751, shown in its complete form. This translucent blue cover is designed to fit over the internal lamp of compatible washing machines and condenser dryers.

2.1. Ndakọrịta

Nke a lamp cover is compatible with a wide range of Bosch and Siemens washing machines and condenser dryers. Compatible models include, but are not limited to: 3SC74300, 3SC76300, 3SC83601, 3SC83602, CWK4W360, KM8430C, KM8431C, KM8432C, WD260100, WT34V305, WT34V381, WT36V300, WT36V302, WT36V303, WT36V305, WT36V381, WT36V382, WT36V383, WT36V394, WT36V395, WT36V398, WT44E301, WT44E302, WT44E305, WT44E307, WT44E308, WT44E371, WT44E372, WT44E373, WT44E3M0, WT44E360, WT44W361, WT44W370, WT44W371, WT44W380, WT44W390, WT44W3D1, WT44W3G0, WT44W3V0, WT44W5OL, WT46E300, WT46E302, WT46E303, WT46E304, WT46E305, WT46E30X, WT46E310, WT46E311, WT46E315, WT46E31X, WT46E320, WT46E321, WT46E364, WT46E365, WT46E371, WT46E372, WT46E373, WT46E374, WT46E375, WT46E380, WT46E381, WT46E382, WT46E384, WT46E385, WT46E386, WT46E39, WT46E3E1, WT46E3F0, WT46E3F2, WT46E3F3, WT46E3F4, WT46E3G1, WT46E3M2, WT46E3M5, WT46E3R1, WT46E3R5, WT46E3X3, WT46S3X1, WT46S513, WT46S515, WT46S51A, WT46S51S, WT46S581, WT46S593, WT46S5B5, WT46W360, WT46W361, WT46W370, WT46W380, WT46W381, WT46W390, WT46W391, WT46W39A, WT46W540, WT46W5560, WT46W561, WT46W562, WT46W563, WT46W566, WT46W567, WT46W568, WT46W56C, WT46W56X, WT46W570, WT46W571, WT46W572, WT46W573, WT46W579, WT46W57X, WT46W580, WT46W581, WT46W582, WT46W58X, WT46W590, WT46W591, WT46W592, WT46W593, WT46W59X, WT46W5C0, WT46W5C1, WT46W5F1, WT46W5M0, WT46W5M2, WT46W5S2, WTE84301, WTE84302, WTE84303, WTE84304, WTE84305, WTE84306, WTE84310, WTE84320, WTE84321, WTE84380, WTE84381, WTE84382, WTE84383, WTE84384, WTE843A1, WTE843A2, WTE843A5, WTE843H3, WTE86301, WTE86302, WTE86303, WTE86304, WTE86305, WTE8630X, WTE86310, WTE86311, WTE8631P, WTE8631X, WTE86320, WTE8637F, WTE86381, WTE86382, WTE86383, WTE86384, WTE86385, WTE86386, WTE86391, WTE86392, WTE86393, WTE86394, WTE863D2, WTE863D3, WTE863D4, WTE863E0, WTE863E1, WTE88375, WTP80320, WTS84505, WTS86501, WTS86511, WTS86512, WTS86513, WTS8651S, WTS86540, WTS86580, WTS86583, WTS86593, WTS865B1, WTS865X1, WTS865XL, WTV74300, WTV74305, WTV74308, WTV74380, WTV76300, WTV76302, WTV76320, WTV76321, WTV76380, WTV76381, WTV76385, WTW84360, WTW84361, WTW84362, WTW8436Z, WTW84370, WTW84371, WTW84560, WTW84561, WTW84562, WTW84FU1, WTW86360, WTW86361, WTW86380, WTW86381, WTW8639. Please verify your appliance's model number before purchasing iji hụ na enwere ike ijikọ ya.

3. Ntuziaka nwụnye

Ịdọ aka ná ntị nchekwa: Before attempting any installation or replacement, ensure the appliance is completely disconnected from the power supply. Failure to do so may result in electric shock or injury.

1. Nkwadebe: Disconnect the appliance from the main power supply. Open the appliance door to access the drum interior.
2. Locate the Existing Lamp Mkpuchi: Identify the current lamp cover inside the drum. It is typically a translucent plastic cover protecting the light bulb.
3. Remove the Old Cover: Carefully unclip or unscrew the old lamp cover. Some models may require a small flat-head screwdriver to gently pry it open. Dispose of the old cover responsibly.
4. Nyochaa Lamp (Nhọrọ): While the cover is off, inspect the lamp bulb. If it is also faulty, replace it with a compatible bulb before installing the new cover.
5. Install the New Cover: Align the new 00613751 lamp cover with the mounting points. Gently press or clip it into place until it is securely fastened. Ensure all clips or screws (if applicable) are engaged.
6. Ọrụ nnwale: Close the appliance door. Reconnect the appliance to the power supply. Turn on the appliance and check if the internal light functions correctly and if the cover remains securely in place.

Foto 2: nso nso view of the 00613751 lamp cover, highlighting the attachment tabs on either side and the screw hole at the bottom, which are crucial for secure installation.

4. Nlekọta

Ndị lamp cover requires minimal maintenance. Periodically inspect the cover for any signs of damage or discoloration. If cleaning is necessary, gently wipe the surface with a soft, damp cloth. Avoid using abrasive cleaners or solvents, as these can damage the plastic.

5. Nchọpụta nsogbu

Light Not Working After Replacement:

• Ensure the appliance is properly connected to the power supply.
• Chọpụta na lamp bulb itself is functional and correctly installed.
• Check that the new lamp cover is securely fastened and not obstructing the bulb or its contacts.
• If the issue persists, consult your appliance's main instruction manual or contact a qualified service technician.

Cover Not Fitting Securely:

• Double-check that the part number 00613751 is correct for your specific appliance model.
• Ensure all clips or mounting points are correctly aligned and engaged. Do not force the cover, as this may cause damage.

6. Nkọwapụta

7. Nkwado

For further assistance, technical support, or inquiries regarding this replacement part, please refer to the official Bosch or Siemens customer service channels or visit their respective websites. Ensure you have your appliance's full model number and serial number ready when contacting support.
