Baseus Picogo 10000mAh MagSafe Portable Charger

1. Pendahuluan dan Selesaiview

The Baseus Picogo 10000mAh MagSafe Portable Charger is a compact and powerful solution for keeping your devices charged on the go. Featuring an ultra-slim design, 27W wired fast charging, and magnetic wireless charging capabilities, it offers versatile power delivery for various devices. Its advanced cooling system ensures safe and efficient operation.

Image 1.1: The Baseus Picogo Power Bank magnetically attached to the back of a smartphone, showcasing its compact size and seamless integration.

2. Fitur Produk

• Desain Ultra Tipis dan Portabel: Measuring just 4.0 x 2.6 x 0.5 inches and weighing 6.0 oz, this power bank is designed for maximum portability. It features polished alloy edges and a nano-coated silicone surface for a premium feel and resistance to fingerprints and scratches.
• 27W Wired Fast Charging: The USB-C port supports 27W fast charging, capable of charging an iPhone 17 to 55% in approximately 30 minutes.
• MagSafe Wireless Charging: Equipped with 11N strong magnetism for secure attachment and wireless charging of compatible devices.
• Triple-Loop Cooling System: Incorporates an NTC temperature control chip, advanced graphene material, and heat shields for efficient heat dissipation, keeping the charger below 104°F.
• Automotive-Grade Battery Cells: Ensures reliability and preserves battery health.
• 2-Way Fast Charging: Supports both fast input to recharge the power bank and fast output to charge devices.

Gambar 2.1: Close-up view of the power bank emphasizing its 0.5-inch thickness and polished edges, ideal for the iPhone 12-17 series.

Image 2.2: The power bank demonstrating its capability to charge two devices concurrently: one via its USB-C port (Max. 27W) and another wirelessly (Max. 7.5W).

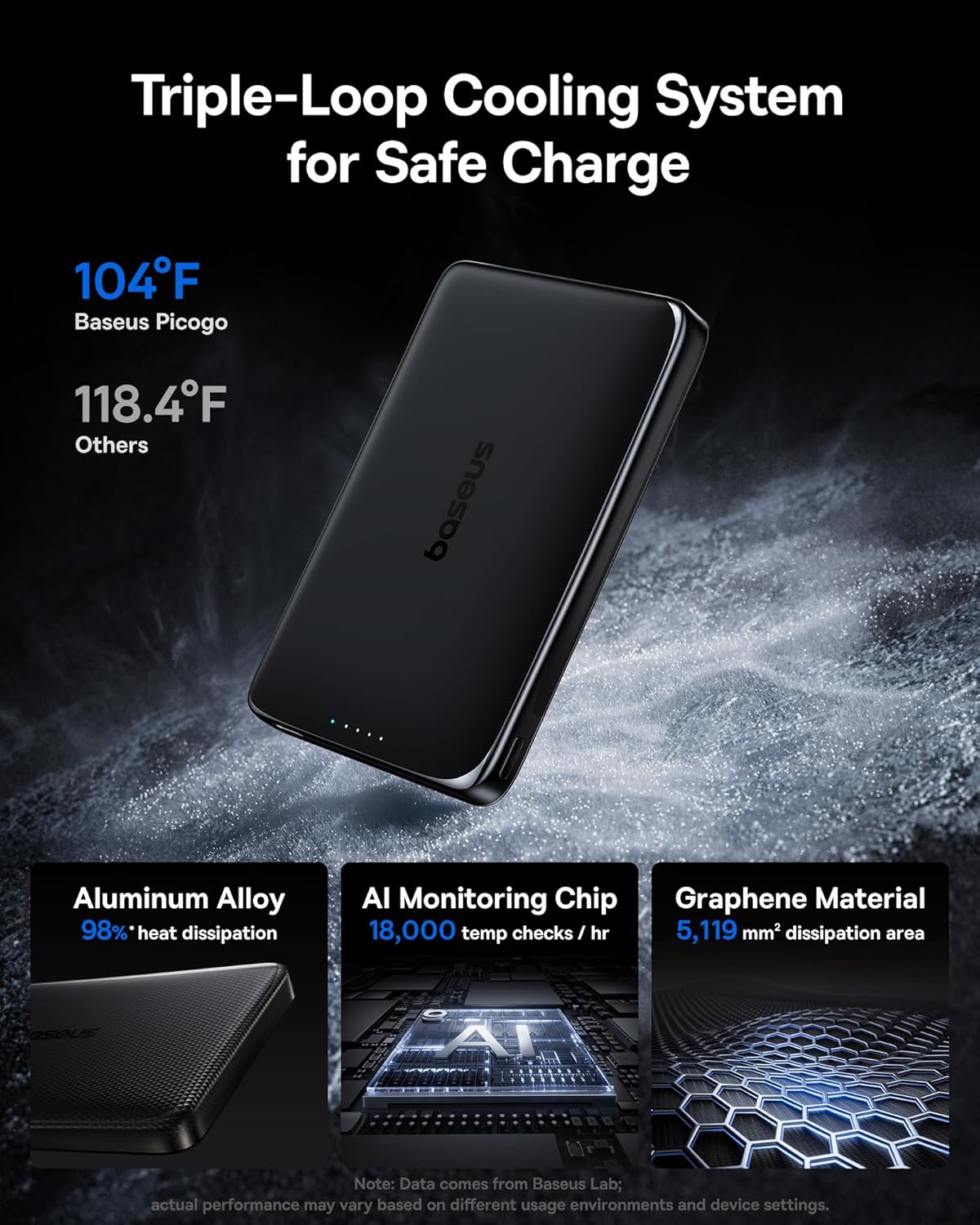

Gambar 2.3: Sebuah internal view highlighting the aluminum alloy for 98% heat dissipation, an AI monitoring chip for 18,000 temperature checks/hr, and graphene material for 5,119 mm² dissipation area, all contributing to the Triple-Loop Cooling System.

3. Isi Paket

Your Baseus Picogo 10000mAh MagSafe Portable Charger package includes:

• 1x Baseus Picogo 27W 10000mAh Magnetic Power Bank
• 1x Kabel Pengisian Daya USB-C ke USB-C
• 1x Panduan Pengguna (dokumen ini)

4. Pengaturan

1. Tagihan Awal: Before first use, fully charge your Baseus Picogo Power Bank using the provided USB-C cable and a compatible power adapter. The LED indicators will show the charging progress.
2. Daya Hidup/Mati: Press the power button once to turn on the power bank and check the battery level. The power bank will automatically turn off after a period of inactivity.

5. Petunjuk Pengoperasian

5.1 Pengisian Kabel

1. Connect one end of the USB-C cable (provided or your own) to the USB-C output port on the power bank.
2. Hubungkan ujung lain kabel USB-C ke port pengisian daya perangkat Anda.
3. Power bank akan secara otomatis mulai mengisi daya perangkat Anda.

5.2 Pengisian Daya Nirkabel (MagSafe)

1. Ensure your device is MagSafe compatible (e.g., iPhone 12 series and newer) or has a MagSafe-compatible case.
2. Align the back of your device with the magnetic charging area on the power bank. The magnets will snap into place, securing the connection.
3. Pengisian daya nirkabel akan dimulai secara otomatis.

5.3 Mengisi Daya Beberapa Perangkat

The Baseus Picogo Power Bank supports simultaneous charging of multiple devices:

• You can charge one device wirelessly via MagSafe.
• Simultaneously, you can charge another device via the USB-C output port using a cable.

5.4 Mengisi Ulang Power Bank

1. Connect one end of the USB-C cable to the USB-C input port on the power bank.
2. Connect the other end of the USB-C cable to a compatible power adapter (e.g., 20W or higher for fast recharging).
3. The LED indicators will flash to show the charging status. Once all LEDs are solid, the power bank is fully charged.

Image 5.1: The power bank being recharged via its USB-C port, indicating it can be fully recharged in approximately 2.5 hours with a 20W input.

6. Indikator LED

The LED lights on the power bank indicate its battery level and charging status:

• LED Biru Solid: Tunjukkan kapasitas baterai yang tersisa.
• LED Biru Berkedip: Indicate the power bank is being recharged.
• Red LED (Wireless Charging): Indicates active wireless charging.

Image 6.1: Visual representation of LED indicator meanings and an explanation for potential slow charging at 80% due to iOS thermal management.

7. Informasi Keselamatan

Untuk memastikan pengoperasian yang aman dan memperpanjang masa pakai power bank Anda, harap perhatikan hal-hal berikut:

• Do not expose the power bank to extreme temperatures (hot or cold), direct sunlight, or liquids.
• Hindari menjatuhkan, menusuk, atau membongkar perangkat.
• Jauhkan dari jangkauan anak-anak.
• Gunakan hanya kabel dan adaptor pengisian daya yang bersertifikat.
• If the power bank becomes excessively hot during use or charging, discontinue use immediately.
• The integrated NTC temperature control chip and graphene material actively manage heat to prevent overheating. Slight warmth during operation is normal due to energy conversion.

8. Penyelesaian masalah

• Perangkat tidak mengisi daya: Ensure the power bank is charged. Check cable connections. For wireless charging, ensure proper alignment and device compatibility.
• Pengisian daya lambat: Verify that your cable and adapter support fast charging. For wireless charging, ensure no obstructions between the power bank and your device. Note that iOS devices may slow charging at 80% due to thermal management; moving your device to a cooler area may help.
• Power bank tidak dapat diisi ulang: Ensure the USB-C cable is correctly connected to a working power source. Try a different cable or adapter.

9. Spesifikasi

10. Garansi dan Dukungan

Baseus menawarkan Garansi 24 bulan for the Picogo 10000mAh Magnetic Power Bank. In addition, you receive lifelong 24/7 professional support. For any technical or product inquiries, or to arrange free returns or replacements, please contact Baseus customer service. Your satisfaction is guaranteed.

Image 10.1: The power bank packaging highlighting the 2-year replacement promise and a detailed specifications table.
