FUVISION Wireless Indoor Security Camera User Manual

1. Pendahuluan

Thank you for choosing the FUVISION Wireless Indoor Security Camera. This device is designed to provide reliable and comprehensive surveillance for your home or office, offering features such as 3600 pan, clear night vision, two-way audio, and smart motion detection. This manual will guide you through the setup, operation, and maintenance of your camera to ensure optimal performance and security.

Image: The FUVISION Wireless Indoor Security Camera shown with its smartphone app interface, highlighting its use for home and office security.

2. Apa yang ada di dalam kotak

Harap periksa isi paket untuk memastikan semua item ada:

• Kamera Keamanan Rumah
• Bracket with Screws
• Kabel Pengisian Daya USB-C
• Manual Pengguna terperinci

3. Produk Lebihview

3.1 Fitur Utama

• Reliable Battery & Accurate Motion Detection: Equipped with a high-capacity rechargeable battery, offering up to 365 days of standby time. Precise PIR motion detection captures movements up to 33 feet, reducing false alarms.


Image: Visual representation of the camera's long standby battery life and accurate motion detection capabilities, showing an alert on a smartphone.

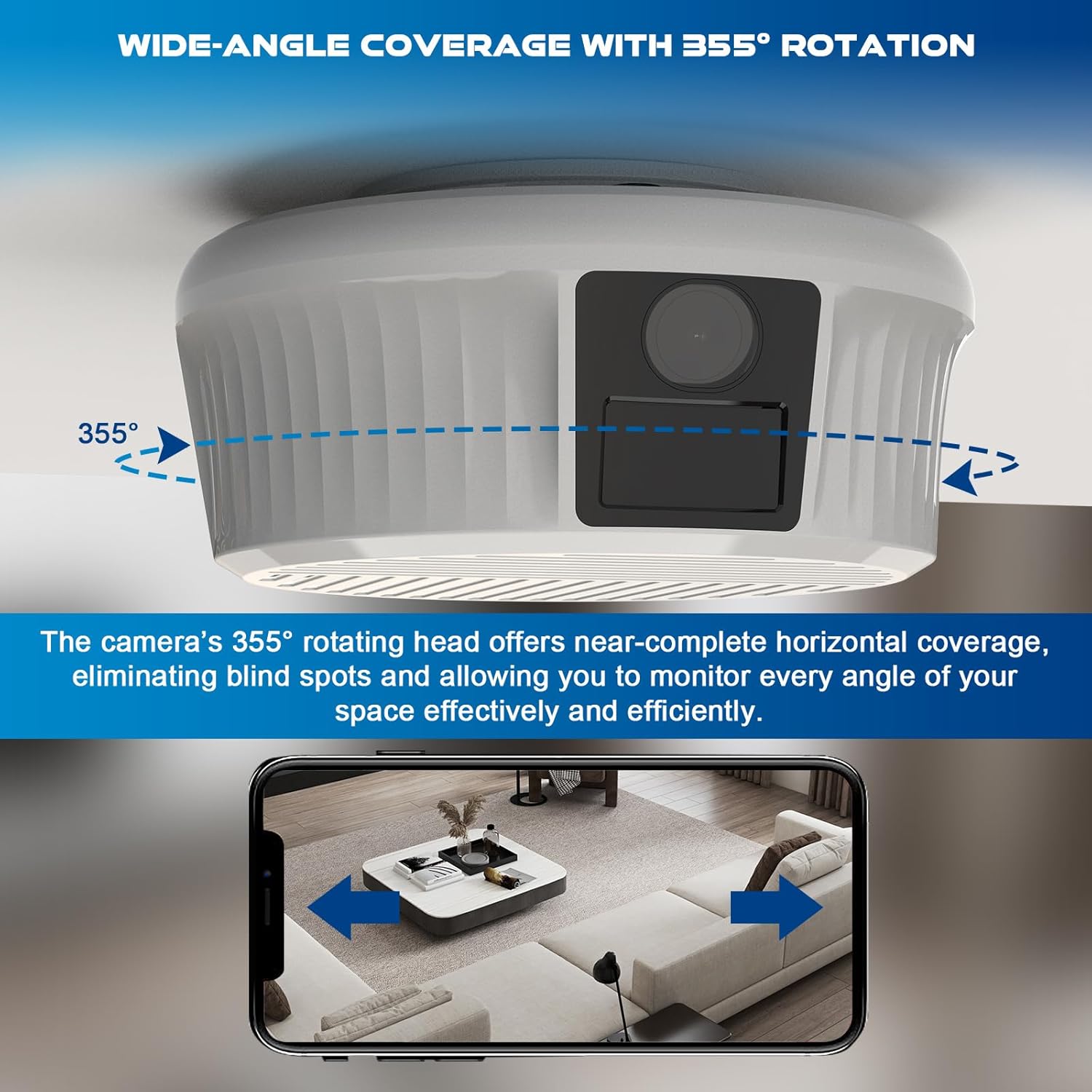

• Wide-Angle Coverage with 3550 Rotation: The camera's 3550 rotating head provides near-complete horizontal coverage, eliminating blind spots.


Image: The camera mounted on a ceiling, demonstrating its 355-degree horizontal rotation for wide-angle coverage.

• Crisp, Clear Video with Advanced Night Vision: 4K Ultra HD resolution and F/1.6 aperture for sharp visuals during the day. Invisible night vision ensures clarity up to 33 feet without visible lights.


Image: The camera highlighting its 4K Ultra HD video capability and advanced night vision with invisible IR LEDs.

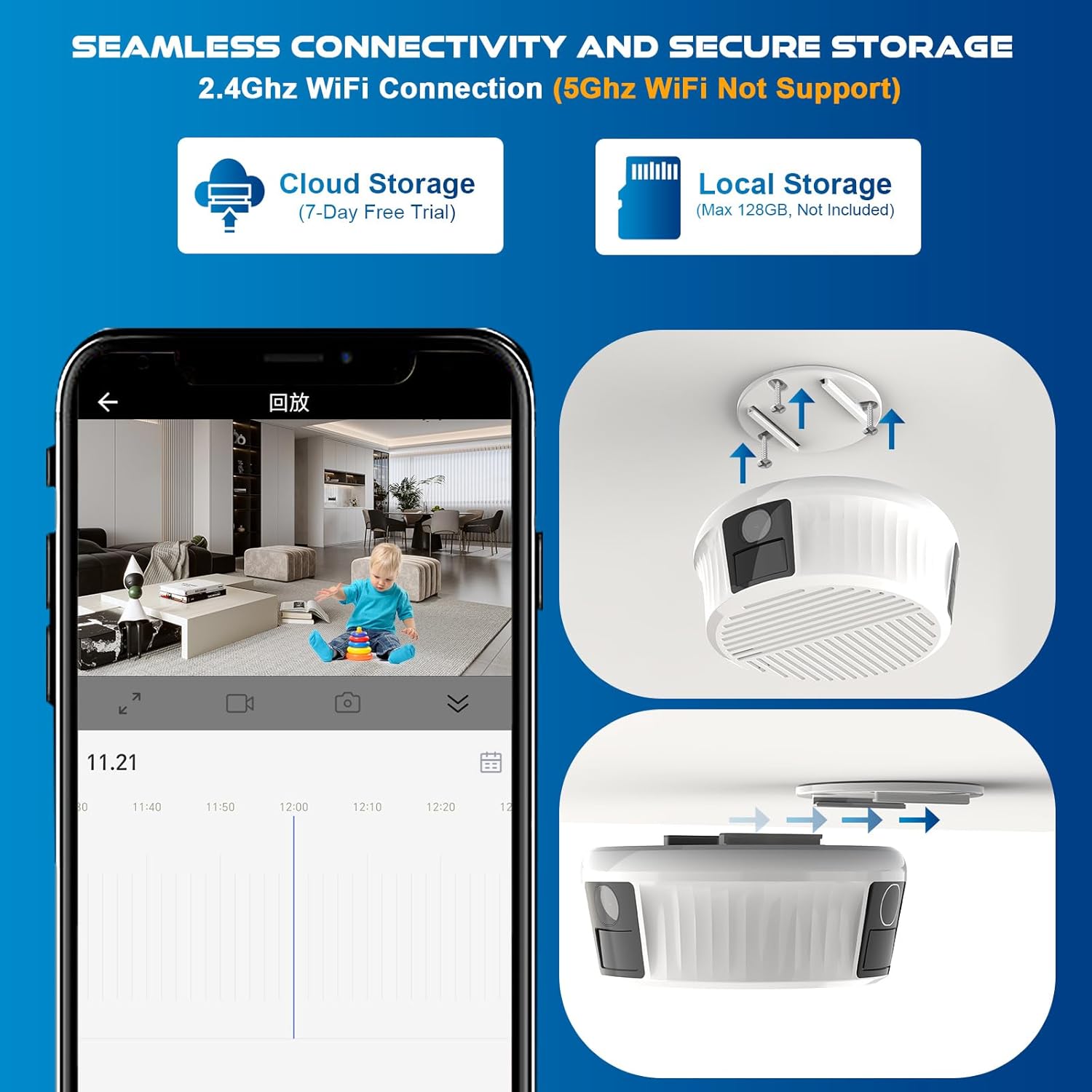

• Seamless Connectivity and Secure Storage: 2.4G wireless connectivity for easy setup. Supports local storage (up to 128GB Micro SD, not included) and a free 7-day cloud storage trial.


Image: The camera's dual storage options: cloud storage with a 7-day free trial and local storage via Micro SD card.

• Instant Alerts, Real-Time Access, and Two-Way Communication: Receive instant motion alerts, monitor live footage via the app, and use two-way audio or activate the siren.


Image: A user interacting with the camera via the app, demonstrating the two-way audio feature for communication.

• Solusi Serbaguna: Ideal for home security, monitoring pets and children, or overseeing offices and vacation properties.


Image: The camera's versatility for different surveillance needs, such as in stores, homes, offices, and for monitoring pets, nannies, babies, and elderly individuals.

4. Pengaturan

4.1 Pengisian Awal

Before first use, fully charge the camera using the provided USB-C charging cable. The charging port is located on the top of the unit. A full charge ensures maximum standby time.

4.2 Unduh Aplikasi dan Pembuatan Akun

Download the recommended mobile application (e.g., Tuya Smart or Smart Life app) from your device's app store. Follow the on-screen instructions to create an account and log in.

4.3 Pemasangan Kamera

1. Nyalakan kamera.
2. Open the app and select 'Add Device' or the '+' icon.
3. Choose 'Security Camera' or 'Smart Camera' from the device list.
4. Follow the in-app instructions to connect the camera to your 2.4GHz Wi-Fi network. (Note: 5GHz Wi-Fi is not supported).
5. Ensure your phone is close to the camera and Wi-Fi router during pairing.

4.4 Memasang Kamera

The camera is designed for ceiling mount installation. Use the included bracket and screws to securely attach the camera to your desired location. Ensure the mounting surface is stable and can support the camera's weight.

Image: The camera's wire-free design, emphasizing hassle-free installation and suitability for various environments.

5. Petunjuk Pengoperasian

5.1 Langsung View and Pan Control

Once connected, open the app to access the live video feed. Use the on-screen controls to pan the camera horizontally (3550) to adjust the viewsudut.

Image: A panoramic view demonstrating the camera's 360-degree horizontal coverage in a room.

5.2 Deteksi Gerakan dan Peringatan

The camera features PIR motion detection. When motion is detected, you will receive instant alerts on your phone. You can adjust the sensitivity settings within the app to reduce false alarms.

Image: Smart AI human detection feature, showing how the camera identifies human figures and triggers alerts, two-way audio, and siren.

5.3 Two-Way Audio and Siren

Use the two-way audio feature to communicate with individuals near the camera. Activate the built-in siren through the app to deter intruders.

5.4 Perekaman dan Pemutaran

Recordings are triggered by motion detection. You can view rekaman footage via the app from either your installed Micro SD card or cloud storage (if subscribed). The camera supports H.265 video encoding for efficient storage.

Image: Dual storage options for the camera, including cloud storage (7-day free trial) and local Micro SD card storage (up to 128GB).

6. Pemeliharaan

6.1 Manajemen Baterai

The camera features a 3000mAh Lithium Polymer battery. To recharge, remove the camera from its mount and connect the USB-C cable to the charging port on top of the unit. Regular charging ensures continuous operation.

Image: The camera's ultra-low power consumption mode, indicating its 10000mAh battery capacity for extended standby time.

6.2 Pembersihan

Wipe the camera lens and body with a soft, dry cloth. Do not use liquid cleaners or abrasive materials, as they may damage the device.

6.3 Manajemen Penyimpanan

Secara teratur kembaliview dan kelola rekaman foo Andatage. If using a Micro SD card, ensure it has sufficient space. Consider cloud storage for continuous backup and accessibility.

7. Penyelesaian masalah

• Kamera tidak terhubung ke Wi-Fi: Ensure you are connecting to a 2.4GHz network. Check Wi-Fi signal strength. Restart the camera and your router. Try re-pairing the camera through the app.
• Kualitas video buruk: Ensure adequate lighting. Check your Wi-Fi connection stability. While the camera supports 4K, actual streaming quality can be affected by network speed.


Image: A visual comparison demonstrating the superior clarity of FUVISION's 5MP HDR Ultra HD video compared to lower resolution cameras.

• Baterai cepat terkuras: High motion activity or frequent live view access can reduce battery life. Ensure the camera is fully charged. Adjust motion detection sensitivity to reduce unnecessary recordings.
• Charging port inconvenient: The charging port is on top. For ceiling-mounted installations, the camera must be removed for charging. This is by design.
• Tidak ada peringatan gerakan: Check app notification settings on your phone. Ensure motion detection is enabled in the camera settings within the app.
• Masalah audio dua arah: Ensure your phone's microphone and speaker permissions are granted to the app. Check camera's audio settings in the app.

8. Spesifikasi

9. Garansi dan Dukungan

For warranty information and technical support, please refer to the contact details provided on the product packaging or visit the official FUVISION weblokasi. Simpan kwitansi pembelian Anda untuk klaim garansi.

Your privacy is safeguarded with 128-bit encryption, and data is securely stored on AWS cloud. Only you can access your videos, ensuring maximum privacy and confidentiality.

Image: Features for sharing camera access with family while ensuring complete privacy protection through encrypted cloud storage.
