ANLAN SD-8811

Buku Panduan Penggunaan Perangkat ANLAN RF EMS untuk Wajah dan Leher SD-8811

Model: SD-8811

Perkenalan

This manual provides detailed instructions for the safe and effective use of your ANLAN RF EMS Facial and Neck Device, model SD-8811. This device is designed to support skin care routines through Radio Frequency (RF), Electrical Muscle Stimulation (EMS), and multi-frequency vibration technologies, aiming to improve skin elasticity and reduce the appearance of wrinkles.

Informasi Keselamatan Penting

Produk Selesaiview

The ANLAN RF EMS Facial and Neck Device is a handheld beauty instrument designed for comprehensive skin care. It integrates Radio Frequency (RF), Electrical Muscle Stimulation (EMS), multi-frequency vibration, and light therapy (Red and White Light) to target various skin concerns.

ANLAN RF EMS Facial and Neck Device and its packaging

Image: The ANLAN RF EMS Facial and Neck Device shown with its retail packaging.

Komponen Perangkat

Diagram of ANLAN RF EMS Facial and Neck Device components

Image: Detailed diagram illustrating the device's components, including the massage area, light therapy area, level/vibration button, power/mode button, level indicators, and charging port.

Fitur dan Fungsi Utama

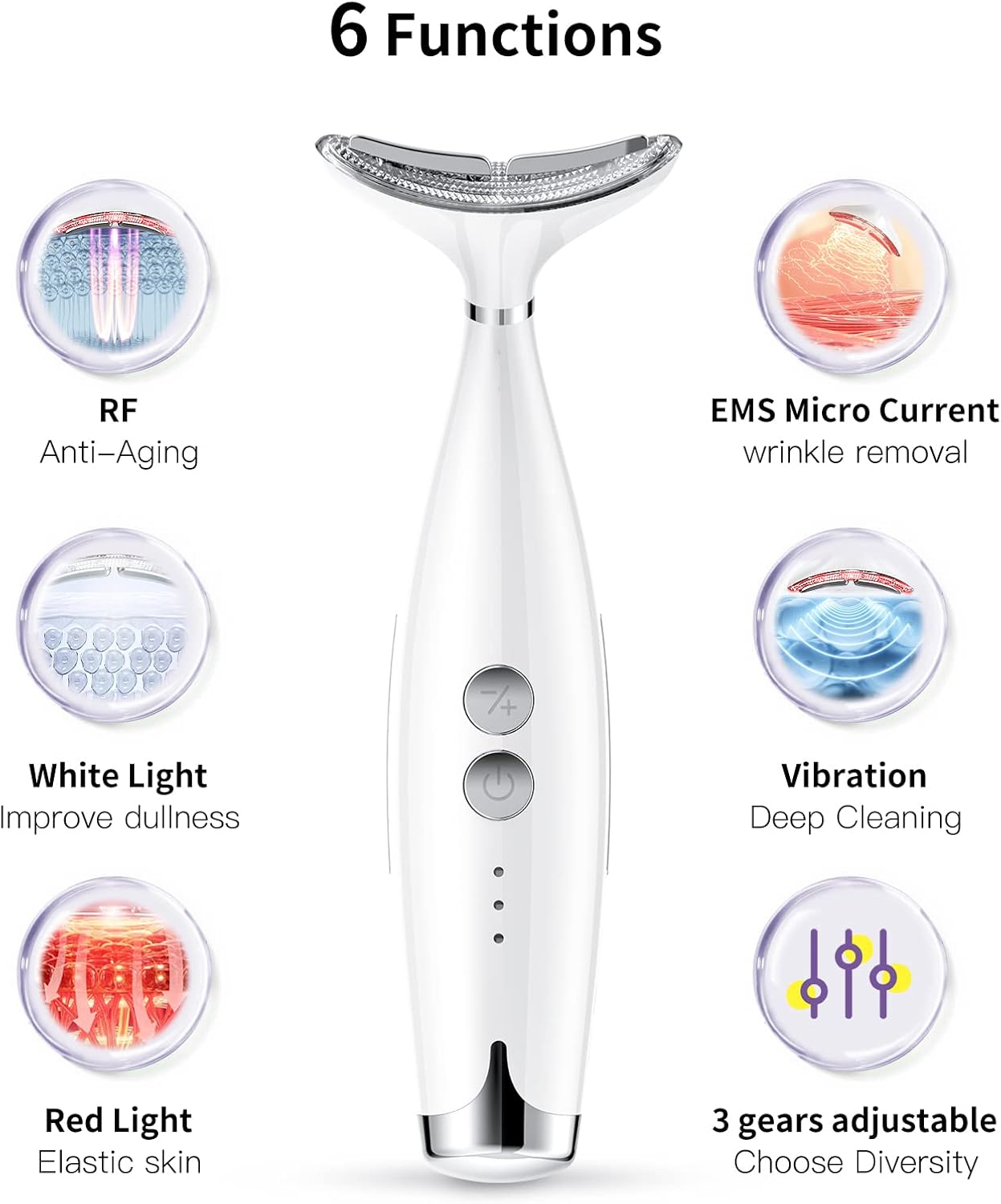

Diagram showing 6 functions of the ANLAN device: RF, EMS Micro Current, White Light, Vibration, Red Light, 3 gears adjustable

Gambar: Lebih dariview of the device's six primary functions, including RF, EMS Micro Current, White Light, Vibration, Red Light, and 3 adjustable intensity levels.

1. Radio Frequency (RF)

RF energy penetrates the dermal layer of the skin, stimulating collagen regeneration and promoting cellular rejuvenation. This process helps to reduce the appearance of wrinkles and tighten facial contours.

Illustration of RF energy penetrating skin layers

Image: Visual representation of RF energy acting on collagen in the dermis, promoting collagen synthesis and skin tightening.

2. Electrical Muscle Stimulation (EMS) Microcurrent

EMS microcurrent stimulates and massages skin cells, increasing cellular activity. This promotes better absorption of skincare products and cellular proliferation, contributing to plumper, firmer skin and restored elasticity.

Illustration of EMS microcurrent stimulating skin cells

Image: Diagram showing EMS stimulating and massaging skin cells, increasing cell activity and promoting absorption.

3. Multi-Frequency Vibration

The device features adjustable vibration speeds suitable for various skin types and ages. Vibration helps to relax facial muscles and enhance the absorption of skincare products.

Illustration of high-frequency vibration on skin

Image: Visual representation of high-frequency vibration relaxing muscles and promoting absorption within the skin.

4. Red Light Therapy (640nm)

Red light at 640nm wavelength helps to rejuvenate collagen and improve skin elasticity.

5. White Light Therapy (490nm)

White light at 490nm wavelength assists in lightening pigmentation and breaking down dark spots, contributing to a more even skin tone.

Comparison of Red Light and White Light therapy effects on skin

Image: Illustrates the effects of Red Light (640nm) for collagen rejuvenation and White Light (490nm) for lightening pigment and breaking down dark spots.

Pengaturan

1. Mengisi Daya Perangkat

Before first use, fully charge the device. Connect the provided power adapter to the charging port on the device and plug it into a power outlet. The level indicators will show charging status and turn solid when fully charged.

2. Skin Preparation

Cleanse your face and neck thoroughly. Apply a suitable skincare product such as a serum, gel, or moisturizer to the treatment area. This ensures smooth gliding of the device and optimal conductivity for RF and EMS functions.

Petunjuk Pengoperasian

1. Daya Hidup/Mati

2. Pemilihan Mode

Tekan sebentar tombol Tombol Daya/Mode untuk beralih di antara mode yang tersedia:

Diagram showing two modes: RF + Red Light and EMS + White Light, with button functions

Image: Illustrates the two main operating modes: Mode 1 (RF + Red Light) and Mode 2 (EMS + White Light), along with instructions for button usage.

3. Level and Vibration Adjustment

4. Aplikasi

Pemeliharaan

1. Pembersihan

2. Penyimpanan

Store the device in a cool, dry place, away from direct sunlight and out of reach of children.

Penyelesaian Masalah

MasalahKemungkinan PenyebabLarutan
Perangkat tidak menyala.Baterai lemah atau tidak terisi daya.Charge the device fully before use. Ensure the charging cable is properly connected.
No sensation during EMS/RF mode.Insufficient contact with skin or low intensity level.Ensure the device head is in full contact with moisturized skin. Increase the intensity level using the Level/Vibration Button.
Perangkat berhenti bekerja saat digunakan.Battery depleted or automatic shutdown.Recharge the device. The device may have an automatic shutdown feature after a certain period of inactivity or continuous use.
Skin feels uncomfortable or irritated.Intensity level too high or insufficient skincare product.Reduce the intensity level. Apply more serum or gel to ensure smooth gliding and proper conductivity. Discontinue use if irritation persists.

Spesifikasi

MerekANLAN
Nomor ModelSD-8811
UkuranUkuran 18x6x3.1 cm
Berat190 gram
BahanPlastik
WarnaPutih
Sumber DayaMains operated (via adapter)
Jil.tage5 Volt
Komponen yang TermasukPower adapter, possibly facial tips

Garansi dan Dukungan

For warranty information and customer support, please refer to the documentation included with your purchase or contact ANLAN customer service directly. Keep your proof of purchase for warranty claims.
