HP EliteOne 800 G5 24-inch All-in-One Touchscreen PC User Manual

1. Pendahuluan

This manual provides essential information for setting up, operating, maintaining, and troubleshooting your HP EliteOne 800 G5 24-inch All-in-One Touchscreen PC. Please read this guide thoroughly before using your device to ensure proper functionality and longevity.

Figure 1: HP EliteOne 800 G5 All-in-One PC with included keyboard and mouse.

2. Isi Paket

Verifikasi bahwa semua item ada dalam paket:

• HP EliteOne 800 G5 All-in-One PC
• Keyboard USB HP
• HP USB Mouse
• Kabel Listrik
• Dokumentasi (manual ini, informasi keselamatan)

3. Produk Lebihview

3.1 Depan View

Gambar 2: Depan view of the HP EliteOne 800 G5, showing the 24-inch touchscreen display and integrated speakers.

• 23.8-inch FHD IPS WLED-backlit Touchscreen Display: Main interactive display area.
• 2 MP FHD Pop-up Webkamera: Located at the top center, retracts when not in use.
• Integrated Dual Array Digital Microphone: For clear audio input during calls or recordings.
• Bang & Olufsen Speakers: Located below the screen for high-quality audio output.

3.2 Sisi View (Benar)

Gambar 3: Sisi kanan view illustrating the optical disk drive and audio ports.

1. Optical Disk Drive: For reading and writing CDs/DVDs.
2. Disc drive eject button: To open the optical disk drive tray.
3. Standard lock slot (10 mm): For security cables.
4. Universal Audio Jack with CTIA headset support: For connecting headsets with a microphone.
5. Konektor headphone: Untuk menghubungkan headphone.

3.3 Belakang View dan Pelabuhan

Gambar 4: Detail bagian belakang view showing all available ports and connections.

1. USB 3.1 Gen 2 Type-A port: High-speed USB connection.
2. USB 3.1 Gen 2 Type-A port (charge support up to 5V/1.5A): High-speed USB with charging capability.
3. Audio line-out connector: Untuk menghubungkan speaker eksternal atau sistem audio.
4. USB 3.1 Gen 1 Type-A ports (2): Standard USB connections.
5. RJ-45 (network) jack: Untuk koneksi Ethernet kabel.
6. Konektor daya: Untuk menyambungkan kabel daya.
7. USB 3.1 Gen 2 Type-A ports (2) wake capable: High-speed USB ports that can wake the system.
8. Dual-Mode DisplayPort™ 1.2 (DP++): Untuk menghubungkan layar eksternal.
9. HDMI 2.0a connector: Untuk menghubungkan layar eksternal.
10. SD card reader 4.0 (NOT INCLUDED on all models): Untuk membaca kartu memori SD.
11. USB 3.1 Type-C™ Gen 2 port (charge support up to 5V/3A): Reversible USB-C port with charging capability.
12. Dual-state power button: To power on/off or put the system to sleep.
13. Tentu View Button (optional): Activates HP Sure View integrated privacy screen.

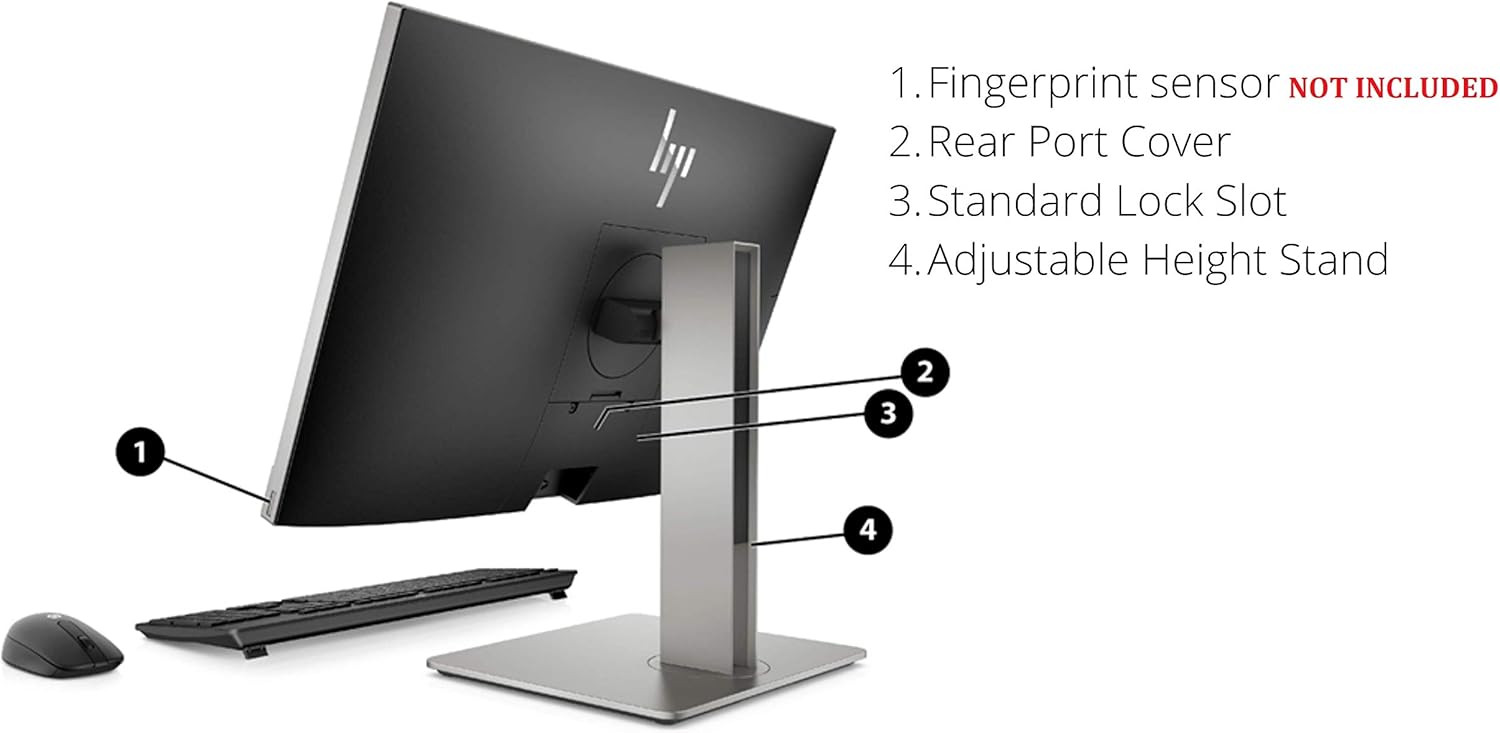

Gambar 5: Belakang view highlighting the adjustable height stand and other features.

1. Fingerprint sensor (NOT INCLUDED on all models): Untuk otentikasi biometrik.
2. Rear Port Cover: Conceals and protects rear ports.
3. Standard Lock Slot: For security cables.
4. Dudukan Tinggi yang Dapat Disesuaikan: Allows for ergonomic positioning of the display.

4. Pengaturan

Follow these steps to set up your HP EliteOne 800 G5 PC:

1. Buka kemasan PC: Keluarkan semua komponen dari kemasannya dengan hati-hati.
2. Posisikan PC: Place the All-in-One PC on a stable, flat surface. Ensure adequate ventilation around the device.
3. Hubungkan Keyboard dan Mouse: Plug the USB keyboard and mouse into any available USB Type-A ports on the rear of the PC.
4. Hubungkan Daya: Connect the power cord to the power connector on the rear of the PC, then plug the other end into a grounded electrical outlet.
5. Hubungkan ke Jaringan (Opsional): For a wired internet connection, connect an Ethernet cable from your router or modem to the RJ-45 (network) jack on the rear of the PC.
6. Nyalakan: Press the dual-state power button, located on the rear of the PC, to turn on the system.
7. Pengaturan awal: Ikuti petunjuk di layar untuk menyelesaikan pengaturan Windows 10 Pro, termasuk bahasa, wilayah, koneksi jaringan (jika tidak menggunakan kabel), dan pembuatan akun pengguna.

5. Petunjuk Pengoperasian

5.1 Manajemen Daya

• Nyalakan: Press the power button on the rear of the PC.
• Mode tidur: Briefly press the power button or select 'Sleep' from the Windows Start menu.
• Menutup: Pilih 'Matikan' dari menu Mulai Windows.
• Mulai ulang: Pilih 'Mulai Ulang' dari menu Mulai Windows.

5.2 Menggunakan Layar Sentuh

The 24-inch display supports multi-touch gestures. Common gestures include:

• Mengetuk: Setara dengan satu klik mouse.
• Ketuk dua kali: Setara dengan klik ganda.
• Tekan dan tahan: Setara dengan klik kanan.
• Pinch/Stretch: Memperbesar atau memperkecil.
• Geser: Gulir melalui konten atau navigasi.

5.3 Webkamera dan Audio

• Webkamera: The 2 MP FHD pop-up webcam automatically extends when an application requires it (e.g., video calls). Gently push it down to retract when not in use for privacy.
• Mikropon: The integrated dual array digital microphone is active when the webcam is in use or when voice input is required.
• Pembicara: The Bang & Olufsen speakers provide audio output. Volume can be adjusted via Windows settings or keyboard shortcuts.

5.4 Optical Disk Drive

To use the DVD+/-RW SM DL 9.5mm slim tray:

1. Press the eject button on the right side of the PC.
2. Place a CD or DVD onto the tray, ensuring it is seated correctly.
3. Gently push the tray back into the PC until it clicks shut.

6. Pemeliharaan

6.1 Pembersihan

• Layar: Gunakan kain lembut dan bebas serat untuk sedikit membersihkannya.ampDibersihkan dengan air atau larutan pembersih layar. Jangan menyemprotkan cairan langsung ke layar.
• Chassis: Bersihkan dengan kain lembut dan kering. Hindari pembersih abrasif.
• Ventilasi: Pastikan lubang ventilasi bebas dari debu dan penghalang untuk mencegah panas berlebih.

6.2 Pembaruan Perangkat Lunak

Perbarui sistem operasi dan driver Anda secara berkala untuk memastikan kinerja dan keamanan yang optimal:

• Pembaruan Windows: Pergi ke Pengaturan > Pembaruan & Keamanan > Pembaruan Windows untuk memeriksa dan menginstal pembaruan.
• Asisten Dukungan HP: Use the pre-installed HP Support Assistant software to check for driver and firmware updates specific to your HP EliteOne PC.

7. Penyelesaian masalah

8. Spesifikasi

Key technical specifications for the HP EliteOne 800 G5 24-inch All-in-One PC:

9. Garansi dan Dukungan

Your HP EliteOne 800 G5 PC comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions, including coverage duration and service options.

For technical support, driver downloads, and additional product information, please visit the official HP support weblokasi:

Dukungan Resmi HP

When contacting support, have your product model number (2D9S5UW#ABA) and serial number ready.
