HOMCOM 3-Tier Industrial Console Table Instruction Manual

Perkenalan

This manual provides detailed instructions for the assembly, operation, and maintenance of your HOMCOM 3-Tier Industrial Console Table. Designed for versatility, this table offers ample storage with its three-tier structure and robust construction, suitable for various rooms such as living rooms, study rooms, or offices. Please read this manual thoroughly before assembly and use to ensure proper setup and longevity of your product.

Image: The HOMCOM 3-Tier Industrial Console Table, fully assembled and styled in a room.

Informasi Keselamatan

• Read all instructions carefully before beginning assembly and retain this manual for future reference.
• Jauhkan semua bagian kecil dan bahan kemasan dari jangkauan anak-anak dan hewan peliharaan untuk mencegah bahaya tersedak.
• Assemble the product on a soft, clean surface (e.g., carpet or cardboard) to prevent scratches or damage.
• Jangan mengencangkan sekrup terlalu kencang selama perakitan, karena hal ini dapat merusak ulir atau komponen.
• Ensure all connections are securely fastened before placing any items on the table or using it.
• Do not exceed the maximum weight capacity of 132 pounds (60 kg) for the entire table. Distribute weight evenly across the shelves.
• Produk ini ditujukan untuk penggunaan di dalam ruangan saja.

Isi Paket

Please verify that all components listed below are present before starting assembly. If any parts are missing or damaged, please contact customer service.

• Main Frame Components (Metal bars)
• Shelf Panels (3 - Melamine-coated particleboard)
• Kaki yang Dapat Disesuaikan (4)
• Perangkat Keras Perakitan (Sekrup, Kunci Allen)

Pengaturan dan Perakitan

Follow these steps carefully to assemble your console table.

1. Bongkar dan Identifikasi Bagian-bagiannya: Carefully remove all components from the packaging. Lay them out and compare them with the parts list to ensure everything is present and undamaged.
2. Pasang Kaki yang Dapat Disesuaikan: Screw the four adjustable feet into the pre-drilled holes at the bottom of the main frame's vertical supports. Do not overtighten initially.

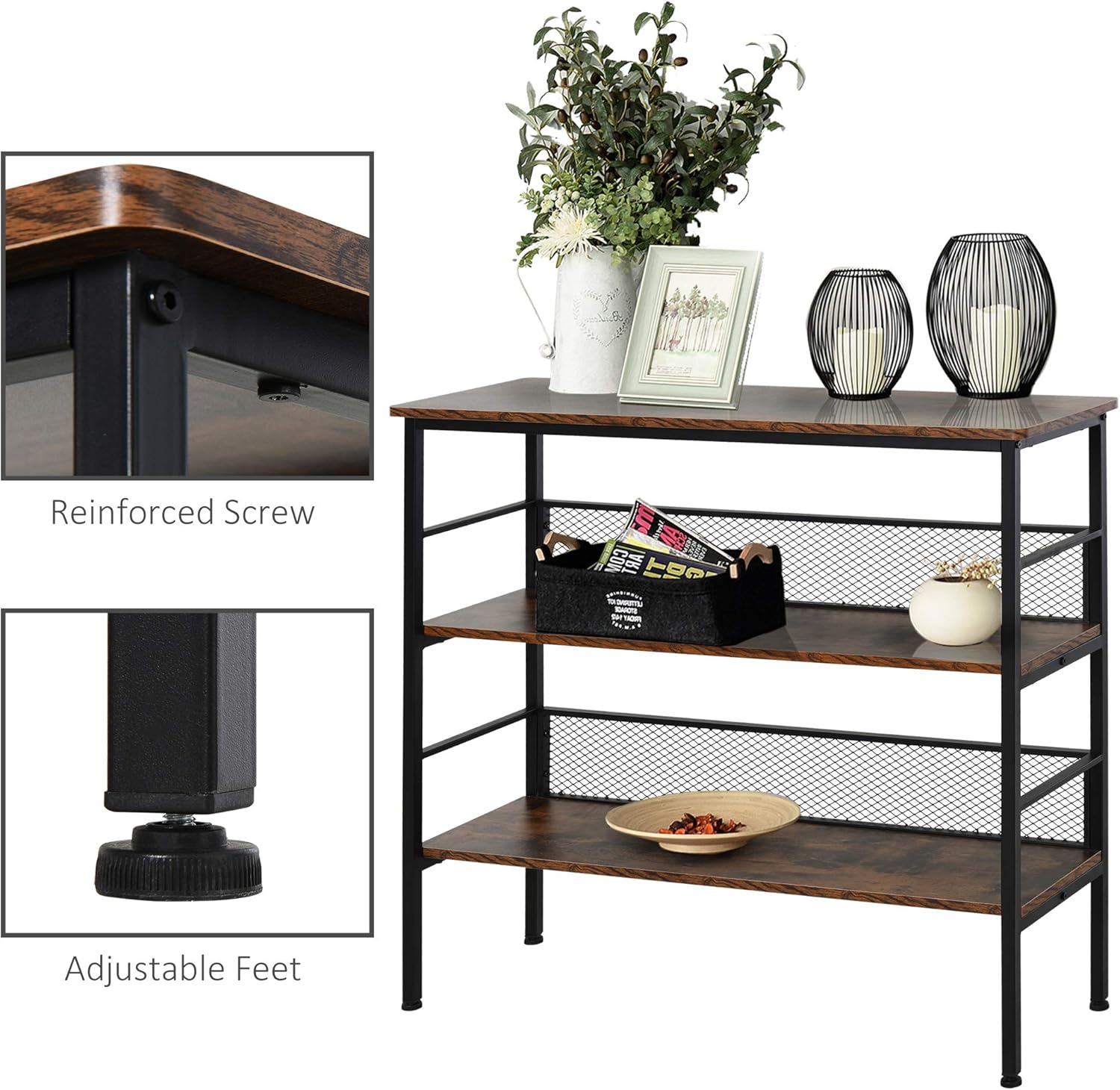

Image: Detail showing the reinforced screw connection and adjustable foot.

3. Merakit Rangka Utama: Connect the metal frame components using the provided screws and Allen wrench. Ensure the frame is stable and aligned before proceeding.
4. Pasang Panel Rak: Place the three shelf panels onto the assembled frame. The top shelf sits directly on the frame. The two lower shelves feature a metal mesh backing; ensure these are oriented correctly and securely fastened to the frame using the designated screws. Note: Some users find attaching the mesh backing challenging; a power screwdriver may assist, but be careful not to strip screws. Do not fully tighten all screws until the entire unit is assembled.
5. Pengencangan Akhir: Once all shelves are in place and the table is fully assembled, go back and securely tighten all screws. Ensure the table is stable and does not wobble.

Petunjuk Pengoperasian

• Penempatan: Position the console table on a flat, stable surface in your desired room.
• Penyamarataan: Use the adjustable feet to fine-tune the table's height and ensure it is level on uneven floors. Turn the feet clockwise to lower and counter-clockwise to raise.
• Distribusi berat: Distribute items evenly across the three shelves. Avoid placing heavy objects on one side or concentrating weight in a single area to maintain stability and prevent damage.
• Tujuan Penggunaan: This table is designed for general storage and display of household items, books, and decor. It is not intended for climbing or standing on.

Pemeliharaan

• Pembersihan: Wipe the surfaces of the table with a soft, damp cloth. For stubborn marks, a mild soap solution can be used, followed by drying with a clean cloth. Avoid abrasive cleaners, harsh chemicals, or solvents, as these can damage the finish.
• Pemeriksaan Rutin: Periodically inspect all screws and connections to ensure they remain tight. Retighten if necessary to maintain the table's stability and structural integrity.
• Hindari Kelembaban: Protect the table from excessive moisture and direct sunlight to prevent warping or fading of the wood finish.

Penyelesaian Masalah

Spesifikasi

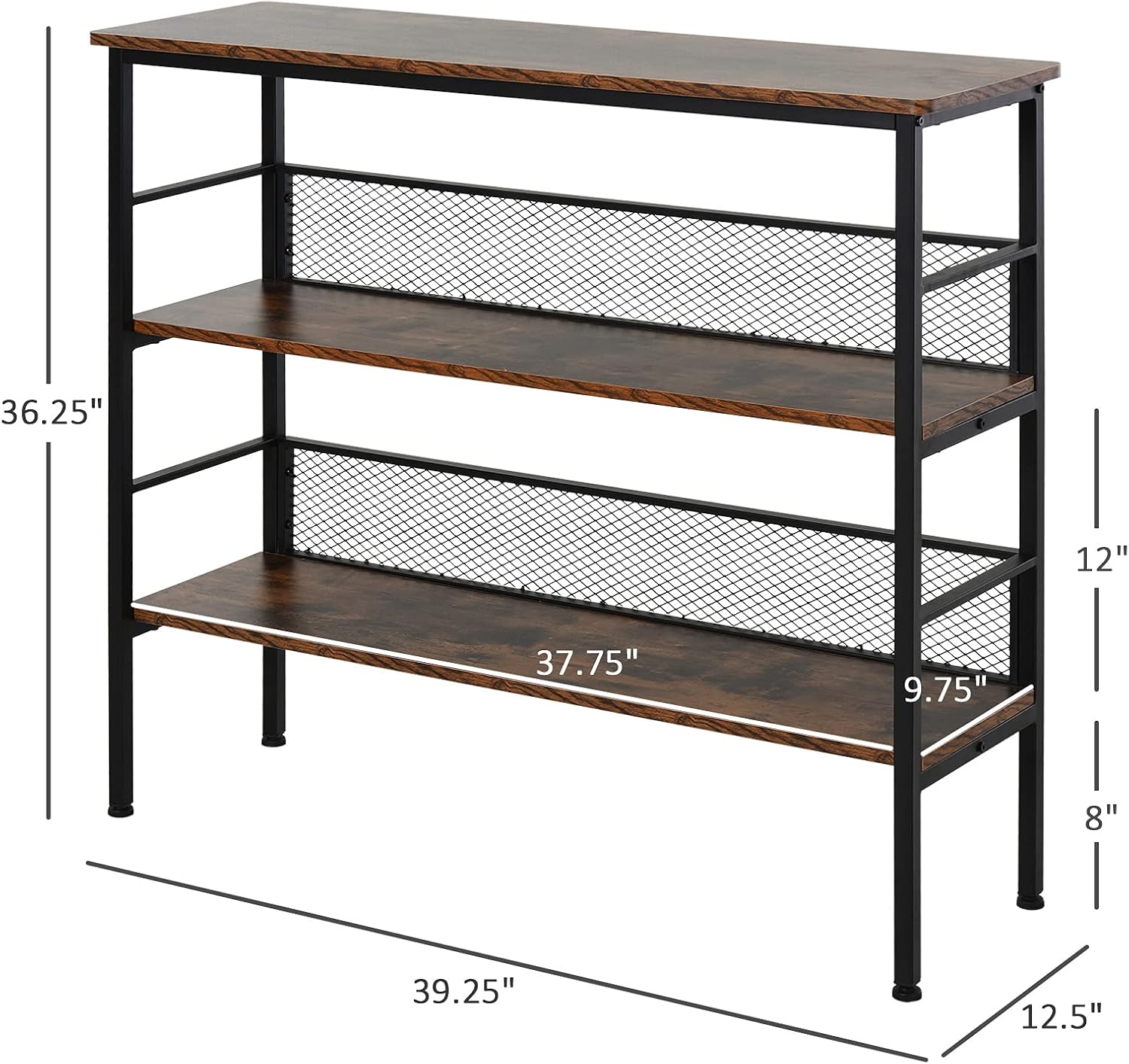

Image: Dimensional diagram of the console table.

Garansi dan Dukungan

For detailed warranty information, product support, or to order replacement parts, please contact HOMCOM customer service directly. Refer to your purchase documentation for specific contact details or visit the official HOMCOM weblokasi.

Pabrikan: Aosom LLC
