ICOM UT-30 Programmable Tone Encoder Unit

ICOM-UT-30-Programmable-Tone-Encoder-Unit-PRODUCT

The UT-30 allows access to repeater stations that require subaudible tones superimposed on the transmit signal. 38 different tones are available and fully programmable. The UT-30 is factory programmed for 88.5Hz. Use the programming chart below to program the UT-30 for the required frequency.

SPECIFICATIONS

ICOM-UT-30-Programmable-Tone-Encoder-Unit-1

  • Oscillation frequencies: 67.0 250.3Hz t0.3%
  • Current drain: Less than 2mA

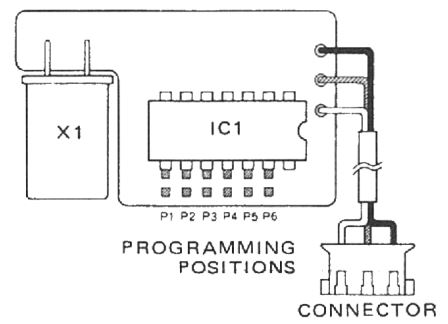

1 indicates pins to be soldered to program the UT-30 for specific tones

SUBAUDIBLE TONE ENCODER PROGRAMMING CHART

ICOM-UT-30-Programmable-Tone-Encoder-Unit-2
