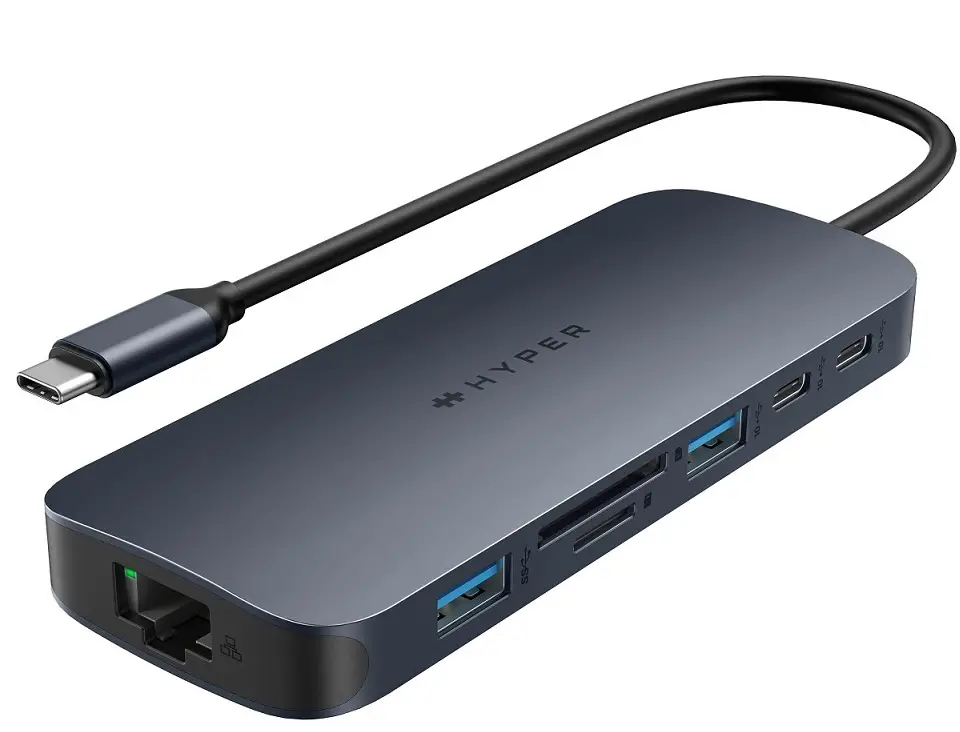

HYPER HD4006GL 11 Port USB-C Hub
Product Usage Instructions
Connection to Host Device
Connect the USB-C hub to your host device using the appropriate connector type (USB 3, USB4, Thunderbolt 3, Thunderbolt 4).
Video Output
Connect your monitors or display devices to the HDMI, Display Port, or VGA ports on the hub for video output. Ensure to use high-speed USB or Thunderbolt ports for video transmission.
Power Delivery
If needed, connect a USB-C charger to the hub for power delivery to your host device. Make sure the charger’s power output is within the recommended range.
Peripheral Connectivity
Utilize the various connection ports on the hub for connecting USB-A devices, Ethernet cables, audio peripherals, and memory cards as needed.
Frequently Asked Questions
Q: Can I connect multiple monitors to the USB-C hub?
A: Yes, you can connect up to two monitors with supported resolutions as mentioned in the specifications.
Q: Is the USB-C hub compatible with Thunderbolt 4 devices?
A: Yes, the hub is compatible with Thunderbolt 4 devices along with other supported host device ports.
Dimensions
- Length x Width x Height (cm) – 12.6 x 4.9 x 1.5 cm
- Weight (kg) – Approx. 0.098 Kg+
OVERVIEW
11 Ultra-Fast Ports for Pro-Grade Productivity
Product Specifications
| Connection to the host device | |
| Connector type | USB-C* |
| Connector technology | USB 3.2 Gen 2 (10 Gbps) |
| Graphics Technology | DP Alt Mode |
| Host device port compatibility | |
| USB 3 | ● |
| USB4 | ● |
| Thunderbolt 3 | ● |
| Thunderbolt 4 | ● |
| Video ports | |
| HDMI | 2x HDMI 2.0 |
| Display Port | — |
| VGA | — |
| Video via High-speed USB / Thunderbolt port | — |
| Maximum no. of monitor(s) | 2 |
| Maximum resolution (single monitor) | 4K @ 60 Hz** |
| Maximum resolution (multi-monitor) | 2 x 4K @ 60 Hz** |
| HDR via HDMI | — |
| Connection Ports | |
| USB-A (Power / Max data speed) | 1x USB 3.2 Gen2 (10 Gbps)
1x USB 3.2 Gen1 (5 Gbps) |
| USB-C (Power / Max data speed) | 2x USB 3.2 Gen2 (10 Gbps)
1x USB PD 3.1 (Max. 140 W) |
| Thunderbolt 3 | — |
| Thunderbolt 4 | — |
| RJ45 Ethernet | Gigabit Ethernet |
| 3.5 mm Audio | ● |
| Other audio ports | — |
| Memory cards | SD/ MicroSD 4.0 (312 MB/s) – UHS-II card compatible***** |
| Power | |
| USB Power Delivery to Host Device | – when the hub is connected to optional USB-C PD 3.1 charger |
| Max. PD power / PD passes through to the host | 140 W PD 3.1 / up to 125 W pass through to host device*** |
| Recommended USB-C chargers | |
| Hyper HJG100 100 W GaN charger | ● ****** |
| Hyper HJG140 140 W Universal GaN charger | ● |
| Targus APA108 100 W laptop charger | ● ****** |
| Host device system OS compatibility | |
| Works with Windows® | ● |
| Works with MacOS® | ● |
| Works with ChromeOS® | ● |
| Works with iOS® | ● **** |
| Works with Android® | ● |
| Works with Samsung DEX | ● ** |
| Works With Linux Ubuntu™ | — |
| Device compatibility | |
| Windows® Laptop | ● ** |
| Microsoft Surface® Laptop | ● ** |
| ChromeBook® | ● ** |
| Apple iMac® | ● ******* |
| Apple MacBook Pro® / Air® 2016 – 2019 | ● ******* |
| Apple MacBook Pro® / Air® M1 / M2 2020 – 2022 | ● ******* |
| Apple MacBook Pro® / M1 / M2 Pro / Max 2021 – 2023 | ● ******* |
| Apple iPad Pro® 2018 or later | ● **** |
| Apple iPad Air® 2020 or later | ● **** |
| Android® Tablet | ● ** |
| Android® Smartphone | ● ** |
| Other features | |
| Construction material | Yes – with 100% recycled Aluminium and up to 85% PCR plastics where applicable |
| USB-C cable to host device | Built-in cable to host device |
| Warranty | 2 years |
| Content | |
| What’s in the box | ● HD4006GL HyperDrive NEXT 11 port USB-C Hub
● User Guide |
| Notes | |
|
|
Dual Extended
Dual Extended 4K60Hz Monitor Support for PC and Chromebook
Enhance your productivity and multitasking capabilities by providing a spacious and immersive workspace, allowing users to simultaneously view and work on multiple high-resolution content, such as videos, images, documents, and applications, with smooth and crisp visuals. Dual extended monitors require MST-enabled devices. 4K 60Hz requires DP 1.4 USB-C ports.
Transfer Data
Transfer Data at 2X Speeds with 10Gbps USB 3.1
Enables lightning-fast data transfer, allowing users to move large files, backup data, and sync devices in a fraction of the time compared to traditional USB connections, increasing productivity and efficiency.
Charging
40% More Pass-through Charging Power with 140W PD 3.1
Power and charge your devices while using the hub, ensuring uninterrupted productivity, and eliminating the need for separate chargers, making it ideal for power-hungry devices and busy professionals on the go.
Recycling
Recycled Materials
With 100% recycled aluminum and 85% recycled plastic, these materials are both high quality and sustainable ensuring faster speeds and a greener tomorrow.
Features
Dual Extended 4K60Hz Monitor Support for PC and Chromebook
- Enhance your productivity and multitasking capabilities by providing a spacious and immersive workspace, allowing users to simultaneously view and work on multiple high-resolution content, such as videos, images, documents, and applications, with smooth and crisp visuals.
- Dual extended monitors require MST-enabled devices. 4K 60Hz requires DP 1.4 USB-C ports.
40% More Pass-through Charging Power with 140W PD 3.1
- Power and charge your devices while using the hub, ensuring uninterrupted productivity, and eliminating the need for separate chargers, making it ideal for power-hungry devices and busy professionals on the go.
Recycled Materials
- Faster speeds and better for the planet with 100% recycled aluminum and 85% recycled plastic.
Transfer Data at 2X Speeds with 10Gbps USB 3.2
- Enables lightning-fast data transfer, allowing users to move large files, backup data, and sync devices in a fraction of the time compared to traditional USB connections, increasing productivity and efficiency.
Fast and Reliable Gigabit Ethernet
- Provides high-speed and reliable wired internet connectivity, allowing for faster data transfers, seamless video streaming, and improved online gaming experiences.
Transfer Photos and Video at 3X Speeds with 312MB/s SD and microSD 4.0
- Provides significant time savings for video editing and photography workflows, as it allows for ultra-fast and efficient transfer of high-resolution images and videos, enabling seamless editing, quicker file backups, and accelerated post-production processes.
Wired Headphone and Microphone Support
A reliable and high-quality 3.5mm audio jack combo allows users to enjoy immersive sound experiences, communicate clearly in online meetings or gaming sessions, and utilize professional-grade microphones for recording or streaming, providing enhanced audio capabilities and versatility.
