Arebos 500W սեղանի հորատման մեքենայի օգտագործողի ձեռնարկ

1. Ներածություն և անվտանգության հրահանգներ

This manual provides essential information for the safe and efficient operation, setup, and maintenance of your Arebos 500W Bench Drill Press. Please read and understand all instructions before using the machine.

Ընդհանուր անվտանգության նախազգուշացումներ

• Միշտ կրեք համապատասխան անհատական ​​պաշտպանիչ միջոցներ (ԱՊՄ), այդ թվում՝ պաշտպանիչ ակնոցներ, լսողության պաշտպանիչներ և ձեռնոցներ։
• Համոզվեք, որ աշխատանքային տարածքը մաքուր է, լավ լուսավորված և զերծ է խոչընդոտներից։
• Keep children and bystanders away from the operating machine.
• Securely fasten the drill press to a stable workbench to prevent tipping or movement during operation.
• Disconnect the power supply before making any adjustments, changing accessories, or performing maintenance.
• Never operate the drill press if any parts are damaged or missing.
• Միշտ clamp the workpiece securely using the provided vise or other suitable clamping devices. Never hold the workpiece by hand.
• Select the correct drill speed for the material and drill bit size.
• Avoid loose clothing, jewelry, and long hair that could get caught in moving parts.

Նկար 1. Ավարտվածview of the Arebos 500W Bench Drill Press with the included workpiece vise.

2. Ապրանքի բաղադրիչներ

Familiarize yourself with the main components of your drill press:

• Շարժիչային կացարան: Contains the 500W motor and speed adjustment mechanism.
• Էլեկտրական անջատիչ. On/Off switch, often with a safety cover.
• Խորության կանգառ. For setting precise drilling depth.
• Չակ Holds the drill bit (13mm key chuck).
• Chuck Guard: Transparent guard for safety.
• Լազերային ուղեցույց. Projects crosshairs for accurate positioning.
• Սնուցման բռնակներ՝ Used to lower the chuck and drill bit.
• Սյունակ: Vertical support for the head and table.
• Workpiece Table: Adjustable height and tiltable platform for securing workpieces.
• Սեղանի կողպեք. Secures the workpiece table at the desired height.
• Հիմք: Ապահովում է ամբողջ սարքի կայունությունը։
• Workpiece Vise: Included accessory for clamping materials.

Figure 2: Key features of the drill press, including the 500W motor, height-adjustable workpiece table, and 5 speed settings.

3. Կարգավորում և հավաքում

Follow these steps for initial setup and assembly:

1. Ապափաթեթավորում. Carefully remove all components from the packaging. Check for any damage during transit and ensure all parts are present according to the packing list.
2. Հիմքի և սյան հավաքում. Securely attach the column to the base using the provided bolts and washers. Ensure it is firmly tightened.
3. Ղեկավար ժողով. Mount the drill head assembly onto the top of the column. Tighten the securing bolts.
4. Workpiece Table Installation: Slide the workpiece table assembly onto the column. Adjust its height and secure it with the table lock handle.
5. Խցիկի տեղադրում. Clean the tapered shaft of the chuck and the spindle. Insert the chuck onto the spindle with a firm upward push to seat it properly.
6. Vise Attachment: The included workpiece vise can be bolted to the workpiece table using the slots provided.
7. Mounting the Machine: For stability and safety, bolt the drill press to a sturdy workbench using the holes in the base.

Figure 3: The drill press assembled with a drill bit in the chuck and the workpiece vise attached to the table.

4. Գործառնական հրահանգներ

4.1. Selecting Drill Speed

The drill press offers 5 variable speed settings (550 to 2500 RPM) suitable for various materials. To change the speed:

1. Անջատեք մեքենան սնուցման աղբյուրից:
2. Open the belt cover on top of the motor housing.
3. Adjust the V-belt position on the pulleys according to the speed chart inside the cover.
4. Ensure the belt is taut and close the cover before reconnecting power.

General Speed Guidelines:

• Lower Speeds: For larger drill bits, harder materials (metals), and plastics.
• Higher Speeds: For smaller drill bits, softer materials (wood), and plastics.

Figure 4: The belt drive system located under the top cover, used to adjust drilling speeds.

4.2. Installing a Drill Bit

1. Համոզվեք, որ մեքենան անջատված է վարդակից:
2. Open the chuck jaws using the chuck key.
3. Insert the drill bit into the chuck, ensuring it is centered and seated firmly.
4. Tighten the chuck jaws securely with the chuck key. Remove the chuck key immediately after tightening.

4.3. Adjusting Workpiece Table

The workpiece table can be adjusted for height and angle:

• Բարձրության ճշգրտում. Loosen the table lock handle. Raise or lower the table to the desired height. Retighten the handle firmly.
• Անկյունի ճշգրտում. Loosen the tilt bolt beneath the table. Tilt the table to the desired angle (up to 45 degrees). Retighten the bolt.

Figure 5: The workpiece table can be adjusted vertically along the column and tilted for angled drilling.

4.4. Լազերային ուղեցույցի օգտագործումը

The integrated laser guide assists in precise drilling:

1. Turn on the laser guide using its dedicated switch (if separate from main power).
2. Position your workpiece so that the laser crosshairs align with your desired drilling point.
3. Secure the workpiece firmly with the vise or clamps.

Figure 6: The laser guide projects a crosshair onto the workpiece, indicating the exact drilling point.

4.5. Drilling Operation

1. Համոզվեք, որ աշխատանքային կտորը ամուր կցված էamped սեղանին.
2. Adjust the depth stop if a specific drilling depth is required.
3. Turn on the drill press.
4. Slowly lower the drill bit into the workpiece using the feed handles. Apply steady, even pressure.
5. Periodically retract the drill bit to clear chips, especially when drilling deep holes in metal.
6. Once the desired depth is reached, retract the drill bit completely and turn off the machine.
7. Wait for the spindle to stop completely before removing the workpiece.

Figure 7: A workpiece securely clamped in the vise during a drilling operation.

5. Պահպանում

Regular maintenance ensures the longevity and safe operation of your drill press.

• Մաքրում: After each use, clean the machine of dust, chips, and debris. Use a brush or vacuum cleaner. Do not use solvents that may damage painted surfaces or plastic parts.
• Քսում: Periodically apply a light machine oil to moving parts such as the column, spindle, and feed mechanism to ensure smooth operation and prevent rust.
• Գոտու ստուգում. Regularly check the V-belt for wear, cracks, or damage. Replace if necessary. Ensure proper tension.
• Չակերի սպասարկում. Keep the chuck jaws clean and free of debris. Apply a small amount of grease to the chuck key mechanism if it becomes stiff.
• Էլեկտրական լար: Inspect the power cord for any signs of damage. Do not use the machine if the cord is frayed or damaged.

6: Անսարքություն

Այս բաժինը անդրադառնում է տարածված խնդիրներին, որոնց կարող եք հանդիպել՝

If you encounter problems not listed here or if solutions do not resolve the issue, please contact customer support.

7. Տեխնիկական բնութագրեր

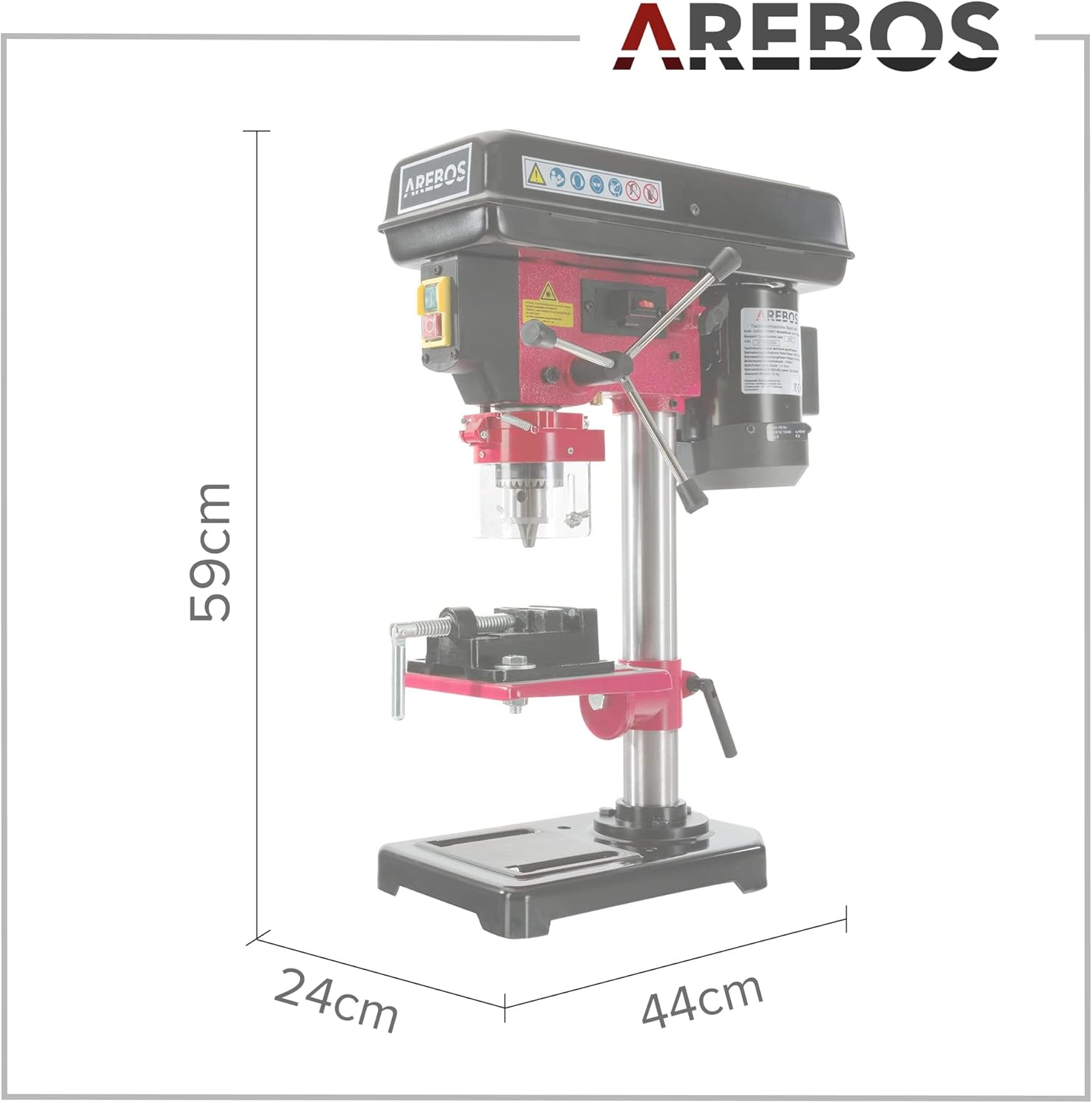

Նկար 8. Չափսերի վերևումview of the Arebos Bench Drill Press.

8. Երաշխիք և հաճախորդների աջակցություն

For warranty information, service, or technical support, please refer to the documentation included with your product or contact the manufacturer directly. The manufacturer is Canbolat Vertriebs GmbH.

Խնդրում ենք պահպանել գնման ապացույցը երաշխիքային պահանջների համար։
