Arebos շարժական արհեստանոցային գործիքների պահարան AR-HE-WW41B օգտագործողի ձեռնարկ

1. Ներածություն

Thank you for choosing the Arebos Portable Workshop Tool Cabinet. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new tool cabinet. Please read these instructions carefully before use and retain them for future reference.

This tool cabinet is designed for organizing and storing various tools and workshop accessories, offering mobility and secure storage solutions.

2. Անվտանգության հրահանգներ

• Always ensure the cabinet is placed on a stable, level surface to prevent tipping.
• Մի ծանրաբեռնեք դարակները: Հավասարաչափ բաշխեք քաշը՝ կայունությունը պահպանելու համար:
• Engage the parking brakes on the swivel casters when the cabinet is stationary to prevent unintended movement.
• Utilize the integrated transport lock to secure all drawers before moving the cabinet.
• Avoid opening multiple drawers simultaneously, as this can compromise stability and cause the cabinet to tip over.
• Keep hands and fingers clear of drawer slides during opening and closing to prevent pinching.
• This product is intended for tool storage. Do not use it as a step stool or for purposes other than its intended use.
• Keep children and unauthorized persons away from the cabinet, especially when drawers are open or the cabinet is in motion.

3. Փաթեթի բովանդակությունը

Verify that all components are present and undamaged upon unpacking. If any parts are missing or damaged, contact Arebos customer support.

• Tool Cabinet Body (1)
• Drawers (4)
• Anti-slip Mats for Drawers (4)
• Casters (2 fixed, 2 swivel with brake)
• Հրման բռնակ (1)
• Key Box / Keys (for main compartment lock)
• Մոնտաժման պարագաներ (պտուտակներ, լվացքի մեքենաներ և այլն)
• Օգտագործողի ձեռնարկ (այս փաստաթուղթը)

4. Կարգավորում և հավաքում

Assembly typically involves attaching the casters and the push handle. Follow these general steps:

1. Ապափաթեթավորում. Carefully remove all components from the packaging. Retain packaging materials until assembly is complete.
2. Անիվների տեղադրում՝ Turn the cabinet upside down (ensure it is empty and stable). Attach the two fixed casters to one end of the cabinet's base and the two swivel casters with brakes to the opposite end using the provided hardware. Ensure all screws are tightened securely.
3. Բռնակի հավելված. Attach the push handle to the side of the cabinet using the designated mounting points and hardware.
4. Ուղղահայաց դիրքավորում՝ With assistance, carefully turn the cabinet upright onto its casters.
5. Drawer Preparation: Insert the anti-slip mats into each drawer.
6. Փորձարկում: Test the movement of the casters and the functionality of the brakes. Verify that all drawers open and close smoothly and that the interlock system functions correctly.

Նկար 1: Product dimensions of the Arebos tool cabinet, showing overall height, width, depth, and individual drawer sizes.

Նկար 2: Ավարտվել էview of key features including anti-slip mats, ball-bearing drawers, practical handle, and 360° swivel wheels with brake.

5. Գործառնական հրահանգներ

5.1 Moving the Cabinet

• Ensure all drawers are closed and the integrated transport lock is engaged.
• Release the parking brakes on the swivel casters.
• Use the push handle to maneuver the cabinet to the desired location.
• Once in position, engage the parking brakes to secure the cabinet.

Նկար 3: Detail of the 360° swivel casters equipped with parking brakes for flexible movement and secure positioning.

5.2 Դարակների օգտագործումը

• The drawers feature ball-bearing slides for smooth opening and closing.
• Each drawer is equipped with an anti-slip mat to prevent tools from shifting and rattling.
• To open a drawer, pull the full-width handle. Due to the safety mechanism, only one drawer can be opened at a time.
• To close, push the drawer firmly until it is fully seated.

Նկար 4: Խոշոր պլանով view of the ball-bearing drawer slides, ensuring smooth and effortless operation.

5.3 Integrated Transport Lock

• The cabinet includes an interlock system to secure all drawers simultaneously.
• To engage the lock, ensure all drawers are fully closed. The mechanism will prevent drawers from opening during transport.
• To disengage, a specific action (e.g., turning a key or pressing a lever, as indicated by the key box component) will release the lock, allowing individual drawers to open.

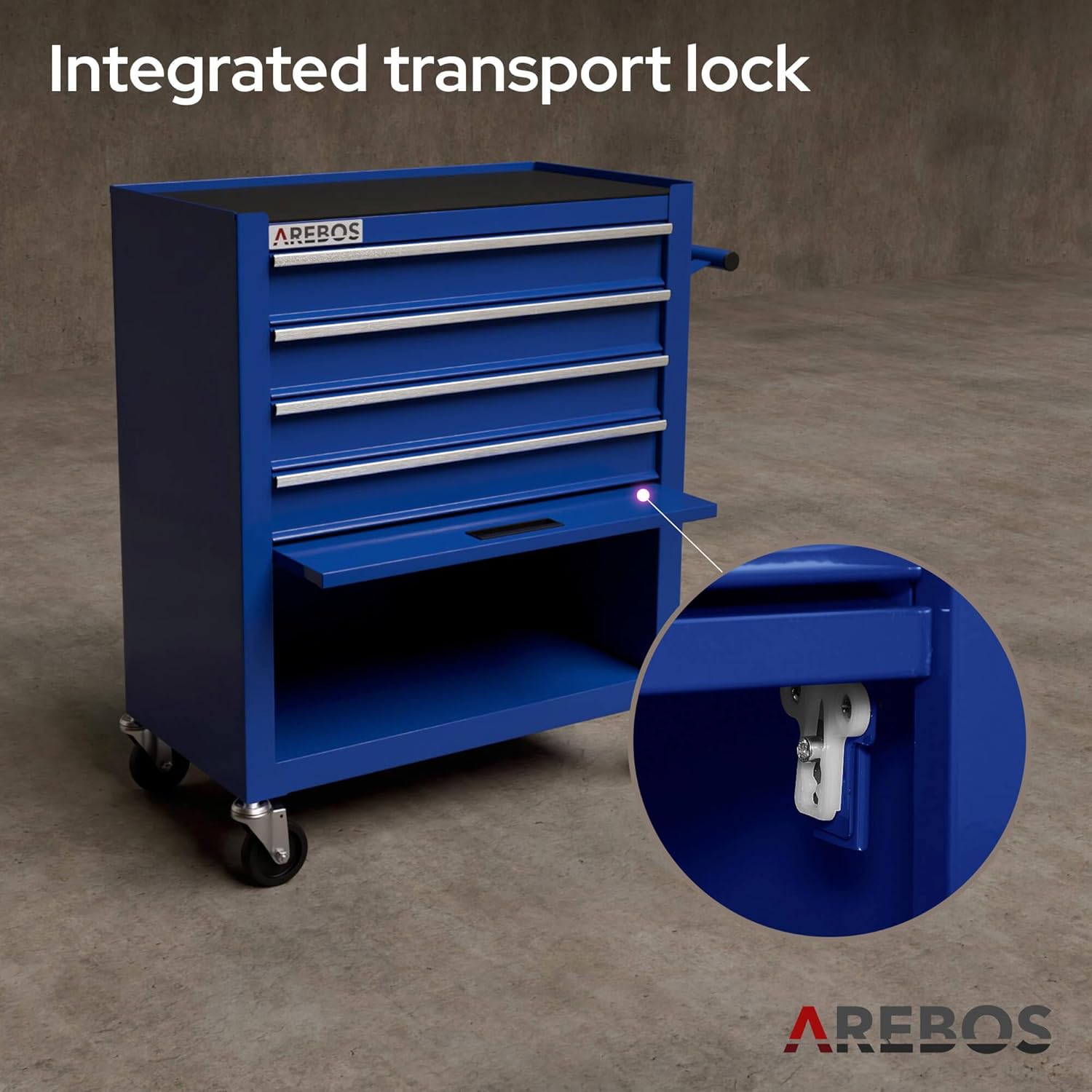

Նկար 5: Illustration of the integrated transport lock mechanism, designed to secure all drawers for safe movement.

6. Պահպանում

• Մաքրում: Սրբեք պահարանի մակերեսները գլյուտենովamp կտոր և մեղմ լվացող միջոց։ Խուսափեք հղկող մաքրող միջոցներից, որոնք կարող են վնասել ավարտը:
• Գզրոցի սլայդներ. Periodically inspect and lubricate the ball-bearing drawer slides with a silicone-based lubricant to ensure continued smooth operation.
• Ձուլիչներ: Check casters regularly for debris or wear. Clean as needed and ensure they rotate freely. Tighten any loose caster bolts.
• Anti-slip Mats: Clean the anti-slip mats as needed to remove dirt or grease.
• Ընդհանուր տեսչություն. Routinely check all fasteners and connections for tightness. Tighten any loose hardware to maintain structural integrity.

7: Անսարքություն

8. Տեխնիկական պայմաններ

• Ապրանքանիշը: Arebos
• Մոդելի համարը: AR-HE-WW41B
• Գույնը: Կապույտ
• Նյութը՝ Ալյումինե պողպատ
• Ապրանքի չափերը (L x W x H): 72 x 39 x 68 սմ (28.3 x 15.4 x 26.8 դյույմ)
• Նյութի Քաշը: 22.5 կգ (49.6 ֆունտ)
• Գզրոցների քանակը: 4
• Լրացուցիչ բաժանմունքներ. 1 large bottom compartment
• Ձուլիչներ: 2 fixed, 2 swivel with parking brake (360° rotation)
• Գզրոցի առանձնահատկությունները. Ball-bearing slides, anti-slip mats, full-width handles
• Անվտանգության առանձնահատկություններ. Integrated transport lock, single-drawer opening mechanism
• Առաջարկվող օգտագործումը. Tool storage, workshop organization

9. Երաշխիք և աջակցություն

For warranty information, technical support, or to order replacement parts, please contact Arebos customer service through their official website or the retailer where the product was purchased. Please have your model number (AR-HE-WW41B) and purchase date available when contacting support.
