HVMLAK AIR99 2 in 1 Bluetooth Audio Transmitter and Receiver

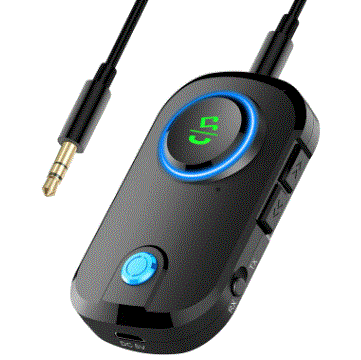

HVMLAK-AIR99-2-in-1-Bluetooth-Audio-Transmitter-and-Receiver-PRODUCT

WIRELESS ADAPTER

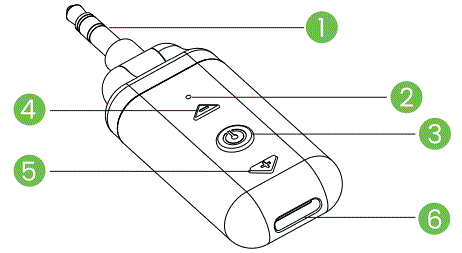

HVMLAK-AIR99-2-in-1-Bluetooth-Audio-Transmitter-and-Receiver-FIG-1

  1. Rotatable 3.5mm Jack
  2. Led Indicator
  3. MFB Button
  4. Vol-/Pro Tracie (RX mode)
  5. Vol+/Nex Track {RX mode)
  6. USB-C Charging Port

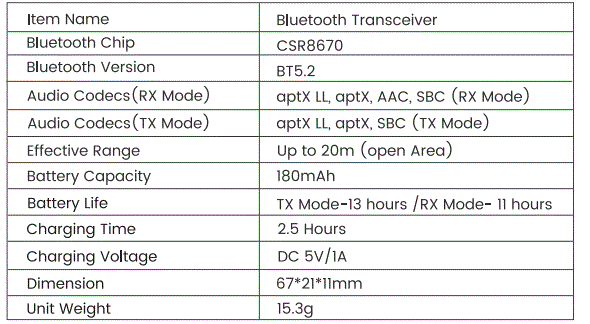

Parameter Table

HVMLAK-AIR99-2-in-1-Bluetooth-Audio-Transmitter-and-Receiver-FIG-2

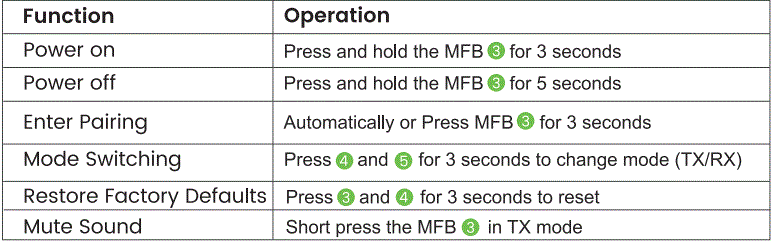

Basic Control

HVMLAK-AIR99-2-in-1-Bluetooth-Audio-Transmitter-and-Receiver-FIG-3

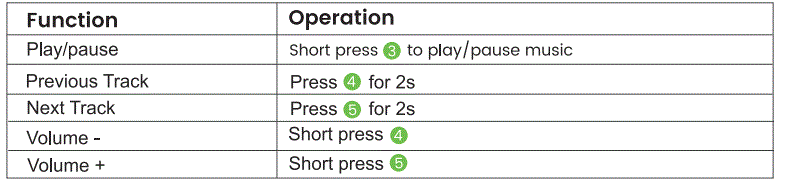

Music handling in RX Mode

HVMLAK-AIR99-2-in-1-Bluetooth-Audio-Transmitter-and-Receiver-FIG-4

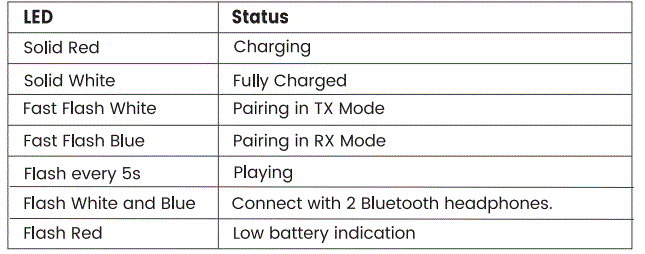

LED Indicators HVMLAK-AIR99-2-in-1-Bluetooth-Audio-Transmitter-and-Receiver-FIG-5

Definition:
TX Mode: Transmitter which can be paired with Bluetooth headphones.
RX Mode: Receiver which can be paired with Smartphones.

Use as a Transmitter

(TX Mode):
Step 1.HVMLAK-AIR99-2-in-1-Bluetooth-Audio-Transmitter-and-Receiver-FIG-6

  • Tum on AIR99
  • Make sure that it IS in TX mode it will automatically enter pricing more(fost flash white LED)
  • Press the MFB Button for 3s to enter pairing mode again to pair with your 2nd Bluetooth h one or oi1pod if you want to.

Step 2HVMLAK-AIR99-2-in-1-Bluetooth-Audio-Transmitter-and-Receiver-FIG-7

  • Make your airpod in pairing mode to connect with AIR99.
  • Sometimes you need to make airpod into pairing mode first and then make AIR99 in pairing mode.

Step 3.HVMLAK-AIR99-2-in-1-Bluetooth-Audio-Transmitter-and-Receiver-FIG-8

  • Plug AIR99 into the Aux audio output port to stream music to your AirPods or other Bluetooth headphones.
  • This usage scenario can be Airplane / TV / PC / Switch / iPod etc

Use as a Receiver (RX Mode)

Step 1.HVMLAK-AIR99-2-in-1-Bluetooth-Audio-Transmitter-and-Receiver-FIG-9

  • Turn on AIR99.
  • Make sure that it is in RX mode.
  • It will automatically enter pairing mode(fast flash Blue LED).
  • press the MFB Button for 3s to enter pairing mode again to pair with your 2nd smartphone if you want to.

Step 2.HVMLAK-AIR99-2-in-1-Bluetooth-Audio-Transmitter-and-Receiver-FIG-10

  • Enable the Bluetooth on your cell phone and search.
  • Tap “HVMLAK AIR99” to connect with AIR99.

step 3.HVMLAK-AIR99-2-in-1-Bluetooth-Audio-Transmitter-and-Receiver-FIG-11

  • Plug AIR99 into the Aux audio input port to stream music from your phone to the car stereo or other home stereo.
  • This usage scenario can be Car / Speaker / Boat / Motorcycle etc.

HVMLAK-AIR99-2-in-1-Bluetooth-Audio-Transmitter-and-Receiver-FIG-12We apologize for any inconvenience caused by minor inconsistencies in these Instructions, which may occur as a result of product improvement and development.
