Manyèl Itilizatè Kamera Logitech Scribe Whiteboard la

1. Entwodiksyon

The Logitech Scribe is an AI-powered whiteboard camera designed to integrate physical whiteboard content into video meetings. It is compatible with leading video conferencing services such as Microsoft Teams Rooms and Zoom Rooms. The Scribe utilizes built-in artificial intelligence and a custom lens to broadcast whiteboard content with enhanced clarity, ensuring remote participants have an unobstructed view. It supports standard dry erase markers and whiteboard surfaces up to 6 feet by 4 feet.

Content sharing can be initiated via a wireless share button or a meeting room touch controller, such as Logitech Tap.

Figi 1: Devan view of the Logitech Scribe Whiteboard Camera.

2. Ki sa ki nan bwat la

Verifye ke tout konpozan yo prezan nan anbalaj la:

• Logitech Scribe Camera Unit
• Mounting Bracket
• Materyèl pou monte (vis, lank)
• USB pou Ethernet adaptè
• PoE Injector (Power over Ethernet)
• Ethernet kab
• Wireless Share Button (with AAAA batteries)
• Modèl Enstalasyon

Figure 2: Contents of the Logitech Scribe package.

3. Enstalasyon

Proper installation is crucial for optimal performance. Follow these steps for setting up your Logitech Scribe:

1. Monte kamera a: Use the provided installation template to position the camera above the whiteboard. Secure the mounting bracket to the wall using the appropriate hardware. Ensure the camera is centered and at the correct height for your whiteboard dimensions (up to 6 ft x 4 ft).
2. Konekte kamera a: The Scribe connects to a computer via a USB to Ethernet adapter and a Power over Ethernet (PoE) injector. Connect the Ethernet cable from the camera unit to the PoE injector, then from the PoE injector to the USB to Ethernet adapter. Finally, connect the USB adapter to your meeting room computer.
3. Jesyon kab: Route cables neatly to maintain a professional appearance and prevent accidental disconnections. The mounting bracket includes channels for cable routing.

Figi 3: Dèyè view of the Logitech Scribe, illustrating mounting and connection points.

Figure 4: Illustration of cable routing through the Logitech Scribe mounting base.

4. Operasyon Enstriksyon

The Logitech Scribe is designed for intuitive operation during video conferences.

1. Initiating Whiteboard Sharing: To share whiteboard content, press the wireless share button or use your meeting room's touch controller (e.g., Logitech Tap). The Scribe will automatically detect and broadcast the whiteboard feed to your video meeting.
2. Karakteristik AI: The Scribe's built-in AI enhances whiteboard content clarity and provides a transparency effect. This allows meeting participants to see 'through' the presenter, ensuring an unobstructed view of the writing on the whiteboard.
3. Whiteboard Area: The camera is optimized to capture whiteboards up to 6 feet by 4 feet. Ensure your whiteboard content stays within these dimensions for optimal capture.

Figure 5: The Logitech Scribe camera unit alongside its wireless share button.

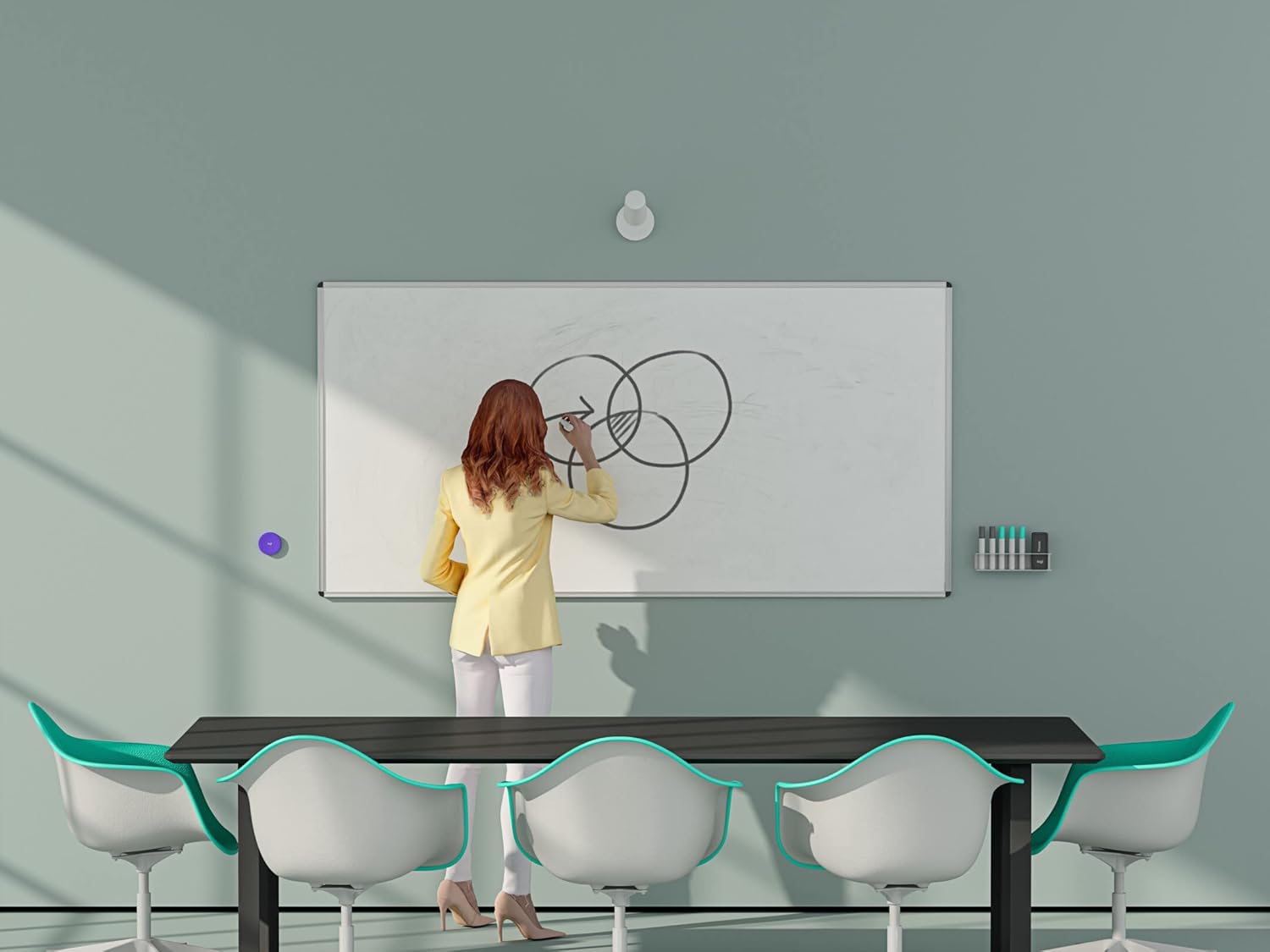

Figure 6: A user interacting with a whiteboard while the Logitech Scribe captures the content for remote participants.

Figure 7: The Logitech Scribe camera integrated into a meeting room environment.

5. Antretyen

To ensure the longevity and optimal performance of your Logitech Scribe, follow these maintenance guidelines:

• Netwayaj: Gently wipe the camera lens and body with a soft, dry, lint-free cloth. Avoid using abrasive cleaners or solvents.
• Whiteboard Care: Use only dry erase markers on your whiteboard. Regularly clean the whiteboard surface to prevent marker residue buildup, which can affect the Scribe's image clarity.
• Mizajou mikrolojisyèl: Periodically check for and install firmware updates for the Logitech Scribe through the Logitech Sync application. Updates can improve performance, add features, and resolve issues.
• Wireless Share Button Batteries: The wireless share button requires AAAA batteries. Replace them when the indicator light suggests low power or the button becomes unresponsive.

Figure 8: Underside of the wireless share button, indicating the battery compartment.

NAN. Depanaj

If you encounter issues with your Logitech Scribe, consider the following troubleshooting steps:

• Image Distortion/Fuzzy Output: If the whiteboard image appears distorted or fuzzy, use the Logitech Sync application to calibrate the camera. The app allows you to set four points on the raw camera image to correct fisheye distortion. Ensure these settings are saved and not inadvertently altered.
• No Image/Connectivity Issues:
  • Verify all cables (USB, Ethernet) are securely connected between the camera, PoE injector, USB to Ethernet adapter, and the computer.
  • Ensure the PoE injector is receiving power.
  • Check if the computer recognizes the Scribe as a camera device.
  • Restart the computer and the video conferencing application.
• Share Button Unresponsive:
  • Check the batteries in the wireless share button and replace them if necessary.
  • Ensure the share button is within range of the Scribe camera.
• Content Not Clear: Ensure you are using fresh, high-quality dry erase markers. Faded markers may not be captured clearly by the camera's enhancement features.

7. Espesifikasyon

8. Garanti ak sipò

Logitech products are manufactured to high quality standards and are covered by a limited hardware warranty. For detailed warranty information, product support, and additional resources, please visit the official Logitech support website. You can find FAQs, troubleshooting guides, and contact information for customer service there.

For the most up-to-date information, please refer to the official Logitech websit la oswa dokiman ki vini ak pwodwi ou a.
