1. Sigurnosne informacije
WARNING: Read all safety warnings and instructions before operating this product.
- Always use the safety lock button before starting the snow blower to prevent accidental activation.
- This product is electric and does not produce carbon monoxide.
- Držite ruke i noge dalje od pokretnih dijelova.
- Wear appropriate safety gear, including eye protection and non-slip footwear.
- Ne koristite frezu za snijeg na prestrmim padinama.
- Ensure the area to be cleared is free of debris that could be thrown by the machine.
- Always unplug the unit before performing any maintenance or clearing clogs.
2. Proizvod je gotovview
The VEVOR SPEG09 Electric Snow Blower is a powerful and efficient tool designed for clearing snow from various surfaces. Equipped with a robust 15A, 2200W motor, it effectively handles both wet and heavy snow.
Ključne karakteristike:
- Wide Snow Clearing Path: Clears a 20-inch-wide and 12-inch-deep path in a single pass, optimizing time and effort.
- Extended Snow Throwing Distance: Capable of throwing snow up to 25 feet (7.5 meters) away, providing a broad clearing radius.
- Podesivi žlijeb od 180°: Allows for precise control over the snow discharge direction, enabling targeted clearing.
- Dvostruki sigurnosni prekidač: Features a two-step activation process (press safety lock button then pull trigger) to prevent accidental starts.
- Dual LED Headlights: Integrated LED lights ensure clear visibility for snow removal in low-light conditions, enhancing safety during early morning or late evening operation.
This walk-behind snowblower is ideal for maintaining sidewalks, driveways, patios, and multi-car parking areas.
3. Postavljanje i sastavljanje
The VEVOR SPEG09 Electric Snow Blower requires some assembly upon arrival. The process is straightforward and typically takes approximately 20-30 minutes.
Koraci sastavljanja:
- Pričvršćivanje upravljača: Secure the tubular metal handlebars to the main unit using the provided wing nuts.
- Chute Installation: Attach the adjustable snow chute to the top of the blower. Ensure it is securely fastened to allow for proper rotation and angle adjustment.
- Uprava za kabele: Route the power cord along the handlebars and secure it with the provided clips to prevent interference with moving parts or accidental damage.
- Sklop kotača: Attach the plastic wheels to the unit.
A screwdriver may be required for some assembly steps. Refer to the included instruction manual for detailed diagrams and specific fastener locations.
4. Upute za rad
Pokretanje freze za snijeg:
- Priključite napajanje: Plug the snow blower into a suitable outdoor extension cord (ensure the cord is rated for outdoor use and the amperage requirements of the blower).
- Aktivirajte sigurnosni prekidač: Press and hold the orange safety lock button located on the handlebar.
- Uključivanje snage: While holding the safety button, pull the main trigger lever towards the handlebar to start the motor. Release the trigger to stop the unit.
Podešavanje ispuštanja snijega:
- Smjer žlijeba: Use the crank mechanism on the handlebar to rotate the discharge chute 180 degrees, directing snow to the left, right, or straight ahead.
- Chute Deflector Angle: Adjust the deflector on the chute to control the height and distance of the snow throw.
Čišćenje snijega:
- Push the snow blower forward at a steady pace. For deep or heavy snow, make narrower passes to prevent overloading the motor.
- The dual LED headlights provide illumination for clearing in low-light conditions.
Video: Demonstrating the VEVOR Electric Snow Blower in action, showing its snow-clearing capabilities and the effective throwing distance.
5. Održavanje
- Nakon svake upotrebe: Always unplug the unit. Clean any snow or debris from the auger and chute. Inspect the auger blades for wear or damage.
- Skladištenje: Store the snow blower in a dry, protected area. The handlebars can be folded for more compact storage.
- Pregled kabela: Regularly check the power cord and extension cord for any cuts, fraying, or damage.
- Zamjenski dijelovi: While some parts like the scraper blade are listed as replaceable, availability of specific repair parts may vary.
6. Rješavanje problema
| Problem | Mogući uzrok | Otopina |
|---|---|---|
| Jedinica se ne pokreće | Power cord not connected; Safety button not pressed; Trigger not pulled. | Ensure power cord is securely connected. Press safety button and pull trigger simultaneously. Check circuit breaker. |
| Snow discharge chute does not stay in position | Adjustment mechanism loose or worn. | Tighten any visible fasteners on the chute adjustment mechanism. If wear is present, contact support. |
| Motor overloads or breaker trips | Attempting to clear snow too quickly or snow is too deep/heavy. | Reduce the speed of operation. Take narrower passes. Clear snow in layers if it is very deep. |
| Smanjena udaljenost bacanja snijega | Clogged chute; Worn auger blades. | Turn off and unplug the unit. Clear any clogs from the chute. Inspect and replace worn auger blades if necessary. |
7. Specifikacije
- Marka: VEVOR
- Broj modela: SPEG09
- Izvor napajanja: AC
- Nazivna snaga: 2200 W
- Radna struja: 15A
- Brzina bez opterećenja: 3300 o / min / min
- Dimenzije proizvoda (D x Š x V): 510 mm x 1200 mm x 940 mm
- Težina artikla: 24.7 lbs (11.2 kg)
- Boja: Crni + Orange
- Vrsta motora: Električni
- Širina čišćenja snijega: 20 inča (47.2 cm)
- Idealna dubina snijega: 12 inča
- Snow Throw Distance: Do 25 stopa (7.5 m)
- Duljina kabela za napajanje: 18 inča (450 mm)
- UPC: 197988889656
8. Proizvodni mediji
Image: The VEVOR Electric Snow Blower, showcasing its overall design and orange and black color scheme.

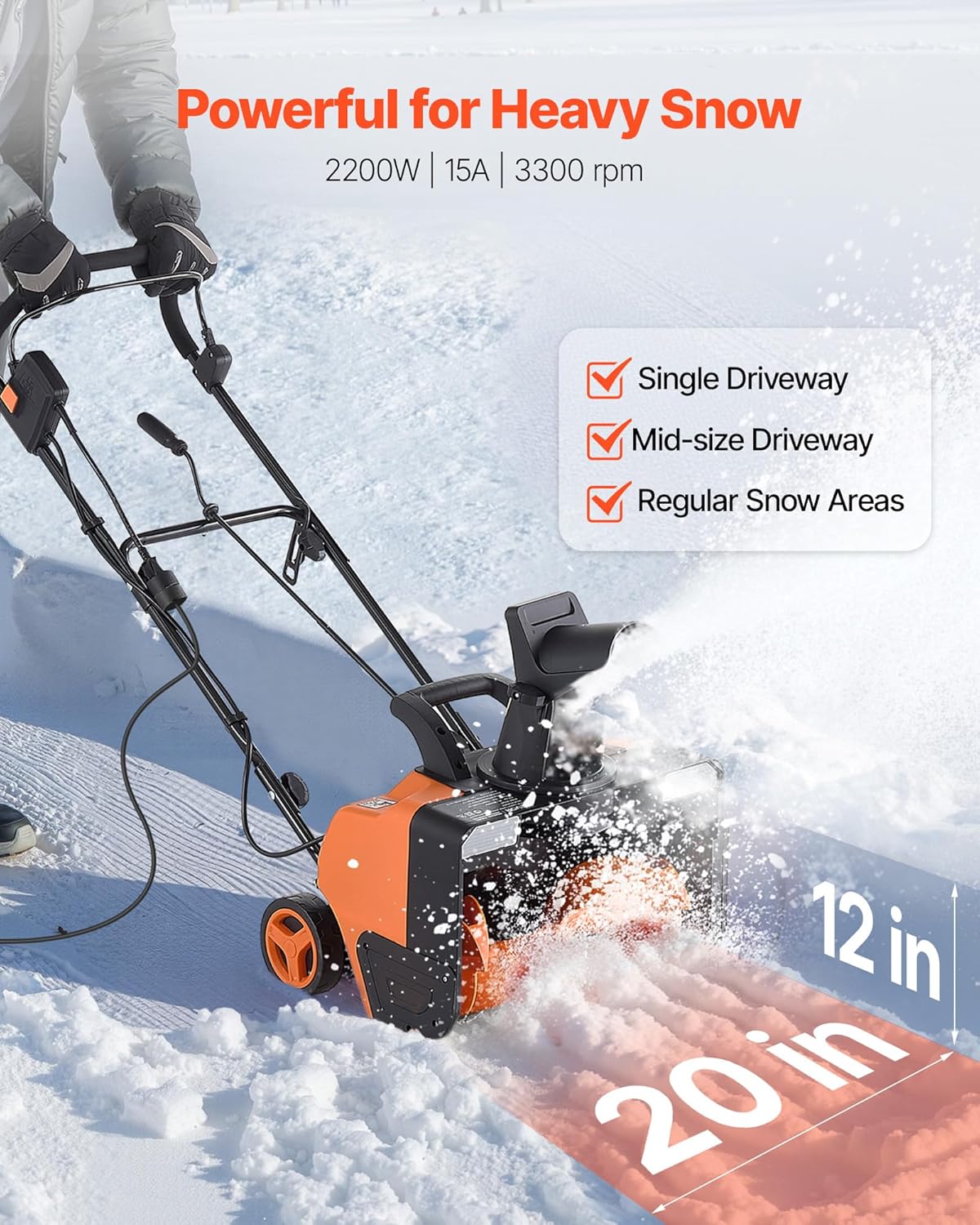

Image: The snow blower effectively clearing a path through heavy snow, highlighting its powerful 2200W motor.
Image: A person operating the snow blower, demonstrating its capability to throw snow up to 25 feet away.
Image: Close-up of the 180-degree adjustable chute, showing how to control the snow discharge direction.
Image: Detail of the dual safety switch on the handlebar, illustrating the two-step activation process.
Image: The snow blower operating in low light, with its dual LED headlights illuminating the path.
Image: A diagram showing the key dimensions and technical specifications of the VEVOR Electric Snow Blower.
9. Jamstvo i podrška
For warranty information, technical support, or to inquire about replacement parts, please refer to the contact details provided in your product packaging or visit the official VEVOR webmjesto.
