VEVOR Commercial Slushy Machine 8L (2.1 Gal) Instruction Manual

1. Sigurnosne upute

Please read and understand all safety instructions before operating the machine. Failure to follow these instructions may result in electric shock, fire, or serious injury.

Opća sigurnost

• Uvijek provjerite je li stroj postavljen na stabilnu, ravnu površinu.
• Keep the machine away from water or other liquids to prevent electric shock.
• Ne rukujte strojem mokrim rukama.
• Držite djecu i kućne ljubimce dalje od stroja tijekom rada.
• Do not insert any objects into the machine's vents or openings.

Električna sigurnost

• Provjerite je li napajanje voltage matches the rating label on the machine.
• Always plug the machine into a grounded outlet.
• Do not use extension cords or adapters with this machine.
• Isključite stroj iz električne utičnice prije čišćenja ili održavanja.
• Ako je kabel za napajanje oštećen, mora ga zamijeniti proizvođač ili kvalificirani serviser.

Sigurnost čišćenja i održavanja

• Prije čišćenja uvijek isključite uređaj iz struje.
• Ne uranjajte glavnu jedinicu u vodu ili druge tekućine.
• Use only food-grade cleaning solutions and lubricants.

2. Proizvod je gotovview

The VEVOR Commercial Slushy Machine is designed for efficient and convenient preparation of various frozen beverages. Featuring an 8L (2.1 US gal) single bowl, it is ideal for commercial and home use, capable of producing 17-23L of slush or 12-18L of alcoholic drinks per hour.

Ključne karakteristike:

• 8L Single Bowl Capacity: Generous capacity for continuous serving.
• Food Grade 304 Stainless Steel: Durable, corrosion-resistant, and easy to clean.
• 1050W Powerful Compressor: Ensures fast cooling and efficient slush production with quiet operation.
• Rad jednim dodirom: User-friendly control panel for easy adjustments and dispensing.
• Cool and Freeze Modes: Versatile for different beverage types.
• Inteligentna upravljačka ploča: Features for fault diagnosis and power failure memory.

Slika: prednja strana view of the VEVOR Commercial Slushy Machine, showcasing its sleek design and single bowl.

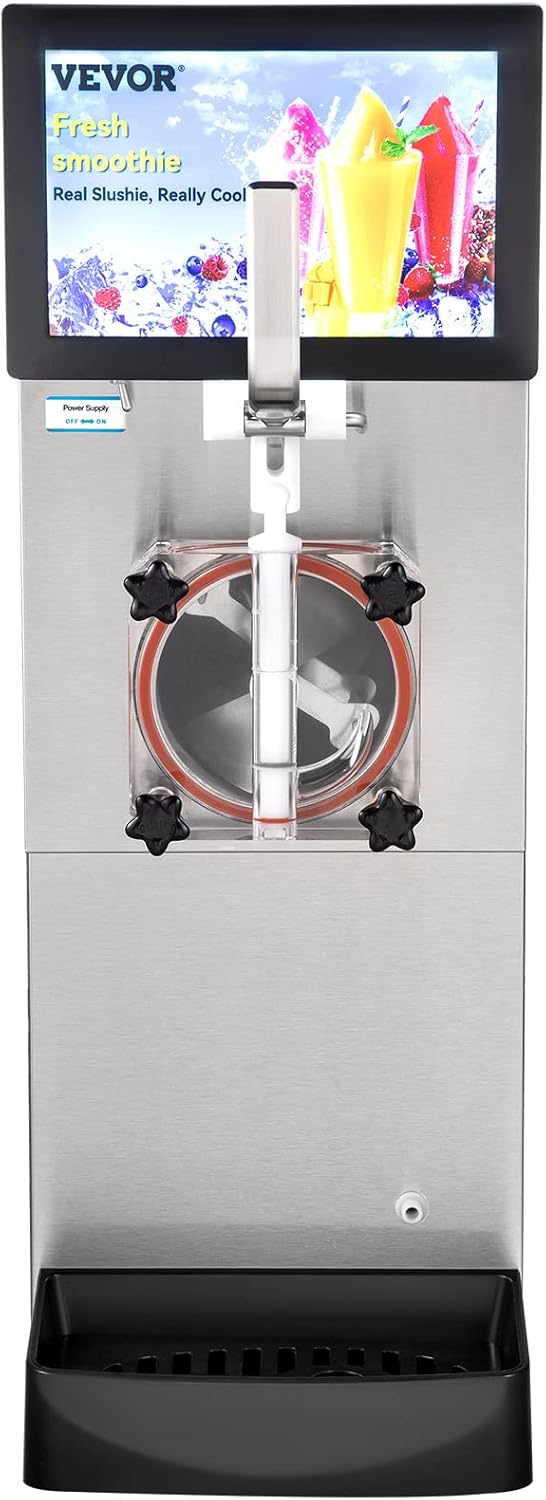

Slika: Kutna view of the VEVOR Commercial Slushy Machine, highlighting its compact size and stainless steel finish.

3. Postavljanje

Raspakiranje i pregled

• Pažljivo izvadite stroj iz ambalaže.
• Inspect for any shipping damage. If damaged, contact customer service immediately.
• Uklonite sve zaštitne folije i materijale za pakiranje.

Plasman

• Place the machine on a stable, level, and dry surface.
• Ensure adequate ventilation around the machine. Leave at least 30cm (12 inches) of space on all sides for proper heat dissipation.
• Avoid direct sunlight or placement near heat sources.

Skupština

Stroj dolazi djelomično sastavljen. Slijedite ove korake da biste dovršili sklapanje:

1. Install the white sealing ring onto the evaporator cylinder. Apply food-grade lubricant to the sealing ring.
2. Attach the mixer (auger) onto the evaporator shaft.
3. Carefully slide the transparent bowl onto the main unit, ensuring it locks securely into place.
4. Install the pillar, handle, and fixed tip onto the dispensing faucet. Apply food-grade lubricant to the rubber pad on the fixed tip.
5. Place the lid on top of the bowl.

Image: Included accessories for the VEVOR Commercial Slushy Machine, such as measuring cup, lubricant, sealing rings, and whisk.

4. Upute za rad

Početno čišćenje

• Before first use, clean all parts that come into contact with beverages.
• Fill the bowl with clean water and run the machine in 'Clean' mode for a few minutes.
• Drain the water and dry all components.

Preparing and Filling the Bowl

• Prepare your desired beverage mixture. Ensure the minimum sugar content is not less than 13% to prevent freezing issues. For alcoholic drinks, the temperature may need to be adjusted to around -9°C.
• Pour the liquid into the bowl, ensuring it is above the white plastic beater and below the maximum fill line.

Power On and Mode Selection

1. Uključite stroj u uzemljenu utičnicu.
2. Turn on the main power switch located on the side of the machine.
3. On the control panel, select your desired mode: 'Slush' for frozen beverages or 'Cold Drink' for chilled beverages.
4. For slushies, ensure the mixing function is turned on before pressing the 'Slush' key.

Image: Close-up of the intelligent control panel, showing various settings and one-touch operation buttons for slush, cold drink, stop, and clean modes.

Podešavanje debljine

• Use the control panel to adjust the thickness of the slush according to your preference.
• Clockwise rotation of the adjustment knob reduces hardness (thinner slush).
• Counter-clockwise rotation of the adjustment knob increases hardness (thicker slush).

Doziranje

• Place a cup under the dispensing faucet.
• Pull the handle down to dispense the beverage.
• For slushies, remove the cold drink outlet nozzle counterclockwise. For cold drinks, attach the cold drink outlet nozzle clockwise.

5. Održavanje

Dnevno čišćenje

Regular cleaning is essential to maintain hygiene and prolong the machine's lifespan.

1. Isključite uređaj i izvucite utikač iz utičnice.
2. Ocijedite sav preostali napitak iz zdjele.
3. Disassemble the bowl, mixer, and dispensing faucet components.
4. Wash all removable parts with warm, soapy water. Rinse thoroughly and dry completely.
5. Obrišite glavnu jedinicu oglasomamp tkanina. Nemojte koristiti abrazivna sredstva za čišćenje.
6. Reassemble all parts, ensuring proper placement of sealing rings and applying food-grade lubricant where necessary.

Image: Illustrates the food-grade material, material shortage reminder, and surplus discharge features, aiding in maintenance understanding.

6. Rješavanje problema

If you encounter any issues with your VEVOR Commercial Slushy Machine, refer to the following common problems and solutions:

• Error Code 'LLL': This indicates a low voltage alert. Please check the operating voltage of your power supply. If the operating voltage is regular, contact customer service to cancel the error code.
• Slush Not Ready (Temperature Reached): If the machine reaches the factory-set temperature but the slush is not ready, you may need to adjust the temperature settings on the control panel. Refer to the 'Operating Instructions' section for temperature adjustment.
• Materijal Šortage Podsjetnik: The machine is equipped with a sensor to remind you to replenish raw material in time. Ensure the liquid level is above the minimum fill line.
• Začepljenje: A small hole in the body is designed for discharging remaining ingredients to avoid clogging. Ensure this is clear during cleaning.

For other issues or persistent problems, please contact VEVOR customer support.

7. Specifikacije

Image: Diagram detailing the product specifications including dimensions, power, capacity, and material.

8. Jamstvo i podrška

Za informacije o jamstvu i korisničku podršku, molimo pogledajte dokumentaciju koju ste dobili uz kupnju ili posjetite službenu VEVOR stranicu webweb-mjesto. Prije kontaktiranja podrške pripremite broj modela proizvoda i podatke o kupnji.
