VEVOR A4 Manual Paper Guillotine Cutter

Uvod

Thank you for choosing the VEVOR A4 Manual Paper Guillotine Cutter. This robust and efficient paper cutter is designed for precise and high-volume paper cutting tasks in various professional and commercial environments. This manual provides essential information for the safe assembly, operation, and maintenance of your new paper guillotine. Please read these instructions carefully before use and retain them for future reference.

Slika 1: VEVOR A4 Manual Paper Guillotine Cutter. This image shows the overall design of the paper cutter, featuring its black metal base, long cutting handle, and paper press mechanism.

Sigurnosne upute

Your safety is paramount. This paper guillotine features a very sharp blade. Always follow these safety guidelines:

• Držite ruke čistima: Never place hands or fingers near the blade area, especially when the cutting arm is raised or being lowered.
• Koristite sigurnosnu bravu: Always engage the safety lock when the machine is not in use or when adjusting paper. The safety lock prevents accidental blade descent.
• Stabilna površina: Operate the paper cutter on a stable, level surface to prevent tipping or movement during operation.
• Nadzor odraslih: This device is not a toy. Keep out of reach of children. Adult supervision is required if minors are present in the work area.
• Ispravno rukovanje: Use the extended handle with both hands if necessary to ensure a controlled and smooth cut.
• Održavanje oštrice: Do not attempt to sharpen the blade yourself unless you are a qualified technician. A dull blade can cause uneven cuts and require more force, increasing rizik.
• One Operator: Only one person should operate the paper cutter at a time.

Slika 2: Safety Lock and Ergonomic Handle. This image highlights the red safety lock button (ON/OFF) and the comfortable, extended handle designed for ease of use and safety.

Sadržaj paketa

Prilikom raspakiranja, molimo provjerite jesu li svi predmeti prisutni i neoštećeni:

• 1 x VEVOR A4 Manual Paper Guillotine Cutter
• 1 x Wrench (for assembly and adjustments)

Proizvod gotovview

Familiarize yourself with the main components of your paper guillotine:

• Cutting Handle: The long lever used to lower the blade for cutting.
• Paper Press Handle: A rotating handle that operates the paper clamp to secure paper firmly.
• Sigurnosna brava: A red button mechanism that locks the cutting handle in the up position.
• Baza: The sturdy metal platform with measurement grids.
• Measurement Grid: Printed scales in inches and millimeters for precise paper alignment.
• Sječivo: High-hardness steel blade for clean cuts.
• Neklizajuće noge: Rubber feet on the base for stability.

Slika 3: Key Components. This image provides a clear view of the paper cutter with its main parts labeled, including the paper cutter handle, paper press handle, safety lock, and base.

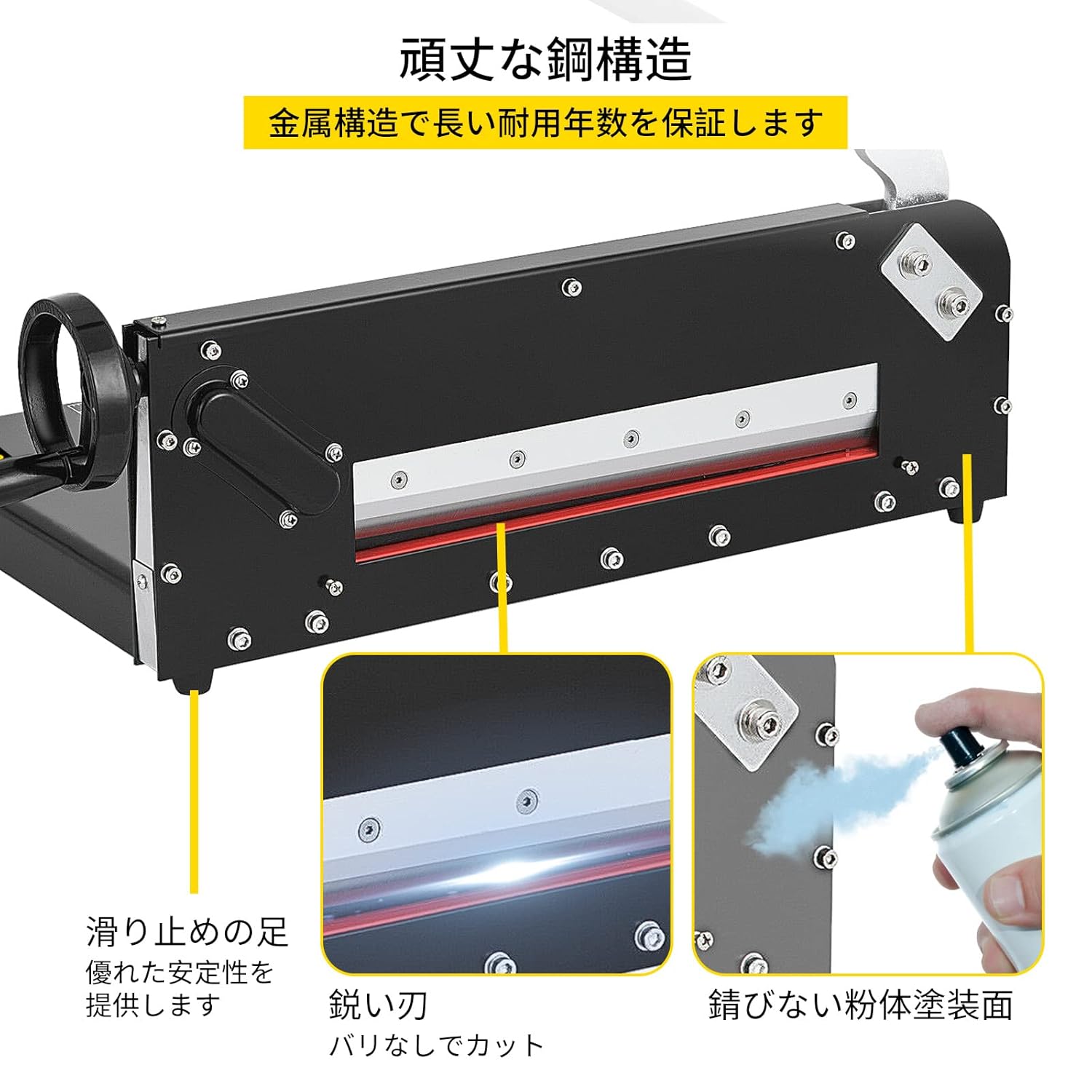

Slika 4: Durable Construction. This image shows a close-up of the sharp blade, non-slip feet, and the powder-coated metal structure, emphasizing the robust build quality.

Postavljanje

Before operating the paper cutter, ensure it is properly set up:

1. Raspakirati: Pažljivo izvadite sve komponente iz pakiranja.
2. Plasman: Place the paper cutter on a sturdy, flat, and level workbench or table. Ensure there is sufficient space around the unit for safe operation and paper handling.
3. Osigurajte ručku: Attach the cutting handle to the main body if it is not already installed. Use the provided wrench to tighten any bolts securely.
4. Provjerite stabilnost: Verify that the non-slip feet are making full contact with the surface to prevent movement during use.

Upute za rad

Follow these steps for safe and efficient paper cutting:

1. Pripremite papir: Stack the paper neatly and evenly. The maximum cutting capacity is 300 sheets of 20 lb paper (0.5-4 cm thickness).
2. Otključaj sigurnost: Disengage the safety lock by pressing the red button to the 'ON' position (if applicable, or release the latch).
3. Position Paper: Place the paper stack onto the cutting base, aligning it with the desired measurements on the grid. Use the adjustable backstop for consistent cuts.
4. Sigurni papir: Rotate the paper press handle clockwise to lower the paper clamp firmly onto the paper stack. This prevents the paper from shifting during the cut.
5. Izvrši rezanje: Hold the cutting handle firmly with both hands (if preferred for stability) and pull it down in a smooth, continuous motion until the cut is complete.
6. Release Paper: Lift the cutting handle back to its upright position. Rotate the paper press handle counter-clockwise to release the paper clamp.
7. Uklonite izrezani papir: Carefully remove the cut paper.
8. Uključite sigurnost: Always engage the safety lock after use or when leaving the machine unattended.

Slika 5: Simple 4-Step Operation. This image illustrates the four key steps for operating the paper cutter: 1. Confirm cutting position, 2. Secure paper by rotating the press, 3. Lower the handle to cut, 4. Cutting complete.

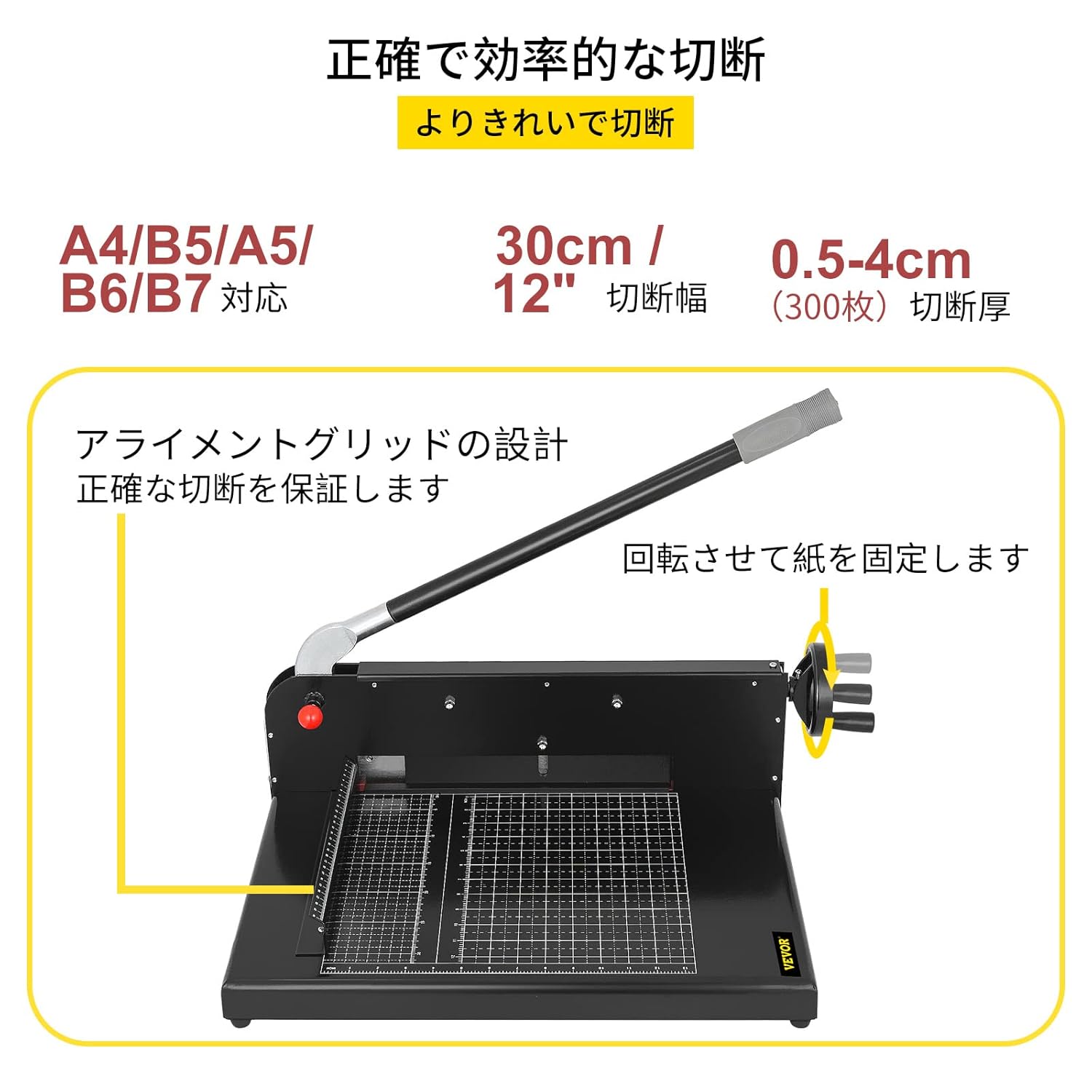

Slika 6: Precision Cutting Features. This image highlights the 30 cm (12 inch) cutting width, 0.5-4 cm (300 sheets) cutting thickness, and the alignment grid design for accurate cuts. It also shows the paper press mechanism.

Održavanje

Regular maintenance ensures the longevity and optimal performance of your paper cutter:

• Čišćenje: Regularly wipe down the cutting base and blade with a dry, soft cloth to remove paper dust and debris. Do not use abrasive cleaners or solvents.
• Inspekcija oštrice: Periodically inspect the blade for any signs of dullness or damage. A dull blade can lead to uneven cuts and require more force.
• Podmazivanje: Apply a small amount of light machine oil to moving parts, such as the pivot points of the cutting arm and the paper press mechanism, to ensure smooth operation.
• Skladištenje: When not in use, store the paper cutter in a dry, clean environment. Always engage the safety lock.

Rješavanje problema

If you encounter issues with your paper cutter, refer to the following common problems and solutions:

Tehnički podaci

Technical details for the VEVOR A4 Manual Paper Guillotine Cutter:

• Marka: VEVOR
• Broj modela: SG-299A4
• Materijali: Metal + Steel
• Umješnost: Premazivanje prahom
• Širina rezanja: 30 cm (12 inča)
• Debljina rezanja: 0.5 – 4 cm (up to 300 sheets of 20 lb paper)
• Blade Hardness: 45 HRC
• Dimenzije proizvoda (D x Š x V): 63.5 x 36.3 x 40.6 cm (25 x 14.3 x 16 inča)
• Težina proizvoda: 14.5 kg (32 lbs)
• Uključene komponente: Paper Cutter, Wrench
• Potrebne baterije: Ne

Slika 7: Dimensions and Applications. This image displays the key dimensions of the paper cutter and illustrates its suitability for various environments such as offices, schools, stationery stores, and print shops.

Slika 8: Wide Range of Applications. This image shows the paper cutter being used or suitable for use in an office, school, stationery store, and print shop, highlighting its versatility.

Jamstvo i podrška

Information regarding product warranty and customer support is not provided within this manual. Please refer to the product packaging, your purchase receipt, or the VEVOR official webza detalje o jamstvenom pokrivanju i kako kontaktirati korisničku službu za pomoć.
