IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
838-077 High Gloss Frame Sideboard Cabinet
Dear customer,
Thank you for purchasing this product. So that your appliance serves you well, please read all the instructions in this user’s manual. If you have any questions, please contact our customer care center.
Our contact details are below:
| Country |  Phone |
 Email |
| UK | 0044-800-240-4004 | enquiries@mhstar.co.uk |
| DE | 0049-(0)40-88307530 | service@aosom.de |
| FR | 0033-1-84166106 | aosom@mhfrance.fr |
| ES | 0034-931294512 | atencioncliente@aosom.es |
| PT | 0034-931294512 | info@aosom.pt |
| IT | 0039-02494 7144 7 | clienti@aosom.it |
| us | 001-877-644-9366 | customerservice@aosom.com |
| CA | 416- 792-6088 | customerservice@aosom.ca |
USING CAM LOCK AND QUICKFIT
QUICKFIT: Tighten quick fit until shoulder is flush with panel. Do not overtighten or under tighten.

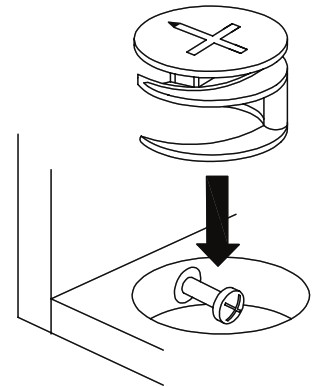

CAM LOCK: When fitting cam lock, ensure starting position is correct before you insert connecting quick fit
Quick fit head should be in the centre of the cam lock when the two panels are joined. Cam lock should be inserted before quick fit

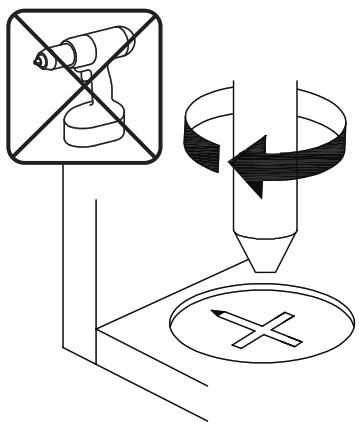

Turn cam lock clockwise to tighten.
HINGE ADJUSTMENT GUIDE
It may be necessary to adjust the hinges so that the doors align. Use the instructions below as a guide.
To adjust the door vertically loosen the screw asshown and move up and down as needed.

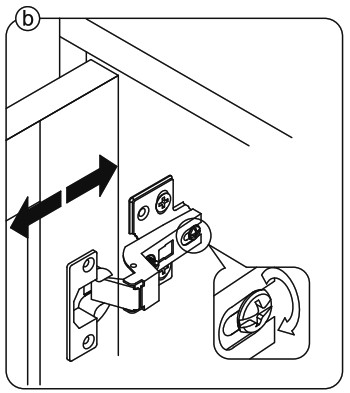

To adjust the gap from the door to the main frame turn the screw clockwise or anti-clockwise as needed.

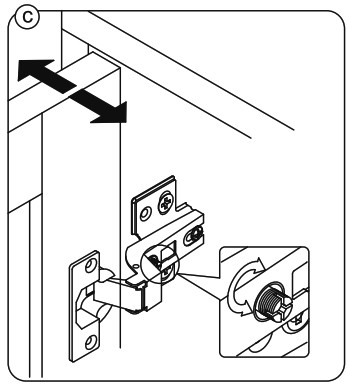

To adjust the door laterally adjust the screw as shown by turning clockwise or anti-clockwise.
Please fix other screws
EXPLOSION FIGURE
PACKING DETALS:TOTAL 2 BOXES
HARDWARE
