1 परिचय
This manual provides essential information for the safe assembly, operation, and maintenance of your Huffy 17348WP Disney Lightning McQueen Kids Electric Ride On Car. Please read all instructions carefully before use and retain this manual for future reference.
The Huffy 17348WP is an official battery-powered electric vehicle designed for children to experience the thrill of driving their own Lightning McQueen car. It features a bright red finish, signature racing graphics, lightning bolt accents, functional headlights, and realistic car sounds. The design is inspired by the legendary Disney Pixar Lightning McQueen race car from '95. It includes easy-to-open doors and an accelerator pedal for a realistic driving experience.
चित्र 1.1: सामने की ओर view of the Huffy Disney Lightning McQueen Electric Ride On Car.
Image 1.2: A child enjoying the Huffy Disney Lightning McQueen Electric Ride On Car outdoors.
2. सुरक्षा चेतावनी
चेतावनी: Not suitable for children under 12 months. Recommended age for use is 3 to 7 years.
- Always supervise children during operation of the vehicle.
- Ensure the child wears appropriate safety gear, such as a helmet, if used in areas where falls could occur.
- Do not operate the vehicle near stairs, steep inclines, swimming pools, or public roads.
- Only use on flat, dry surfaces. Avoid sand, loose dirt, or gravel.
- The vehicle is designed for one rider only.
- Ensure the seat belt is securely fastened before each use.
- हाथों, बालों और कपड़ों को गतिशील भागों से दूर रखें।
- Do not modify the electrical system. Any alterations could cause a fire, explosion, or electric shock.
- Only use the provided battery and charger.
3. पैकेज सामग्री
Your Huffy 17348WP Disney Lightning McQueen Kids Electric Ride On Car package should include the following items:
- Huffy Disney Lightning McQueen Electric Ride On Car (main body)
- 6 वी रिचार्जेबल बैटरी
- बैटरी चार्जर
- निर्देश मैनुअल
- पहिए (4)
- Doors (2)
4. विधानसभा
The Huffy 17348WP electric ride-on car is designed for quick and easy assembly, often requiring no tools. The main body of the car comes largely pre-assembled. You will primarily need to attach the wheels and the two functioning doors.
- पैकेजिंग से सभी घटकों को सावधानीपूर्वक निकालें।
- Attach the four wheels to the designated axles. Ensure they are securely fastened according to the specific instructions in the included manual.
- Install the two doors onto the car body. These are designed to be easy to open and close.
- Connect the battery terminals as instructed in the detailed manual.
- Before first use, fully charge the battery (refer to Section 5: Charging Instructions).

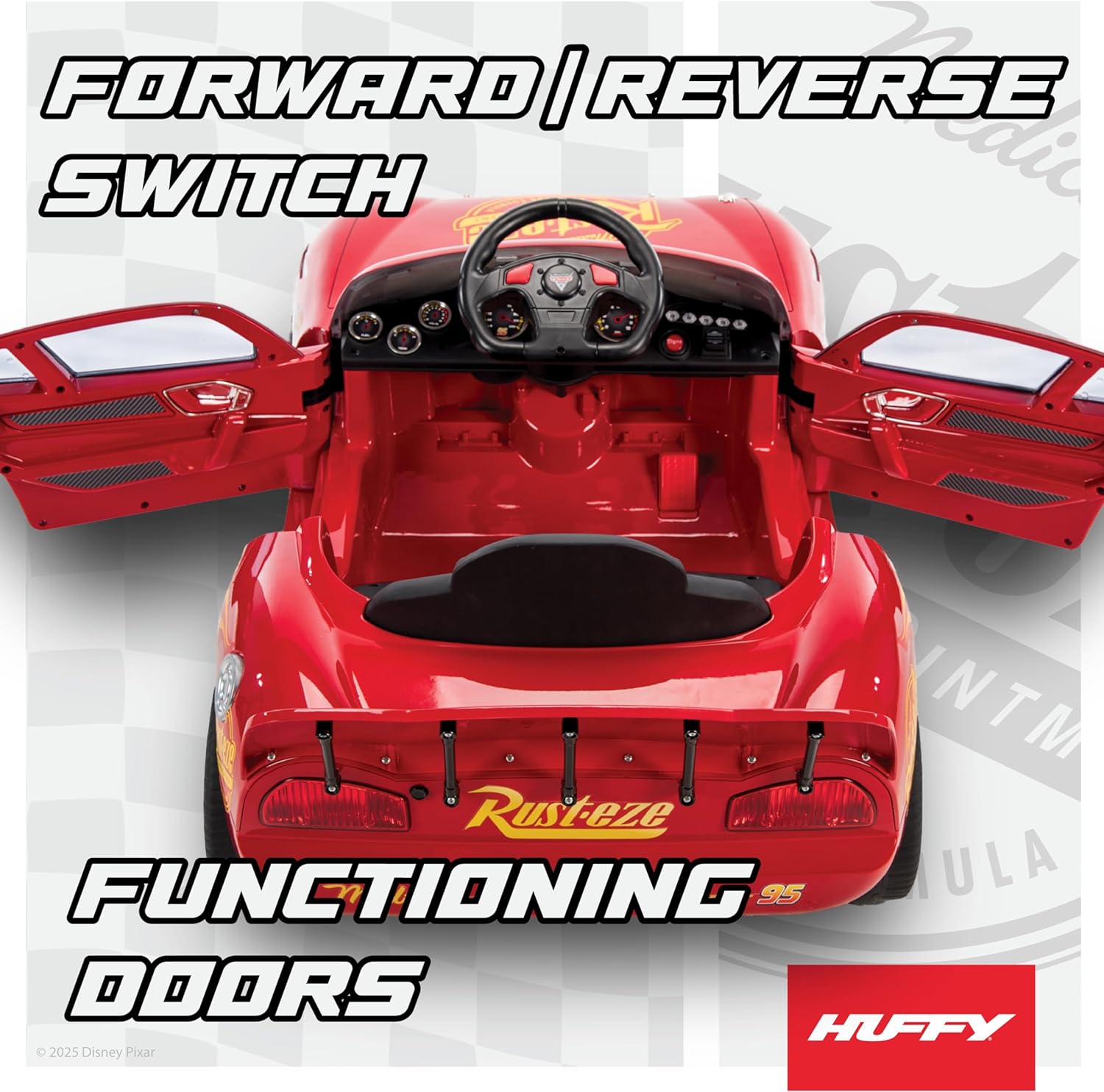

चित्र 4.1: View of the car's interior showing the functioning doors and the forward/reverse switch.
5. चार्जिंग निर्देश
The Huffy 17348WP is powered by a 6V rechargeable battery. Proper charging ensures optimal performance and battery longevity.
- वाहन पर चार्जिंग पोर्ट का पता लगाएँ।
- Ensure the vehicle is turned off before charging.
- चार्जर को चार्जिंग पोर्ट से कनेक्ट करें।
- चार्जर को मानक दीवार आउटलेट में प्लग करें।
- Allow the battery to charge for the recommended duration (typically 8-12 hours for the first charge, and 6-8 hours for subsequent charges, but refer to the specific manual for exact times). Do not overcharge.
- Unplug the charger from the wall and then from the vehicle once charging is complete.
Important: Only use the charger provided with your Huffy electric ride-on car. Using an incorrect charger can damage the battery or cause a fire.
6. संचालन निर्देश
Operating your Lightning McQueen ride-on car is straightforward, designed for an engaging and safe experience.
- सुनिश्चित करें कि बैटरी पूरी तरह से चार्ज है।
- Open the car door and help the child sit comfortably in the seat.
- Fasten the seat belt securely.
- Locate the power button (often labeled 'Engine' or 'Power') and turn the vehicle on. You may hear realistic engine sounds.
- Use the forward/reverse switch to select the desired direction of travel.
- To move, press the foot pedal accelerator. The car will begin to move.
- To stop, simply remove your foot from the accelerator pedal. The car will come to a stop.
- The car features functional headlights and authentic McQueen sounds for an enhanced play experience.
Image 6.1: Close-up of the foot pedal, indicating 'Easy Foot Pedal Acceleration' and 'Remove Foot to Stop'.
चित्र 6.2: सामने view highlighting the authentic McQueen sounds and light-up headlights.
7. रखरखाव
Regular maintenance will help ensure the longevity and safe operation of your electric ride-on car.
- सफाई: Wipe the car with a soft, damp cloth. Do not use abrasive cleaners or solvents. Avoid spraying water directly onto electrical components.
- बैटरी की देखभाल: Always fully charge the battery after each use. If storing the vehicle for an extended period, charge the battery once a month to prevent deep discharge and damage.
- भंडारण: वाहन को सूखी, ठंडी जगह पर, सीधी धूप और नमी से दूर रखें।
- निरीक्षण: Periodically check all nuts, bolts, and fasteners to ensure they are tight. Inspect the wheels and tires for wear or damage.
8। समस्या निवारण
If you encounter issues with your Huffy electric ride-on car, refer to the following common troubleshooting steps:
- Car does not move:
- जांचें कि बैटरी पूरी तरह चार्ज है या नहीं।
- सुनिश्चित करें कि सभी विद्युत कनेक्शन सुरक्षित हैं।
- Verify the forward/reverse switch is in the correct position.
- Check if the power button is pressed.
- Car runs slowly:
- बैटरी कम हो सकती है; उसे रिचार्ज करें।
- The vehicle might be overloaded (exceeding weight limit).
- Operating on an unsuitable surface (e.g., grass, uphill).
- No sounds or lights:
- बैटरी चार्ज की जाँच करें.
- सुनिश्चित करें कि सभी कनेक्शन सुरक्षित हैं।
If problems persist after attempting these steps, please contact Huffy customer support.
9. विनिर्देश
| विशेषता | विवरण |
|---|---|
| मॉडल संख्या | 17348WP |
| ब्रांड | Huffy |
| उत्पाद आयाम (लम्बाई x चौड़ाई x ऊँचाई) | 110 x 62 x 33 सेमी |
| आइटम का वजन | 15.4 किलोग्राम |
| निर्माता अनुशंसित आयु | 18 months - 3 years (Product description states 3-7 years) |
| बैटरी प्रकार | 6V बैटरी |
| बैटरी शामिल हैं | हाँ |
| मुख्य सामग्री | एक्रिलोनिट्राइल ब्यूटडीन स्टायरीन |
| रंग | लाल |
| अधिकतम गति | Up to 4 kph |
| सम्मेलन की जरूरत | No (Tool-free assembly) |
Image 9.1: Dimensions of the Huffy Disney Lightning McQueen Electric Ride On Car, suitable for racers 36-54 inches tall.
10. वारंटी और समर्थन
Information regarding specific warranty terms and customer support contact details for the Huffy 17348WP Disney Lightning McQueen Kids Electric Ride On Car was not available in the provided product data. Please refer to the documentation included in your product packaging or visit the official Huffy webनवीनतम वारंटी जानकारी और समर्थन विकल्पों के लिए साइट देखें।
