Desktop Audio Decoder
User Manual
Model: DS600
Laud 09600la high-perfoeao desktop DAC% 19.8 Cocola, Optical, Bluto0th input a 3.Sm«RCA output. US8of DO0O $0000 0/ ti PCM 320708kl a 00124N) 09 cones with complete digit vole control a0Le di$ply,$00%$%v44fnpl le bl that vu. 09.00% bey0uh0% 4.lei 0pi0%4
Specifications
| USB input | 16bit/44.1kHz-32bit/768kHz DSD64-DSD512(Native) |
| Optical/ Coaxial input | 16bit/44.1kHz-24bit/192kHz |
| Bluetooth input | AAC/SBC/APTX/APTX LLJAPTX HD/LDAC |
| Power supply | DC5V/1A |
| Size | 123.6x110x27.3mm |
| Weight | 510g |
Product parameters
| Output Voltage | 2Vrms@OdBFS |
| THD+N | <0.0002%@1 kHz A-weighing |
| Noise | CuVrms@A-weighing |
| Crosstalk | -112dB@1kHz |
| SNR | 122dB |
| Output Impedance | 100 |

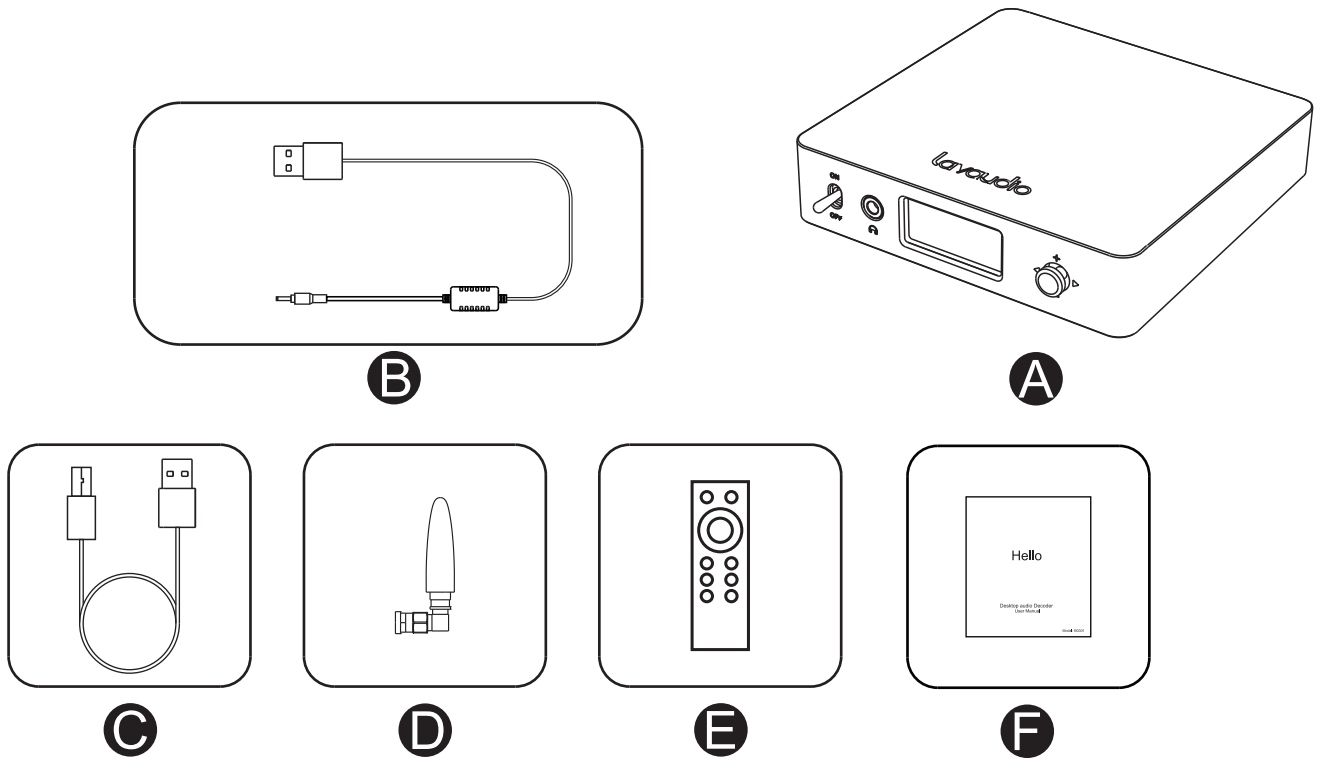

Package Contents
A. DS6OD audio DAC
B.DC power cable
C. U$8 cable
D. Bluetooth antenna
E. Remote control
F. User 0au.al

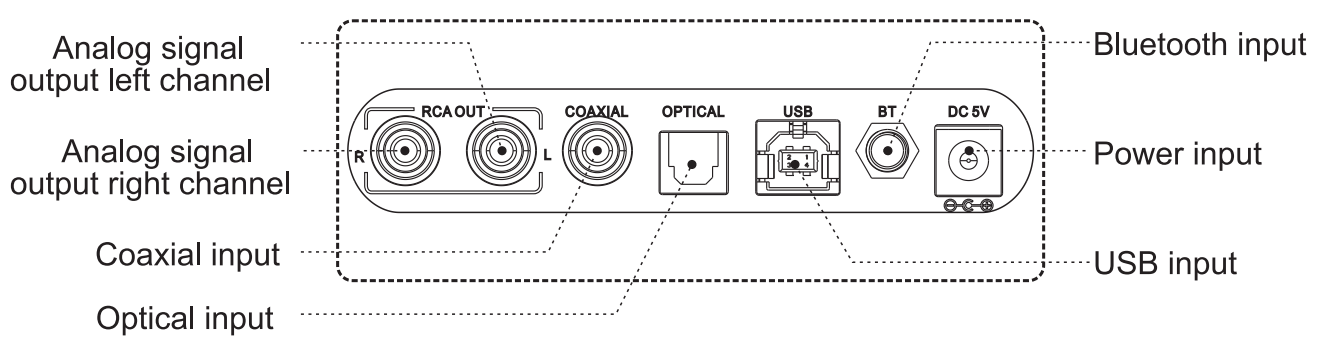

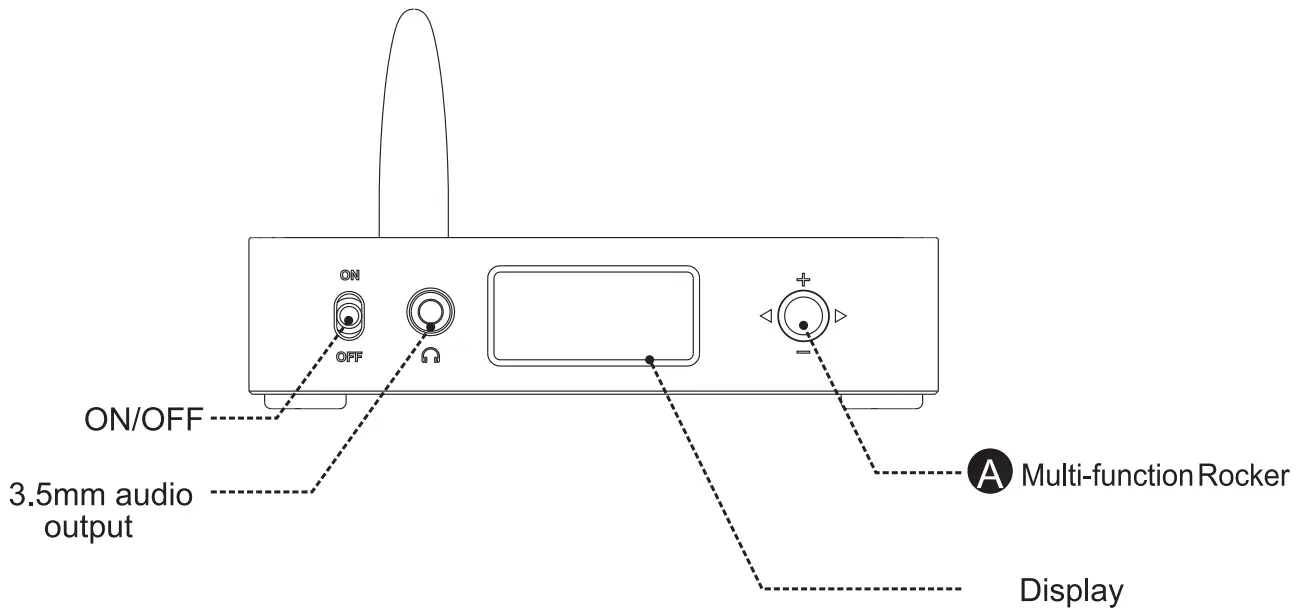

Product overview and control functions
A. Multi-function Rocker:ln the main interface, Push Left/Right to switch input mode, Push Up/Down to adjust volume, Short press the rocker to mute and Long press to enter the setting interface. In the setting interface, Up/Down to choose a setting, and Left/Right to set parameters.

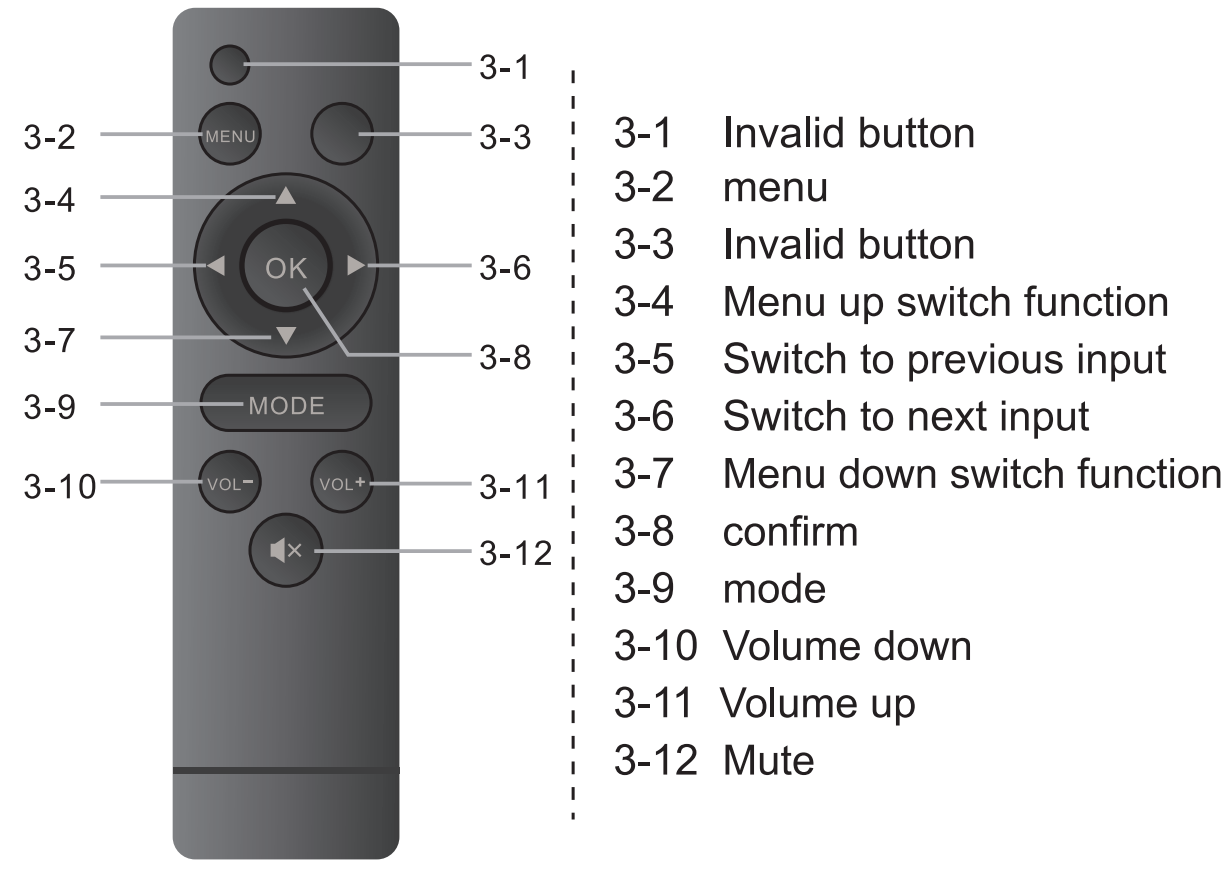

Remote control
Instructions

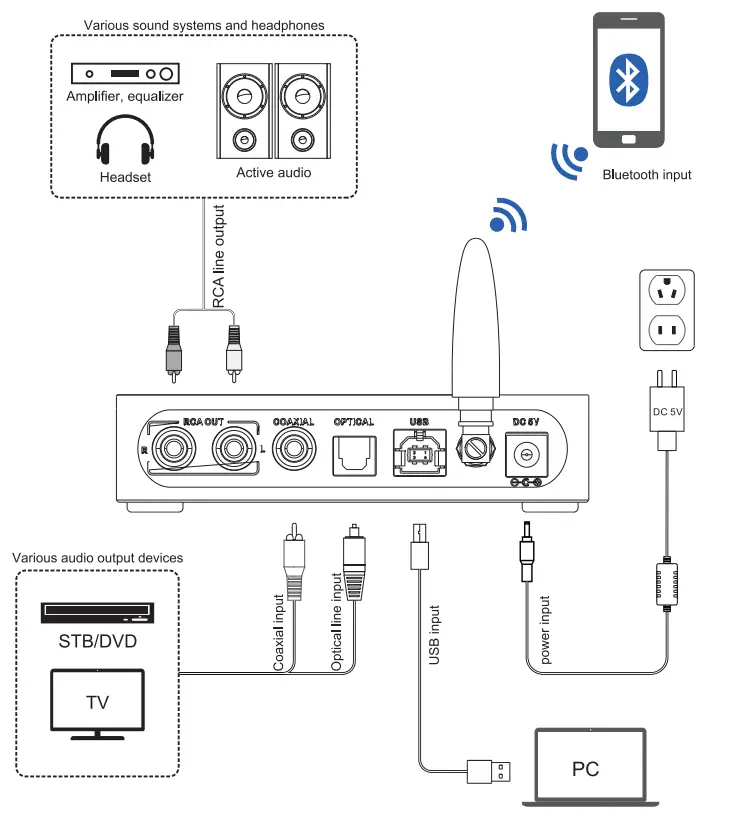

(1) Instructions for use
1. Plug in the DC power cable, then chooses to connect DS600 with the PC through the USB cable or connect with the CD player through the Coaxial cable.
2. The RCA OUT can connect with a headphone amplifier, a power amplifier, and another device.
3. Adjust a proper volume, then you can enjoy HiFi music.
Note: For Windows users, the driver need to be installed when first using. Please refer to “DS600 Driver & Installation Guide” and “DS600- Player Foobar2000 & JR”.
Main interface introduction
- Input source
- Volume
- Audio format
System setting interface
- Filter mode when playing PCM format, MODEL -MODEL
MODE1 apodizing fast roll-off filter
MODE2 .linear phase fast roll-off filter
MODE3linear phase slow roll-off filter
MODE4; minimum phase fast roll-off filter
MODES minimum phase slow roll-off filter
MODE6corrected mining phase fast roll-off filter
MODE7.brick wall filter - Bluetooth system settings
- Screen saver settings
Optional screen always on and automatic screen of - Factory data reset The default values of the system parameters of 1.3are
MODE1, Bluetooth on, Automatic screen off
Note: When entering the system parameter setting interface,it will automatically exit it if there is no operation after 10 seconds
Troubleshooting
| Troubleshooting | Cause Analysis | Solution |
| Noise when COAX / OP input | Signal format error or out of range | Check the input signal format |
| USB does not recognize | Incorrect USB connection | Check or replace the USB cable |
| Computer USB port damaged | Change another interface | |
| OS problem | Reinstall the OS | |
| Driver problem | Reinstall driver | |
| No sound when USB input | The computer volume is too low | Adjust volume |
| Intermittent when USB input | PC is busy and the machine is hung | Waiting` for computer recovery |
| USB input, pop sound | Software problem | Update motherboard drivers and system patches |
| If you still have a problem or question, please contact us (support@ankbit.com) | ||
Daily Use
- Never pull out the USB cable while connected to a computer and using the audio output.
- The output signal of this machine must not be grounded or shorted.
- Do not leave the machine in a high temperature and humid environment, let it in rain or drop it.
- Never open the case by yourself.The machine should be repaired by 1Mii Service.
- This machine is intended for indoor use only.
The product driver and electronic file manual can be downloaded from www.lmii.corn
lavaudio
Any questions? Contact:
support@1mii.com (Response Time:4-24h,excl. holidays)
MANUFACTURER
ShenZhen 1Mii Technologies Limited.
Address: 4th FI, Bldg B, Runfeng Industrial Park,
No. 4197 Baoan Blvd., Gushu Community, Xixiang St.,
Baoan Dist., Shenzhen, China. FCC ID: 2AUFR-DS600
www.1Mil.COM
MADE IN CHINA
