R9II Remote Control
Instruction Manual

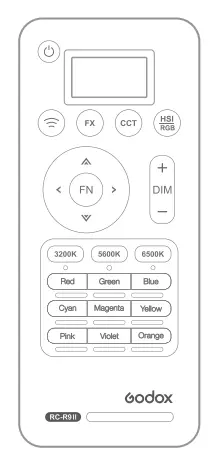

Names of Parts
| 01. OLED Panel 02. Power Switch 03. Wireless Setting Button 04. FX Mode Button 05. CCT Bicolor Mode Button 06. HSI Colorful Light Mode Button 07. FN Button 08. DIM Brightness Adjustment Button 09. 3200K Color Temperature Button 10. 5600K Color Temperature Button 11.6500K Color Temperature Button 12. Red Button 13. Green Button |
14. Blue Button 15. Cyan Button 16. Magenta Button 17. Yellow Button 18. Pink Button 19. Violet Button 20. Orange Button 21. Battery Compartment 22. Battery Compartment Cover 23. Up Button 24. Left Button 25. Right Button 26. Down Button |
Remote Control Setting
Short press the power switch button to power on or off the remote control.
Remote Control Channel/Group/ID Adjustment
Press the wireless setting button to enter the channel/group/ID setting interface.
CH Setting: Press the up and down button to choose the CH channel and press the left or right button to choose the channel value from 1 to 32.
GR Setting: Press up and down button to choose GR group and press left or right button to choose group value from A to F and 0 to 9.
ID Setting: Press up and down button to choose ID and press the left or right button to choose the ID value from 1 to 99.
FX Modes Setting
Press FX to enter FX modes and press left or right button to choose their categories of them. After choosing the kinds, there are I, II and Ill modes can be selected. There are 39 kinds of situational FX modes which are divided into 14 categories for your choice.
| No. | Display | Situation | Display I | Display II | Display Ill |
| 1 |  |
Colorful lights recycle | Slow speed | Medium speed | Quick speed |
| 2 |  |
Flash | Flash | Press conference | Paparazzi |
| 3 |  |
Party | Birthday party | KTV | Disco |
| 4 |  |
Lightning | Discontinuous | Frequent | Sustainable |
| 5 |  |
Broken bulb | Discontinuous | Frequent | Sustainable |
| 6 |  |
TV | Slow speed | Medium speed | Quick speed |
| 7 |  |
Candle | Discontinuous | Frequent | Sustainable |
| 8 |  |
Fire | Firewood | Campfire | Fi re hazard |
| 9 |  |
Firework | Brief | Continuous | Show |
| 10 |  |
Police car | Strong flash | Frequent flash | Quick flash |
| 11 |  |
Firetruck | Strong flash | Frequent flash | Quick flash |
| 12 | |
Ambulance | Strong flash | Frequent flash | Quick flash |
| 13 |  |
Music | Music I | Music II | |
| 14 | SOS | SOS |
Bicolor Modes
Press the CCT button to enter bicolor modes and press up, down, left and right buttons to choose the color temperature from 2500K to 8500K. Pressing the up and down button will change the color temperature by ±1000 per time while pressing the left and right buttons by ±100 per time. You can also choose 3200K, 5600K, and 6500K directly by pressing the corresponding buttons.
Colorful Light Mode Setting
Press the HSI button to enter colorful light modes. Adjust hue H: press the up or down button to choose hue H. Then, press the left or right button to adjust hue value from 0 to 360°.
Adjust saturation S: press the up or down button to choose saturation S. Then, press the left or right button to adjust the saturation value from 0 to 100.
You can also choose Red, Green, Blue, Cyan, Magenta, Yellow, Pink, Violet, and Orange colors directly by pressing the corresponding buttons.
Light Brightness Adjustment:
- When the current single light’s brightness is displayed, press the DIM “+ “or ” – “button to adjust the brightness from 0 to 100%.
- Turn on/off the single group’s brightness: press the wireless setting button to enter the wireless setting interface. Press the up or down button to choose the group GR and press the FN button to turn on or off the single group’s brightness. When the brightness is off, OFF will be displayed. When the brightness is on, figure 0 to 100 will be displayed.
Note: Wireless signals can only be received when the receiving end is powered on.
Technique Data
| Remote Control | RC-R911 |
| Power Supply | 3.0V(AAA*2)(battery not included) |
| 2.4G Frequency Range | 2413.0MHz-2464.5MHz |
| Max. Transmitting Power | 5dbm |
| Distance(empty) | 100m |
| Channel | 32(1 to 32) |
| Grouping | 16 Group(A BC D E F, 0 to 9) |
| ID | 99 (1-99) |
| Working Environment Temperature | -10-40°C |
| Dimension | 55x133x10mm |
| Net Weight | 63g |
Warning
Operating frequency:2413.0MHz-2464.
5MHz Maximum EIRP Power: 5dBm
Declaration of Conformity
GODOX Photo Equipment Co., Ltd. hereby declares that this equipment are in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. In accordance with Article 10(2) and Article 10(10), this product is allowed to be used in all EU member states.For more information of DoC, Please click this web link:https://www.godox.com/DOC/-Godox_RC-R911_DOC.pdf. The device complies with RF specifications when the device used at Omm from your body.
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet the general RF exposure requirements. The device can be used in portable exposure conditions without restriction.
Warranty
Dear customers, as this warranty card is an important certificate to apply for our maintenance service, please fill in the following form in coordination with the seller and safe-keep it. Thank you!
| Product Information | Model | Product Code Number |
| Customer Information | Name | Contact Number |
| Address | ||
| Seller Information | Name | |
| Contact Number | ||
| Address | ||
| Date of Sale | ||
| Note: | ||
Note: This form shall be sealed by the seller.
(Applicable Products)
The document applies to the products listed on the Product Maintenance Information (see below for further information). Other products or accessories (e.g. promotional items, giveaways and additional accessories attached, etc.) are not included in this warranty scope.
(Warranty Period)
The warranty period of products and accessories is implemented according to the relevant Product MaintenanceInformation. The warranty period is calculated from the day(purchase date) when the product is bought for the first time, And the purchase date is considered as the date registered on the warranty card when buying the product.
(How to Get the Maintenance Service)
If maintenance service is needed, you can directly contact the product distributor or authorized service institutions. You can also contact the Godox after-sale service call and we will offer you service. When applying for maintenance service, you should provide a valid warranty card. If you cannot provide valid warranty card, we may offer you maintenance service once confirmed that the product or accessory is involved in the maintenance scope, but that shall not be considered as our obligation.
(Inapplicable Cases)
The guarantee and service offered by this document are not applicable in the following cases: O. The product or accessory has expired its warranty period; C). Breakage or damage caused by inappropriate usage, maintenance or preservation, such as improper packing, improper usage, improper plugging in/out external equipment, falling off or squeezing by an external force, contacting or exposure to the improper temperature, solvent, acid, base, flooding and damp environments, etc; ®. Breakage or damage caused by the non-authorized institution or staff in the process of installation, maintenance, alteration, addition and detachment; ®. The original identifying information of the product or accessory is modified, alternated, or removed; ®. No valid warranty card;. Breakage or damage caused by using illegally authorized, nonstandard or non-public released software; C). Breakage or damage caused by force majeure or accident; ®. Breakage or damage that could not be attributed to the product itself. Once met these situations above, you should seek solutions from the related responsible parties and Godox assumes no responsibility. The damage caused by parts, accessories, and software that is beyond the warranty period or scope is not included in our maintenance scope. The normal discoloration, abrasion, and consumption are not breakages within the maintenance scope.
Maintenance and Service Support Information
The warranty period and service types of products are implemented according to the following Product Maintenance Information:
| Product Type | Name | Maintenance Period(month) | Warranty Service Type |
| Parts | Circuit Board | 12 | The customer sends the product to the designated site |
| Battery | 3 | The customer sends the product to the designated site | |
| Electrical parts e.g.battery charger, etc. | 12 | The customer sends the product to the designated site | |
| Other Items | Flash tube, modeling lamp, lamp body, lamp cover, locking device, package, power cord, sync cable, etc. | No | Without warranty |
Godox After-sale Service Call 0755-29609320-8062
GODOX Photo Equipment Co., Ltd.
Add: Building 2~ Yaochuan Industrial Zone,
Tangwei Community~ Fuhai Street~ Baoan District, Shenzhen~
China Tel: +86-755-29609320(8062) Fax: +86-755-25723423
Email: godox@godox.com
godox.corn
Made in China I 705-RCR9OO-02
