User’s manual
Customer Service
US: 1-800-645-2986

Powered Mobile Computer Cabinet
Model(s): 694562PBK, 694562PBL, 694562PGY

694562PBK Mobile Powered Computer Workstation

REF	QTY	DESCRIPTION	REF	QTY	DESCRIPTION
1	1	BACK PANEL	H1	8	M6X20mm ROUND PHILLIP HEAD SCREW
2	1	LEFT SIDE PANEL	H2	8	6.5mm PLATE WASHER
3	1	RIGHT SIDE PANEL	H3	8	6.5mm SPLIT WASHER
4	1	TOP	H4	2	HINGE PIN
5	1	BASE	HS	4	PLASTIC HINGE CAP
6	1	FRONT FRAME	H6	4	SHELF CLIP
7	1	DOOR	H7	2	SHEET METAL SCREW
8	1	MIDDLE SHELF	H8	2	KEY
9	1	ADJUSTABLE SHELF	H9	2	OUTLET HOLE COVER RING
1 0	1	CONNECTING PLATE	H10	16	HEXAGON SCREW M10X25 mm
11	1	KEYBOARD TRAY	H11	16	10.5mm PLATE WASHER
12	1	40 AH/500 W PORTABLE POWER SYSTEM	H 1 2	1 6	10.5mm SPLIT WASHER
			H13	4	WHEEL
			H 1 4	1 SET	GUIDE RAIL

40 AH/ 500W Pure Sine Wave
Portable Power Supply
Model: 436980

Converts the power of a DC 12V Lead-Acid Battery to AC 100-120V/60Hz
AC Voltage through an inverter to supply power to electric hardware.
This product has: under-voltage protection, overload protection, power display and low­ voltage prompt

Product Composition

This product is composed of:
Main housing, Lead-acid battery, Charger,
Inverter, Relay, American Standard power strip, Power display, 12V DC power supply, Heat dissipation fan

Product Parameters

Overall Size: 14″ x 12″ x 11″
Weight: Net: 46.5 lbs, Gross: 55 Ibs
Charging Input Voltage: 100-240VAC 50/60 Hz, 9.9A (max)
Load Output Parameters AC: 100-120V, 60Hz, 1000W
USB Output Parameters DC: 5V 2.1A
Charging time: 5hrs Full Charge
Operating Ambient Temperature: 32-104 ‘F
Power Display: 7 Bar Voltage and Percentage Display

This product charges the internal lead-acid battery through the charger. After the battery is fully charged, the battery voltage (DC 12V) is converted to 100-120V AC through the inverter for output. When the battery is fully charged, the charger will automatically protect the battery by disconnecting the charger plug, and the relay coil to the inverter is closed. At this time, the inverter can be used with a load. During the use of this product, the power display shows the corresponding voltage prompt according to the power consumption proportion of the battery voltage. When the voltage of the lead-acid battery is lower than 10%, a buzzer will start an alarm. When charging, the charger must be connected to an external power supply to charge the lead-acid battery. During charging, the relay disconnects the lead-acid battery from the inverter. The inverter cannot supply a load while charging. This product has over-load and over-current protection, as well as under-voltage protection and charging surge protection.

Warnings:

• The voltage of each electrical appliance is different. Before using any device with this power supply, check whether the rated voltage range of the product is compatible with the output of the power supply. Mis-matched voltage can cause damage and injury to the device, the power
  supply, and the user.
• If the battery is discharged to the cut-off voltage, further discharge is called over-discharge.
  Over-discharging can easily cause severe loss of battery power and shortens battery life. Avoid over-discharging the batter when in use by charging it once the cut-off voltage is reached.
• Keep the battery away from fire, high temperatures, humid or rainy environments during use and storage.
• Do not disassemble the power supply. This item has a built-in high voltage power supply.
• Do not throw this power supply in general trash at the end of its life. Please recycle this item according to local laws and regulations.
• The procruct’s casing should be effectively and firmly grounded before use.
• Disconnect charging power cord before removing the case lid to remove or replace the battery.
• Disconnect the charging power cord before plugging any devices into the power supply.

Portable Power Supply

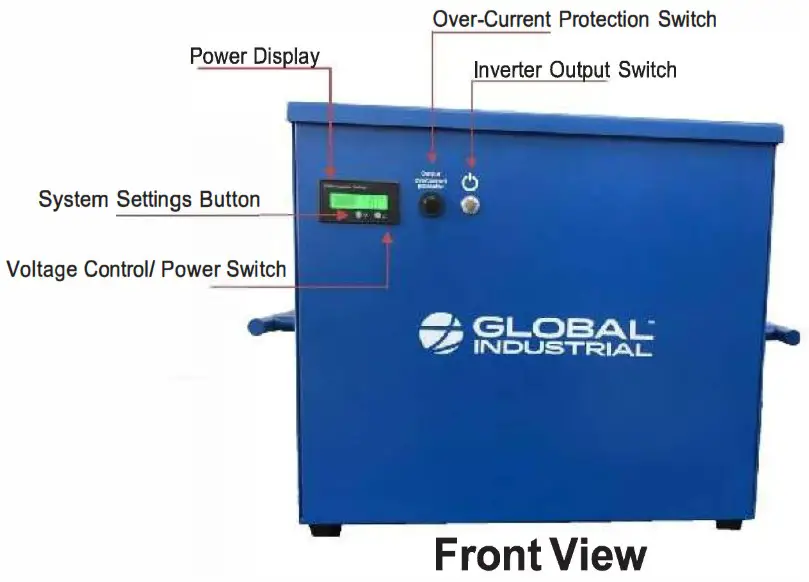

Product Features Descriptions

First Time Set-up Instructions

Step 1: Open Casing by loosening Hex Screws using included Allen Key		Step 2: Remove power cabinet cover.
Step 3: Identify the battery wire terminals. Note that RED terminals correspond to the Positive(+) battery terminal.		Step 4: Insert bolt through Red(+) wire terminal. Place the flat washer, lock washer, then bolt onto the battery terminal nut and tighten securely with wrenches.
Step 5: Insert bolt through Black (-)terminal. Be cautious of sparks; it is normal to spark for a first time, connection. Place the flat washer, lock washer, then bolt into the nut and tighten securely with wrenches.		Step 6: Place battery cover on and securely tighten Hex Screws.
Charging Instructions Insert one end of the input line into the charging socket of the housing, and the other end into an external energy source, including wall outlets. Check that the input voltage is within 100-240VAC 50/60Hz .		Product Operation Steps 1. Connect the device to the Power Strip on the housing. 2. Turn on the power switch located on the front of the housing and the red button on the power strip IN THAT ORDER.

Maintenance Information

• Each time the unit is fully charged, unplug and let the unit cool for approximately 10 min.
• Charge fully before use, especially for first time use.
• Periodically clean dust and dirt from heat dissipation louvers.
• Keep the housing dry and clean to protect battery from discharging on its own.
• Do not store the battery uncharged. If it is to be stored for a long time, it should be fully charged, placed in a cool and dry place, and recharged regularly.
• At low temperatures, there can be issues of battery powerloss caused by poor charging acceptance and insufficient charging. Thermal insulation and anti-freezing measures must be taken at low temperature, especially while charging. The device should be kept in a warm environment to prevent irreversible sulfation.
• Do NOT expose the product to moisture or water- Do not wash product.
