ONBRILL 24 Inch Floating Bathroom Vanity with Sink Combo User Manual

1. Introdución

Thank you for choosing the ONBRILL 24 Inch Floating Bathroom Vanity with Sink Combo. This manual provides essential information for the safe assembly, installation, operation, and maintenance of your new vanity. Please read these instructions thoroughly before beginning assembly and retain them for future reference.

2. Información de seguridade

• Always ensure the vanity is securely mounted to a wall stud or appropriate wall anchors to prevent tipping.
• Assembly requires at least two adults.
• Wear appropriate safety gear, such as gloves and eye protection, during assembly and installation.
• Non aperte demasiado os parafusos, xa que isto podería danar o material.
• Keep small parts and hardware away from children and pets to prevent choking hazards.
• Ensure all plumbing connections are properly sealed to prevent leaks.
• Avoid using harsh chemicals or abrasive cleaners on the vanity or sink, as this may damage the finish.

3. Contido do paquete

Verifique que todos os compoñentes e ferraxes estean presentes antes de comezar a montaxe. Se falta algunha peza ou está danada, póñase en contacto co servizo de atención ao cliente.

Figura 3.1: Explotado view of vanity components.

The package includes the vanity cabinet, ceramic integrated sink, and all necessary assembly hardware. Faucet and drain kit are not included.

4. Configuración e montaxe

Assembly is estimated to take approximately 1 hour with two adults. A screwdriver and drill are recommended tools.

4.1. Pasos de montaxeview

For a visual guide, please refer to the official installation video below. Detailed step-by-step instructions are also provided in the images.

4.2. Detailed Assembly Instructions

1. Prepare the Side Panels: Attach the drawer slides to the side panels (parts 1 and 2) using screws (A). (Refer to image for step 1)

Image 4.2.1: Attaching drawer slides to side panels.
2. Assemble the Back Panel: Connect the back panel (part 4) to the bottom panel (part 14) using cam locks (B) and dowels (C). (Refer to image for step 2)


Image 4.2.2: Assembling the back panel.

3. Attach Side Panels to Base: Secure the side panels (parts 3 and 5) to the bottom panel (part 1) using cam locks (B) and dowels (C). (Refer to image for step 3)


Image 4.2.3: Attaching side panels.

4. Complete the Cabinet Frame: Attach the top panel (part 2) to the assembled structure using cam locks (B) and dowels (C). (Refer to image for step 4)

Image 4.2.4: Completing the cabinet frame.
5. Montar caixas de caixóns: Construct the drawer boxes (parts 7, 8, 9, 10, 11, 12) by screwing the sides together with screws (D). (Refer to image for step 5)


Image 4.2.5: Assembling drawer boxes.

6. Attach Drawer Fronts: Secure the fluted drawer fronts (part 6) to the assembled drawer boxes using cam locks (B). (Refer to image for step 6)


Image 4.2.6: Attaching drawer fronts.

7. Instalar as tiradores do caixón: Attach the metal handles to the drawer fronts using screws (E) and brackets (F). (Refer to image for step 7)

Image 4.2.7: Installing drawer handles.
8. Montar o armario na parede: Drill pilot holes in the wall, insert wall anchors (G), and secure the mounting brackets (H) using screws (J) and washers (I). Hang the cabinet onto the brackets. (Refer to image for step 8)


Image 4.2.8: Mounting cabinet to wall.

9. Inserir caixóns: Carefully slide the assembled drawers into the cabinet. (Refer to image for step 9)


Image 4.2.9: Inserting drawers.

10. Install Sink Top: With the help of another adult, gently lower the ceramic integrated sink (part 15) onto the vanity. Apply a bead of caulk (not included) around the edges for a secure and waterproof seal. Wipe away any excess caulk with a soft cloth and allow approximately 24 hours for it to dry. (Refer to image for step 10)

Image 4.2.10: Installing sink top.

5. Funcionamento

5.1. Drawer Functionality

The vanity features two fluted drawers with soft-closing slide rails. To open, gently pull the metal handle. To close, push the drawer until the soft-close mechanism engages, allowing it to close smoothly and quietly.

Figure 5.1: Drawers provide ample storage and feature a U-shaped cutout for plumbing.

5.2. Sink Features

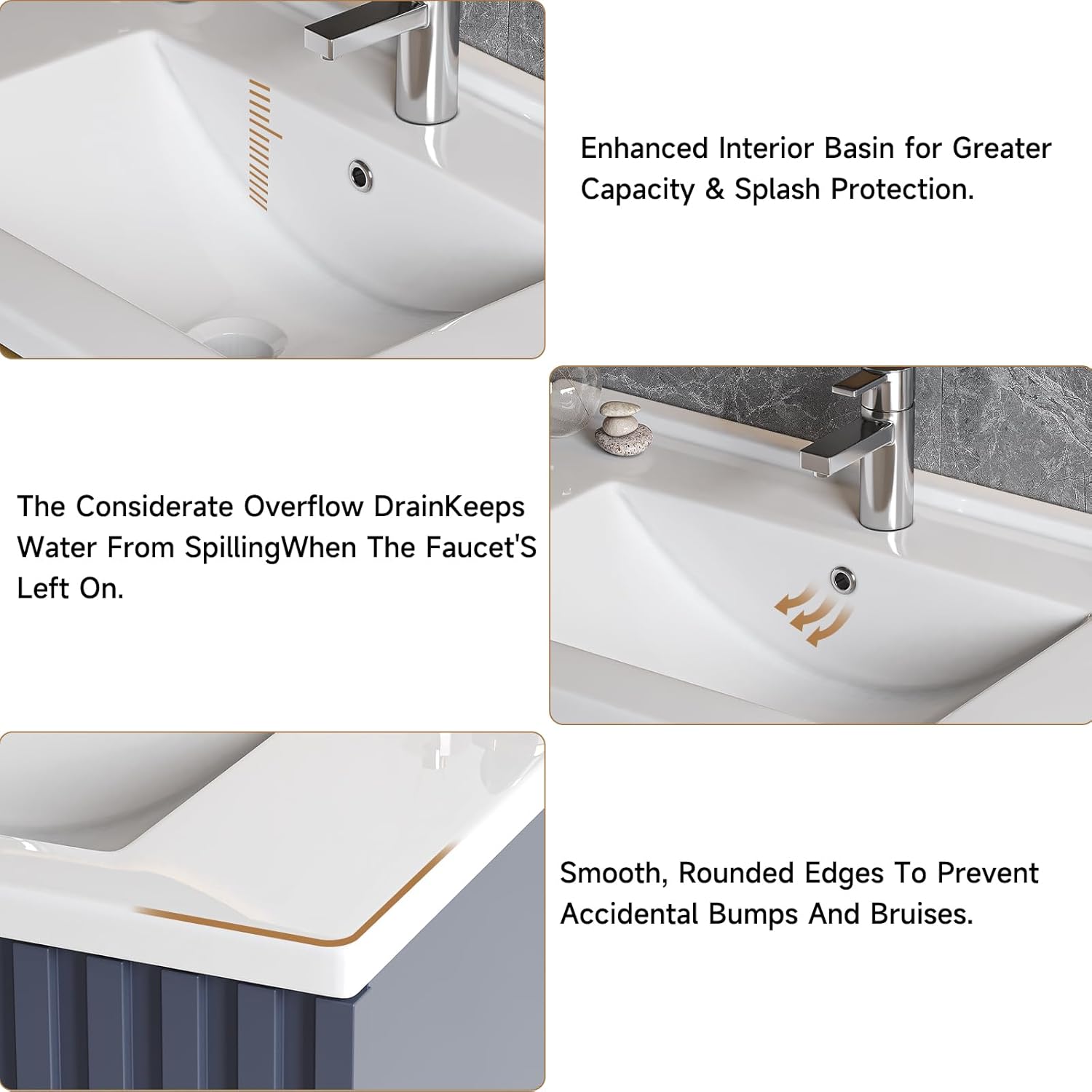

The ceramic integrated sink includes an anti-spill hole and a thoughtful overflow drain design to prevent water from overflowing if the faucet is left on. The smooth, rounded edges enhance safety and ease of cleaning.

Figura 5.2: detallada view of the sink's practical and safe design features.

6. Mantemento e coidado

Proper care will ensure the longevity and appearance of your ONBRILL vanity.

• Limpeza do armario: Wipe down the painted surface with a damp, soft cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Limpeza do lavabo: Use a mild soap and water solution with a soft sponge or cloth. Rinse thoroughly and dry to prevent water spots.
• Verquidos: Promptly clean up any spills to prevent moisture damage, especially on the cabinet surfaces.
• Hardware: Periodically check and tighten any loose screws on handles or drawer slides.

7 Solución de problemas

If you encounter any issues with your vanity, please refer to the following common solutions:

• Os caixóns non pechan con suavidade: Comprobe se as guías do caixón están correctamente aliñadas e libres de obstrucións. Asegúrese de que todos os parafusos das guías estean ben axustados.
• Water leaks around the sink: Verify that the caulk seal between the sink and vanity is intact. Check all plumbing connections for tightness and proper sealing.
• Vanity feels unstable: Ensure the wall mounting brackets are securely fastened to wall studs and that the vanity is properly seated on the brackets.
• Rabuñaduras ou danos menores: For minor scratches on the cabinet, touch-up paint matching the finish may be used. Consult a professional for significant damage.

If the problem persists, please contact ONBRILL customer support.

8. Especificacións

Figura 8.1: Dimensións detalladas do produto.

9. Garantía e soporte

For warranty information and customer support, please refer to the product's original purchase documentation or contact ONBRILL directly through their official channels. You can visit the ONBRILL Store on Amazon para máis información.
