1. Introdución
This manual provides instructions for the safe and efficient operation, maintenance, and care of your TAGIC TG-SP01 Electric Spin Scrubber. Please read this manual thoroughly before first use and retain it for future reference.
O TAGIC TG-SP01 is a cordless electric cleaning brush designed to simplify various household cleaning tasks, reducing physical strain associated with traditional cleaning methods.
2. Produto rematadoview e Compoñentes
Familiarize yourself with the components of your electric spin scrubber.

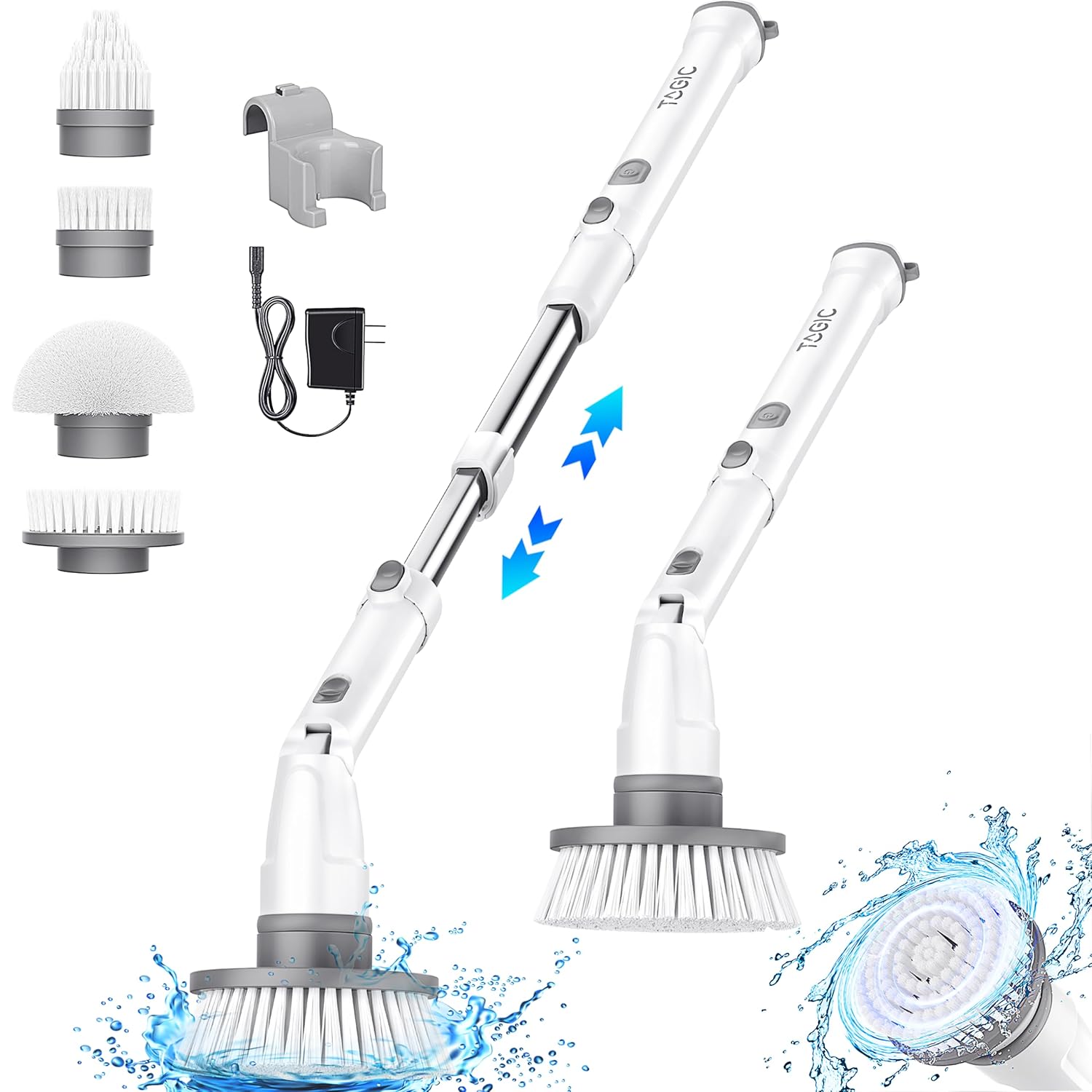

Figura 1: Main components of the TAGIC TG-SP01 Electric Spin Scrubber, including the main unit, extendable handle, charger, and four interchangeable brush heads.
2.1 Contido do paquete:
- Electric Spin Scrubber Main Unit
- Extendable Handle (Stainless Steel)
- Adaptador de carga
- Cepillo plano duro
- Cepillo de canto
- Pincel Plano Pequeno
- Pincel puntiagudo
- Wall Mount Hook (for storage)
- Manual de usuario (este documento)
2.2 Características principais:
- Funcionamento sen fíos: Provides freedom of movement during cleaning.
- 2 modos de velocidade: Adjustable spin speeds for different cleaning tasks (Daily Cleaning and Stubborn Stains).
- Ángulo axustable: Brush head angle can be adjusted for optimal reach and cleaning efficiency.
- Mango extensible: Handle extends from 27 inches to 43 inches for reaching high or low areas.
- Batería de longa duración: Built-in 2500mAh battery provides up to 120 minutes of runtime.
- 4 cabezales de cepillo substituíbles: Specialized brushes for various surfaces and cleaning needs.
3. Configuración e montaxe
Follow these steps to assemble your electric spin scrubber before first use.
3.1 Assembling the Handle:
- Connect the main scrubber unit to the extendable handle. Ensure it clicks securely into place.
- To extend the handle, twist the locking mechanism on the handle, pull to the desired length (27 to 43 inches), and twist back to lock.
Figura 2: Illustration of the adjustable handle length and brush head angles.
3.2 Attaching Brush Heads:
- Seleccione o cabezal de cepillo axeitado para a súa tarefa de limpeza.
- Align the brush head with the rotating shaft on the scrubber unit.
- Push the brush head firmly onto the shaft until it locks into place.
- To remove, pull the brush head off the shaft.
Figura 3: The four interchangeable brush heads and their typical applications.
4. Charging the Scrubber
Before first use, fully charge the scrubber. A full charge takes approximately 3-4 hours.
- Locate the charging port on the scrubber unit.
- Connect the charging adapter to the scrubber and plug it into a standard electrical outlet.
- The indicator light will show charging status (refer to device for specific light behavior, typically red for charging, green for full).
- Once fully charged, disconnect the adapter. The scrubber provides up to 120 minutes of continuous runtime on a full charge.
Figura 4: Battery specifications and charging features.
5. Instrucións de funcionamento
5.1 Power On/Off and Speed Modes:
- Press the power button once to turn on the scrubber at the low spin speed (e.g., 280 RPM for daily cleaning).
- Press the power button a second time to switch to the high spin speed (e.g., 380 RPM for stubborn stains).
- Press the power button a third time to turn off the scrubber.
Figura 5: Illustration of the two available speed modes and their recommended uses.
5.2 Using the Scrubber:
- Ensure the desired brush head is securely attached.
- Adjust the handle length and brush head angle as needed for the cleaning area.
- Apply a suitable cleaning solution or water to the surface to be cleaned.
- Turn on the scrubber and select the appropriate speed mode.
- Gently guide the rotating brush over the surface. Avoid applying excessive pressure, as the motor's power is sufficient for cleaning.
- For stubborn stains, allow the scrubber to work for a longer duration on the affected area, possibly with a stronger cleaning agent.
- After cleaning, rinse the surface and the brush head thoroughly.
Figura 6: Demonstrating the ease of use for floor cleaning compared to traditional methods.
6. Mantemento e coidados
Proper maintenance ensures the longevity and performance of your scrubber.
6.1 Cleaning the Brush Heads:
- After each use, remove the brush head from the scrubber unit.
- Rinse the brush head thoroughly under running water to remove dirt and cleaning solution residue.
- Allow brush heads to air dry completely before storing.
6.2 Cleaning the Main Unit and Handle:
- Wipe the main unit and handle with a damp pano. Non mergulle a unidade principal en auga.
- Asegúrate de que a tapa do porto de carga estea ben pechada para evitar a entrada de auga.
- Non use produtos de limpeza ou disolventes abrasivos.
6.3 Almacenamento:
- Store the scrubber in a cool, dry place, away from direct sunlight and extreme temperatures.
- Use the provided wall mount hook for convenient storage.
- Ensure the scrubber is fully charged before long-term storage to maintain battery health.
7 Solución de problemas
If you encounter issues with your scrubber, refer to the following common problems and solutions.
| Problema | Causa posible | Solución |
|---|---|---|
| A fregadora non se acende. | A batería está esgotada. | Charge the scrubber fully (refer to Section 4). |
| Brush head stops spinning or spins slowly. | Excessive pressure applied during cleaning. A batería está baixa. | Reduce pressure on the brush head. Charge the scrubber. |
| Brush head detaches during use. | Brush head not securely attached. | Ensure the brush head is pushed firmly onto the shaft until it clicks into place. |
| Rendemento de limpeza reducido. | Brush head is worn or dirty. Incorrect brush head for the task. | Clean or replace the brush head. Select the appropriate brush head (refer to Section 3.2). |
Se o problema persiste despois de probar estas solucións, póñase en contacto co servizo de atención ao cliente.
8. Especificacións
| Característica | Detalle |
|---|---|
| Número de modelo | TG-SP01 |
| Marca | TAGIC |
| Capacidade da batería | 2500 mAh |
| Tempo de execución | Ata 120 minutos (completamente cargada) |
| Tempo de carga | 3-4 horas |
| Modos de velocidade | 2 (e.g., 280 RPM, 380 RPM) |
| Material do mango | Aceiro inoxidable |
| Lonxitude do mango axustable | 27 polgadas a 43 polgadas |
| Dimensións do produto | 6.4L x 6.4W x 111.8H Centimeters (extended) |
| Peso do elemento | 1.68 kg (3.7 libras) |
9. Información de seguridade
Observe as seguintes precaucións de seguridade para evitar lesións ou danos ao produto.
- Keep the scrubber away from children and pets.
- Do not immerse the main scrubber unit in water. It is water-resistant for cleaning, but not submersible.
- Use only the provided charging adapter.
- Do not operate the scrubber if it is damaged or malfunctioning.
- Avoid contact with moving brush heads during operation.
- Do not use the scrubber on delicate surfaces that may be scratched by abrasive brushes. Test on an inconspicuous area first.
- Always turn off the scrubber before changing brush heads or performing maintenance.
- Store the scrubber in a dry place when not in use.
10. Garantía e soporte
Specific warranty details are not provided in the product information. For warranty claims or technical support, please contact TAGIC customer service through your purchase platform or the official TAGIC websitio.
Please have your model number (TG-SP01) and purchase details ready when contacting support.
