Manual do usuario da cámara tipo bala IP WiFi de 2MP Imou IPC-G22P

1. Introdución

This manual provides detailed instructions for the installation, operation, and maintenance of your Imou IPC-G22P 2MP WiFi IP Bullet Camera. This device is designed for reliable surveillance, offering 2-megapixel live monitoring, efficient H.265 video compression, and robust IP67 weather resistance for various environmental conditions.

Image 1.1: The Imou IPC-G22P Bullet Camera, showcasing its weather-resistant design suitable for outdoor use.

Image 1.2: The Imou IPC-G22P camera is suitable for diverse installation environments, including residential and commercial outdoor settings.

2. Información de seguridade

Please read and follow all safety instructions carefully to prevent damage to the device or injury to yourself. Keep this manual for future reference.

• Fonte de alimentación: Use only the power adapter provided with the camera. Ensure the power source meets the camera's voltage requisitos.
• Instalación: Install the camera securely on a stable surface. Avoid placing it in areas with extreme temperatures, high humidity, or direct exposure to corrosive substances.
• Exposición á auga: While the camera is IP67 rated for weather resistance, avoid submerging it in water or exposing it to high-pressure water jets.
• Limpeza: Desconecte a alimentación antes de limpar. Use un pano suave e seco. Non empregue produtos de limpeza líquidos nin en aerosol.
• Servizo: Non intente desmontar nin reparar a cámara vostede mesmo. Encargue calquera mantemento a persoal cualificado.

3. Configuración

3.1 Instalación física

Mount the camera in your desired location using the provided mounting hardware. Ensure the camera has a clear field of view and is within range of your Wi-Fi network or close to an Ethernet port for wired connection.

3.2 Conexión de alimentación

Connect the power adapter to the camera's power input and then plug it into a standard electrical outlet. The camera will power on automatically.

3.3 Conexión de rede

The Imou IPC-G22P supports both Wi-Fi and wired LAN connectivity, offering flexibility for installation.

Image 3.1: The camera supports both wireless (2.4GHz Wi-Fi) and wired (LAN) network connections for flexible installation and stable data transmission.

• Conexión Wi-Fi: For wireless setup, ensure your Wi-Fi network is 2.4GHz. The camera features an upgraded 4.5dBi antenna for stronger and more stable signal reception.

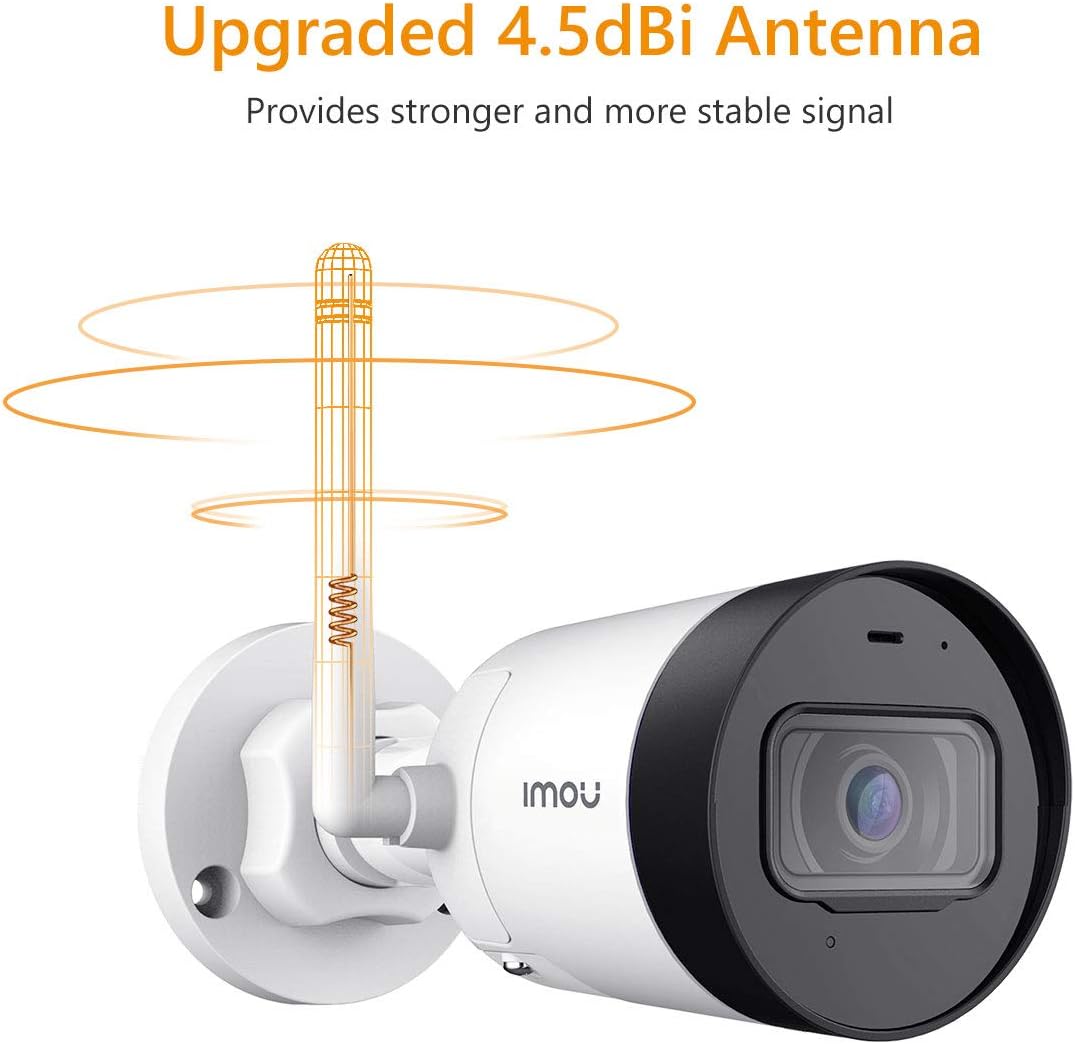

Image 3.2: The camera's 4.5dBi antenna enhances Wi-Fi signal strength and stability.

• Conexión LAN: For a more stable and reliable connection, connect an Ethernet cable from your router to the camera's LAN port.

3.4 Instalación da aplicación e emparellamento de dispositivos

1. Descarga o Imou Vida aplicación desde a tenda de aplicacións do teu teléfono intelixente (dispoñible para Android e iOS).
2. Crea unha conta ou inicia sesión se xa tes unha.
3. Follow the in-app instructions to add your new camera. This typically involves scanning a QR code on the camera or manually entering its serial number.
4. Complete the network configuration within the app.

4. Instrucións de funcionamento

4.1 En directo View e Gravación

Once connected, you can access the live video feed from your camera via the Imou Life app. The camera provides 2-megapixel resolution and utilizes H.265 compression to optimize bandwidth and storage usage while maintaining video quality.

4.2 Detección de movemento e alertas

The camera is equipped with motion detection capabilities. When movement is detected, the camera can send instant alerts to your smartphone, allowing you to monitor activity in real-time.

Image 4.1: The Imou camera provides instant alerts to your smartphone upon detecting movement, enhancing security monitoring.

4.3 Monitorización de audio

The built-in microphone allows you to listen to audio from the camera's vicinity through the Imou Life app.

Image 4.2: The camera includes a built-in microphone for audio monitoring of the surveillance area.

4.4 Visión nocturna

The camera features integrated night vision functionality, providing clear video monitoring even in low-light or complete darkness conditions.

4.5 Xestión do almacenamento

The Imou IPC-G22P offers multiple options for video storage:

• Tarxeta Micro SD: Supports local storage on a Micro SD card, up to 128GB.
• Imou Cloud: Cloud storage service for secure, remote access to your recordings.
• NVR (Network Video Recorder): Compatible with NVR systems for continuous recording and centralized management.

Image 4.3: The camera provides flexible storage solutions including Micro SD card, Imou Cloud, and NVR compatibility.

5. Mantemento

5.1 Limpeza

To maintain optimal performance, periodically clean the camera lens and housing. Use a soft, lint-free cloth. For stubborn dirt, slightly dampEnxágüe o pano con auga. Evite produtos de limpeza ou solventes abrasivos.

5.2 Actualizacións de firmware

Regularly check for and install firmware updates via the Imou Life app. Firmware updates often include performance improvements, new features, and security enhancements.

5.3 Resistencia ás inclemencias meteorolóxicas

The Imou IPC-G22P is IP67 certified, meaning it is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes. This rating ensures reliable operation in various outdoor weather conditions, including rain and snow.

6 Solución de problemas

• Sen enerxía:
  Ensure the power adapter is securely connected to both the camera and a working electrical outlet. Verify the outlet is supplying power.
• No Network Connection / Frequent Disconnections:
  Check your Wi-Fi signal strength at the camera's location. If using Wi-Fi, ensure the camera is within range of your 2.4GHz router. If using LAN, verify the Ethernet cable is properly connected and functional. Restart your router and the camera.
• Imou Life App Issues (Slow Loading, Playback Delays):
  Ensure your smartphone has a stable internet connection. Close and reopen the app. Clear the app's cache or reinstall it if issues persist. Network congestion can also affect app performance.
• Problemas de calidade da imaxe:
  Clean the camera lens. Ensure there are no obstructions in the camera's field of view. Check network bandwidth, as low bandwidth can affect streaming quality.
• Camera Heats Up During Use:
  It is normal for electronic devices to generate some heat during operation. If the camera becomes excessively hot to the touch or exhibits abnormal behavior, disconnect power and contact support.
• Lente fixa ViewÁngulo de ing:
  The Imou IPC-G22P features a fixed lens. The viewing angle cannot be adjusted remotely. Ensure the camera is physically mounted at the desired angle during installation.

7. Especificacións

8. Garantía e soporte

For warranty information and technical support, please refer to the official Imou websitio web ou póñase en contacto co seu vendedor local. Garde o recibo da compra como proba de compra.

For further assistance, you may visit the Imou support page or contact their customer service directly.
