Geehy APM32F072VB Mini Board

Performance

• 32 bit Arm® Cortex® M0+
• Max frequency: 48MHz
• Flash: 128KB
• SRAM: 16KB

Interface and Resources

• USB: 1 (Type B)
• SWD: 1
• LED: 2
• KEY: 2
• RESET KEY: 1
• GPIO: 81
• USART: 1 (Switch to USART1 or USART2 by jumper)

Start

1. Ensure a solid connection for jumper J6, J8, J9 and J10.
2. Connect the USB in development board with PC by a USB Type B cable and power the development board.
3. Connect the emulator with SWD interface for MCU programming and debugging.

System Requirements

• Windows OS (7/8/10)

Development Tool

• Keil: MDK ARM

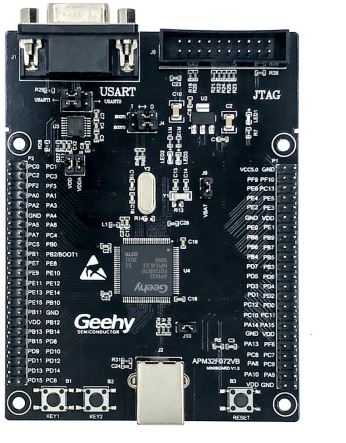

Appearance

Schematic Diagram

Refer toAPM32F072VB MINIBOARD V1.0.0 PDF

Geehy Semiconductor Co.,Ltd.
Bldg.1, No.83 Guangwan Street, Zhuhai, Guangdong, China

+86 0756 6299999
www.geehy.com
