GE APPLIANCES PHP7030 36 Inch Built In Touch Control Induction Cooktop Owner's Manual

COOKTOP
Electronic Induction

OWNER’S MANUAL
PHP7030, PHP7036
PHP9030, PHP9036

PHP7030 36 Inch Built In Touch Control Induction Cooktop

Write the model and serial numbers here:
Model # _________________
Serial # _________________
You can find them on a label under the cooktop.

GE is a trademark of the General Electric Company. Manufactured under trademark license.

49-2001135 Rev. 4 10-24

THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME.
Whether you grew up with GE Appliances, or this is your first, we’re happy to have you in the family.
We take pride in the craftsmanship, innovation and design that goes into every GE Appliances product, and we think you will too. Among other things, registration of your appliance ensures that we can deliver important product information and warranty details when you need them.
Register your GE appliance now online. Helpful websites and phone numbers are available in the Consumer Support section of this Owner’s Manual. You may also mail in the pre-printed registration card included in the packing material.

SAFETY INFORMATION

IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

WARNING
Read all safety instructions before using the product. Failure to follow these instructions may result in fire, electrical shock, serious injury or death.

WARNING
GENERAL SAFETY INSTRUCTIONS

WARNING GENERAL SAFETY INSTRUCTIONS

Use this appliance only for its intended purpose as described in the Owner’s Manual.
Have your appliance installed and properly grounded by a qualified installer in accordance with the provided installation instructions.

Any adjustment, repair or service not specifically recommended in the Owner’s Manual should be performed ONLY by a qualified appliance installer or service technician.
Before performing any service, unplug the appliance or disconnect the power supply at the household distribution panel by removing the fuse or switching off the circuit breaker.

Be sure all packing materials are removed from the appliance before operating to prevent ignition of these materials.
Avoid scratching or impacting glass doors, cooktops, or control panels. Doing so may lead to glass breakage.

Do not cook on a product with broken glass. Shock, fire, or cuts may occur.
Do not leave children alone or unattended in an area where an appliance is in use. They should never be allowed to climb, sit or stand on any part of the appliance.

CAUTION

Do not store items of interest to children in cabinets above or on top of the appliance children climbing on the oven to reach items could be seriously injured.

Never use your appliance for warming or heating the room.
Do not allow anyone to climb, stand or hang on the oven door, drawer, or cooktop. They could damage the appliance or tip it over causing severe injury or death.

Use only dry pot holders-moist or damp pot holders on hot surfaces may result in burns from steam. Do not let pot holders touch surface units or oven heating elements. Do not use a towel or other bulky cloth in place of pot holders.
Do not touch the burners, griddles (on some models), grates (on some models), the cooktop or oven heating elements, or the interior surface of the oven. These surfaces may remain hot enough to burn for an extended period of time following cooking, even though they no longer appear to be on or hot.

During and after use, do not touch, or let clothing or other flammable materials contact any interior area of the oven, allow sufficient time for cooling first. Other surfaces of the appliance may become hot enough to cause bums. Potentially hot surfaces include burners or heating elements, grates (on some models), cooktop surface, oven vent openings, surfaces near the openings, crevices around the oven door, metal trim parts above the door, any backguard, or shelves located above cooking surface.
Do not heat unopened food containers. Pressure could build up and the container could burst, causing an injury.

Cook food thoroughly to help protect against foodborne illness. Minimum safe food temperature recommendations are provided by the USDA and FDA. Use a food thermometer to take food temperatures and check several locations.
Keep the ventilator hood and grease filters clean to maintain good venting and to avoid grease fires.

Turn the ventilator OFF in case of a fire. The blower if in operation, could spread the flames.

WARNING
KEEP FLAMMABLE MATERIALS AWAY FROM THE APPLIANCE
Failure to do so may result in fire or personal injury.

■ Do not store or use flammable materials in an oven or near the cooktop, including paper, plastic, pot holders, linens, wall coverings, curtains, drapes and gasoline or other flammable vapors and liquids.
■ Never wear loose-fitting or hanging garments while using the appliance. These garments may ignite if they contact hot surfaces causing severe burns.
■ Do not let cooking grease or other flammable materials accumulate in or near the appliance. Grease in the oven or on the cooktop may ignite.
■ Do not store any flammable materials or temperature sensitive items inside of or on the appliance.
■ Clean ventilating hoods frequently. Grease should not be allowed to accumulate on the hood or filter.
■(On some models) Remote Operation – This appliance is configurable to allow remote operation at any time.

WARNING
IN THE EVENT OF A FIRE, TAKE THE FOLLOWING STEPS TO PREVENT INJURY AND FIRE SPREADING

Do not use water on grease fires. Never pick up a flaming pan. Turn the controls off. Smother a flaming pan on a surface unit by covering the pan completely with a well-fitting lid, cookie sheet or flat tray. Use a multi-purpose dry chemical or foam-type fire extinguisher.

WARNING
COOKTOP SAFETY INSTRUCTIONS
■ NEVER Operate the Top Surface Cooking Section of this Appliance Unattended. Boilovers can cause smoking and greasy spillovers that may catch on fire. Failure to follow this warning statement could result in fire, explosion, or burn hazard that could cause property damage, personal injury, or death.
■ Never leave oil unattended while frying. If allowed to heat beyond its smoking point, oil may ignite resulting in fire that may spread to surrounding cabinets. DO NOT ATTEMPT TO EXTINGUISH AN OIL/GREASE FIRE WITH WATER.
■ Use a deep fat frying thermometer whenever possible to monitor oil temperature. To avoid oil spillover and fire, use a minimum amount of oil when shallow pan-frying and avoid cooking frozen foods with excessive amounts of ice.
■ Use proper pan size-select cookware having flat bottoms large enough to cover the surface heating element.
■ To minimize the possibility of burns, ignition of flammable materials and spillage, the handle of a container should be turned toward the center of the appliance without extending over nearby surface units.
■ Only certain types of glass, glass/ceramic, earthenware or other glazed containers are suitable for cooktop service; others may break because of the sudden change in temperature.
■ When preparing flaming foods under a hood, turn the fan on.

CAUTION
The induction cooking elements may appear to be cool while turned ON and after they have been turned OFF. The glass surface may be HOT from residual heat transferred from the cookware and burns may occur.

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

WARNING
GLASS COOKTOP SAFETY INSTRUCTIONS

■ Use care when touching the cooktop. The glass surface of the cooktop will retain heat after the controls have been turned off.
■ Do not cook on a broken cooktop. If glass cooktop should break, cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock. Contact a qualified technician immediately.
■ Avoid scratching the glass cooktop. The cooktop can be scratched with items such as knives, sharp instruments, rings or other jewelry, and rivets on clothing.
■ Do not place or store items that can melt or catch fire on the glass cooktop, even when it is not being used. If the cooktop is inadvertently turned on, they may turned on may cause them to ignite also.
■ Use ceramic cooktop cleaner and a non-scratch cleaning pad to clean the cooktop. Read and follow all instructions and warnings on the cleaning cream label. Wait until the cooktop cools and the indicator light goes out before cleaning. A wet sponge or cloth on a hot surface can cause steam burns. Some cleaners can produce noxious fumes if applied to a hot surface. NOTE: Sugar spills are an exception. They should be scraped off while still hot using an oven mitt and a scraper. See the Cleaning the glass cooktop section in the Owner’s Manual for detailed instructions.

WARNING
RADIO FREQUENCY INTERFERENCE
This unit has been tested and found to comply with the limits for a class B digital device, pursuant to Part 18 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This unit generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this unit does cause harmful interference to radio or television reception, which can be determined by turning the unit off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

CAUTION
Persons with a pacemaker or similar medical device should exercise caution when using or standing near an induction cooktop while it is in operation. The electromagnetic field may affect the working of the pacemaker or similar medical device. It is advisable to consult your doctor or the pacemaker manufacturer about your particular situation.
■ Reorient or relocate the receiving antennae.
■ Increase the distance between the unit and receiver.
■ Connect the unit into an outlet or a circuit different from that to which the receiver is connected.

WARNING
REMOTE ENABLE EQUIPMENT (On some models)
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The wireless communication equipment installed on this cooktop has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to:
(a) provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
■ Consult the dealer or an experienced radio/TV technician for help.
(b) accept any interference received, including interference that may cause undesired operation of the device. Note that any changes or modifications to the wireless communication device installed on this appliance that are not expressly approved by the manufacturer could void the user’s authority to operate the equipment.

PROPER DISPOSAL OF YOUR APPLIANCE
Dispose of or recycle your appliance in accordance with Federal and Local Regulations. Contact your local authorities for the environmentally safe disposal or recycling of your appliance.
How to Remove Protective Shipping Film and Packaging Tape
Carefully grasp a corner of the protective shipping film with your fingers and slowly peel it from the appliance surface. Do not use any sharp items to remove the film. Remove all of the film before using the appliance for the first time.
To assure no damage is done to the finish of the product, the safest way to remove the adhesive from packaging tape on new appliances is an application of a household liquid dishwashing detergent. Apply with a soft cloth and allow to soak.
NOTE: All protective packing must be removed from all parts. It cannot be removed if it is baked on.
Consider recycling options for your appliance packaging material.

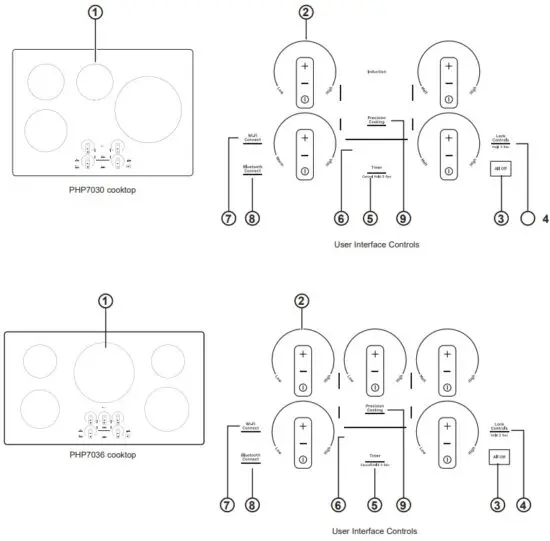

USING THE COOKTOP: Cooktop Features

Cooktop Features
Throughout this manual, features and appearance may vary from your model.

Cooking Element(s): See page 9.

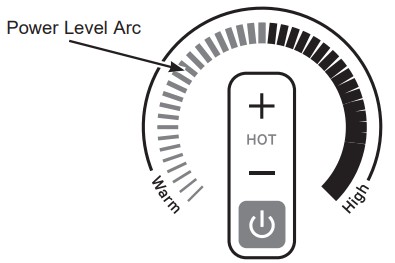

Power Level Arc: See page 9.
All Off:

Lock:
Timer:
Display:

WiFi Connect:
Bluetooth Connect:
Precision Cooking:

Throughout this manual, features and appearance may vary from your model.

Cooking Element(s): See page 9.
Power Level Arc: See page 9.

All Off:
Lock:
Timer:

Display:
WiFi Connect:
Bluetooth Connect:

Precision Cooking:
Sync Burners:

Operating The Cooking Elements

Turn Burner(s) On: Touch and hold On/Off pad about half a second. A chime can be heard with each touch to any pad.Power level can be selected in any of the following ways:

Swipe the grav arc to the desired power level.
Touch Anywhere along the gray arc, or;

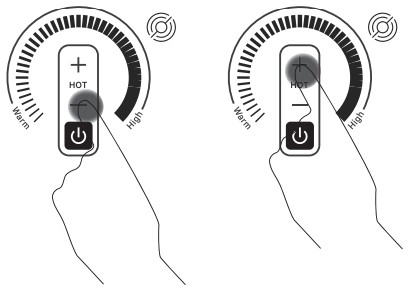

Touch + or pads to adjust power level, or;

Shortcut to Hi: Immediately after turning unit on, touch the + pad, or;
Shortcut to Low: Immediately after turning unit on, touch the pad.

Turn Burner(s) Off
Touch On/Off pad for an individual burner or touch the All Off pad.

Selecting Cooktop Settings

Choose the element/burner that is best fit to the cookware size. Each element/burner on your new cooktop has its own power levels ranging from low to high. Power level settings necessary for cooking will vary depending on the cookware being used, the type and quantity of food, and the desired outcome. In general use lower settings for melting, holding and simmering and use higher settings for heating quickly, searing and frying. When keeping foods warm confirm selected setting is sufficient to maintain food temperature above 140°F. Larger elements and elements marked “Keep Warm” are not recommended for melting.
Hi is the highest power level, designed for large quantity rapid cooking and boiling. Hi will operate for a maximum of 10 minutes. Hi may be repeated after the initial 10 minute cycle by either pressing the pad followed by the + pad OR swiping the power level arc to a lower level and then followed by swiping the power level arc to the highest level.
CAUTION
Do not place any cookware, utensils or leave excess water spills on control key pads. This may result in unresponsive touch pads and turning off the cooktop if present for several seconds.
NOTE: The warm setting may not glow bright red like the other heating operations.

How To Synchronize Left Elements

NOTE: Sync Burners is only intended for cookware that spans both burners. Suggested uses are for griddles or large oval pots.

To Turn On
Hold the Sync Burners pad for about half a second to connect the two burners. Operate either element as described on page 9 to adjust power level.

To Turn Off

Touch the On/Off pad on either burner to turn off the Sync Burners.
or

Touch the Sync Burners to turn both burners off.

WiFi Commissioning

Download the SmartHQ App
Press the WiFi Connect pad on your cooktop to begin pairing. On the SmartHQ App, select your appliance and follow the instructions to complete the pairing.Turning Off the WiFi

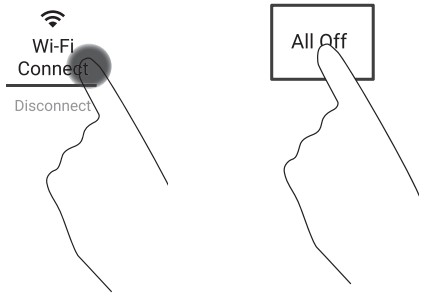

Press and hold the WiFi Connect and the All Off pads for 3 seconds to de-commission the WiFi.Bluetooth® Pairing

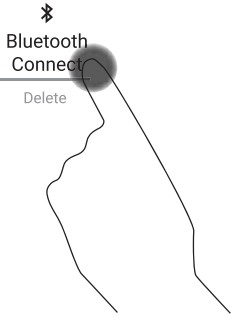

Pairing a Bluetooth® Device
Press the Bluetooth Connect pad on the cooktop. The cooktop will enter Pair mode. Tap cookware or press ChefConnect button on enabled microwave or hood device. When connected, the cooktop will display “done”.

Supported Devices	How to Initiate Pairing
Hestan Cue fry pan	Tap pan handle twice
Hestan Cue pot	Tap pot handle twice
Precision Probe	Press side button once

Removing Bluetooth® Devices
Tap and hold the Bluetooth Connect and All Off pads for 3 seconds.
NOTE: Your unit cannot delete a single or specific device. All of your paired devices are cleared. Devices you wish to use must be paired again.

Power Sharing

A 36″ cooktop has 3 cooking zones and a 30″ cooktop has 2 cooking zones. If two elements in the same zone are in use and at least one element is at the maximum power level (Hi), the Hi setting will operate at a reduced power level. Note that the display will not change. This is how power is shared between two elements in the same cooking zone.

Cooktop Lockout
Lock
Touch Control Lock pad for 3 seconds.
Unlock
Touch Control Lock pad again for 3 seconds.
See Custom Settings section to activate Auto Lock feature.

Cooktop Lockout: locks operation of the controls

Kitchen Timer

To Turn On
Touch the Timer Select pad. Touch the + or – arrows to choose the desired number of minutes. Timer automatically starts 10 seconds after pad is touched, or if the Timer Select pad it touched. The “ON” LED will appear automatically when timer is set.

To Turn Off
Press and release the Timer Select pad to cancel timer, or hold for 3 seconds. Alarm will sound continuously when time is up until user turns timer off.
NOTE: Use the kitchen timer to measure cooking time or as a reminder. The kitchen timer does not control the cooking elements. Timer turns off if there is no activity for 30 seconds.

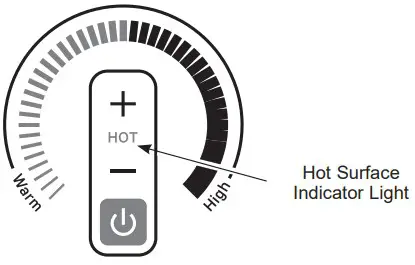

Hot Light Indicator

A hot surface indicator light (one for each cooking element) will glow when the glass surface is hot and will remain on until the surface has cooled to a temperature that is safe to touch.

Pan Detection Removal
When a pan is removed from the cooktop surface, burner level turns off; Power Level Arc starts to blink. If a pan is not detected for 25 seconds, the control turns off automatically, lights turn off

Precision Cooking

The Precision Cooking feature allows precise temperature control of certain devices for improved results
Initiating a Precision Cooking Mode

Press the Power On/Off pad on the desired element.

Tap Precision Cooking pad.
TAP COOKWARE legend will pulse. Activate cookware and ensure cookware is on desired element.
Precision Cooking Degrees legend will turn on. Use slider or + and pads to adjust temperature.

Cooktop will display target temperature and Preheating. When Preheating legend disappears, target temperature has been reached.

Settings Menu

Press and hold All Off and Timer pads together for 3 seconds.
To navigate through the Settings Menu, use the + and – buttons on the Display. To select a menu, press the Timer pad.

To activate a Setting, press the Timer pad.
To exit Settings Menu, press and hold the All Off pad.

Settings Menu Chart

	Feature	Menu	Default	Options	Requirements
1	Factory Settings				· “YES” : Clears customized settings and restores defaults · “No” : exits out of the Factory reset menu and takes the user back to the main menu.
2	Control Lock				· “USEr” : Control lock shall have aas defined in Cooktop Control Lockout · “Auto” In addition to the standard lock behavior (Cooktop Control Lockout) the control shall also lock if no burner or timer has been active for 600 seconds as well as there has been no key press for 600 seconds.
3	LED Light Level				· Hi = 100% brightness · rEG = 80% brightness · Lo = 60% brightness
4	Button Volume				· “Hi” : All touch key sounds activated at 100% · “Lo” : Touch key sound levels as defined in parametric (ideally 50% of high). · “OFF” : All touch key sounds off. · The sound settings shall not affect alarm tone output levels.
5	Timer Alarm Volume				· “Hi” : The DAC level shall be defined in parametric. The product level expectation is to achieve 40dB @ 5 meters from cooktop. 65dB @ 1 meter from cooktop. · “Lo” : The DAC level shall be defined in parametric. The product level expectation is to achieve 40dB @ 1 meter from cooktop.
6	Timer End Tone				· “Cont” ” Timer tone plays continuously until the user acknowledges the timer and tone. · “bEEP” : The timer end tone is played only once.
7	Temperature Units

How Induction Cooking Works

The magnetic fields induce a small current in the pan. The pan acts as a resistor, which produces heat, much like a radiant coil.
The cooking surface itself does not heat. Heat is produced in the cooking pan, and cannot be generated until a pan is placed on the cooking surface.
When the element is activated, the pan begins to heat immediately and in turn heats the contents of the pan.
Magnetic induction cooking requires the use of cookware made of ferrous metals-metals to which magnets will stick, such as iron or steel.
Use pans that fit the element size. The pan must be large enough for the safety sensor to activate an element.
The cooktop will not operate if a very small steel or iron utensil (less than the minimum size across the bottom) is placed on the cooking surface when the unit is turned on-items such as steel spatulas, cooking spoons, knives and other small utensils.Use the minimum size pan for the element. The pan material is correct if a magnet sticks to the bottom.

Cooking Noise
Cookware “noise”
Slight sounds may be produced by different types of cookware. Heavier pans such as enameled cast iron produce less noise than a lighter weight multi-ply stainless steel pan. The size of the pan, and the amount of contents, can also contribute to the sound level.
When using adjacent elements that are set at certain power level settings, magnetic fields may interact and produce a high pitch whistle or intermitted “hum”. These sounds can be reduced or eliminated by lowering or raising the power level settings of one or both of the elements. Pans that completely cover the element ring will produce less sound.
A low “humming” sound is normal particularly on high settings.
Slight sounds, such as hums or buzzes, may be produced by different types of cookware. This is normal. Heavier and uniform material pans such as enameled cast iron produce less sound than lighter weight multi-
layered stainless steel pans or pans that have bonded disks on the bottom of the pan. The size of the pan, the amount of contents in the pan, and the flatness of the pan can also contribute to the sound level. Some pots will “Buzz” louder depending on the material. A “Buzz” sound may be heard if the pan contents are cold. As the pan heats, the sound will decrease. If the power level is reduced, the sound level will go down.
Pans that do not meet the minimum size requirements for the burner can produce louder sounds. They can cause the controller to “search” for the pot and produce a clicking and “zipping” sound. This can happen when one burner is running or only when an adjacent burner is also running. See User Manual for the minimum sized pots for each burner. Only measure the flat, magnetic bottom of the pot.

Choosing The Correct Cookware To Use

Using the correct size cookware
The induction coils require a minimum pan size to function properly. If the pan is removed from the element for more than 25 seconds or not detected the ON indicator for that element will flash and then turn off.
Cookware larger than the element ring may be used; however, heat will only occur above the element.
For best results, the cookware must make FULL contact with the glass surface.
Do not allow the bottom of the pan or cookware to touch the surrounding metal cooktop trim or to overlap the cooktop controls.
For best performance, match the pan size to the element size. Using a smaller pot on a larger burner will generate less power at any given setting.
Suitable Cookware
Use quality cookware with heavier bottoms for better heat distribution and even cooking results. Choose cookware made of magnetic stainless steel, enamel coated cast iron, enameled steel and combinations of these materials.
Some cookware is specifically identified by the manufacturer for use with induction cooktops. Use a magnet to test if the cookware will work.
Flat-bottomed pans give best results. Pans with rims or slight ridges can be used.
Round pans give best results. Pans with warped or curved bottoms will not heat evenly.
For wok cooking, use a flat-bottomed wok. Do not use a wok with a support ring.

Choosing The Correct Cookware To Use (cont.)
Cookware recommendations
Cookware must fully contact the surface of the cooking element.
Use flat-bottomed pans sized to fit the cooking element and also to the amount of food being prepared.
Induction interface disks are NOT recommended.

INCORRECT	CORRECT

Cookware not centered on cooking element surface.	Cookware centered correctly on cooking element surface.

Curved or warped pan bottoms or sides.	Flat pan bottom.

Pan does not meet the minimum size required for the cooking element used.	Pan size meets or exceeds the recommended minimum size for the cooking element used.

Pan bottom rests on cooktop trim or does not rest completely on the cooktop surface.	Pan bottom rests completely on the cooktop surface.

Heavy handle tilts pan.	Pan is properly balanced.

Pan is partially magnetic on the bottom.	Pan is completely magnetic on the bottom.

Cleaning the Glass Cooktop

To maintain and protect the surface of your glass cooktop, follow these steps:

Before using the cooktop for the first time, clean it with a ceramic cooktop cleaner. This helps protect the top and makes cleanup easier.
Regular use of a ceramic cooktop cleaner will help keep the cooktop looking new.

Shake the cleaning cream well. Apply a few drops of a ceramic cooktop cleaner directly to the cooktop.
Use a paper towel or a non-scratch cleaning pad for ceramic cooktops to clean the entire cooktop surface.
Use a dry cloth or paper towel to remove all cleaning residue. No need to rinse.

NOTE: It is very important that you DO NOT heat the cooktop until it has been cleaned thoroughly.

Clean your cooktop after each spill. Use a ceramic cooktop cleaner.
For cleaning videos and instructions, scan the QR code with your device.

https://products.geappliances.com/appliance/gea-support-search-content?contentId=16244

Burned-On Residue
NOTE: DAMAGE to your glass surface may occur if you use scrub pads other than those recommended.

Allow the cooktop to cool.
Spread a few drops of a ceramic cooktop cleaner on the entire burned residue area.
Using a non-scratch cleaning pad for ceramic cooktops, rub the residue area, applying pressure as needed.

If any residue remains, repeat the steps listed above as needed.
For additional protection, after all residue has been removed, polish the entire surface with a ceramic cooktop cleaner and a paper towel.

Use a non-scratch cleaning pad for ceramic cooktops.

Heavy, Burned-On Residue

Allow the cooktop to cool.

Use a single-edge razor blade scraper at approximately a 45° angle against the glass surface and scrape the soil. It will be necessary to apply pressure to the razor scraper in order to remove the residue.
After scraping with the razor scraper, spread a few drops of a ceramic cooktop cleaner on the entire burned residue area. Use a non-scratch cleaning pad to remove any remaining residue.
For additional protection, after all residue has been removed, polish the entire surface with a ceramic cooktop cleaner and a paper towel.

The ceramic cooktop scraper and all recommended supplies are available through our Parts Center. See instructions under “Assistance / Accessories” section.
NOTE: Do not use a dull or nicked blade.

Metal Marks and Scratches

Be careful not to slide pots and pans across your cooktop. It will leave metal markings on the cooktop surface.
These marks are removable using a ceramic cooktop cleaner with a non-scratch cleaning pad for ceramic cooktops.
If pots with a thin overlay of aluminum or copper are allowed to boil dry, the overlay may leave black discoloration on the cooktop.
This should be removed immediately before heating again or the discoloration may be permanent.
NOTE: Carefully check the bottom of pans for roughness that would scratch the cooktop.
Be careful not to place aluminum baking sheets or aluminum frozen entrée containers on a hot cooktop surface. It will leave shiny dots or markings on the cooktop surface. These markings are permanent and cannot be cleaned off.

Damage from Sugary Spills and Melted Plastic
Special care should be taken when removing hot substances to avoid permanent damage of the glass surface. Sugary spillovers (such as jellies, fudge, candy, syrups) or melted plastics can cause pitting of the surface of your cooktop (not covered by the warranty) unless the spill is removed while still hot. Special care should be taken when removing hot substances.
Be sure to use a new, sharp razor scraper.
Do not use a dull or nicked blade.

Turn off all surface units. Remove hot pans.
Wearing an oven mitt:
a. Use a single-edge razor blade scraper to move the spill to a cool area on the cooktop.
b. Remove the spill with paper towels.

Any remaining spillover should be left until the surface of the cooktop has cooled.
Don’t use the surface units again until all of the residue has been completely removed.
NOTE: If pitting or indentation in the glass surface has already occurred, the cooktop glass will have to be replaced. In this case, service will be necessary.

Troubleshooting Tips

Before you call for service
Save time and money! Review the charts on the following pages first and you may not need to call for service. If an error occurs in the control operation, a fault code will flash in the display. Record the error code and call for service. Check out self-help videos and FAQ at GEAppliances.com/support.

Problem	Possible Cause	What To Do
Surface elements will not maintain a rolling boil or cooking is slow	Improper cookware being used.	Use pans that are recommended for induction, have flat bottoms and match the size of the surface element.
Surface elements do not work properly	Cooktop controls improperly set.	Check to be sure the correct control is set for the surface element you are using.
Power arc ON indicator blinking	Wrong pan type.	Use a magnet to check that cookware is induction compatible.
	Pan is too small.	Blinking “ON” indicator — pan size is below the minimum size for the element. See the Using the correct size cookware section.
	Pan not positioned correctly.	Center the pan in the cooking ring.
	+, -, or control lock pads have been touched before an element is turned on.	See the Operating the Cooking Elements section.
Scratches on cooktop glass surface	Incorrect cleaning methods being used.	Use recommended cleaning procedures. See the Cleaning the glass cooktop section.
Scratches on cooktop glass surface	Cookware with rough bottoms being used or coarse particles (salt or sand) were between the cookware and the surface of the cooktop. Cookware has been slid across the cooktop surface.	To avoid scratches, use the recommended cleaning procedures. Make sure bottoms of cookware are clean before use, and use cookware with smooth bottoms.
Areas of discoloration on the cooktop	Food spillovers not cleaned before next use.	See the Cleaning the glass cooktop section.
Areas of discoloration on the cooktop	Hot surface on a model with a light-colored glass cooktop.	This is normal. The surface may appear discolored when it is hot. This is temporary and will disappear as the glass cools.
Plastic melted to the surface	Hot cooktop came into contact with plastic placed on the hot cooktop.	See the Glass surface – potential for permanent damage section in the Cleaning the glass cooktop section.
Pitting (or indentation) of the cooktop	Hot sugar mixture spilled on the cooktop.	Call a qualified technician for replacement.
Unresponsive keypad	Keypad is dirty.	Clean the keypad.
	A fuse in your home may be blown or the circuit breaker tripped.	Replace the fuse or reset the circuit breaker.
	Object. such as utensil or debris, is on the control interface.	Remove object from control interface.
	Liquid is on the control interface.	Wipe control interface to remove liquid.
Pan detection/sizing not working properly	Improper cookware being used.	Use a flat induction capable pan that meets the minimum size for the element being used. See the Using The Correct Size Cookware section.
	Pan is improperly placed.	Make sure the pan is centered on the corresponding surface element.
	Cooktop control improperly set.	Check to see that the control is set properly.
Noise	Sounds you may hear: Buzzing, whistling and humming.	These sounds are normal. See Cooking Noise section.

Problem	Possible Cause	What To Do
Precision Cooking button beeps error tone when pressed one time	There is no precision cooking device paired, so you are unable to start a precision cooking mode.	Connect a precision cooking device.
Pan won’t pair or activate when tapping handle	Tapping force is too light.	Double tap the pan with firm taps (or knock) on the black plastic endcap.
	Battery in pan is low or dead.	Replace AM battery, installing with positive end out of handle.
	Using different pan hardware.	Check that your pan has a black endcap that unscrews from the end of the handle. Pans with an oval module reading “Hestan Cue” will not work with GEA appliances.
Experiencing performance or minor technical issues including seeing 20°F or 100°F as set temperature	Old unit or pan software.	Connect your unit to the SmartHQ app and update unit software. Connect your unit and pan to the Hestan Smart Cooking app and update pan software.
The unit cancelled my precision cooking mode	Battery in device is low or dead.	Replace AM battery in pan, or charge probe.
	Old unit or pan software.	Connect your unit to the SmartHQ app and update unit software. Connect your unit and pan to the Hestan Smart Cooking app and update pan software.
	Your precision cooking device has gone out of range.	This could indicate a problem with the device. If the problem persists, please contact the device manufacturer.
	Your precision cooking device had a computation malfunction.
	The unit lost communication with your precision cooking device.	This could indicate a problem with the device or the unit. If the problem persists, please contact the device or unit manufacturer.
	Some cooking techniques and set temperatures in combination may trigger a fault in the temperature sensing algorithm.	Re-start the precision cooking mode and if problem persists under the same conditions but is not consistent in other use cases, contact the unit manufacturer.
Unable to reach set temperature in Precision Cooking Mode	Boiling water or cooking liquid based foods at high temperatures will result in temperature stalls close to the set temperature.	Use temperature settings for pan frying, sautéing, and searing when using Hestan Cue cookware or built-in conventional Precision Cooktop Sensor. The Precision Cooking Probe accessory can be used to control liquid temperatures between 100-200° F for slow cooking, simmering, and advanced cooking techniques like Sous Vide.

LIMITED W ARRANTY

GE Appliances Electric Cooktop Limited Warranty

GEAppliances.com
All warranty service is provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service online, visit us at GEAppliances.com/service, or call GE Appliances at 800.GE.CARES (800.432.2737). Please have your serial number and your model number available when calling for service.
In Canada, 800.561.3344 or visit geappliances.ca/after-sales-support.
Servicing your appliance may require the use of the onboard data port for diagnostics. This gives a GE Appliances factory service technician the ability to quickly diagnose any issues with your appliance and helps GE Appliances improve its products by providing GE Appliances with information on your appliance. If you do not want your appliance data to be sent to GE Appliances, please advise your technician not to submit the data to GE Appliances at the time of service.

For the period of	GE Appliances will replace
One year From the date of the original purchase	Any part of the cooktop which fails due to a defect in materials or workmanship. During this limited one-year warranty, GE Appliances will provide, free of charge, all labor and in-home service to replace the defective part.

What GE Appliances will not cover:
■ Service trips to your home to teach you how to use the product.
■ Improper installation, delivery or maintenance.
■ Failure of the product if it is abused, misused, modified or used for other than the intended purpose or used commercially.
■ Replacement of house fuses or resetting of circuit breakers.
■ Damage to the product caused by accident, fire, floods or acts of God.
■ Incidental or consequential damage caused by possible defects with this appliance.
■ Damage caused after delivery.
■ Product not accessible to provide required service.
■ Service to repair or replace light bulbs, except for LED lamps.
■ Effective January 1, 2022, cosmetic damage to the glass cooktop such as, but not limited to, chips, scratches, or baked on residue not reported within 90 days of installation.
■ Effective January 1, 2022, damage to the glass cooktop due to impact or misuse. See example.

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty .

EXCLUSION OF IMPLIED WARRANTIES
Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.
This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Appliances Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Appliances Service location for service. In Alaska, the limited warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
In Canada: This warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location. Some provinces do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from province to province. To know what your legal rights are, consult your local or provincial consumer affairs office.
Warrantor: GE Appliances, a Haier company
Louisville, KY 40225
Warrantor in Canada: MC Commercial
Burlington, ON, L7R 5B6
Extended Warranties: Purchase a GE Appliances extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it online anytime at GEAppliances.com/extended-warranty
or call 800.626.2224 during normal business hours. GE Appliances Service will still be there after your warranty expires. In Canada: contact your local extended warranty provider.

Accessories

Looking For Something More?
GE Appliances offers a variety of accessories to improve your cooking and maintenance experiences!
Refer to the Consumer Support page for phone numbers and website information.
The following products and more are available:
Parts
Griddle
Stainless Steel Cleaner and Polisher

CONSUMER SUPPORT

GE Appliances Website
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! You can also shop for more great GE Appliances products and take advantage of all our on-line support services designed for your convenience.
In the US: GEAppliances.com
In Canada: GEAppliances.ca
Register Your Appliance
Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.
In the US: GEAppliances.com/register
In Canada: Prodsupport.mabe.ca/crm/Products/ProductRegistration.aspx
Schedule Service
Expert GE Appliances repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year.
In the US: GEAppliances.com/service or call 800.432.2737 during normal business hours.
In Canada: GEAppliances.ca/en/support/service-request or call 800.561.3344
Extended Warranties
Purchase a GE Appliances extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime. GE Appliances Services will still be there after your warranty expires.
In the US: GEAppliances.com/extended-warranty or call 800.626.2224 during normal business hours.
In Canada: GEAppliances.ca/en/support/purchase-extended-warranty or call 800.290.9029
Remote Connectivity
For assistance with wireless network connectivity (for models with remote enable), visit our website at GEAppliances.com/connect or call 800.220.6899
In Canada: GEAppliances.ca/connect or call 800.220.6899
Parts and Accessories
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes
(VISA, MasterCard and Discover cards are accepted). Order on-line today 24 hours every day. In the US: GEApplianceparts.com or by phone at 877.959.8688 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.
Customers in Canada should consult the yellow pages for the nearest Mabe service center, visit our website at GEAppliances.ca/en/products/parts-filters-accessories or call 800.661.1616.
Contact Us
If you are not satisfied with the service you receive from GE Appliances, contact us on our Website with all the details including your phone number, or write to:
In the US: General Manager, Customer Relations | GE Appliances, Appliance Park | Louisville, KY 40225 GEAppliances.com/contact
In Canada: Director, Consumer Relations, Mabe Canada Inc. | Suite 310, 1 Factory Lane | Moncton, N.B. E1C 9M3 GEAppliances.ca/en/contact-us

49-2001135

Documents / Resources

GE APPLIANCES PHP7030 36 Inch Built In Touch Control Induction Cooktop [pdf] Owner's Manual
PHP7030, PHP7036, PHP9030, PHP9036, PHP7030 36 Inch Built In Touch Control Induction Cooktop, PHP7030, 36 Inch Built In Touch Control Induction Cooktop, Built In Touch Control Induction Cooktop, Touch Control Induction Cooktop, Control Induction Cooktop, Induction Cooktop, Cooktop

References

User Manual
