1. Ro-ràdh
Thank you for choosing the Ledvion Rechargeable USB Wall Light with Motion Sensor. This manual provides important information regarding the safe installation, operation, and maintenance of your new wall light. Please read it thoroughly before use and retain it for future reference.
Fiosrachadh Sàbhailteachd
- Dèan cinnteach gu bheil an toradh air a chuir a-steach air uachdar seasmhach.
- Na nochd an toradh gu teòthachd anabarrach no solas dìreach airson amannan fada.
- Cùm air falbh bho chloinn.
- Do not attempt to disassemble or modify the light. This will void the warranty.
- Cleachd an càball cosgais USB a tha air a thoirt seachad no fear co-ionann le teisteanas a-mhàin.
- Cuir às do bhataraidhean gu ciallach a rèir riaghailtean ionadail.
2. Toradh thallview
The Ledvion Rechargeable USB Wall Light is designed for versatile use, both indoors and outdoors, thanks to its IP44 rating. It features a motion sensor for automatic illumination and a powerful rechargeable battery for wireless operation.
Prìomh fheartan:
- Wireless and rechargeable via USB-C.
- IP44 certified, suitable for outdoor and bathroom use.
- Warm white light (2700 Kelvin) with 170 lumens brightness.
- 4400 mAh rechargeable battery, providing up to 18 hours of operation.
- Motion sensor detects movement up to 6 meters.
- Easy installation without mains connection.
Dè th' anns a' Bhocsa
Figear 2.1: Packaging contents including the LED cube, mounting bracket, USB cable, screws, wall plugs, and user manual.
- 1x LED Wall Light Unit
- Brac sreap 1x
- Càball Cìsean 1x USB
- 2x sgriothan
- 2x Plugaichean Balla Sgriubha
- 1x Leabhar-làimhe Cleachdaiche
3. Setup agus Stàladh
The Ledvion wall light is designed for easy, wireless installation. No electrical wiring is required.
- Tagh Àite: Select a suitable location on a wall, ensuring it is clean and dry. For optimal motion sensor performance, consider the area of detection (up to 6 meters).
- Comharraich Puingean Drileadh: Hold the mounting bracket against the wall at your desired installation height. Use a pencil to mark the positions for the two screw holes.
- tuill drile: Drile dà tholl anns na h-àiteachan comharraichte. Cuir na plugaichean balla a tha air an toirt seachad a-steach do na tuill drile.
- Ceangail Bracaid Sreapachaidh: Align the mounting bracket with the wall plugs and secure it to the wall using the provided screws. Ensure the bracket is firmly attached.
- Mount the Light: The wall light unit attaches to the mounting bracket via strong magnetic attraction. Simply place the light unit onto the secured bracket.
Figear 3.1: Installation steps for the Ledvion wall light.
4. Obrachadh
The Ledvion wall light features a day-night sensor and a motion sensor to optimize energy usage and provide light when needed.
Modhan-obrachaidh:
The light offers several operating modes, selectable via a switch located on the unit (refer to Figure 4.1 for switch location).
Figear 4.1: Operating modes and sensor location.
| Modh | Tuairisgeul | Toradh Lumen |
|---|---|---|
| 1. 100% | Full brightness upon motion detection in low light conditions. | 170 Lumen |
| 2. 20% | Reduced brightness upon motion detection in low light conditions. | 34 Lumen |
| 3. Seasmhach | Continuous low-level illumination in low light conditions, regardless of motion. | 34 Lumen |
| 4. Air falbh | Tha an solas air a chuir dheth. | 0 Lumen |
The motion sensor has a detection range of up to 6 meters. The day-night sensor ensures the light only activates in low light conditions, conserving battery life.
5. A 'cur cosgais
The Ledvion wall light is equipped with a 4400 mAh rechargeable battery. To charge the device:
- Locate the USB-C charging port on the side of the light unit.
- Connect the provided USB charging cable to the light's USB-C port.
- Connect the other end of the USB cable to a standard USB power adapter (not included) or a powered USB port.
- A charging indicator light (if present) will show the charging status.
- Bheir cosgais iomlan timcheall air 6.5 uairean.
- Once fully charged, the light can operate for up to 18 hours, depending on the selected mode and frequency of motion detection.

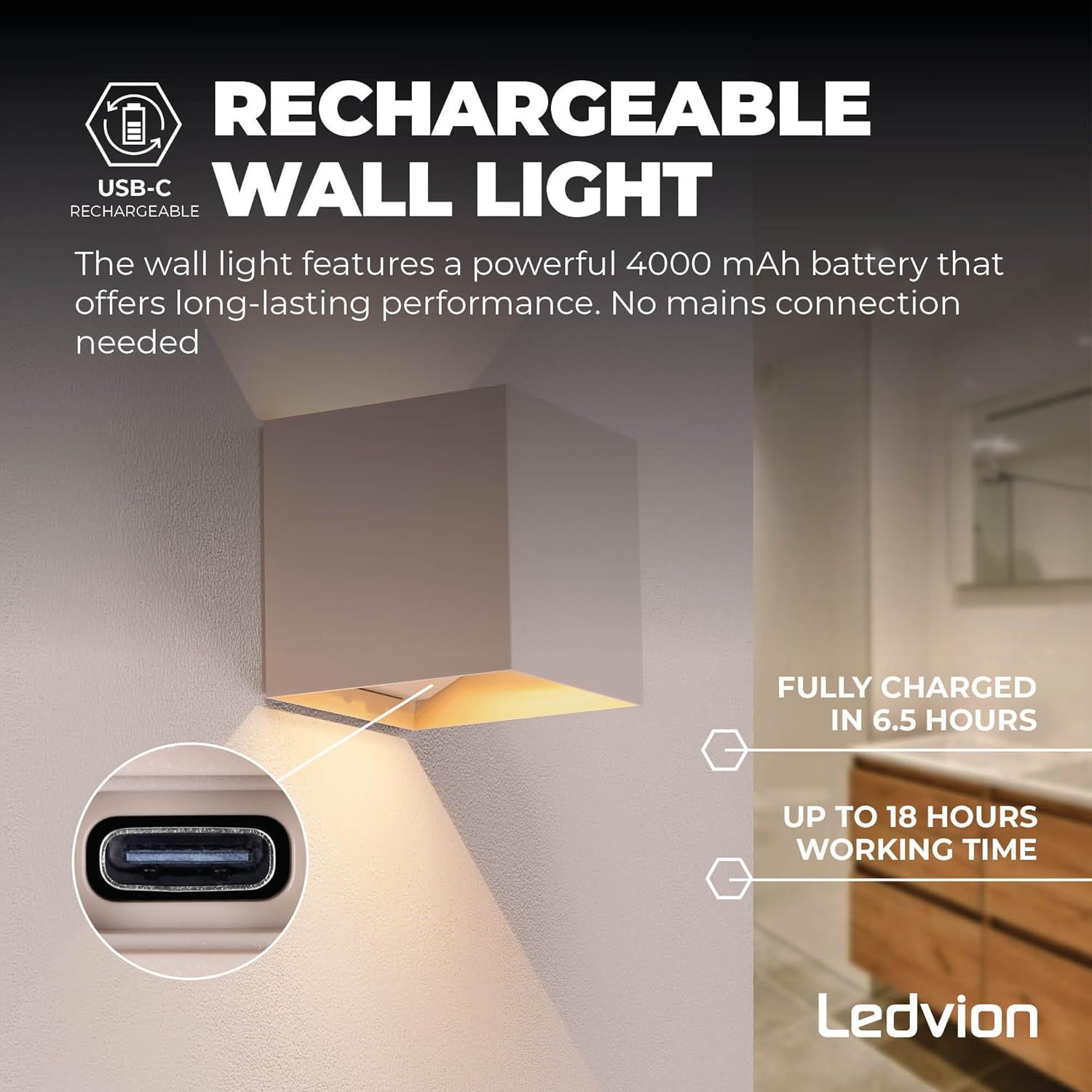

Figear 5.1: USB-C charging port and battery performance details.
6. Cumail suas
To ensure the longevity and optimal performance of your Ledvion wall light, follow these maintenance guidelines:
- Glanadh: The light has an IP44 rating, making it dust- and splash-proof. Clean the exterior with a soft, damp aodach. Na cleachd luchd-glanaidh sgudail no solventan.
- Sgrùdadh: Periodically check the mounting for security.
- Cùram Bataraidh: For best battery life, avoid fully discharging the battery frequently. Charge the light regularly, especially if stored for extended periods.
Figear 6.1: IP44 rating for water and dust resistance.
7. A ’dèanamh trioblaid
Ma thachras tu ri duilgheadasan leis an t-solas balla Ledvion agad, thoir sùil air na duilgheadasan agus na fuasglaidhean cumanta a leanas:
| Trioblaid | Adhbhar a dh’fhaodadh a bhith ann | Fuasgladh |
|---|---|---|
| Cha bhith solas a ’tionndadh. | Tha bataraidh air ìsleachadh. Modh ceàrr air a thaghadh. Ambient light is too high (day-night sensor). | Cuir cosgais air a’ bhataraidh airson 6.5 uairean. Check the mode switch. Dèan deuchainn ann an àrainneachd nas dorcha. |
| Chan eil an sensor gluasaid a’ lorg gluasad. | Bacadh ann an slighe lorg. Sensor sensitivity issue. Light is in "Off" or "Steady" mode. | Ensure clear line of sight for the sensor. Ensure the light is in 100% or 20% motion-activated mode. |
| Light turns on unexpectedly or stays on. | Sensor triggered by environmental factors (e.g., moving branches, pets). Light is in "Steady" mode. | Adjust mounting location or angle. Check the mode switch and select a motion-activated mode if desired. |
| Tha beatha bataraidh nas giorra na bha dùil. | Frequent motion detection. Operating in 100% brightness mode. Crìonadh bataraidh thar ùine. | Consider using 20% brightness mode. Dèan cinnteach gu bheil làn chosgais ann mus cleachd thu e. |
Ma mhaireas an duilgheadas an dèidh dhut na fuasglaidhean seo fheuchainn, cuir fios gu taic luchd-cleachdaidh Ledvion.
8. Sònrachaidhean
| Feart | Mion-fhiosrachadh |
|---|---|
| Modail Àireamh | LVO10114_1 |
| Brand | Ledvion |
| Meudan (L x W x H) | 11 x 11 x 11 cm (100 x 100 x 103 mm) |
| Cuideam | 620 gram |
| Stuth | Aluminium |
| Teòthachd dath | 2700 Kelvin (Warm White) |
| Luminous Flux | 170 lumens (as àirde) |
| Cumhachd | 5 watt |
| Comas Bataraidh | 4400 mAh |
| Ùine cosgais | Mu thuairmeas. 6.5 uairean |
| Uair Obrachaidh | Suas ri 18 uairean (a rèir modh) |
| Ìre Dìon Ingress (IP). | IP44 (Dìon-duslach is frasadh) |
| Raon mothachaidh gluasad | Suas gu 6 meatair |
| Seòrsa stàlaidh | Balla-suidheachaidh, gun uèir |
Figear 8.1: Meudan toraidh.
9. Barantas agus Taic
Ledvion products are manufactured to high-quality standards. This product comes with a manufacturer's warranty. Please refer to the packaging or contact your retailer for specific warranty terms and conditions.
Cudromach: Any changes or modifications made to the product will void the warranty.
For technical support, troubleshooting assistance, or warranty claims, please contact Ledvion customer service through their official weblàrach-lìn no an neach-reic bhon do cheannaich thu an toradh.
Cùm do chuidhteas ceannach mar dhearbhadh ceannach airson adhbharan barantais.
