709-2P Wiring Diagram
709-2P SeeLevel II 2 Tank Monitoring System
WARNING: All power circuits must be fused.
If a fuse is not provided with the system then it is the installer’s responsibility to install a fuse with the maximum rating of 7.5 amps. A relay is required if more than 7.5 amps needed for the pump.

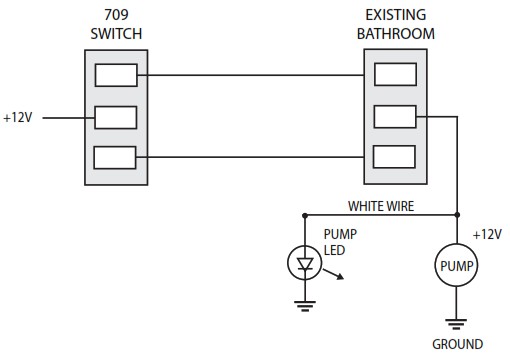

3-WAY SWITCH WIRING DIAGRAM
