Python Support for FTDI Products Software User Guide

Introduction

Python is commonly used for software development, task automation, data analysis, etc. Since it is relatively easy to learn its popularity is increasing.
This Technical Note shows ways in which Python programming can be used by FTDI products which rely on FTDI’s standard VCP Driver or D2xx Driver.
There are also many third-party python libraries appearing and these are listed here too.
Python support is also available for FT600/1 ICs which use the D3xx driver but is not covered in this document. Please see the product pages for these ICs for more information.

What is Python programming?

Python is becoming a very popular programming language.
It can be used for rapid prototyping, or for production-ready software development.
It works on different platforms (e.g., Windows, MacOS, Linux, etc.) and has a simple syntax like the English language. This syntax allows developers to write programs with fewer lines than some other programming languages.
Python runs on an interpreter system, meaning that code can be executed as soon as it is written which means that prototyping can be very quick.
There are lots of resources online available for Python with this being the main website: https://www.python.org/

Python Driver Support

This section details how to use FTDI’s VCP and D2xx driver with Python programming.

VCP

This section has a simple example to open a COM port using the VCP driver, display the COM port opened to the screen and then send and receive a few characters to the open port and display those on the screen. The output from the code is shown below. Note that an FTDI cable with TX to RX loopback was used for the simple test.

The code listing is found in Appendix C – Serialtest.py.
To run this code, you will need to install the pyserial library. You can do this by running the following command in your terminal:
pip install pyserial

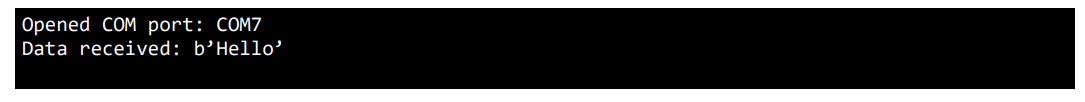

Once the pyserial library is installed, you can run the code by saving it as a .py file and then running the following command in your terminal:
your_filename.py

D2xx

This section has two simple examples which use basic D2xx APIs.

• Get COM Port Number
•  Get Device Info Detail

Refer to the D2XX Programmer’s Guide for more information on these APIs.

Get COM Port Numbe

This simple example loads the d2xx library, opens the first FTDI device found, finds the COM Port
number using FT_GetComPortNumber and then closes it.
The code listing is found in Appendix D– GetComPortNumber.py.

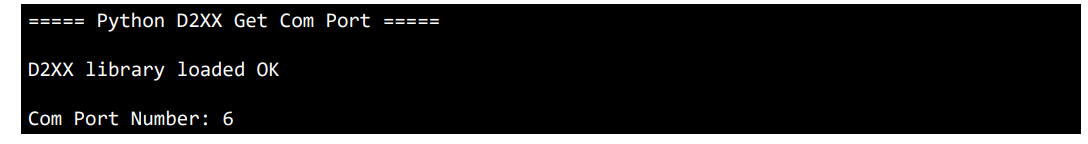

When executed the output looks like this:

Get Device Info Detail
This simple example loads the d2xx library and uses FT_Create Device Info List and FT_Get Device Info Detail to get the FTDI device details and lists them.
The code listing is found in Appendix E – GetDeviceInfoDetail.py.
When executed the output looks like this:

Third-Party Python Examples

There are many third-party libraries and examples appearing as the programming language popularity expands, some are listed here but more may be found.

PyUSB

PyUSB provides easy access to the host machine’s Universal Serial Bus (USB) system for Python 3.
PyUSB is an API rich, backend neutral Python USB module easy to use. https://pyusb.github.io/pyusb/

pylibftdi

Please note that this uses libftdi which is not an FTDI supported driver however can be used to control FTDI devices.
pylibftdi is a minimal Pythonic interface to FTDI devices. https://pypi.org/project/pylibftdi/

PyFtdi

PyFtdi aims at providing a user-space driver for popular FTDI devices, implemented in pure Python language.
https://pypi.org/project/pyftdi/

Adafruit

Adafruit has created a guide to show how to use an FT232H to connect to I2C and SPI sensors and breakouts from your desktop PC running Windows, Mac OSX, or Linux.
https://learn.adafruit.com/circuitpython-on-any-computer-with-ft232h

ftdi-python

This example demonstrates a step-by-step approach to driving FTDI ICs from Python to learn about their functionality.
https://iosoft.blog/ftdi-python/

ftd2xx ctypes Wrapper

ftd2xx is a simple python wrapper around the D2XX DLL from FTDI using ctypes. https://pypi.org/project/ftd2xx/

python-ft4222

This example provides python binding to LibFT4222 which must be used with FT4222H IC and provides a similar API to LibFT4222. https://pypi.org/project/ft4222/

Conclusion

This Technical Note shows how to use Python programming with FTDI products with the VCP and D2xx driver and has listed some third-party examples.
