Pic Solution Thermoeasy Infrared Forehead Thermometer

Introduction

The Pic Solution Thermoeasy is a contact infrared forehead thermometer designed for quick and convenient fever measurement. Developed with the DLS (Design Language Solution) philosophy, it prioritizes simplicity and ease of use. This manual provides essential information for the correct operation and maintenance of your device.

This device is a CE 1639 Medical Device (Italian Ministry of Health, 2021). Please read the instructions for use carefully.

Consignes de sécurité

• Always read the instructions carefully before first use.
• This thermometer is intended for measuring human body temperature on the forehead. Do not use it for other purposes.
• Gardez l’appareil hors de portée des enfants.
• N’exposez pas le thermomètre à la lumière directe du soleil, aux températures extrêmes ou à une forte humidité.
• Évitez de faire tomber l'appareil ou de le soumettre à des chocs violents.
• N’essayez pas de démonter ou de réparer vous-même le thermomètre. Contactez un technicien qualifié.
• If the device is stored in a cold or hot environment, allow it to acclimatize to room temperature for at least 30 minutes before use to ensure accurate readings.

Contenu du colis

• Pic Solution Thermoeasy Infrared Forehead Thermometer
• Practical carrying bag
• Manuel d'instructions
• 1 pile CR2 (incluse)

Caractéristiques du produit

• Infrared forehead thermometer for contact measurement.
• Fast measurement: Provides accurate temperature in 5 seconds.
• Simple operation with only two buttons.
• Grand écran pour une lecture facile.
• Integrated sensor protection to prevent damage.
• Audible beep upon measurement completion.
• Fever alarm: Emits a distinct beep if temperature exceeds 37.5°C (99.5°F).

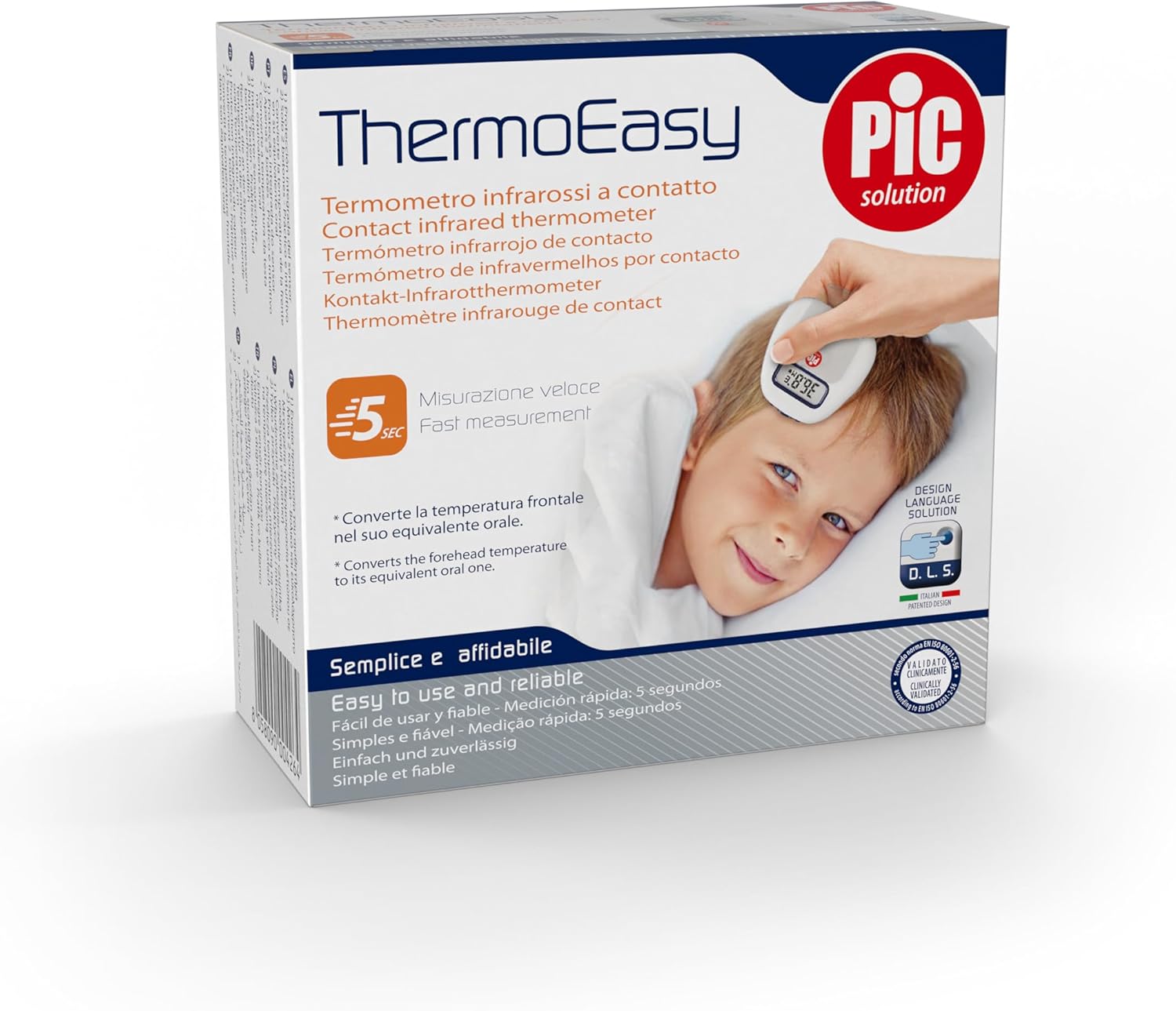

Image: The Pic Solution Thermoeasy thermometer in its retail packaging, illustrating its use on a child's forehead.

Installation

1. Unpack the Thermometer: Carefully remove the thermometer and all accessories from the packaging.
2. Insérer la batterie : The thermometer comes with a CR2 battery. Ensure it is correctly inserted according to the polarity markings in the battery compartment.
3. Acclimatation: If the thermometer has been stored in an environment with a significantly different temperature, allow it to rest at room temperature (approximately 15-35°C or 59-95°F) for at least 30 minutes before use. This ensures accurate readings.

Mode d'emploi

Taking a Forehead Temperature Measurement

1. Mise sous tension : Press the power button (usually the main measurement button) to turn on the thermometer. The display will show the last measurement or a standby indicator.
2. Positionnement : Gently place the sensor of the thermometer on the center of the forehead. Ensure good contact with the skin.
3. Commencer la mesure : Press the measurement button. Hold the thermometer steady during the measurement.
4. Résultat de la lecture : After approximately 5 seconds, the thermometer will emit a beep, and the temperature reading will be displayed on the large screen.
5. Alerte fièvre : If the measured temperature is 37.5°C (99.5°F) or higher, the thermometer will emit a specific fever alarm sound.
6. Éteindre: The thermometer will automatically turn off after a period of inactivity to conserve battery life. You can also manually turn it off by pressing and holding the power button.

Image : Un gros plan view of the Thermoeasy thermometer's digital display, showing a temperature of 36.7°C.

Basculer entre Celsius et Fahrenheit

Refer to the specific instructions in your included manual for changing temperature units, as this often involves a combination of button presses during power-on or a dedicated button. If not explicitly stated, it may not be a user-adjustable feature.

Entretien et nettoyage

• Nettoyage du thermomètre : After each use, especially if used on multiple individuals, clean the sensor and the body of the thermometer with a soft cloth lightly dampened with alcohol (70% ethanol) or an antiseptic wipe.
• Ne pas immerger : Never immerse the thermometer in water or any other liquid.
• Stockage: Store the thermometer in its practical carrying bag in a dry, clean place, away from direct sunlight and extreme temperatures.
• Remplacement de la batterie : When the low battery indicator appears on the display, replace the CR2 battery with a new one. Dispose of used batteries according to local regulations.
• Protection du capteur : The integrated sensor protection helps prevent damage to the most sensitive part of the thermometer. Keep this protection clean and free from scratches.

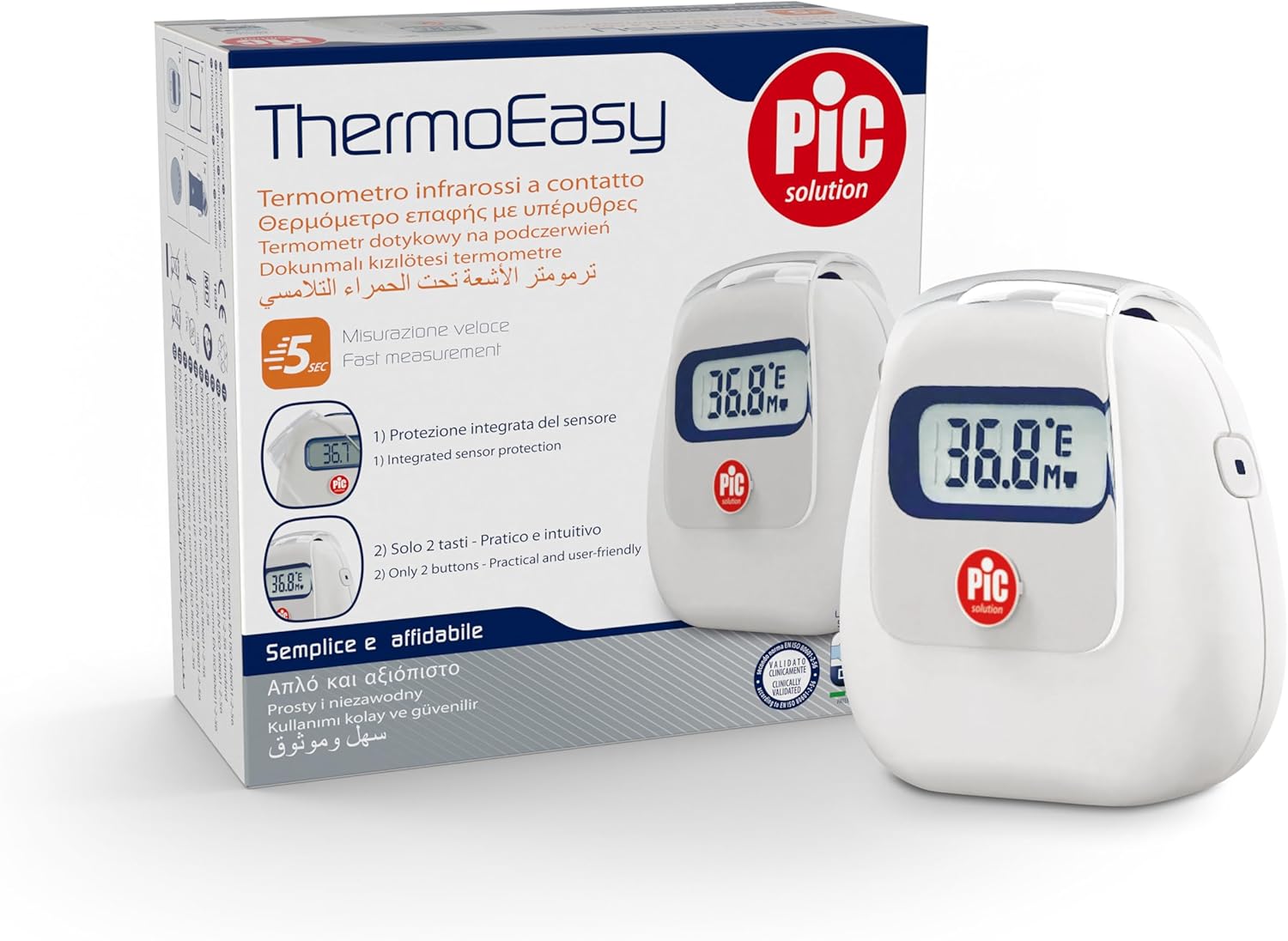

Image: The Thermoeasy thermometer with its integrated sensor protection, highlighting its design.

Dépannage

If problems persist after attempting these solutions, please contact Pic Solution customer support.

Caractéristiques

• Nom du produit: Pic Solution Thermoeasy Infrared Forehead Thermometer
• Numéro de modèle : 02023033000000
• Type de mesure: Contact Infrared
• Site de mesure : Front
• Temps de mesure: Environ 5 secondes
• Type d'affichage : Numérique
• Source d'alimentation : 1 pile CR2 (incluse)
• Tranche d'âge : Adulte et enfant
• Dimensions (L x l x H) : 11 x 4.9 x 11.1 cm (4.33 x 1.93 x 4.37 pouces)
• Poids: 30 grammes (1.06 onces)
• Matériel: Silicone (extérieur)
• Dossier spécial : Grand écran
• Couleur: Blanc
• Pays d'origine : Italie

Garantie et assistance

For warranty information and customer support, please refer to the documentation included in your product package or visit the official Pic Solution webConsultez le site. Conservez votre reçu d'achat comme preuve d'achat pour toute réclamation au titre de la garantie.

Fabricant: Pikdare S.p.A.

Support en ligne: Visit the Pic Solution Store on Amazon
