The TEKTON 3/8 Inch Drive x T30 Torx Bit Socket (SHB14230) is engineered for precision and durability. Its S2 steel bit is press-fit into the socket, ensuring a straight and permanent connection that resists loosening over time. The star-shaped Torx® bit features 6-lobes machined to precise tolerances, providing an exact, high-torque fit that prevents camming out during use. This tool is designed for reliable performance in various applications requiring Torx fasteners.
Image: The TEKTON 3/8 Inch Drive x T30 Torx Bit Socket, showcasing its polished chrome finish and the T30 Torx bit.
Caractéristiques principales
- S2 Steel Bit: The bit is made from S2 steel and press-fit into the socket, creating a straight, permanent connection that will not loosen over time.
- Precision Torx Bit: The star-shaped Torx bit features 6-lobes machined to precise tolerances, ensuring an exact, high-torque fit that resists camming out.
- Clear Size Markings: Large, clear die-stamped size markings are easy to read and are designed not to wear off.
- Secure Drive Tool Connection: Four detent grooves provide a secure connection with the drive tool, and a drilled through-hole allows for locking with a retaining pin.
- Corrosion Resistant Finish: The polished, chrome-plated finish is easy to clean and highly resistant to corrosion.
- Easy Fastener Engagement: A beveled inner rim of the socket opening helps guide it smoothly onto fasteners.

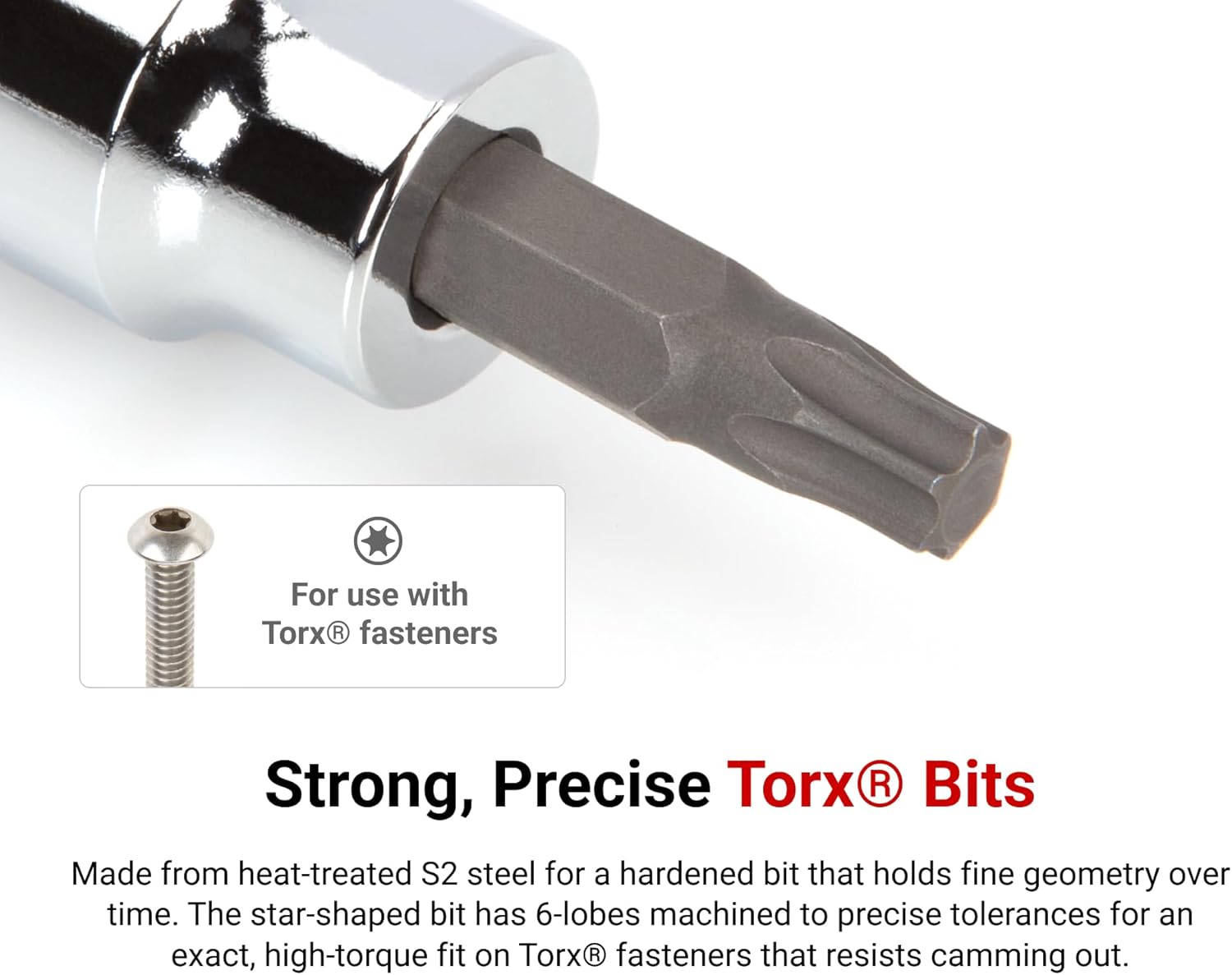

Image: Close-up of the Torx bit, highlighting its precise machining for strong engagement with fasteners.
Image: A hand holding the socket, showing the large, clearly stamped size markings for easy identification.
Image: Diagram illustrating the press-fit connection of the bit into the socket, ensuring a straight and permanent bond.
Image: The socket engaging with a drive tool, demonstrating the secure fit provided by the detent grooves.
Installation
The TEKTON Torx Bit Socket is designed for use with a 3/8 inch drive ratchet, breaker bar, or other compatible drive tools.
- Select Drive Tool: Choose a 3/8 inch drive ratchet or appropriate drive tool for your task.
- Fixer la prise : Align the square drive end of the socket with the drive tang of your tool. Push the socket firmly onto the tool until it clicks into place, ensuring the detent ball on the drive tool engages with the socket's detent groove for a secure connection.
- Vérifiez la connexion : Gently pull on the socket to confirm it is securely attached to the drive tool before use.
Mode d'emploi
This Torx bit socket is used for tightening or loosening fasteners with a T30 Torx head.
- Identifier la fixation : Ensure the fastener you are working with is a T30 Torx head. Using the incorrect size can damage both the fastener and the bit.
- Positionner la douille : Place the Torx bit end of the socket squarely into the head of the fastener. Ensure the bit is fully seated to prevent stripping.
- Appliquer le couple : Using your attached drive tool, apply steady and controlled torque to tighten or loosen the fastener. Avoid sudden jerking motions, which can damage the tool or fastener.
- Retirer la prise : Une fois la tâche terminée, retirez soigneusement la douille de la fixation puis de l'outil d'entraînement.
Entretien
Proper maintenance will extend the life of your TEKTON Torx Bit Socket.
- Nettoyage: After each use, wipe the socket clean with a dry cloth to remove dirt, grease, and debris. For stubborn grime, a mild degreaser can be used, followed by thorough drying.
- Lubrification: While not typically required for the bit itself, a light coat of rust-preventative oil can be applied to the chrome-plated socket body if storing in a humid environment.
- Stockage: Store the socket in a dry, clean environment, preferably in a tool tray or box, to protect it from moisture and physical damage.
- Inspection: Periodically inspect the bit for signs of wear, rounding, or damage. Inspect the socket body for cracks or deformation. Discontinue use if significant wear or damage is observed.
Dépannage
While the TEKTON Torx Bit Socket is a robust tool, minor issues can sometimes arise.
| Problème | Cause possible | Solution |
|---|---|---|
| Bit slips or cams out of fastener head. | Incorrect bit size; Bit not fully seated; Worn fastener head; Excessive or angled force. | Ensure correct T30 size; Fully seat bit into fastener; Replace worn fasteners; Apply straight, steady force. |
| Socket does not attach securely to drive tool. | Detent ball on drive tool not engaging; Debris in socket drive end. | Push firmly until detent engages; Clean inside of socket drive end and drive tool tang. |
| Bit appears worn or rounded. | Normal wear over time; Over-torquing; Using on damaged fasteners. | Replace the socket if significantly worn; Use appropriate torque; Avoid using on severely damaged fasteners. |
Caractéristiques
| Attribut | Détail |
|---|---|
| Marque | TEKTON |
| Numéro de modèle | SHB14230 |
| Taille du lecteur | 3/8 pouces |
| Type de bit | Torx T30 |
| Matériel | Alloy Steel (S2 Steel Bit) |
| Type de finition | Chrome poli |
| Longueur totale | 1.9 pouces |
| Diamètre de l'arbre | 0.25 pouces |
| Diamètre de l'extrémité d'entraînement | 0.70 pouces |
| Exposed Bit Length | 0.8 pouces |
| Poids de l'article | 0.01 onces |
| Code UPC | 020209024621 |
Image: Technical drawing showing the dimensions of the TEKTON 3/8 Inch Drive x T30 Torx Bit Socket.
Garantie et assistance
TEKTON stands behind the quality of its products. This product is covered by TEKTON's warranty policy.
Description de la garantie : No time limits, no receipts. For full details on the warranty policy and to make a claim, please visit the official TEKTON website.
Pour obtenir de l'aide supplémentaire, des informations sur les produits ou pour view other TEKTON tools, please visit the Boutique TEKTON sur Amazon or the official TEKTON website.
