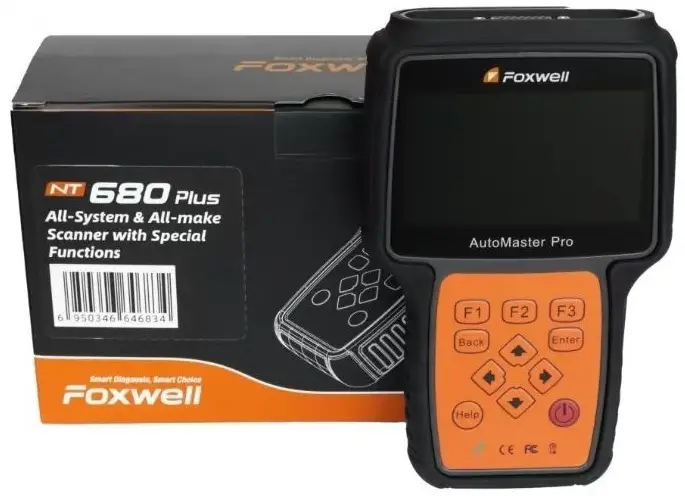

Foxwell NT680PLUS System Make Scanner with Special Functions User Guide

Safety Information:
- For your safety and the safety of others, and to prevent damage to the equipment and vehicles, read this manual thoroughly before operating your scanner. Always refer to and follow safety messages and test procedures provided by vehicle manufacturer.
Safety Message Conventions Used:
- Danger: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury to the operator or to bystanders.
- Warning: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury to the operator or to bystanders.
- Caution: Indicates a potentially hazardous situation which, if not avoided, may result in moderate or minor injury to the operator or to bystanders.
Important Safety Instructions:
- Always use your scanner as described in the user’s manual.
- Do not route the test cable in a manner that would interfere with driving controls.
- Do not exceed voltage limits between inputs specified in this user’s manual.
- Always wear ANSI approved goggles to protect your eyes from propelled objects as well as hot surfaces.

FAQs

Q: What should I do if my product fails to operate under normal use during the warranty period?
- A: If your product fails to operate under normal use during the warranty period due to defects in materials and workmanship, contact FOXWELL for repair or replacement services as covered by the warranty terms.

Q: Who bears the shipping costs for sending the product to FOXWELL for service?
- A: The customer shall bear the cost of shipping the product to FOXWELL for service under the limited warranty. However, FOXWELL will bear the cost of shipping the product back to the customer after the completion of service.

“`

View Fullscreen

Trademarks FOXWELL is the trademark of Shenzhen Foxwell Technology Co., Ltd. All other marks are trademarks or registered trademarks of their respective holders. Copyright Information ©2024 Shenzhen Foxwell Technology Co., Ltd. All rights reserved. Disclaimer The information, specifications and illustrations in this manual are based on the latest information available at the time of printing. Foxwell reserves the right to make changes at any time without notice. Visit our website at www.foxwelltech.us For Technical Assistance, send us email at support@foxwelltech.com
1 NT680Plus Series User’s Manual_English_V1.01

One-Year Limited Warranty

Subject to the conditions of this limited warranty, Shenzhen Foxwell Technology Co., Ltd (“FOXWELL”) warrants its customer that this product is free of defects in material and workmanship at the time of its original purchase for a subsequent period of one (1) year.
In the event this product fails to operate under normal use, during the warranty period, due to defects in materials and workmanship, FOXWELL will, at its sole option, either repair or replace the product in accordance with the terms and conditions stipulated herein.
Terms and Conditions 1 If FOXWELL repairs or replaces the product, the repaired or replaced product shall be warranted for the remaining time of the original warranty period. No charge will be made to the customer for replacement parts or labor charges incurred by FOXWELL in repairing or replacing the defective parts.
2 The customer shall have no coverage or benefits under this limited warranty if any of the following conditions are applicable: a) The product has been subjected to abnormal use, abnormal conditions, improper storage, exposure to moisture or dampness, unauthorized modifications, unauthorized repair, misuse, neglect, abuse, accident, alteration, improper installation, or other acts which are not the fault of FOXWELL, including damage caused by shipping. b) The Product has been damaged from external causes such as collision with an object, or from fire, flooding, sand, dirt, windstorm, lightning, earthquake or damage from exposure to weather conditions, an Act of God, or battery leakage, theft, blown fuse, improper use of any electrical source, or the product was used in combination or connection with other product, attachments, supplies or consumables not manufactured or distributed by FOXWELL.
3 The customer shall bear the cost of shipping the product to FOXWELL. And FOXWELL shall bear the cost of shipping the product back to the customer after the completion of service under this limited warranty.
4 FOXWELL does not warrant uninterrupted or error-free operation of the product. If a problem develops during the limited warranty period, the consumer shall take the following step-by-step procedure:
a) The customer shall return the product to the place of purchase for repair or replacement processing, contact your local FOXWELL distributor or visit our website www.foxwelltech.us to get further information. b) The customer shall include a return address, daytime phone number and/or fax number, complete description of the problem and original invoice specifying date of purchase and serial number. c) The customer will be billed for any parts or labor charges not covered by this limited warranty. d) FOXWELL will repair the Product under the limited warranty within 30 days after receipt of the product. If FOXWELL cannot perform repairs covered under this limited warranty within 30 days, or after a reasonable number of attempts to repair the same defect, FOXWELL at its option, will provide a replacement product or refund the purchase price of the product less a reasonable amount for usage. e) If the product is returned during the limited warranty period, but the problem with the product is not covered under the terms and conditions of this limited warranty, the customer will be notified and given an estimate of the charges the customer must pay to have the product repaired, with all shipping charges billed to the customer. If the estimate is refused, the product will be returned freight collect. If the product is returned after the expiration of the limited warranty period, FOXWELL’ normal service policies shall apply and the customer will be responsible for all shipping charges.
5 ANY IMPLIED WARRANTY OF MERCHANTABILITY, OR FITNESS FOR A PARTICULAR PURPOSE OR USE, SHALL BE LIMITED TO THE DURATION OF THE FOREGOING LIMITED WRITTEN WARRANTY. OTHERWISE, THE FOREGOING LIMITED WARRANTY IS THE CONSUMER’S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. FOXWELL SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL, PUNITIVE OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO LOSS OF
2 NT680Plus Series User’s Manual_English_V1.01

ANTICIPATED BENEFITS OR PROFITS, LOSS OF SAVINGS OR REVENUE, LOSS OF DATA, PUNITIVE DAMAGES, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, COST OF CAPITAL, COST OF ANY SUBSTITUTE EQUIPMENT OR FACILITIES, DOWNTIME, THE CLAIMS OF ANY THIRD PARTIES, INCLUDING CUSTOMERS, AND INJURY TO PROPERTY, RESULTING FROM THE PURC HASE OR USE OF THE PRODUCT OR ARISING FROM BREACH OF THE WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, STRICT TORT, OR ANY OTHER LEGAL OR EQUITABLE THEORY, EVEN IF FOXWELL KNEW OF THE LIKELIHOOD OF SUCH DAMAGES. FOXWELL SHALL NOT BE LIABLE FOR DELAY IN RENDERING SERVICE UNDER THE LIMITED WARRANTY, OR LOSS OF USE DURING THE PERIOD THAT THE PRODUCT IS BEING REPAIRED. 6. Some states do not allow limitation of how long an implied warranty lasts, so the one-year warranty limitation may not apply to you (the Consumer). Some states do not allow the exclusion or limitation of incidental and consequential damages, so certain of the above limitations or exclusions may not apply to you (the Consumer). This limited warranty gives the Consumer specific legal rights and the Consumer may also have other rights which vary from state to state.
3 NT680Plus Series User’s Manual_English_V1.01

Safety Information
For your own safety and the safety of others, and to prevent damage to the equipment and vehicles, read this manual thoroughly before operating your scanner. The safety messages presented below and throughout this user’s manual are reminders to the operator to exercise extreme care when using this device. Always refer to and follow safety messages and test procedures provided by vehicle manufacturer. Read, understand and follow all safety messages and instructions in this manual.
Safety Message Conventions Used
We provide safety messages to help prevent personal injury and equipment damage. Below are signal words we used to indicate the hazard level in a condition.
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury to the operator or to bystanders.
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury to the operator or to bystanders.
Indicates a potentially hazardous situation which, if not avoided, may result in moderate or minor injury to the operator or to bystanders.
Important Safety Instructions
And always use your scanner as described in the user’s manual, and follow all safety messages.
Do not route the test cable in a manner that would interfere with driving controls. Do not exceed voltage limits between inputs specified in this user’s manual. Always wear ANSI approved goggles to protect your eyes from propelled objects as well as hot or
caustic liquids. Fuel, oil vapors, hot steam, hot toxic exhaust gases, acid, refrigerant and other debris produced by
a malfunction engine can cause serious injury or death. Do not use the scanner in areas where explosive vapor may collect, such as in below-ground pits, confined areas, or areas that are less than 18 inches (45 cm) above the floor. Do not smoke, strike a match, or cause a spark near the vehicle while testing and keep all sparks, heated items and open flames away from the battery and fuel / fuel vapors as they are highly flammable. Keep a dry chemical fire extinguisher suitable for gasoline, chemical and electrical fires in work area. Always be aware of rotating parts that move at high speed when an engine is running and keep a safe distance from these parts as well as other potentially moving objects to avoid serious injury. Do not touch engine components that get very hot when an engine is running to avoid severe burns. Block drive wheels before testing with engine running. Put the transmission in park (for automatic transmission) or neutral (for manual transmission). And never leave a running engine unattended. Do not wear jewelry or loose fitting clothing when working on engine.
4 NT680Plus Series User’s Manual_English_V1.01

Using This Manual

We provide tool usage instructions in this manual. Below is the conventions we used in the manual.
1.1 Bold Text
Bold text is used to highlight selectable items such as buttons and menu options. Example: Press the ENTER button to select.
1.2 Symbols and Icons
1.2.1 Solid Spot
Operation tips and lists that apply to specific tool are introduced by a solid spot . Example: When Settings is selected, a menu that lists all available options displays. Menu options include:
WIFI Language Unit Shortcuts Install Display Test Keypad Test About
1.2.2 Arrow Icon
An arrow icon indicates a procedure. Example: To change menu language: 1. Scroll with the arrow keys to highlight Language on the menu. 2. Press the ENTER button to select.
1.2.3 Note and Important Message
Note A NOTE provides helpful information such as additional explanations, tips, and comments. Example:
NOTE Test results do not necessarily indicate a faulty component or system.
Important IMPORTANT indicates a situation which, if not avoided, may result in damage to the test equipment or vehicle. Example: IMPORTANT Do not soak keypad as water might find its way into the scanner.

Introductions

This series of scanners from Foxwell are innovative diagnostic tools for most vehicles on the road today.
7 NT680Plus Series User’s Manual_English_V1.01

With the tool properly connected to the vehicle’s data link connector (DLC), you can use the scanner to read diagnostic trouble codes and view “live” data readings from a variety of control systems. You can also save “recordings” of the data readings, and print stored information.
2.1 Scanner Descriptions
This section illustrates external features, ports and connectors of the scanner.
Figure 2-1 Front View
1 Diagnostic Port – provides connection between vehicle and the scanner. 2 LCD Display – shows menus, test results and operation tips. 3 Function Keys / Shortcut keys – three keys that correspond with “buttons” on some screens for
executing special commands or provide quick access to most frequently used applications or functions. 4 Direction Keys – select an option or scroll through a screen of data or text. 5 ENTER Key – executes a selected option and generally goes to the next screen. 6 BACK Key – exits a screen and generally returns to previous screen. 7 HELP Key – displays helpful information. 8 Power Switch – press and hold for 5 seconds for emergency reboots. 9 USB Port – provides USB power connection between the scanner and PC/laptop. IMPORTANT Do not use solvents such as alcohol to clean keypad or display. Use a mild nonabrasive detergent and a soft cotton cloth.
8 NT680Plus Series User’s Manual_English_V1.01

2.2 Accessory Descriptions
This section lists the accessories that go with the scanner. If you find any of the following items missing from your package, contact your local dealer for assistance.
1 Quick Start Guide – provides brief operation instructions for the usage of the scanner. 2 Diagnostic Cable – provides connection between the scanner and a vehicle. 3 USB Cable – provides connection between the scanner and a computer to update and print data. 4 Warranty Card – A warranty card is required if you need any repair or replacement from us. 5 Blower Molding Case – stores the scanner and its accessories.
2.3 Technical Specifications
Display: Backlit, 4.3” TFT color display Working Temperature: 0 to 60 (32 to 140) Storage Temperature: -20 to 70 (-4 to 158) Power Supply: 8-18V vehicle power and 3.3V USB power Dimensions: (L*W*H): 200*130*40mm Weight: 1.8 Kgs

Getting Started

This section describes how to provide power to the scanner, provides brief introductions of applications loaded on the scanner and display screen layout and illustrates how to input text and numbers with the scan tool.
3.1 Providing Power to Scanner
Before using the scanner, make sure to provide power to the scanner.
The unit operates on any of the following sources:
12-volt vehicle power USB connection to computer
3.1.1 Connecting to Vehicle Power
The scanner normally powers on whenever it is connected to the data link connector (DLC).
To connect to vehicle power: 1. Locate the data link connector (DLC). The DLC is generally located under the dash on the driver
side of the vehicle. 2. Attached the Diagnostic cable to the scanner and tighten the captive screws to ensure good
connection. 3. Connect a correct adapter to the data cable according to the vehicle being serviced and plug it into
the vehicle DLC. 4. Switch the ignition key to the ON position. 5. The scanner automatically boots up.
IMPORTANT Never try to provide power for the scan tool from USB connection when the scan tool is communicating with a vehicle.
3.1.2 Connecting to Computer with USB Cable
The scan tool also receives power through the USB port when it is connected to a computer for data printing.
To connect to computer: 1. Connect the scanner to a computer with the USB cable provided.
9 NT680Plus Series User’s Manual_English_V1.01

3.2 Application Overview
When the scan tool boots up, the Home screen opens. This screen shows all applications loaded on the unit. The available vehicle applications may vary depending on software configuration.
Auto VIN – leads to screens for identifying a car by VIN reading. OBDII/EOBD – leads to OBDII screens for all 9 generic OBD system tests. Diagnostic – leads to screens for diagnostic trouble code information, live data stream, ECU
information of a variety of vehicles. Maintenance – leads to screens of tests of the most frequently required service features. Settings – leads to screens for adjusting default settings to meet your own preference and view
information about the scanner. Data Manager – leads to screens for access to data records. Update – leads to screen for updating the scanner.
Figure 3-1 Sample Home Screen
3.3 Input Dialog Box
This section illustrates how to use the scan tool to input letters and numbers, such as VIN number, channel number, test values and DTC number. Typically, you may be required to input letters or numbers when you are doing any of the following operations.
VIN entry input channel number set adaptation value enter block number enter login code key matching look up DTCs The scan tool provides 4 different types of keyboard to meet your specific needs. Depending on the needs of text entry, it automatically shows the most suitable keypad. classic QWERTY keyboard for input of texts that contain both letters and numbers numeric keyboard for input of numbers alphabet keyboard for input of letters hexadecimal keyboard for special functions, such as key matching, UDS coding To input text with the scan tool: 1. When you are requested to input text, press the function key Keyboard.
10 NT680Plus Series User’s Manual_English_V1.01

Figure 3-2 Sample Input Text Screen
2. Scroll with the arrow keys to highlight your desired letter or number and press the ENTER key to confirm.
Figure 3-3 Sample Numeric Keyboard Screen
3. To delete a letter or number, use the function key Cursor Forward to move the cursor to it and then press the Backspace button.
4. When finished the entry, press Completed key to continue.

Vehicle Identification

This section illustrates how to use the scanner to identify the specifications of the vehicle under test. The vehicle identification information presented is provided by the ECM of the vehicle being tested. Therefore, certain attributes of the test vehicle must be entered into the scan tool to ensure the data displays correctly. The vehicle identification sequence is menu driven, you simply follow the screen prompts and make a series of choices. Each selection you make advances you to the next screen. Exact procedures may vary somewhat by vehicle. It typically identifies a vehicle by any of the following means: Automatic VIN reading Manual VIN entry Manual vehicle selection NOTE Not all identification options listed above are applicable to all vehicles. Available options may vary by vehicle manufacturer.
11 NT680Plus Series User’s Manual_English_V1.01

4.1 Auto VIN
Auto VIN is a shortcut for VIN reading menu which typically includes following options: Automatic VIN acquisition Manual input VIN
4.1.1 Automatic VIN Acquisition
Automatic VIN Acquisition allows to identify a vehicle by automatically reading the vehicle identification number (VIN). To identify a vehicle automatic VIN reading: 1. Scroll with the arrow keys to highlight Auto VIN from the main menu and press the ENTER key.
Figure 4-1 Sample Main Menu Screen
2. Select Automatic VIN Acquisition from the menu, and press the ENTER key.
Figure 4-2 Sample VIN Reading Screen
3. The scan tool starts to communicate with the vehicle and read the Vehicle Specification or VIN Code automatically.
12 NT680Plus Series User’s Manual_English_V1.01

Figure 4-3 Sample Automatic VIN Reading Screen
4. Answer YES if the Vehicle Specification or VIN code is correct and a menu of controller selection displays. Answer NO if it is incorrect, and you are required to enter the correct VIN number manually.
Figure 4-4 Sample Manual VIN Entry Screen
5. If it takes too long to get the VIN code, press Cancel to stop and input the VIN manually. Or if failed to identify the VIN, please input the VIN manually or click Cancel to quit.
Figure 4-5 Sample Manual Entry Screen
4.1.2 Manual VIN Entry
Manual VIN Entry identifies a vehicle by manually inputting a 17-digit VIN code. To identify a vehicle by manual VIN entry: 1. Scroll with the arrow keys to highlight Auto VIN from the main menu and press the ENTER key.
13 NT680Plus Series User’s Manual_English_V1.01

Figure 4-6 Sample Main Menu Screen
2. Select Manually input VIN from the menu, and press the ENTER key.
Figure 4-7 Sample VIN Reading Screen
3. Press the function key Keyboard and a virtual keyboard opens for VIN entry.
Figure 4-8 Sample Manual VIN Entry Screen
4. Input a valid VIN code and use the function key Completed to confirm. The scan tool starts to identify the vehicle.
4.2 Manual Vehicle Selection
Select vehicle brand you are to test, and two ways of getting to the diagnostic operations are available.
SmartVIN Manual Selection
14 NT680Plus Series User’s Manual_English_V1.01
