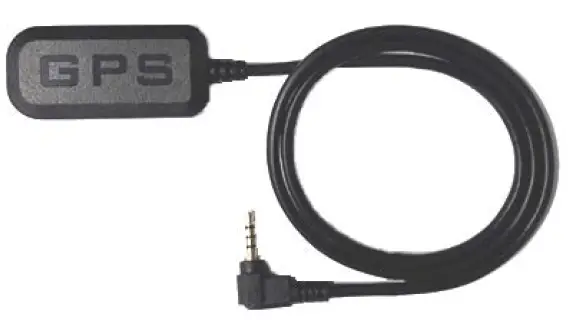

Fourstech FST-UE1528M GPS Receiver Module
Revision History
| Revision | Description of change | Revision date | APPR. |
| VER1.0 | Initial Release | Apr-21-2015 | ywkim |
| VER1.1 | – GPS Chipset변경
– UBX-G7020-KT ->UBX-G8020-KT |
Apr-10-2019 | ywkim |
Introduction
General Description
The FST-UE1528M is the latest generation of low power GPS receiver Module from FourStech. It’s a highly integrated GPS receiver offering high performance and wide range applications. FST-UE528M receiver module designed to receive the L1 band signal 1575.42 MHz.
Feature Highlights
- Low power, Fast standby mode
- Single Supply Voltage(3.3V)
- Integrated 0.5ppm TCXO
- UART Support 9,600bps baud rate
- 72 channels Ublox 7 Engine
- Hybrid GPS/SBAS engine (WAAS, EGNOS, QSZZ)
- Anti-jamming technology
- Removes in-band jammers up to 80dB-Hz
- Navigate down to –163 dBm
- Faster acquisition with AssistNow Autonomous
- Support standard NMEA-0183 and binary protocol
- RoHS Compliant
- ARM7TDMI-S Technologies
- GPS Week rollover : 2015-10-18 ~ 2035-06-02
- Small size 22 x 46 x 10mm
Applications
- Telematics equipment
- Marine navigation application
- Mobile Phone and Handheld GPS receiver application
- Ideal for PDA, Pocket PC and other computing devices at GPS application
Specification
Absolute Maximum Ratings
| Symbol | Parameter | Min | Max | Unit |
| VCC | Supply Voltage | 0 | 6.0 | V |
| VBAT | Input back_Up Battery | 0 | 5 | V |
| ESD | ESD Rating | – | 2 | KV |
| TSTG | Storage Temperrature Range | -40 | +85 | ˚C |
| Humidity | – | 95 | % |
Note : Absolute maximum ratings are stress ratings only, and functional operation at the maximums is not guaranteed. Stress beyond the limits specified in this table may affect device
reliability or cause permanent damage to the device.
For functional operating conditions, please refer to the operating conditions tables as follow.
Operating Conditions
| Symbol | Parameter | Min | Typ | Max | Unit |
| VCC | Supply Voltage | 3.0 | 3.3 | 5.5 | V |
| VBAT | Voltage Back_up battery | 1.4 | 3.1 | 3.3 | V |
| ViH | I/O input high level | 0.7×3.0 | – | 3.3 | V |
| ViL | I/O input low level | -0.4 | – | 0.45 | V |
| VoH | I/O output high level | 0.7×3.0 | – | 3.0 | V |
| VoL | I/O output low level | 0.4 | V | ||
| Temperature | With battery | -20 | – | +60 | ˚C |
| *Temperature | Without battery | -30 | – | +85 | ˚C |
DC Electrical Characteristics
| Parameter | Min | Typ | Max | Unit | |
| Power Consumption (With LNA) | Average Acquisition | – | 42 | – | mA |
| Average Tracking
(Max performance Mode) |
– | 40 | – | mA | |
| V_BackUp | – | 15 | – | uA |
General & Performance Specification
| Parameter | Description | Specification |
| Receiver Type | L1 Band | 1575.42MHz |
| Sensitivity | Tracking | -166dBm |
| Cold starts | -148dBm | |
| Hot starts | -157dBm | |
| Time To First Fix | Cold start (autonomous) | 29sec |
| Warm start (autonomous) | 26sec | |
| Hot start (autonomous) | <1S | |
| Accuracy | Position | 2.5m CEP |
| SBAS | 2.0m CEP | |
| Operation Limits | Velocity | 500m/s |
| Altitude | 50,000m | |
| Serial Interface | 1 UART | 9,600bps Full Duplex |
| Protocol Message | NMEA-0183 | Version 4.0 With WGS-84 |
|
LNA |
Gain | 20dB±1dB |
| Noise Figure | Less than 0.65dB | |
| Antenna Type | Active antenna | Patch or Linear |
| Centerfrequency | 1575.42MHz | |
| Polarrization | RHCP | |
| Impedance | 50Ω |
Pin Assignment
| Pin Number | Name | I/O | Description |
| 1 | VCC | I | Supply Voltage dc 3.3V |
| 2 | TXD | O | Serial data output (GPS to Host) |
| 3 | RXD | I | Serial data input (Host to GPS) |
| 4 | GND | – | GND |
VCC(+3.3V DC power Input)
This is the main DC power supply input pin. IT provides voltage to module.
TXD (GPS to Host)
This is the main transmitting NMEA data and is used to programming download or debug port. NMEA Format 9,600 Baud rate.
RXD (Host to GPS)
This is the UART receiver port of the module. It is used to receive software commands and If you want you can change Baud rate, Static Hold, assistnow autonomous…
GND
GND provides the ground.
S/W – NMEA Protocol
NMEA Protocol Overview
NMEA Message Overview
GGA
GLL
GSA
GSV
RMC
VTG
GRS
GST
ZDA
GBS
GTM
GPQ
TXT
GPS NMEA DATA (Exam.)
