FOREST DS® Track
DS® Design System Track with an elegant profile
MANUAL OPERATION
EASY TO BEND
DS Track
FOREST DS® Design System Track
FOREST Batons
THE WORLD BEHIND YOUR DRAPERIES
DS® DESIGN SYSTEM
Scan for more information on the FOREST Track Systems
https://www.forestdh.com/track-collections
- Aluminum extrusion, powder coated and lubricated with a patented process.
- Maximum weight is 3 lbs/ft.
- DS tracks can be bent and curved. An exact size template is required.
- Hand or baton draw, one or two way.
- Stackback: ripplefold – 6” per width, pinchpleat – 7” per width, cubicle – 5” per width, accordiafold – 5” per width.
ASSEMBLED SET
Includes track, masters, pinchpleat or ripplefold carriers, brackets, and 36” white fiberglass baton at the end of brochure.
25 White
89 Graphite
BATON OPTIONS
White fiberglass batons are available in 36”, 48”, 60”, and 72” lengths.
See all baton options, including the finishes below, at the end of brochure.
 |
 |
 |
 |
| 25 White | 59 Black | 81 Bronze | 90 Grey |
| DS | COMPONENT | DS | COMPONENT | ||
 |
 |
DS Design System Track 1116-25 white 1116-89 graphite 16’ 4” |
 |
 |
9100-00 Channel Protector |
|
 |
3903-25 59 black Track Connector + key 3904-00 |
|
 |
3001-25 59 black Regular Duty Ceiling Bracket |
|
 |
2309-25 59 blackKS End Cap Multifunctional |
|
 |
3901-25 59 black Ceiling Splice/Bracket |
|
 |
3003-25 59 black Heavy Duty Ceiling Bracket w/ Smart Klick |
|
 |
52003-25 65 brown Economy Slide |
|
 |
30031-25 59 black Ceiling Bracket Cover use with 3003-XX |
|
|
2201-25 59 black Klick Carrier w/ Stainless Hook Use with grommets |
|
 |
53202-25 59 black 3” Smart Klick Wall Bracket w/ wide base, adjusts 3-4.5” |
|
 |
52005-25 Button Slide Carrier |
|
 |
53206-25 59 black 6” Smart Klick Double Wall Bracket w/ wide base adjusts 2.5”-4” & 6”-7.5” |
|
 |
52105-25 Button Slide Carrier w/ Hook |
|
 |
2001-25 59 black Klick Carrier, for pinch pleat |
|
 |
2525-25 Overlap R 2526-25 Underlap L Pinchpleat Master 2527-25 Overlap L 2528-25 Underlap R |
|
 |
2002-25 59 black Shirrtape Carrier |
|
 |
B8809-23-00 Overlap R B8809-24-00 Underlap L 59 black Plastic Snap Master |
|
 |
2004-25 59 black Snap Carrier, for accordiafold |
|
 |
52410-25 Butt R 52409-25 Butt L 59 black Standard Butt Master w/ snaps and for baton use |
|
 |
Two Piece Connected Snap Carrier w/ Square Base, in plastic sleeve. Use 1 1/4” snap tape 2114-25, 59 black 60% fullness, 2 5/8” OC 2111-25, 65 brown, 90 grey 80% fullness, 2 3/8” OC 2112-25, 59 black 100% fullness, 2 1/8” OC 2115-25, 59 black 120% fullness, 1 7/8” OC |
|
 |
2305-25 59 black Twist On End Stop |
|
 |
52307-90 End Lock |
|||
|
 |
2308-25 Return Plate reversible, 2 1/2” return |
|||
|
 |
54110-25 36” Fiberglass Baton w/ snap See all batons at the end of document |
|||
1 3/4” from top of track to bottom of J hook. Standard item in assembled sets.
FOREST DS® SPECIFICATIONS
PRODUCT INFORMATION
- Elegant and aesthetically pleasing hand drawn system for all types of light to medium weight draperies.
- Quick installation with “Smart Klick” brackets for wall and ceiling applications.
- Hidden brackets are behind the elegant shape of the track.
- Heavy duty clickable carriers are UV protected and offer smooth, easy traversing.
- Can be used with pinchpleat, ripplefold and accordiafold draperies.
- Recommended maximum fabric weight is 3 lbs./ft.
- Track finish is a chromated powder coating with a factory applied patented dry lubricant.
- Limited lifetime warranty.
- DS Track
- Carrier
- Stop Carrier
- End Stop
- Endcap
PROFILE
- Aluminum Extrusion

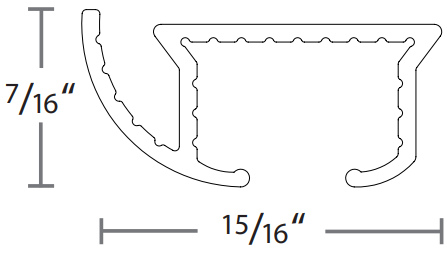

- Dimensions: 1 1/4” x 1/2”
FOR USE IN
Hotels, motels, offices, schools, healthcare facilities, residences or at any location where an elegant hand drawn system is desired.
 |
 |
| Easy installation click – position – tighten | clickable carrier |
APPLICATIONS
MOUNTING BRACKETS
Brackets need to be placed every 24”.
Heavy Duty Ceiling Bracket with Smart Klick 3003-XX
3” Smart Klick Wall Bracket 53202-XX
6” Smart Klick Double Wall Bracket 53206-XX
FOREST BATONS
FIBERGLASS, ACRYLIC, ADA & COMPONENTS
| BATONS | COMPONENT | BATONS | COMPONENT | ||||||||||
|
 |

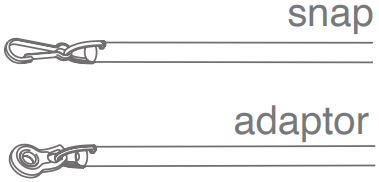

3/8” Fiberglass Baton Must order screw separately 36” 54110-25 white w/ snap 54310-25 white w/ adaptor 54110-59, 81, 90 w/ snap 48” 54111-25 white w/ snap 54311-25 white w/ adaptor 54111-59, 81, 90 w/ snap 60” 54112-25 white w/ snap 54312-25 white w/ adaptor 54112-59, 81, 90 w/ snap 72” 54113-25 white w/ snap 54313-25 white w/ adaptor 54113-59, 81, 90 w/ snap 84” 54114-25 white w/ snap 96” 54115-25 white w/ snap |
|
 |
9013-00 Baton Holder, clear acrylic |
||||||||
|
Colors available for 3/8” Fiberglass Batons
|
|
 |
54001-16 Baton Snap |
|||||||||
|
 |
1/2” Clear Acrylic Baton Must order screw separately 36” 54510-00 w/ snap 54710-00 w/ adaptor 48” 54511-00 w/ snap 54711-00 w/ adaptor 60” 54512-00 w/ snap 54712-00 w/ adaptor 72” 54513-00 w/ snap 54713-00 w/ adaptor |
|
 |
9015-00 Hex Head Shoulder Screw for baton w/ adaptor |
||||||||
|
 |
ADA Clear Acrylic Baton 48” 54911-00 w/ adaptor |
|
 |
54000-16 D-Ring |
||||||||
BATONS DECORATIVE METAL & WOOD
 |
 |
 |
| 29MWAND-XX 40” Metal Baton |
29AWAND-16 40” Round Metal Baton Stainless Steel |
29SWAND-16 40” Square Metal Baton Stainless Steel |
 |
 |
 |
| 29IWAND-XX 40” Wrought Iron Baton |
19WWAND-XX 40” Wood Baton |
19CWAND-XX 40” Modern Baton |
WWW.FORESTDH.COM
678.721.0004
SALES@FORESTDH.COM
